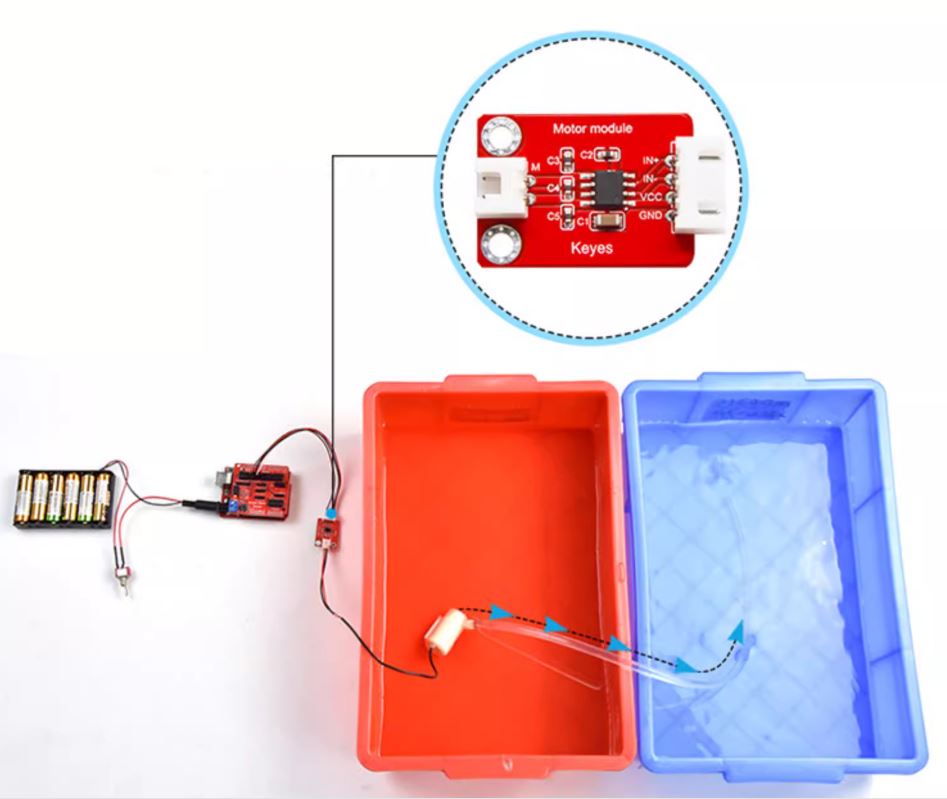

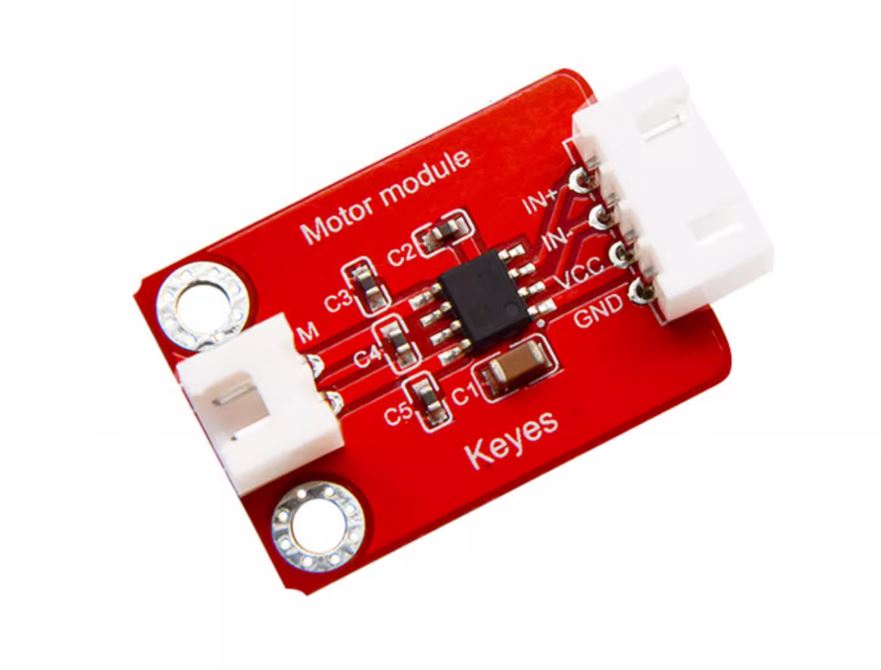

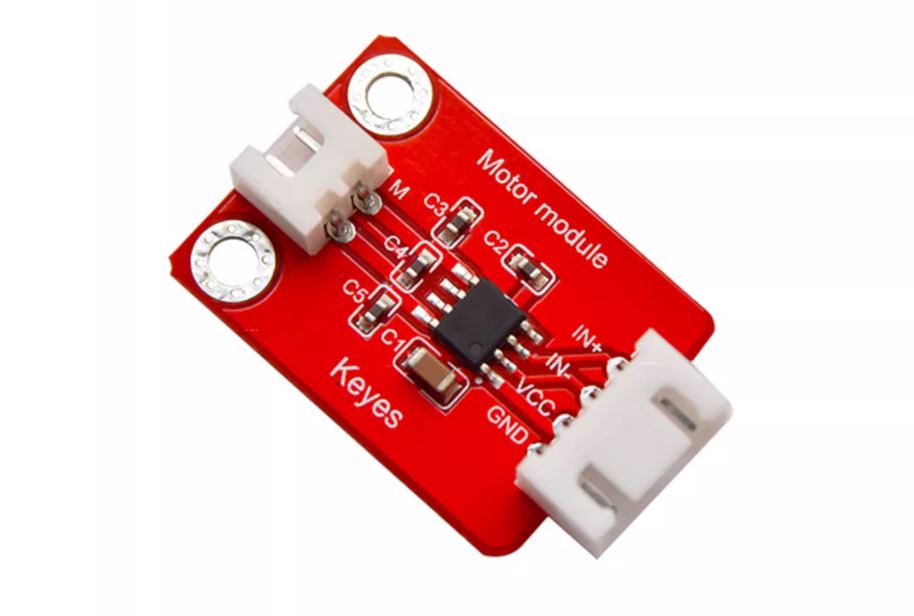

The module is designed to drive a small fan or water pump. It utilizes the HR1124S motor control chip, which is a single-channel H-bridge driver chip used in DC motor solutions.
Operating Voltage: DC 1.8V-6.8V
Rdson: 0.3 ohm
Ambient Temperature: -10°C to +50°C
Leakage Current: 0.01uA
Standby Current: 0.2mA
Max Output Current: 1.2A
