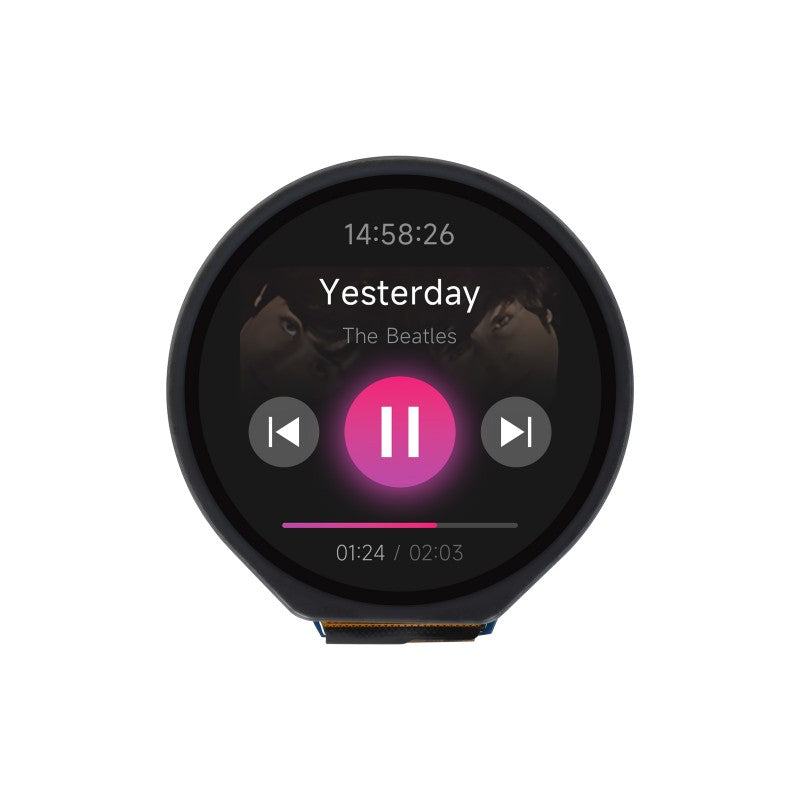

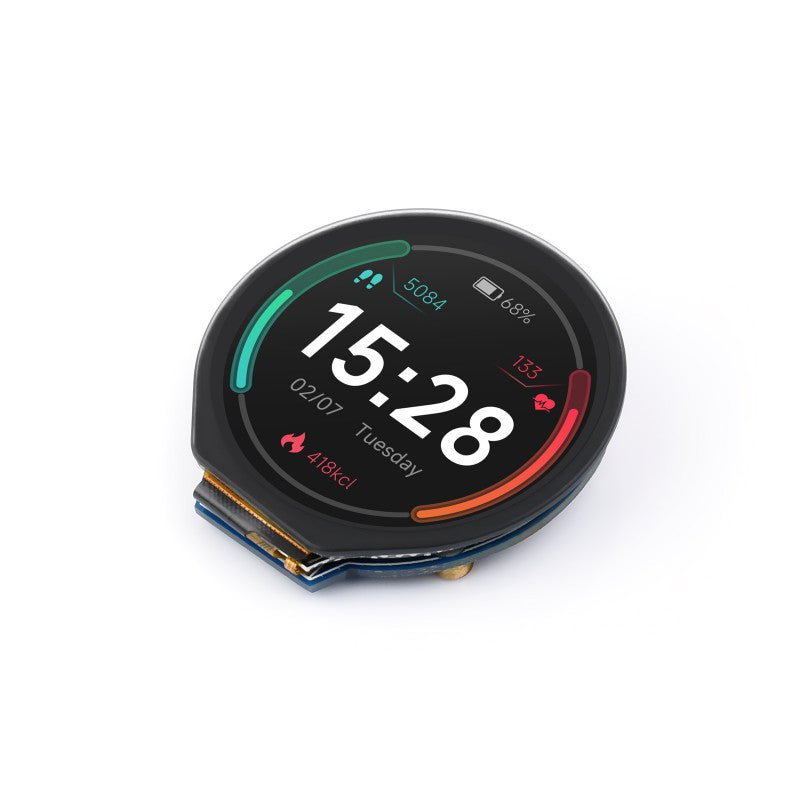

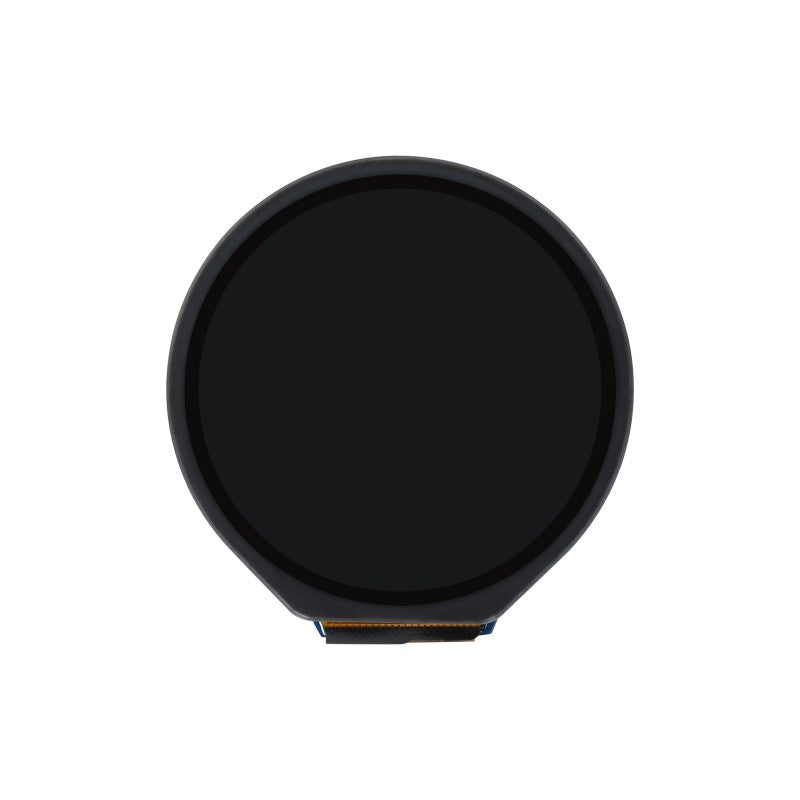

1.28inch Round LCD Display Module with Touch panel, 240×240 Resolution, IPS, SPI And I2C Communication

Description

1.28inch Round LCD Display Module with Touch panel, 240×240 Resolution, IPS, SPI And I2C Communication

Features

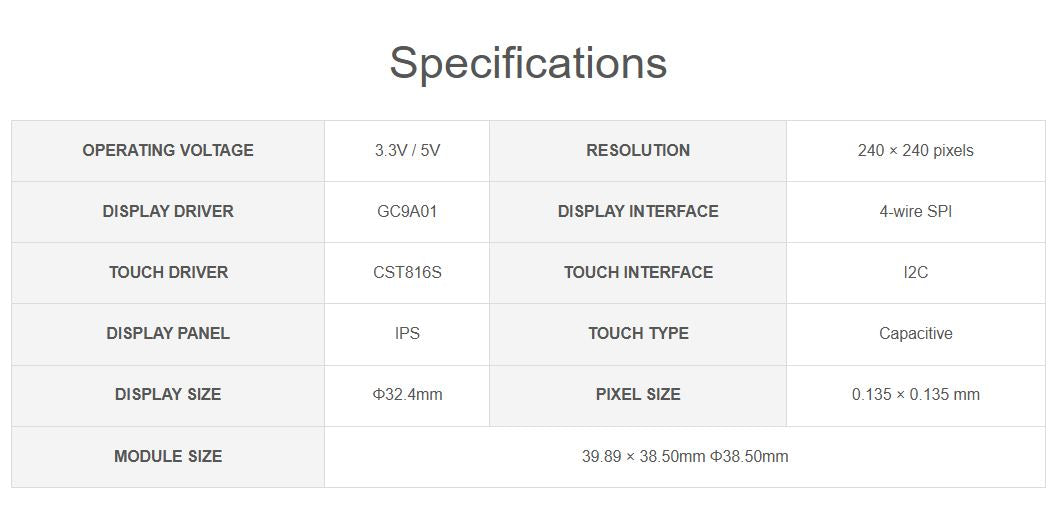

• 240×240 resolution, 65K colors, clear and colorful displaying effect
• High touch screen transmittance, fast response and long lifetime

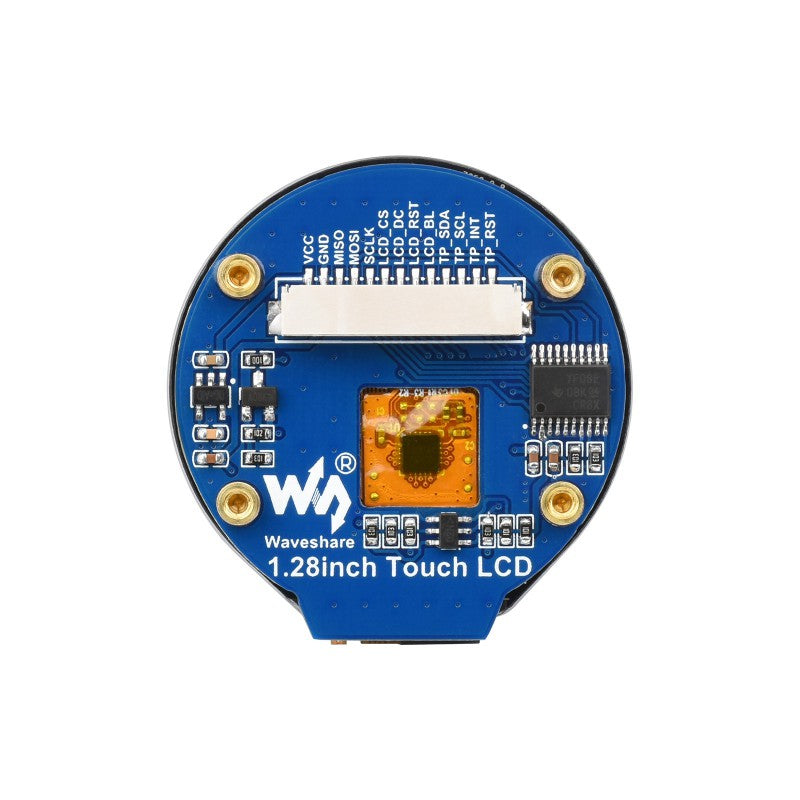

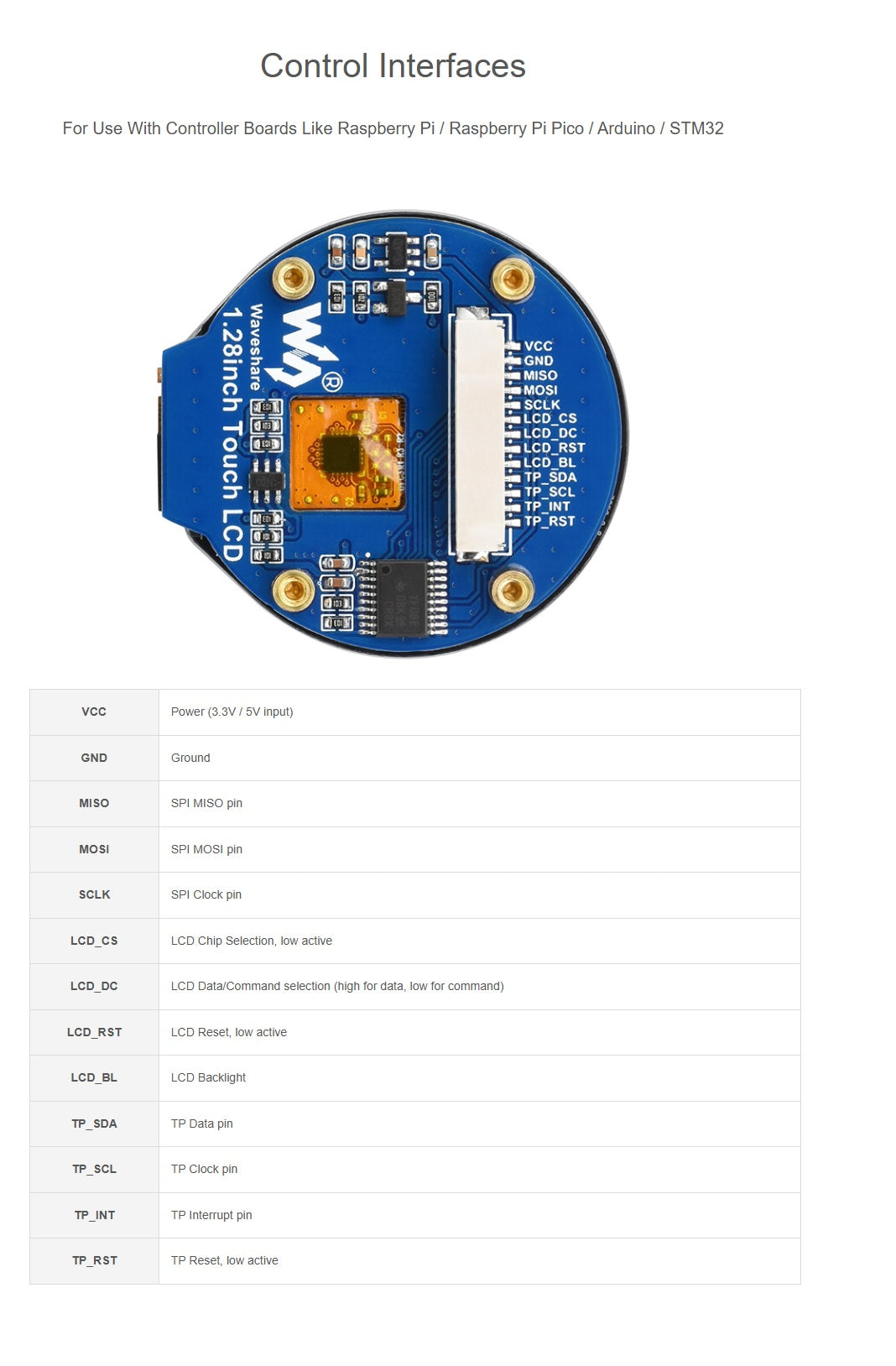

• Embedded GC9A01 driver chip and CST816S capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi/Raspberry Pi Pico/Arduino/STM32

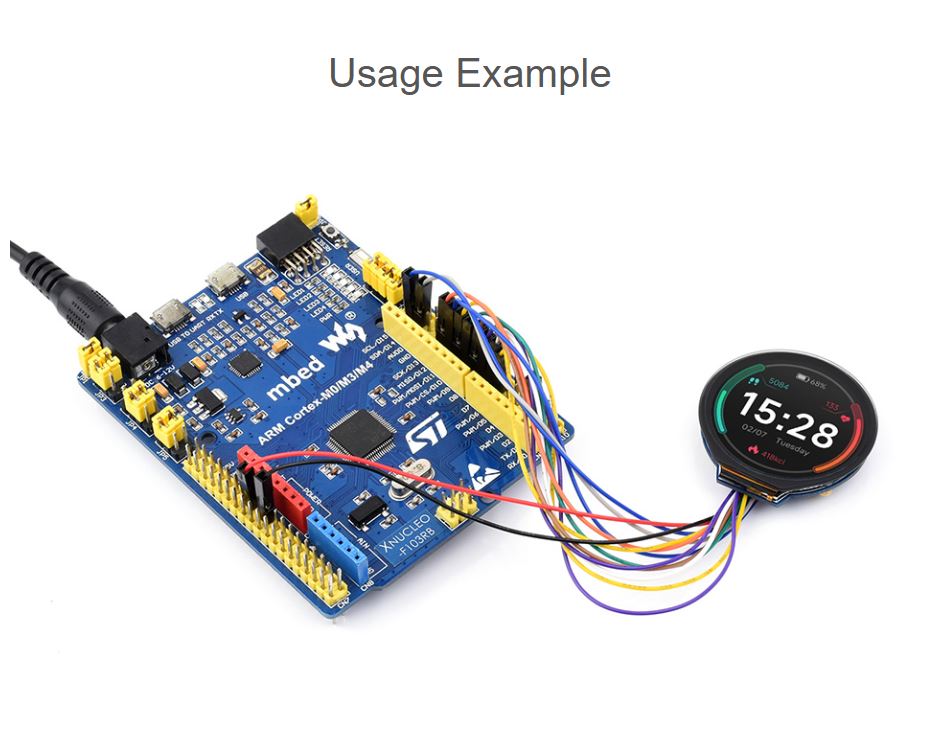

• Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32)

Documentation

• Wiki
• 1.28inch_Touch_LCD_Schematic
• 1.28inch Touch LCD 3D file
• 1.28inch Touch LCD 2D file
• GC9A01A Datasheet
• CST816S/T Register Datasheet
• CST816S/T Datasheet

Software

• Zimo221
• Image2Lcd
• Image2Lcd Image Bitmap Conversion

Demo

• 1.28inch_Touch_LCD_Demo
