WaveShare

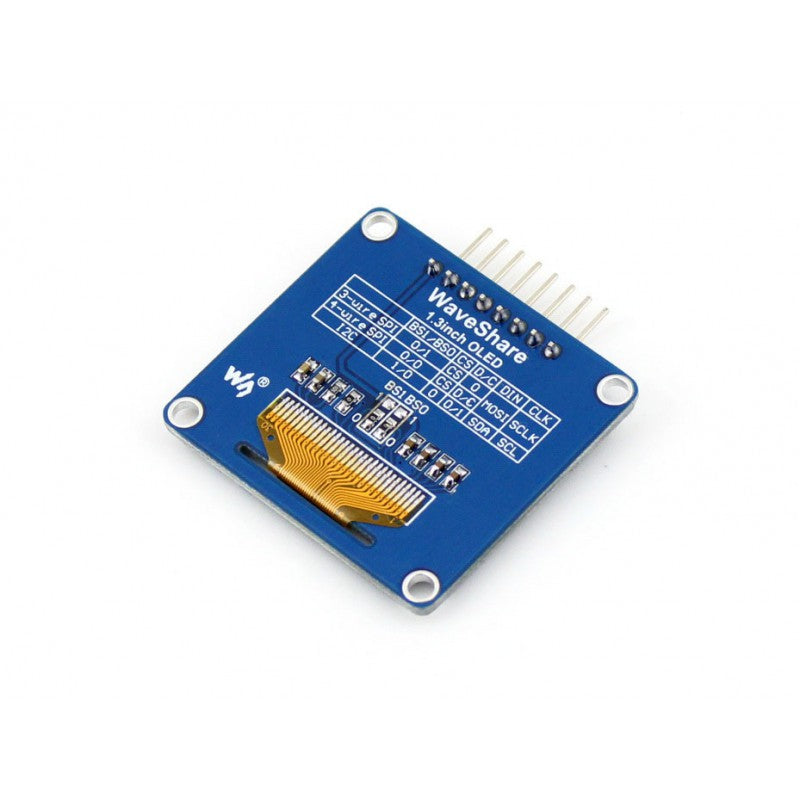

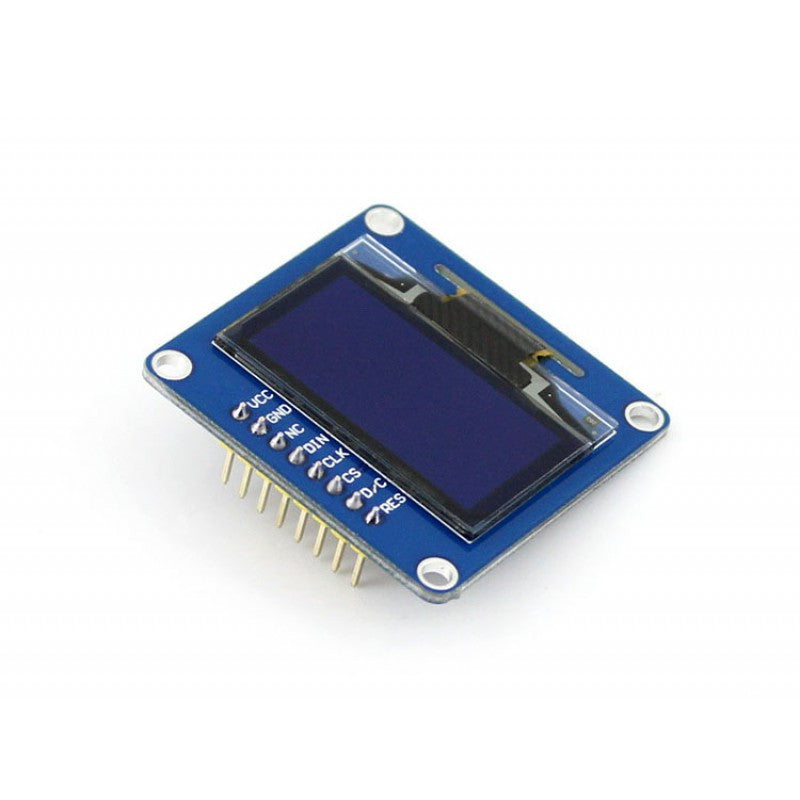

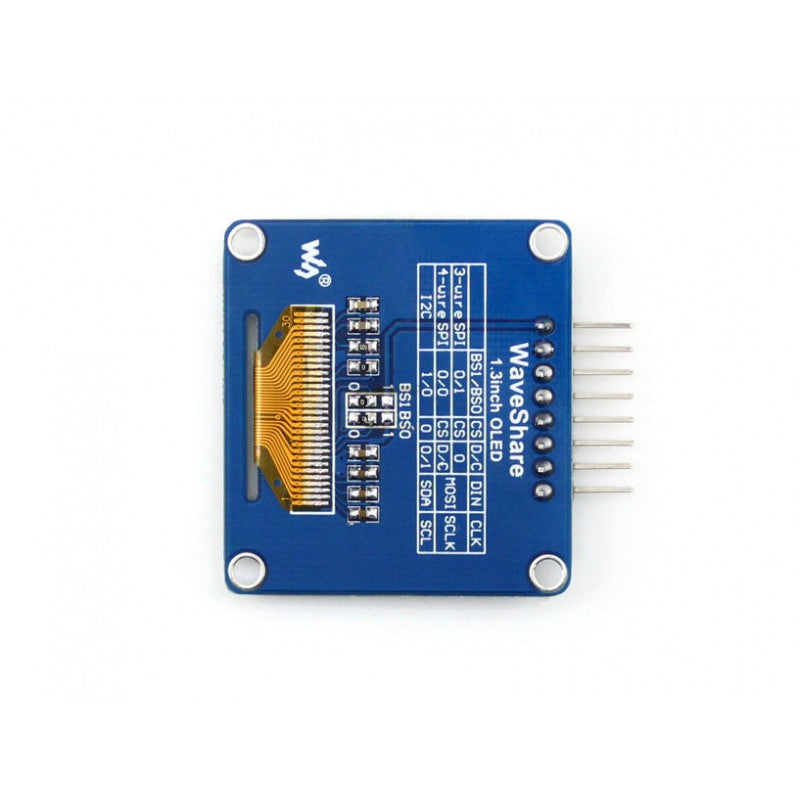

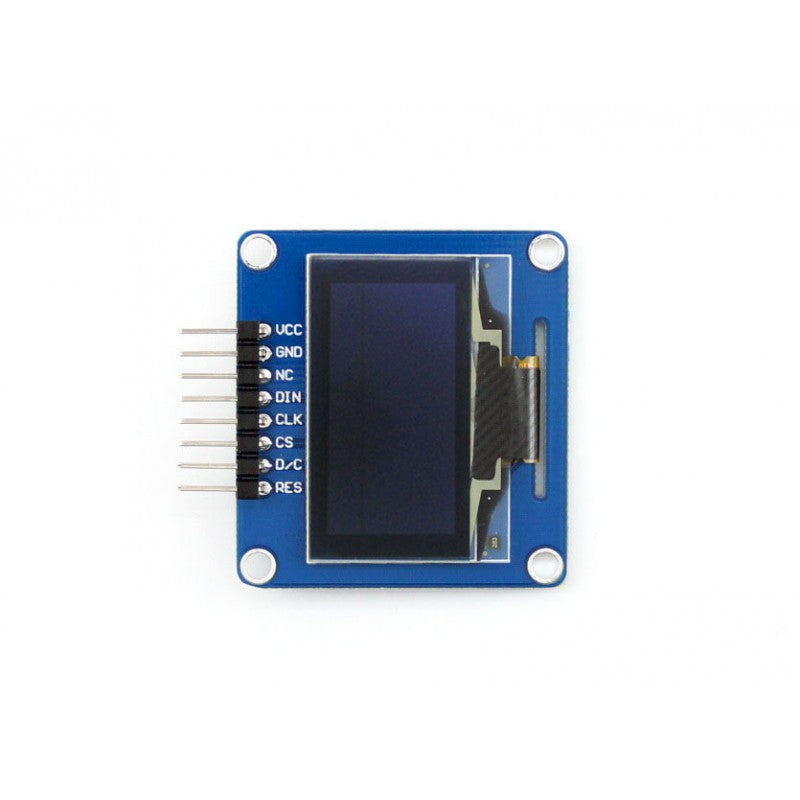

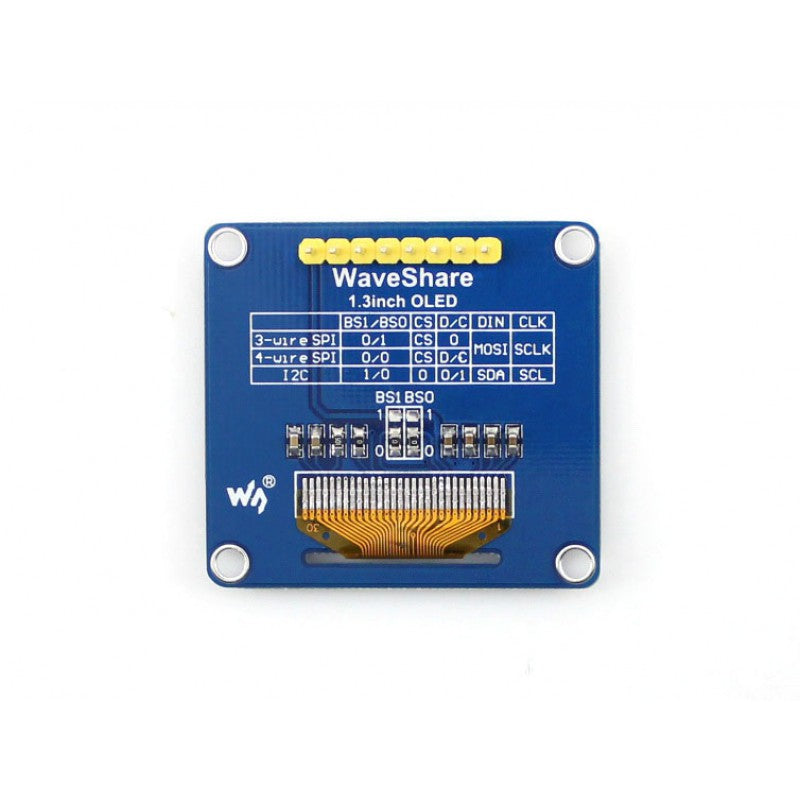

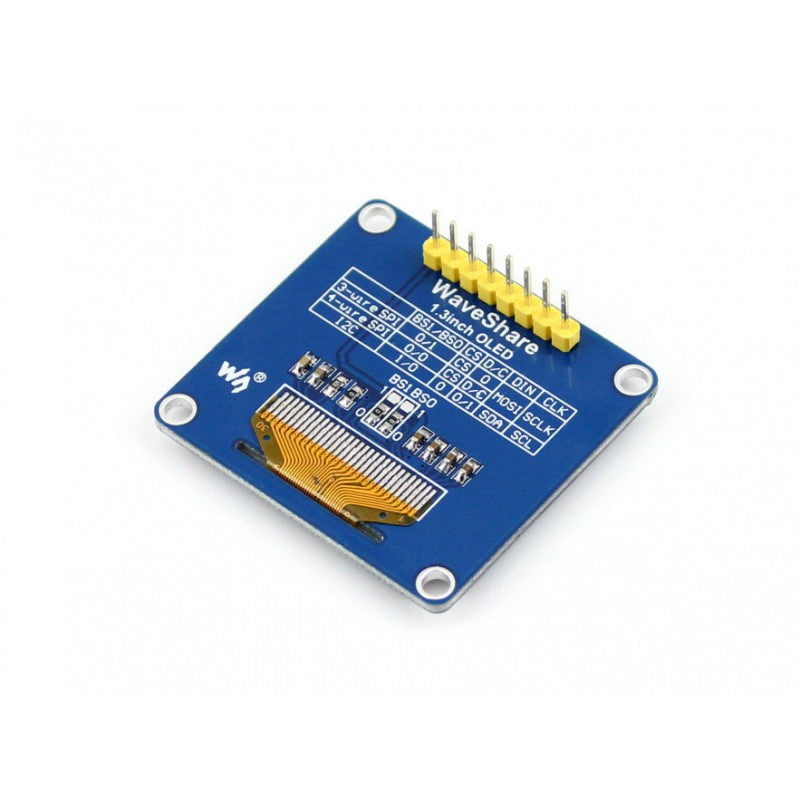

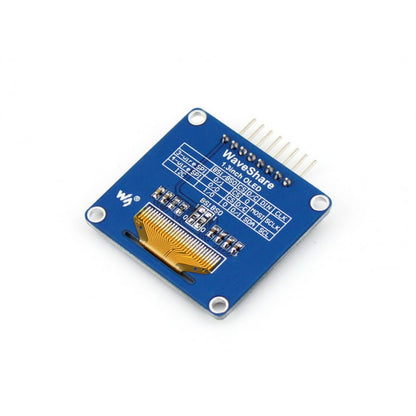

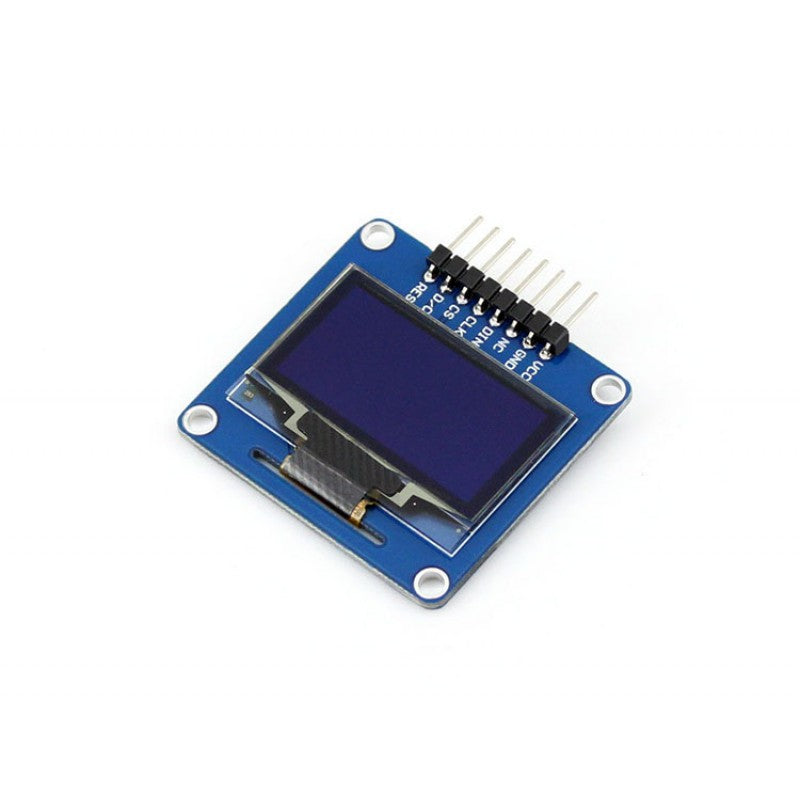

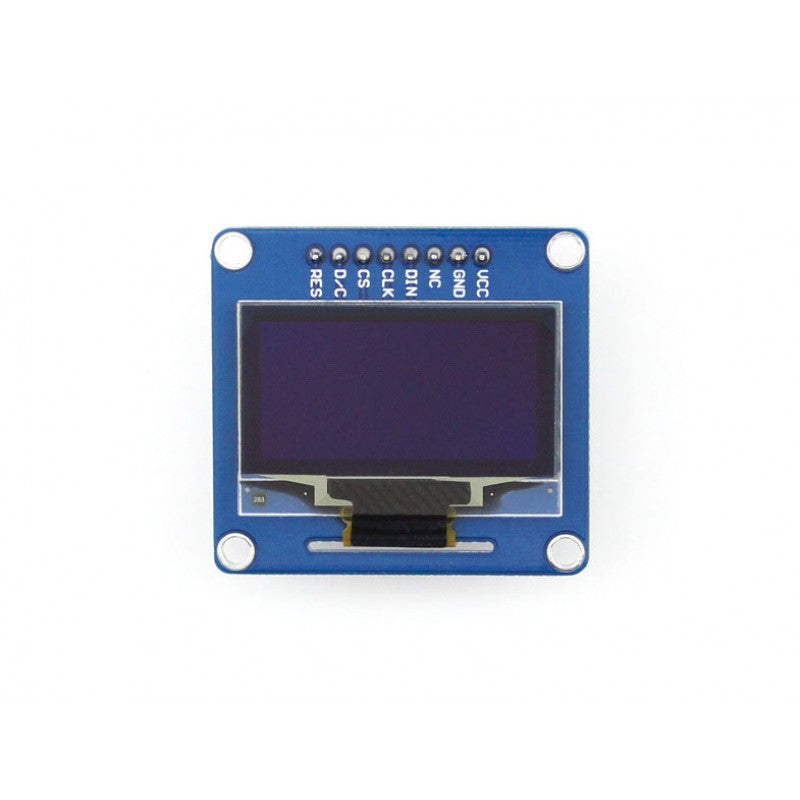

1.3inch OLED

1.3inch OLED

SKU:E52018-001

$10.95 AUD

$10.95 AUD

Sale Sold out

Shipping calculated at checkout.

Pin Header Straight and vertical Right angle

• Shipping cost $8 within AU, more details

• Returns accepted for defective items, more details.

View full details

Description

1.3inch OLED, SPI/I2C interfaces, two options of pin header:

Straight and vertical
Right angle

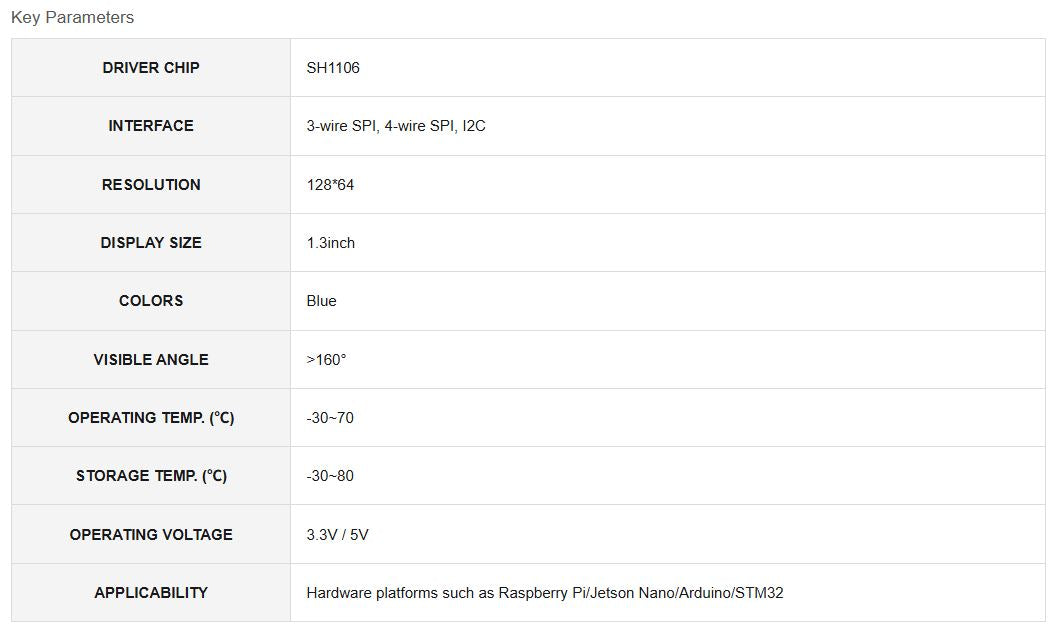

Specification

Operating Voltage: 3.3V/5V

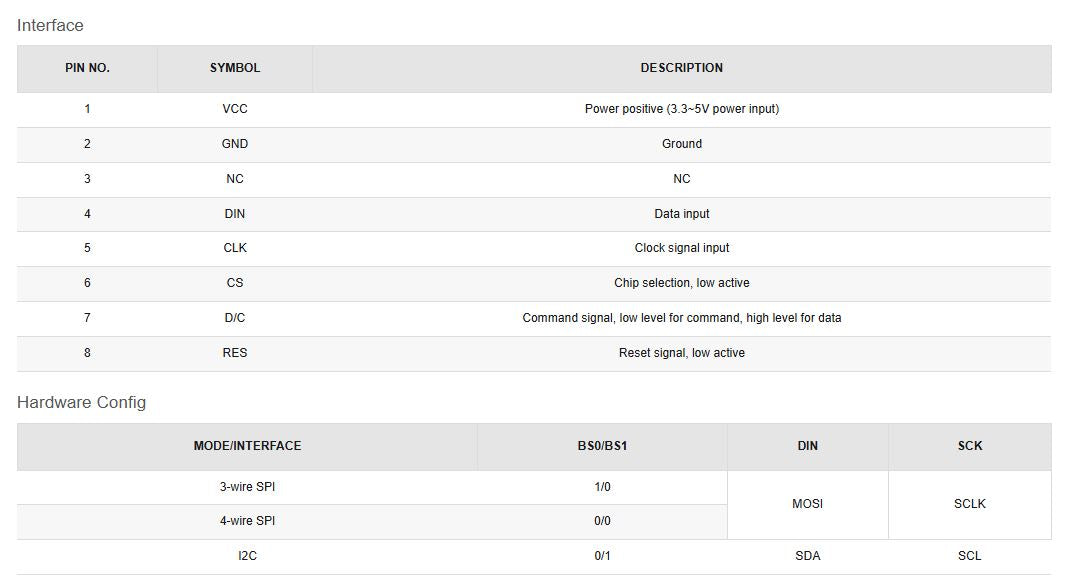

Communication Interface: 3-wire SPI, 4-wire SPI, I2C
Screen Types: OLED
Driver Chip: SH1106
Resolution: 128*64 (Pixel)
Display Size: 14.7（H）x 29.42（V）(mm)
Pixel Size: 0.21 x 0.21 (mm)
Dimension: 40.5 x 37.5(mm)
Display Color: Blue
Operating TEMP. (℃): -30~70
Storage TEMP. (℃): -30~80
Visible Angle: >160°
