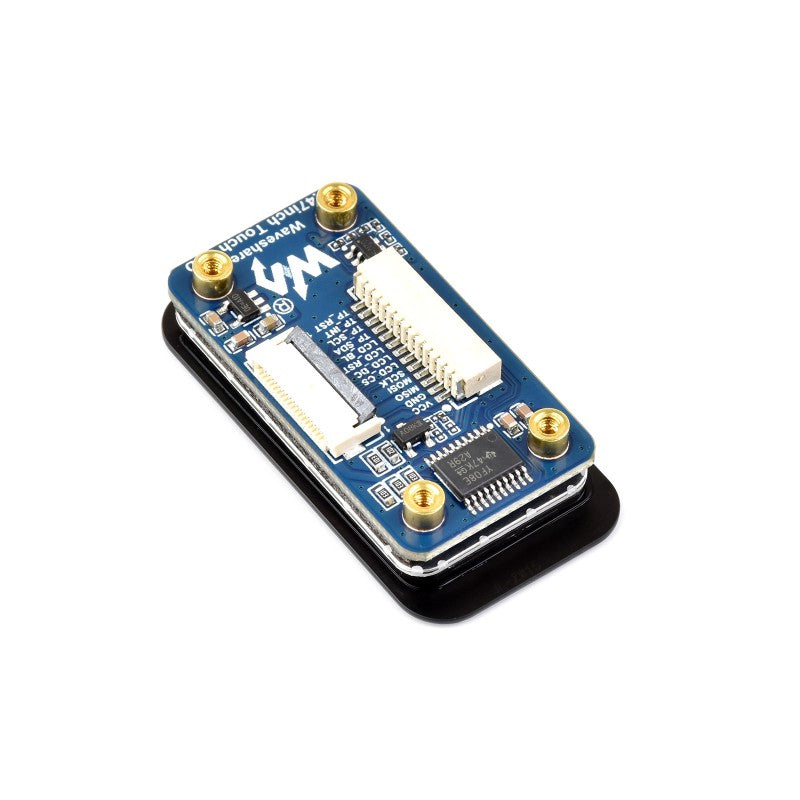

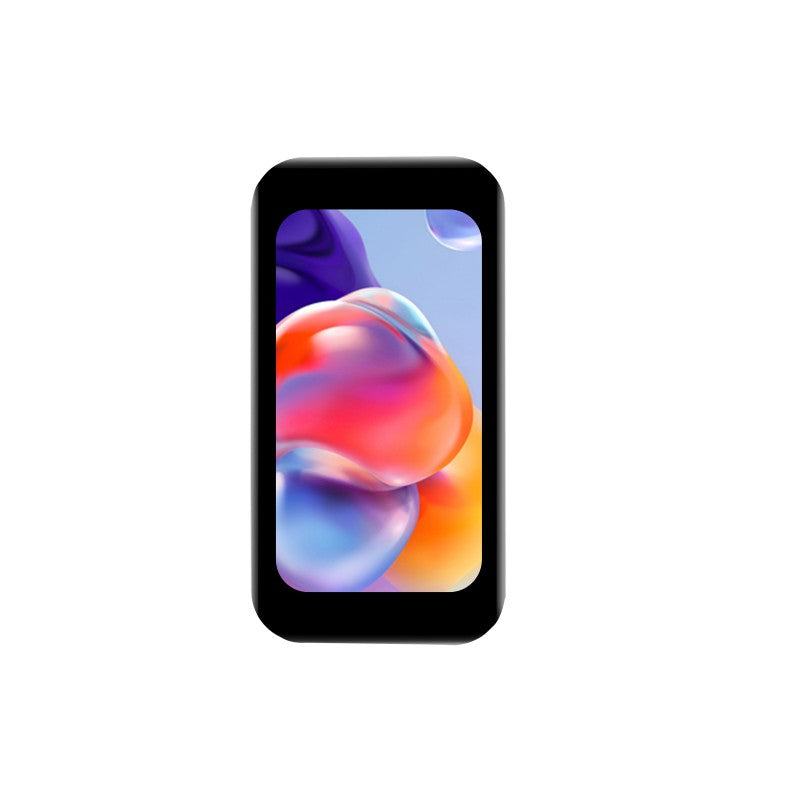

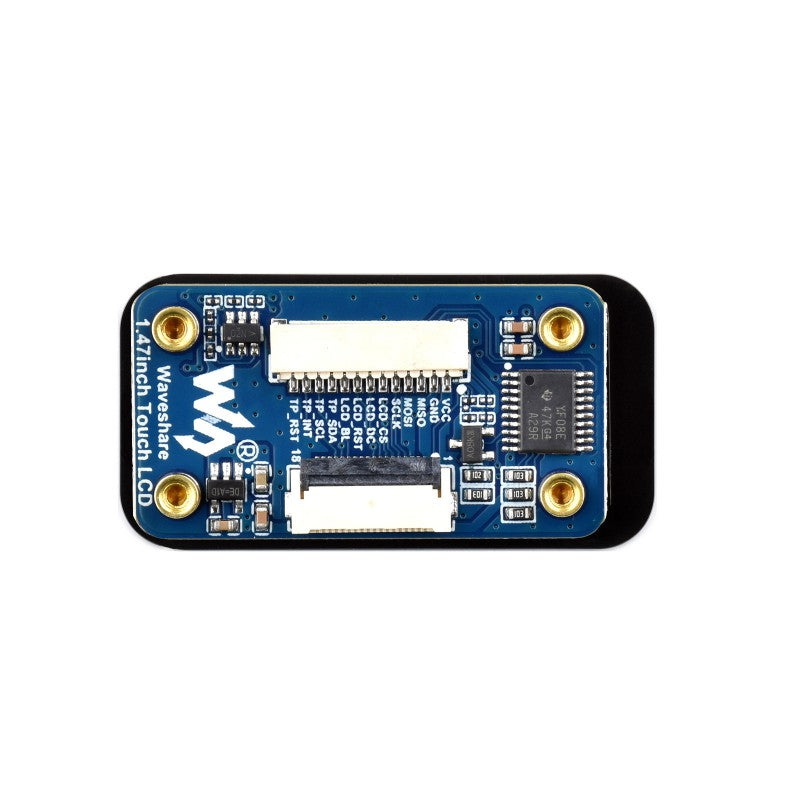

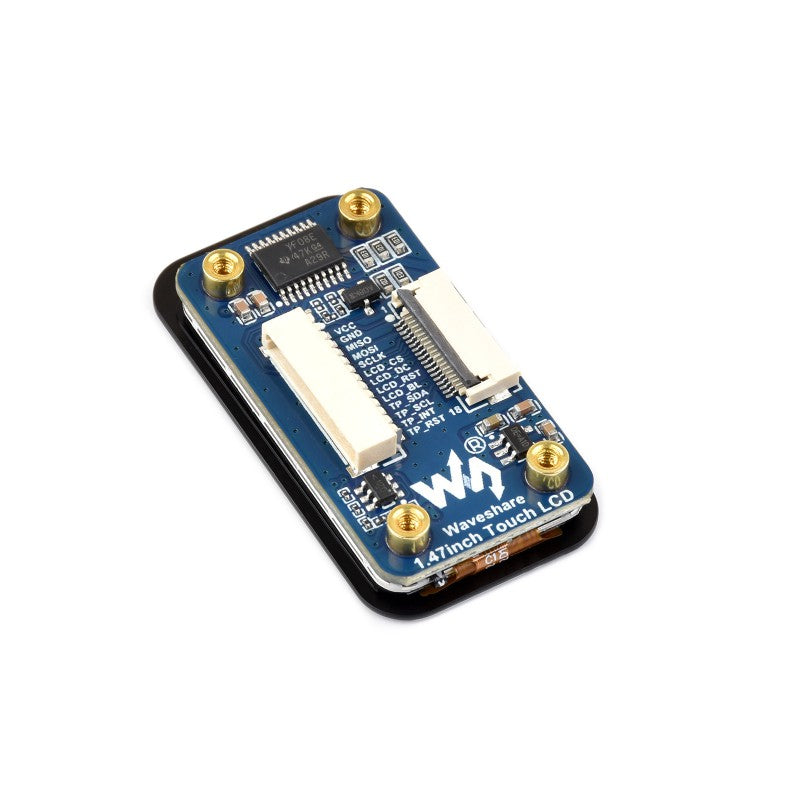

1.47inch LCD Display Module With Touch Panel, Micro LCD Display, 172×320 Resolution, IPS, SPI And I2C Communication, 262K Display Color

Description

1.47inch LCD Display Module With Touch panel, Micro LCD Display, 172×320 Resolution, IPS, SPI And I2C Communication, 262K Display Color

Features

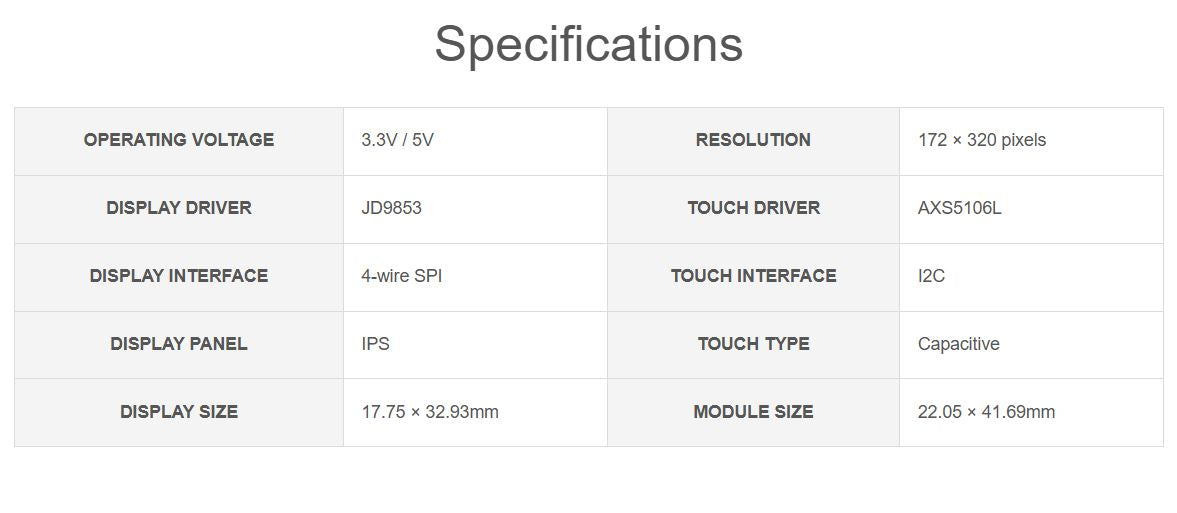

• 172×320 resolution, 262K colors, clear and colorful displaying effect
• High touch screen transmittance, fast response and long lifetime

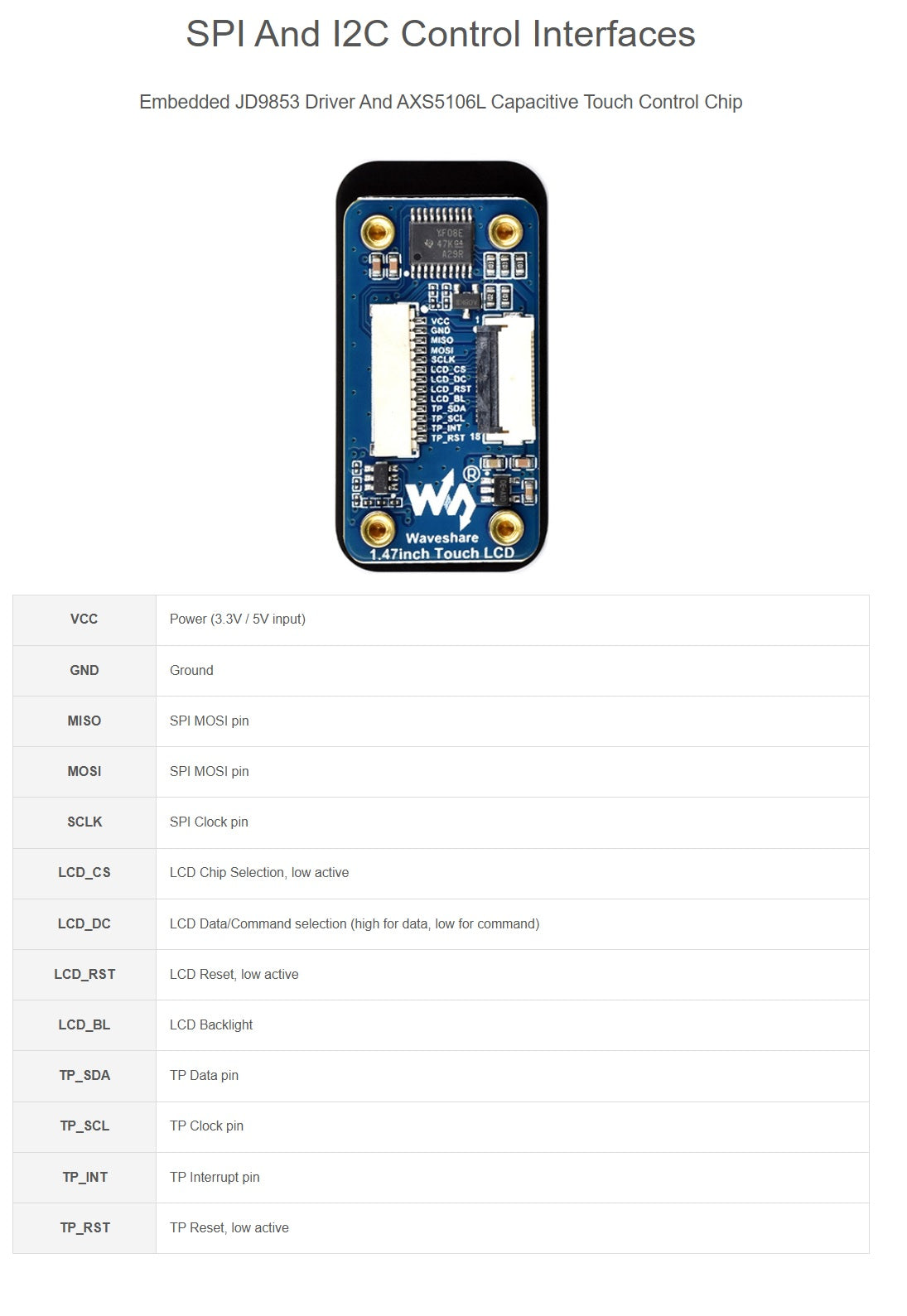

• Embedded JD9853 driver chip and AXS5106L capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino

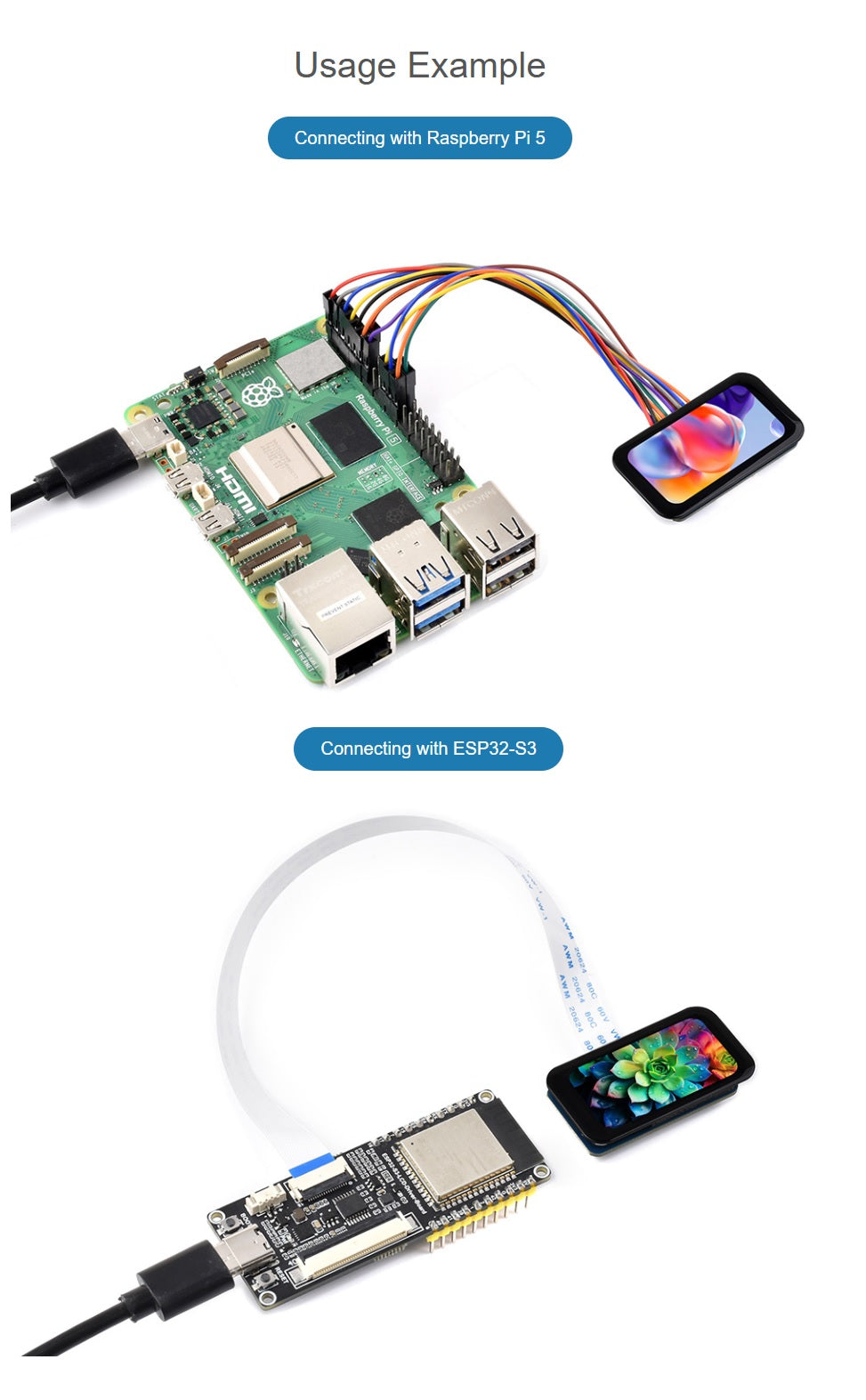

• Comes with online development resources and manual (examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino)

Documentation

• 1.47inch Touch LCD Schematic diagram
• JD9853 Datasheet
• AXS5106 Datasheet

Demo

• ESP32S3 Demo
• Raspberry Pi Demo
• Raspberry Pi Pico Demo
• Arduino Demo
