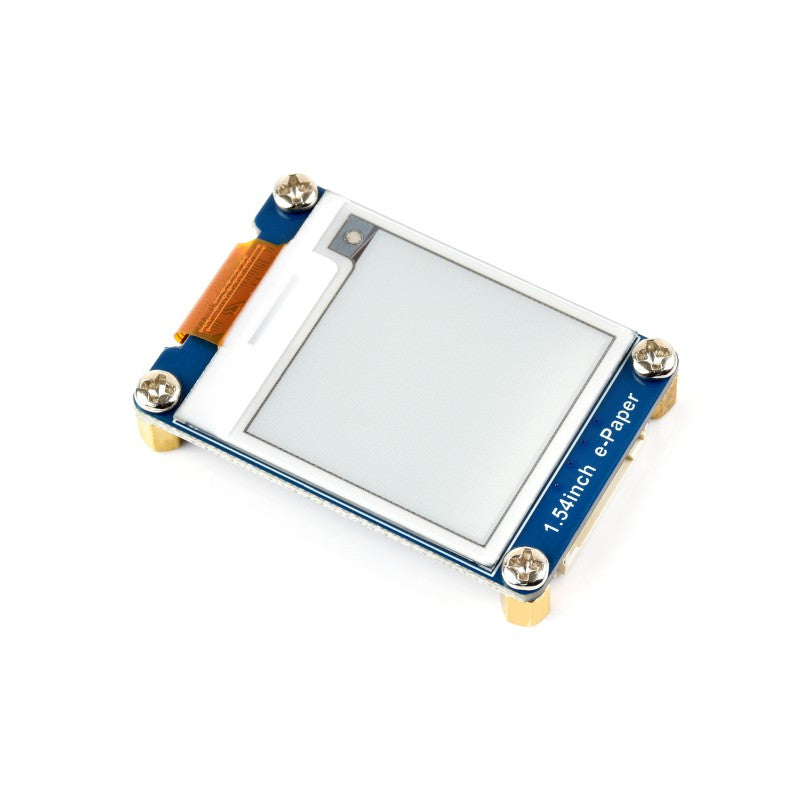

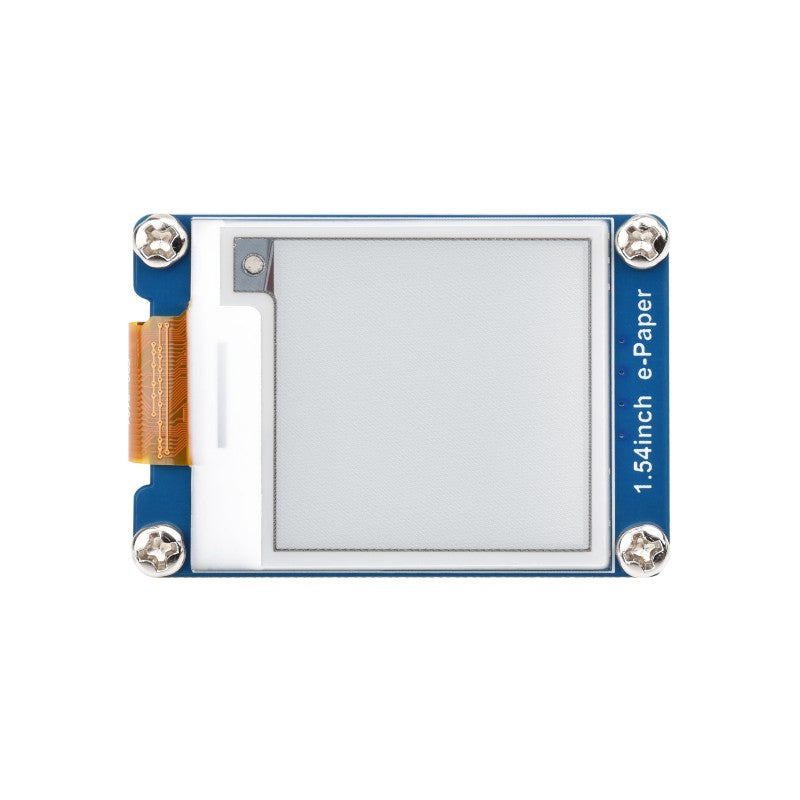

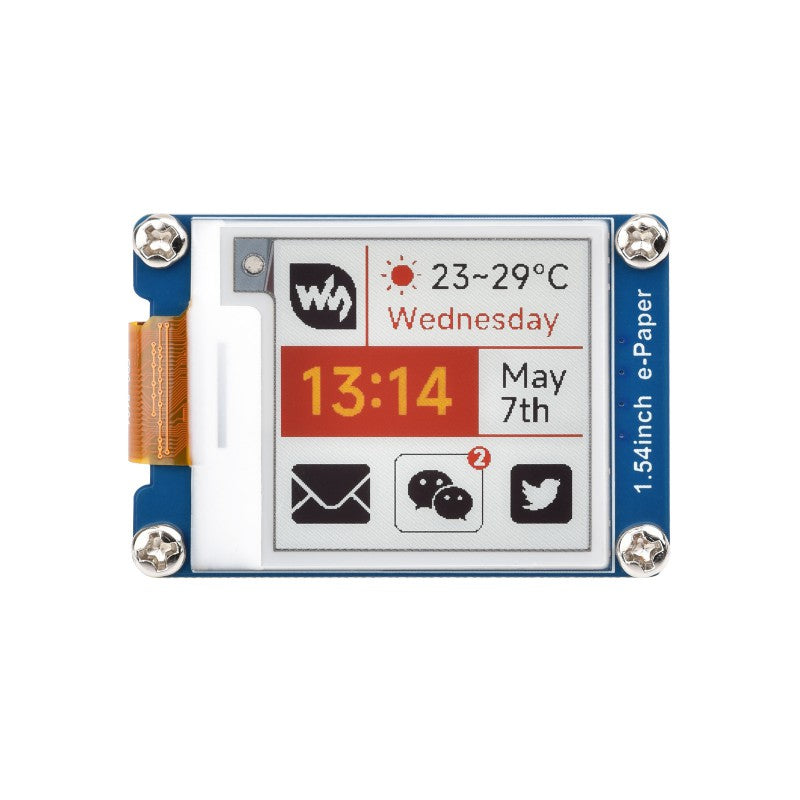

1.54inch e-Paper display (G), e-ink display, 200x200, Red/Yellow/Black/White, SPI Interface

Description

1.54inch e-Paper display (G), e-ink display, 200x200, Red/Yellow/Black/White, SPI Interface

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino)

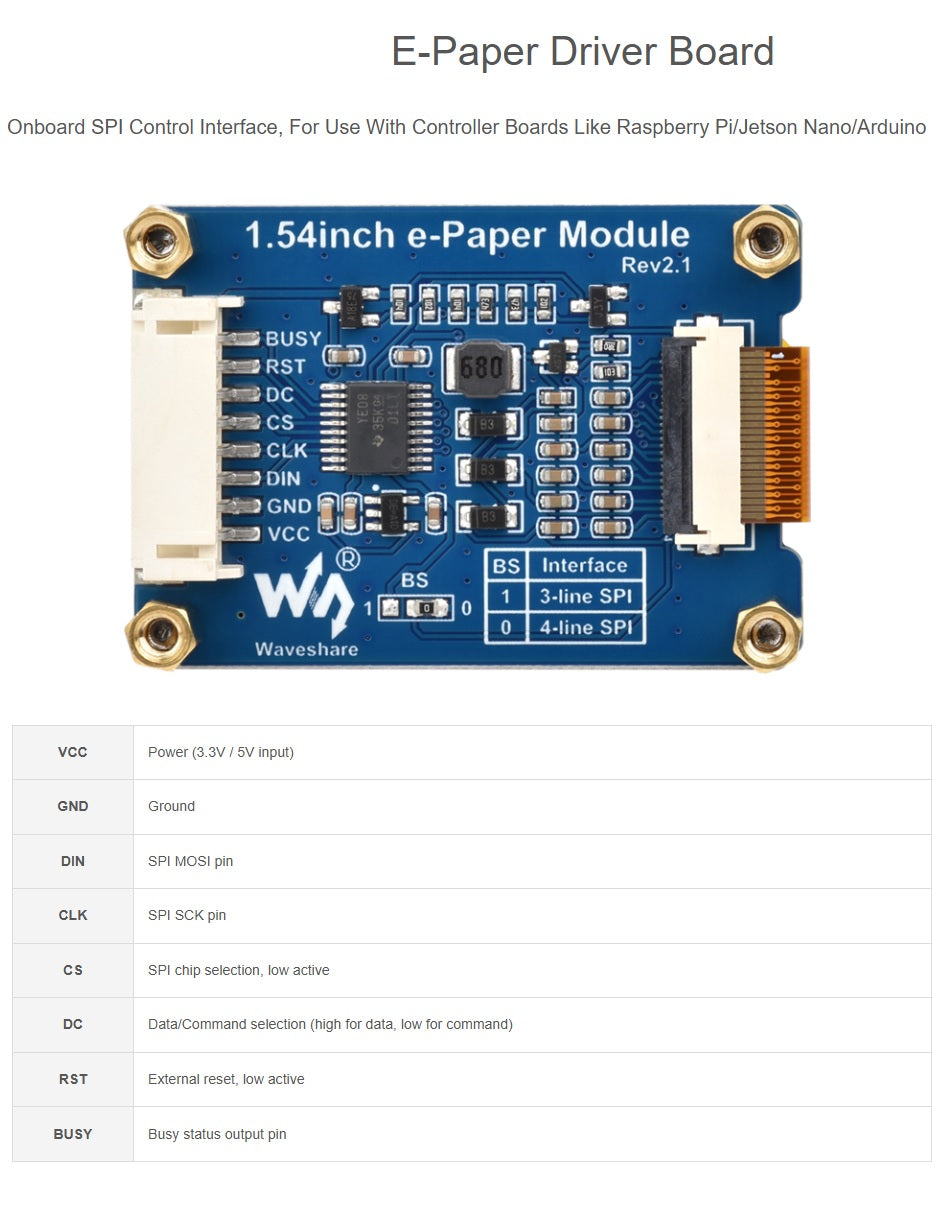

• e-Paper driver board:

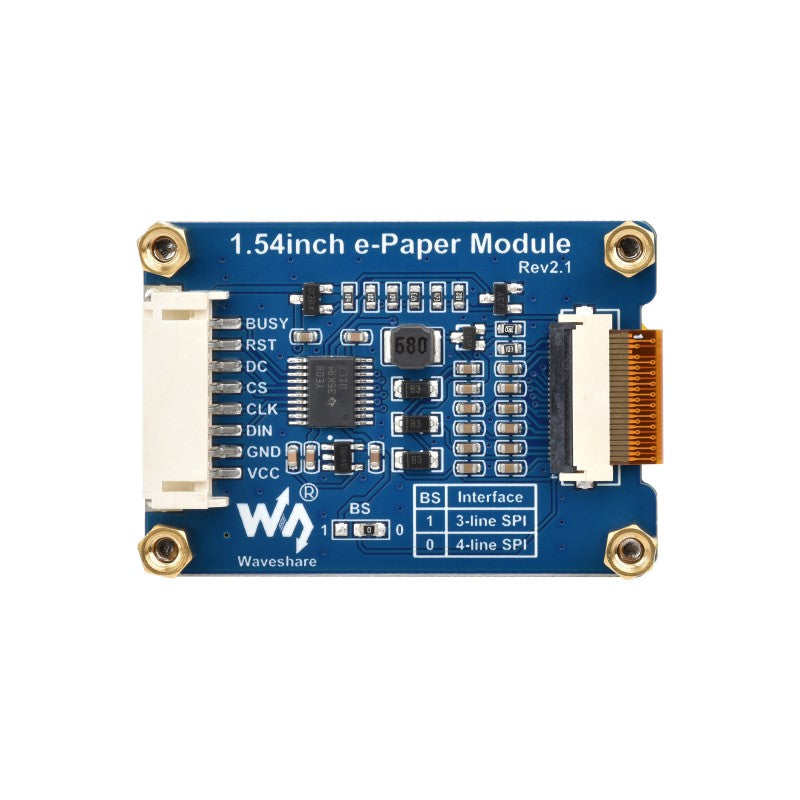

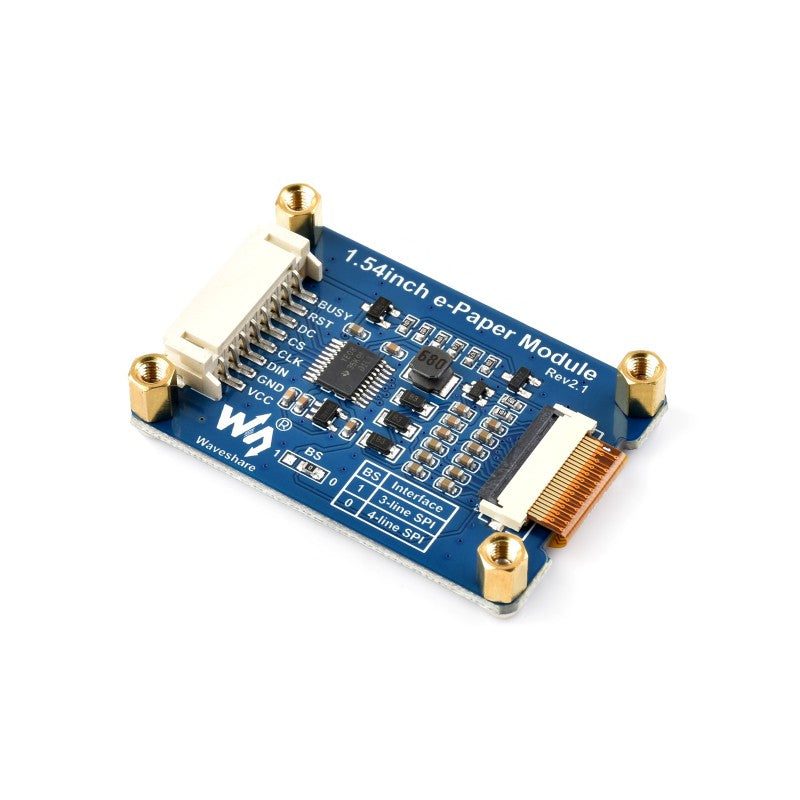

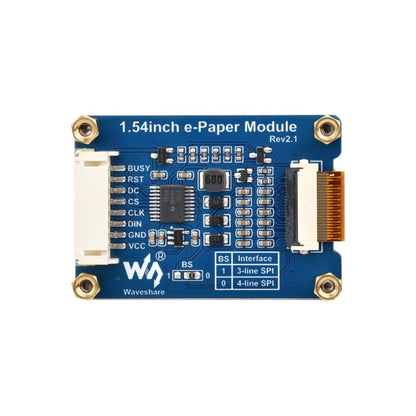

  Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino, etc.Onboard voltage translator, compatible with 3.3V / 5V MCUs

Documentation

• Wiki
• 1.54inch e-Paper (G) Datasheet
• Schematic diagram of the driver board

Demo

• Demo
• Github

Development Resources

• Create a Scatter Plot using Photoshop
• E-Paper API Analysis
• Character Conversion Software
• E-Paper Font Library Conversion Tutorial
• Image2Lcd.7z Image Bitmap Conversion Software
• Image2Lcd Image Bitmap Conversion Steps
• pwnagotchi Usage and Porting

Related Materials

• e-Paper dashboard
• e-Paper dashboard source code
• Raspberry Pi Documentation
