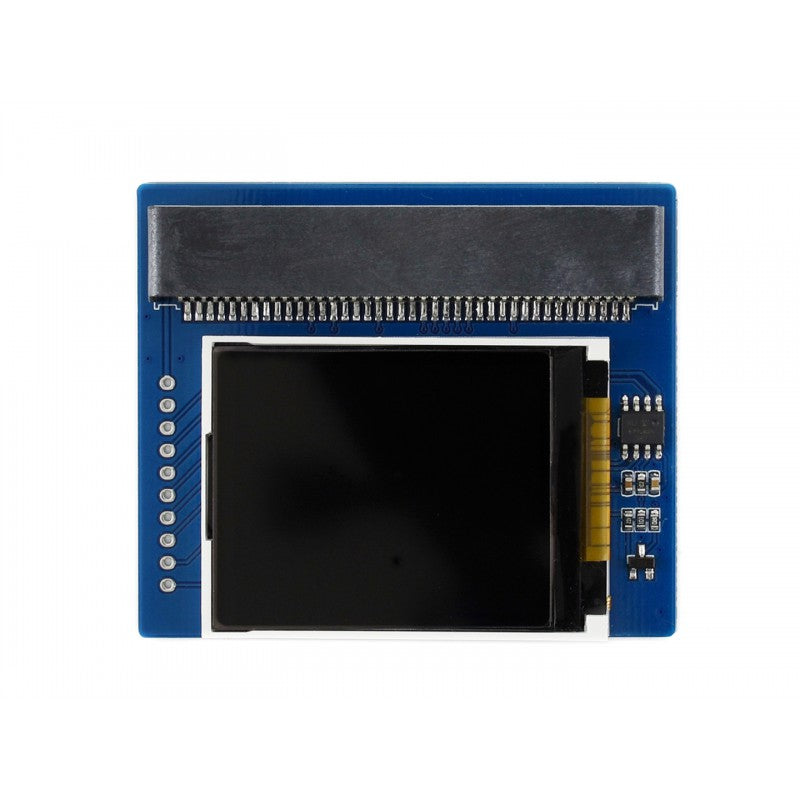

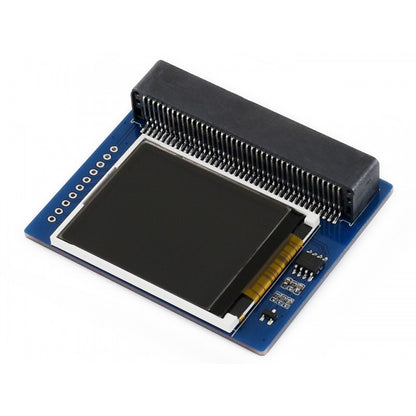

1.8inch colorful display module for micro:bit, 160x128 pixels, 65K colors
Overview
This is a colorful display module designed for the BBC micro:bit, 1.8inch diagonal, 160x128 pixels, capable of displaying 65K colors.
Tired of the 5x5 LED matrix? Time to get a tiny monitor for your micro:bit, this one would be the ideal choice.
Features
micro:bit edge connector, directly pluggable
Embedded driver ST7735S, supports 65K colors
Onboard SRAM 23LC1024, used as display cache, no more out of memory
SPI interface, takes up only a few IO pins
Backlight adjustment via PWM

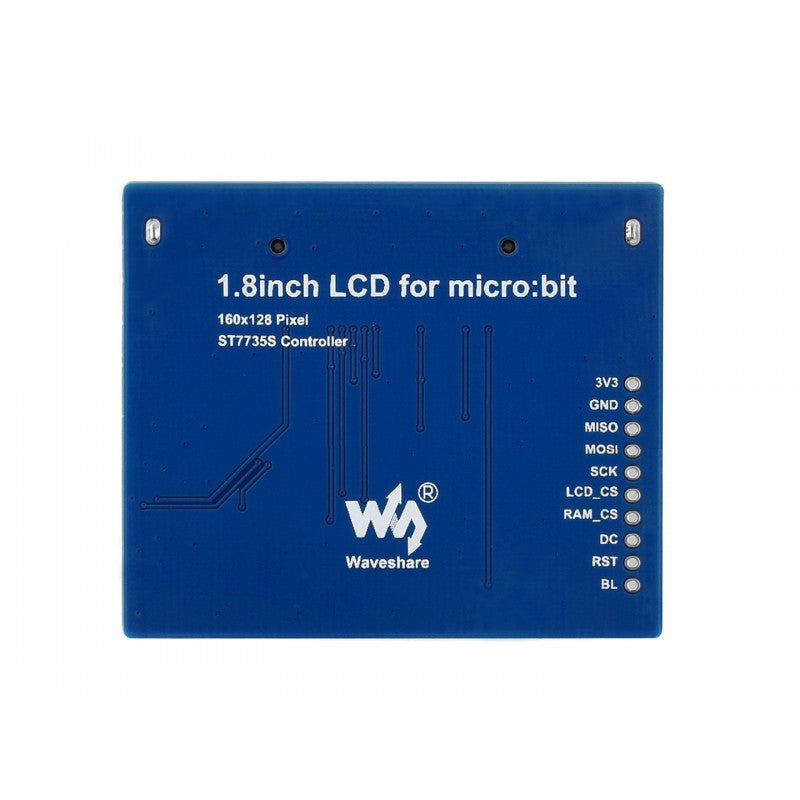

Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards
Comes with development resources (micro:bit graphical demo/user manual, etc.)
Specifications
Driver: ST7735S
Resolution: 160x128
Display color: RGB, 65K colors
Operating voltage: 3.3V
Dimension: 61mm x 51.5mm
