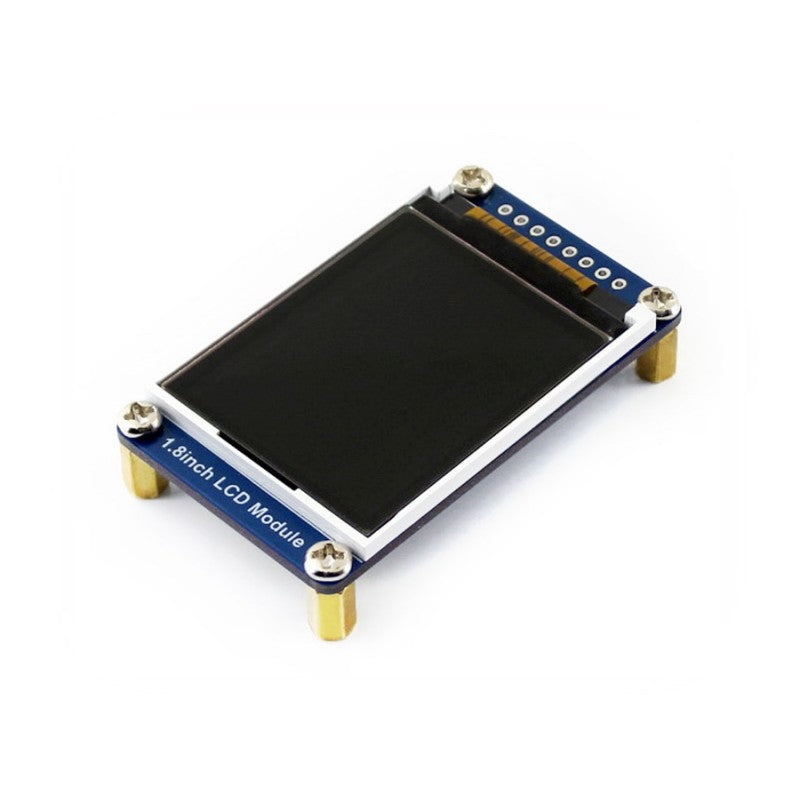

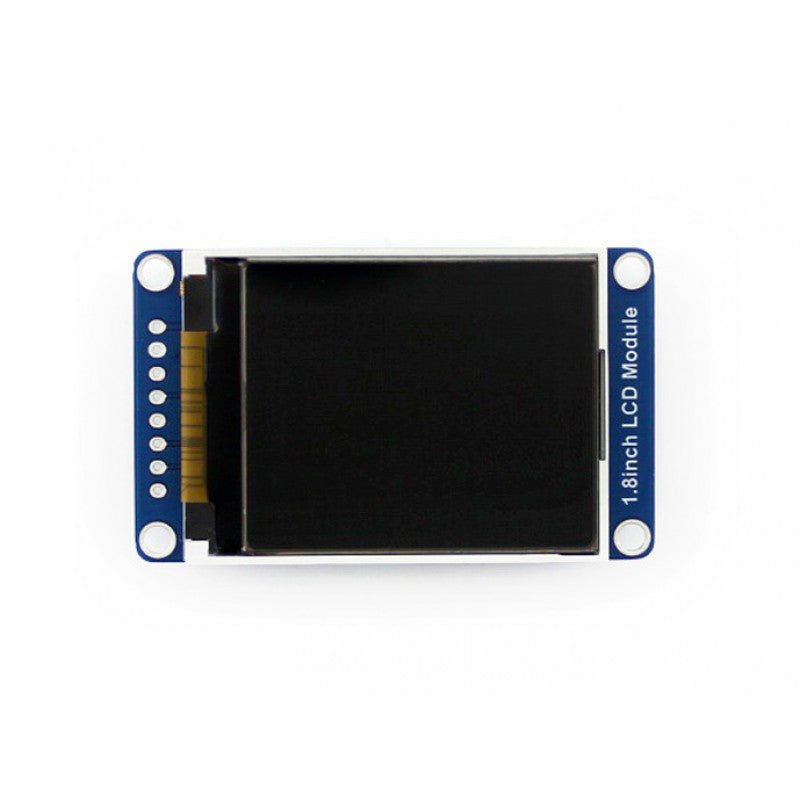

1.8inch LCD display Module, 128x160 pixels, SPI interface

Description

This is a general LCD display Module, 1.8inch diagonal, 128x160 pixels, with embedded controller, communicating via SPI interface.

Features

• SPI interface, requires minimum GPIO for controlling
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

• Driver: ST7735S
• Interface: SPI
• Display color: RGB, 65K color
• Resolution: 128x160
• Backlight: LED
• Operating voltage: 3.3V/5V

Documentation

• Wiki
• User Manual
• Schematic
• ST7735S
• 1.8inch LCD Module 3D Drawing
• 1.8inch LCD Module 2D Drawing_DXF
• 1.8inch LCD Module 2D Drawing_PDF

Software

• Image2Lcd
• lcd

Demo

• Demo code
