Description

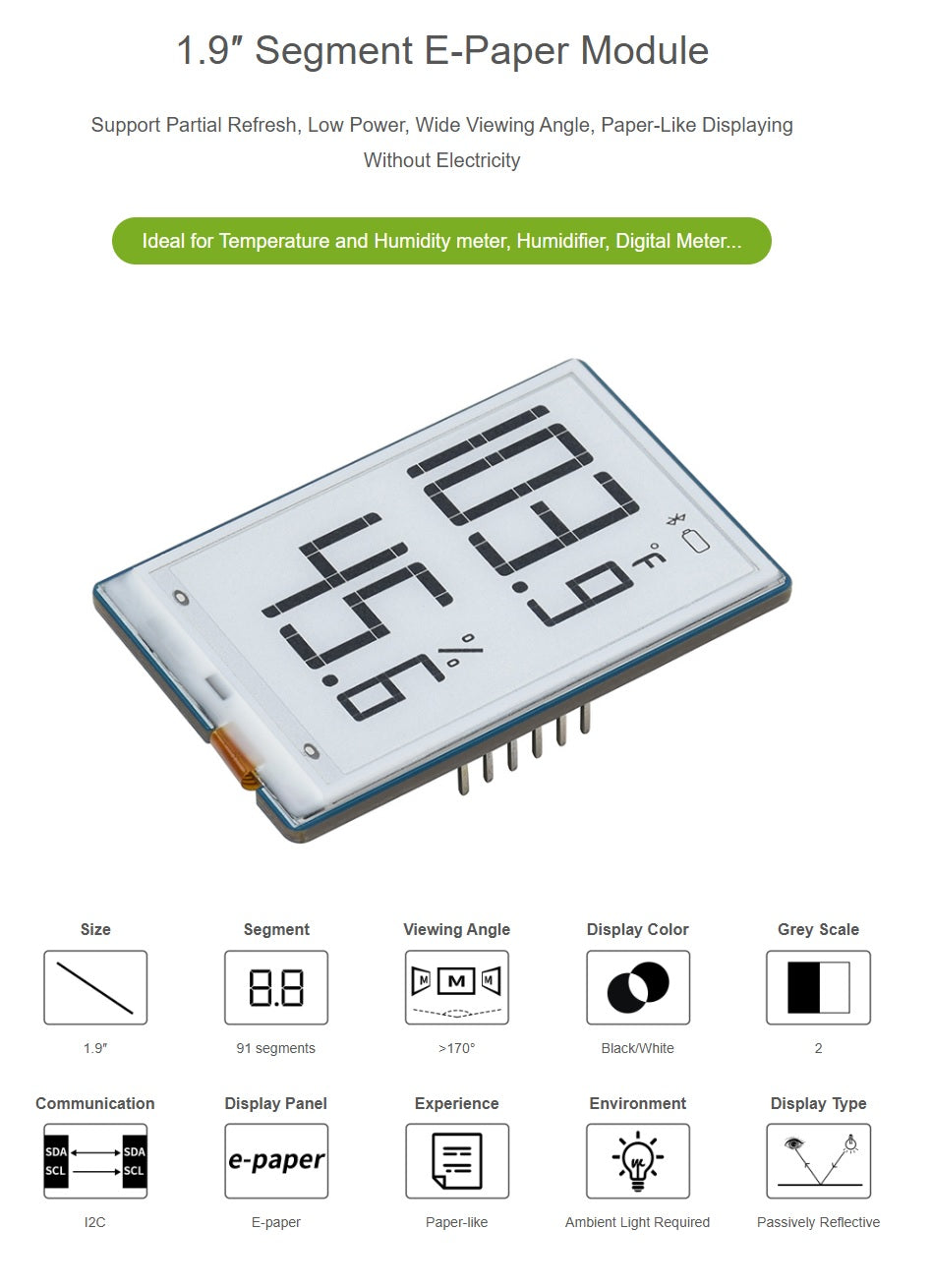

1.9inch Segment E-Paper Module, 91 Segments, I2C Bus, Ideal for Temperature and humidity meter, Humidifier, Digital Meter
Features
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing

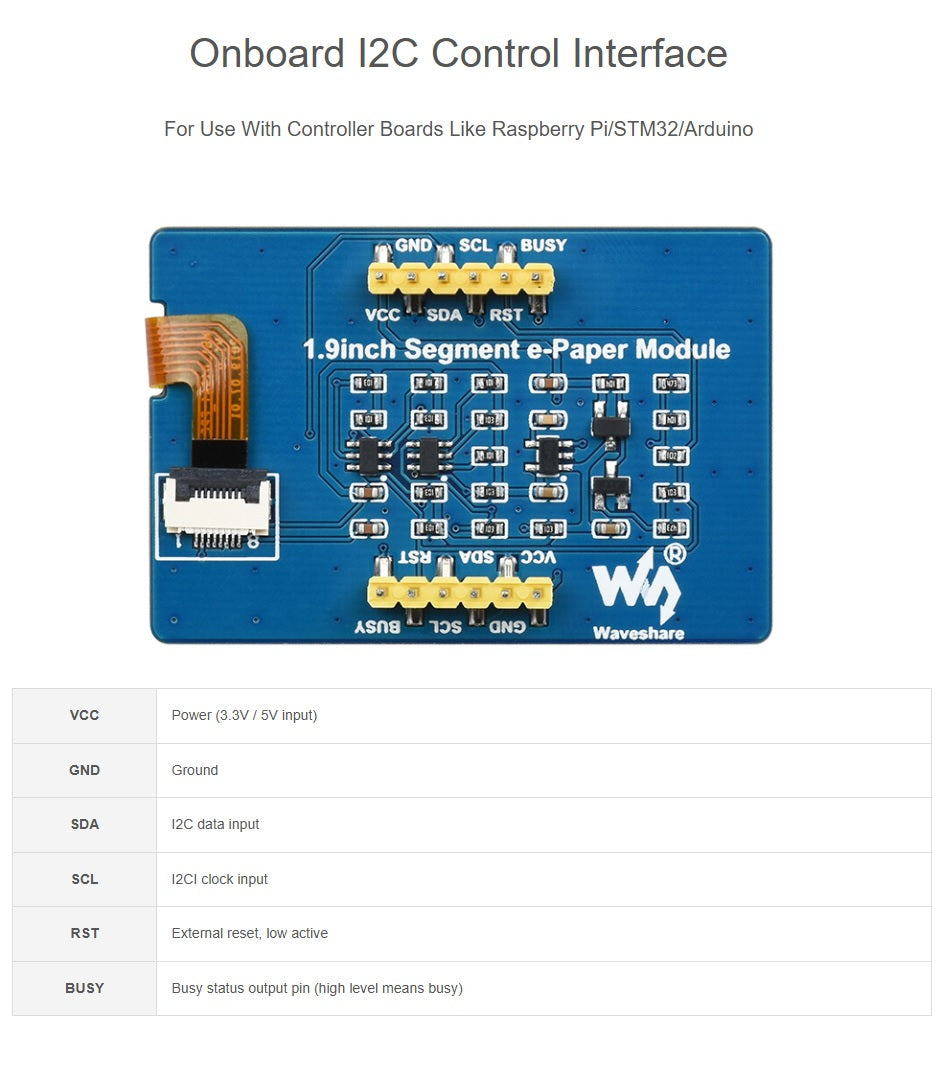

- I2C interface, for connecting with controller boards like Raspberry Pi/Arduino/STM32, etc.

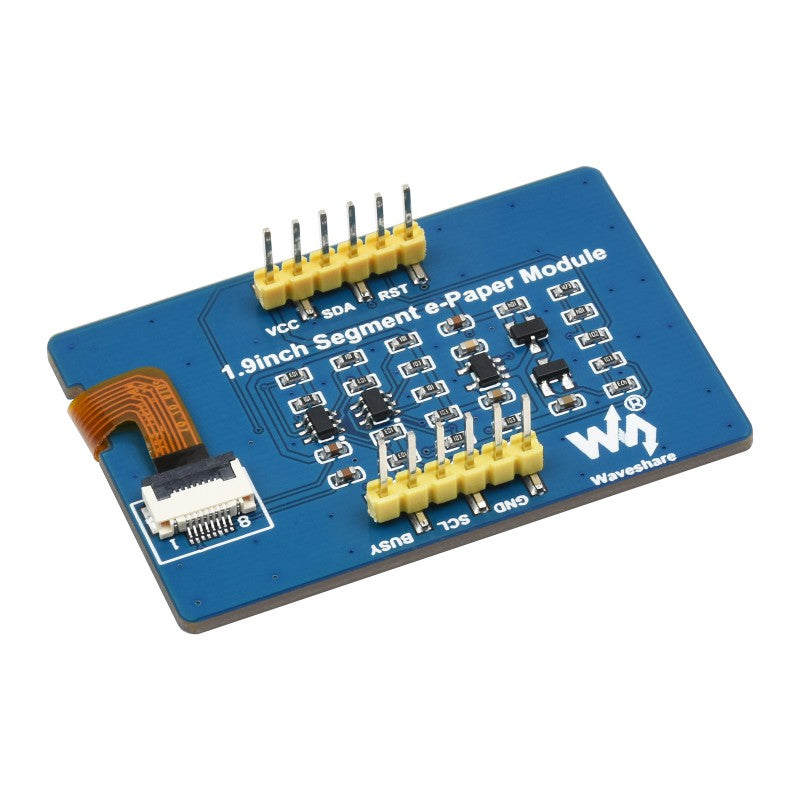

- Onboard MOS voltage translating circuit, compatible with 3.3V/5V MCUs
- Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)
Documentation
- Wiki
- Schematic
- 1.9inch Segment e-Paper Datasheet
- 1.9inch Segment e-Paper V1.1 Datasheet (current version)
- IST7134 Driver Manual
- Raspberry Pi Documentation
