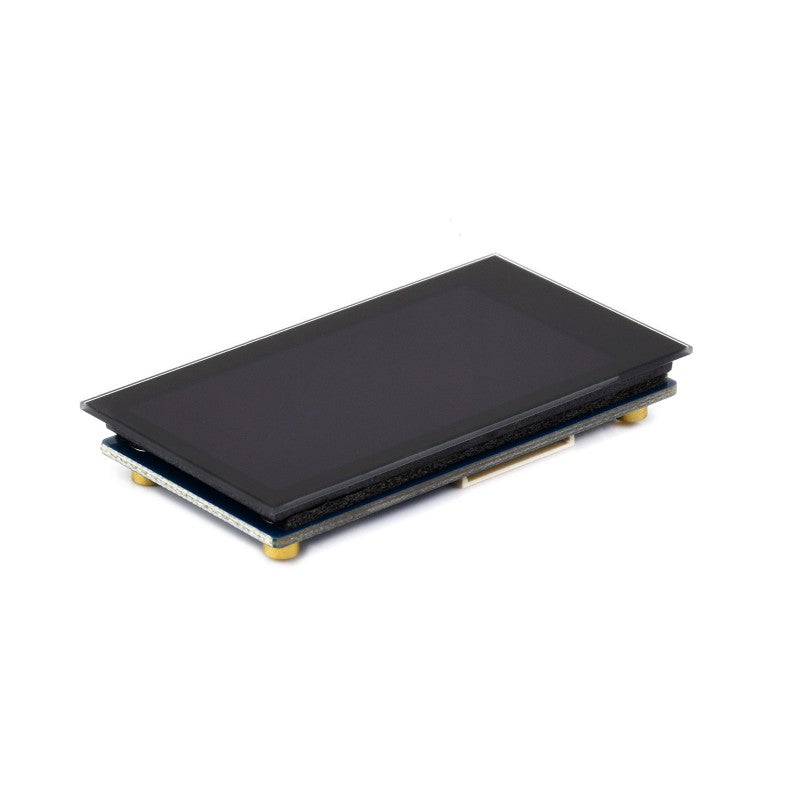

1.9inch Touch LCD Display Module, Micro LCD Display, 172×320 Resolution, IPS, SPI And I2C Communication, 262K Display Color

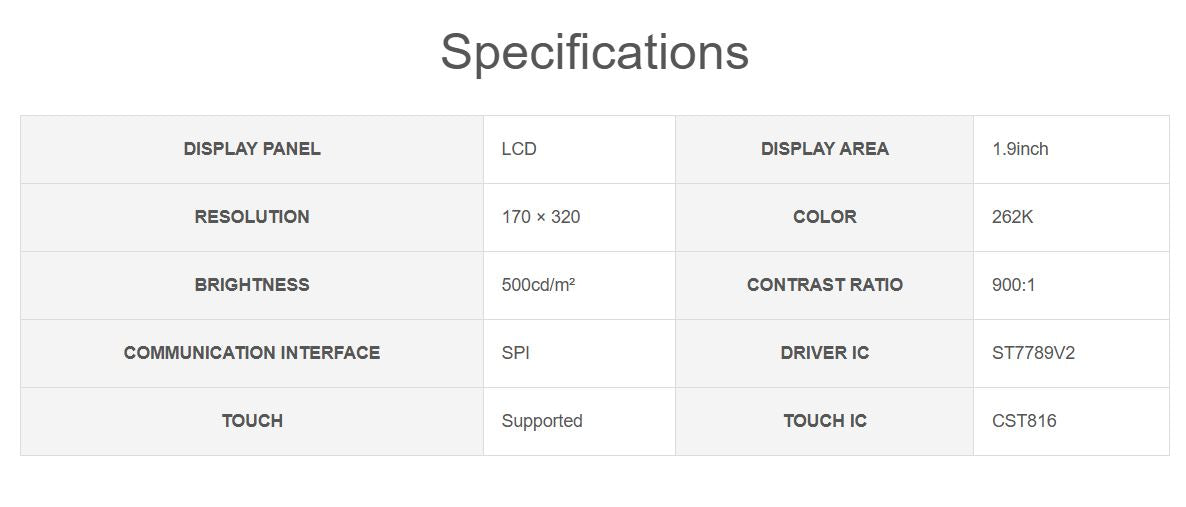

172×320 resolution, 262K colors, clear and colorful displaying effect
High touch screen transmittance, fast response and long lifetime

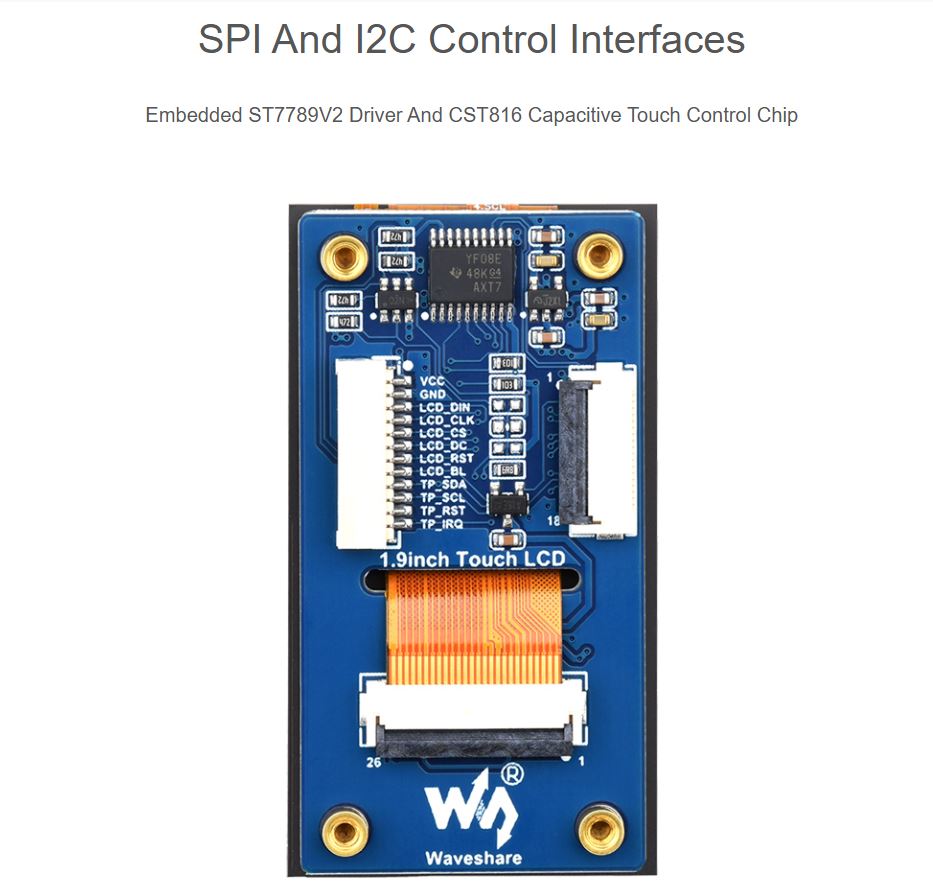

Embedded ST7789V2 driver chip and CST816 capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino

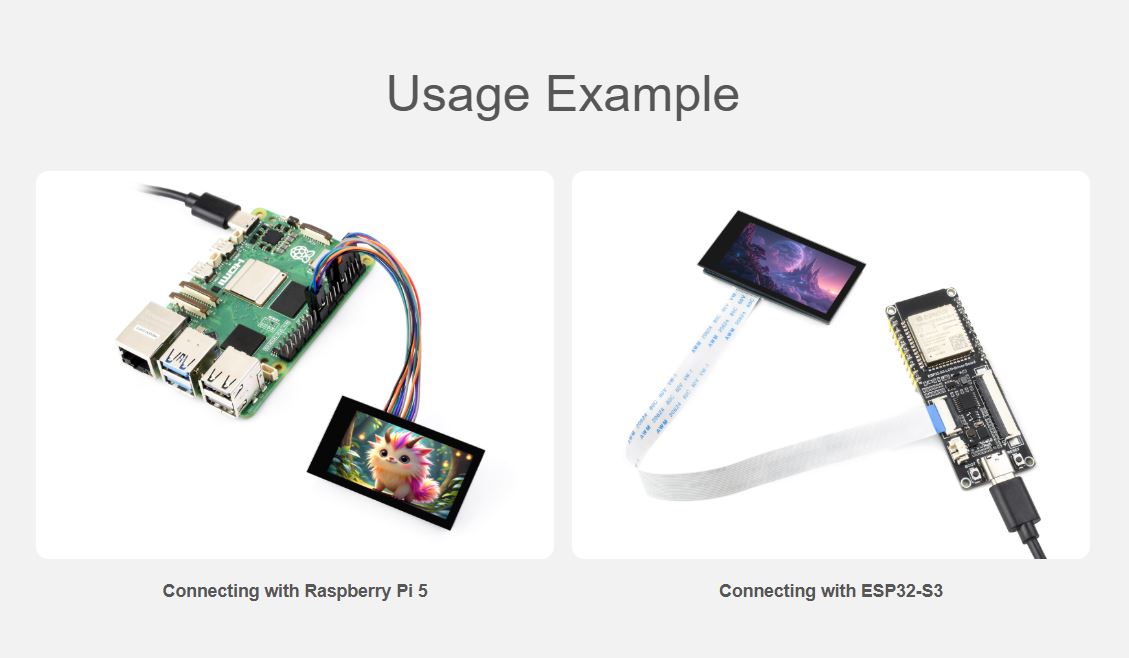

Comes with online development resources and manual (examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino)

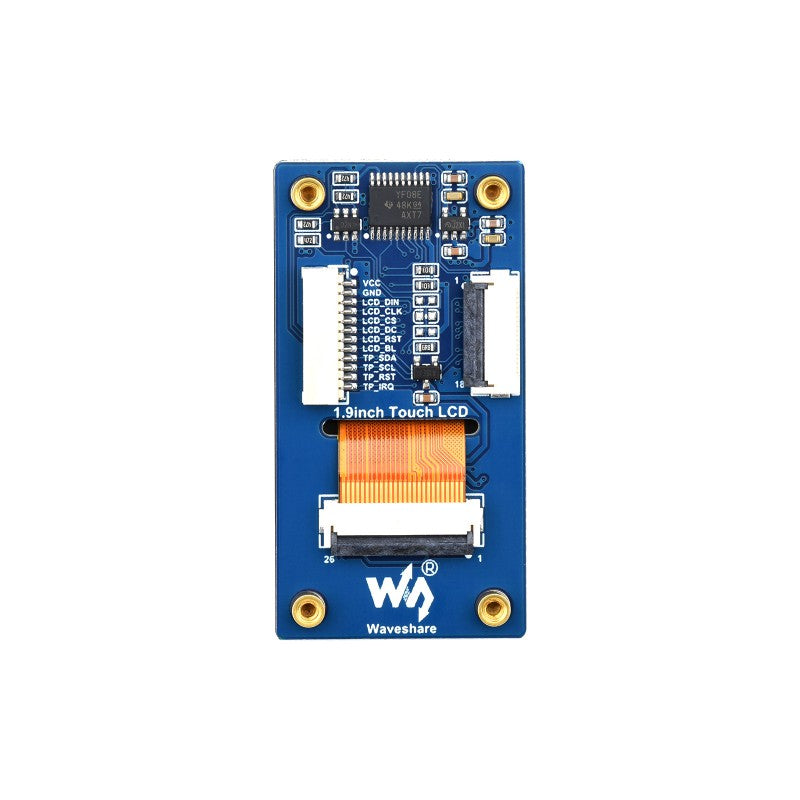

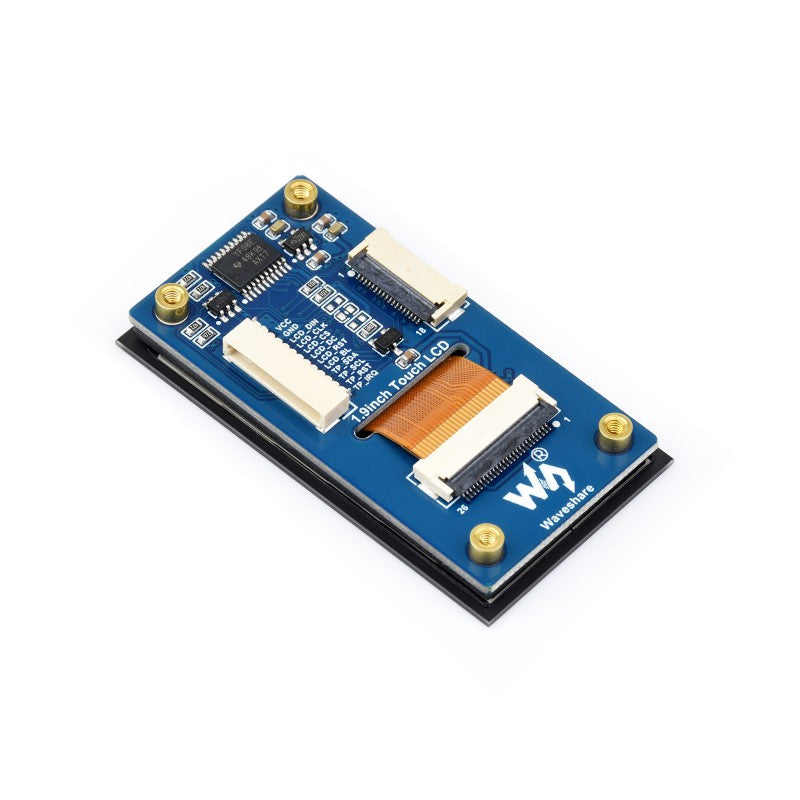

SPI interface:
VCC:Power (3.3V / 5V input)
GND:Ground
LCD_DIN:SPI MISO pin
LCD_CLK:SPI SCLK pin
LCD_CS:LCD Chip Selection, low active
LCD_DC:LCD Data/Command selection (high for data, low for command)
LCD_RST:LCD Reset, low active
LCD_BL:LCD Backlight
TP_SDA:TP Data pin
TP_SCL:TP Clock pin
TP_RST:TP Reset, low active
TP_IRQTP Interrupt pin
