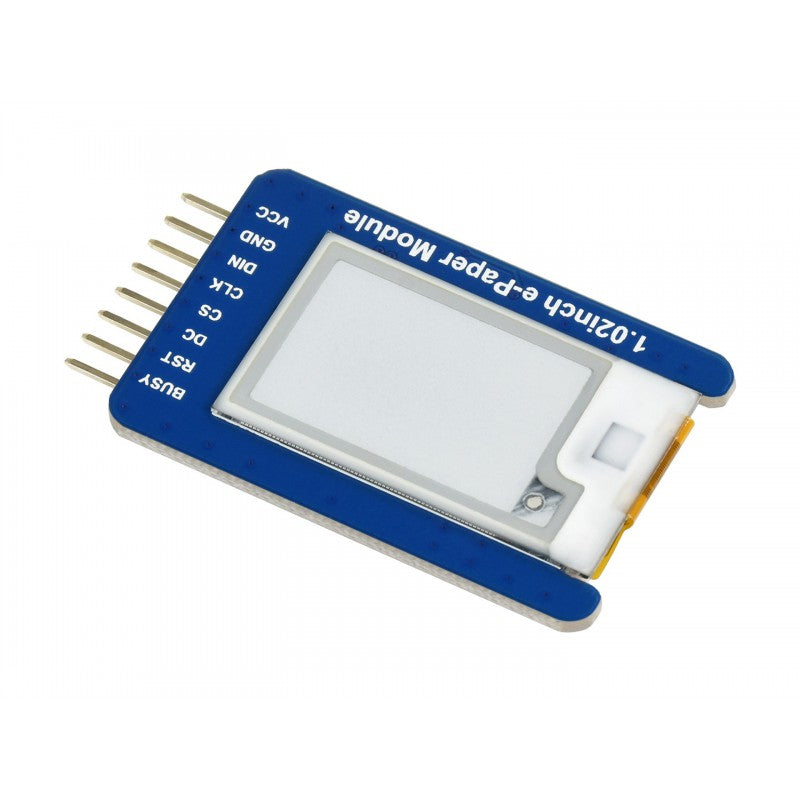

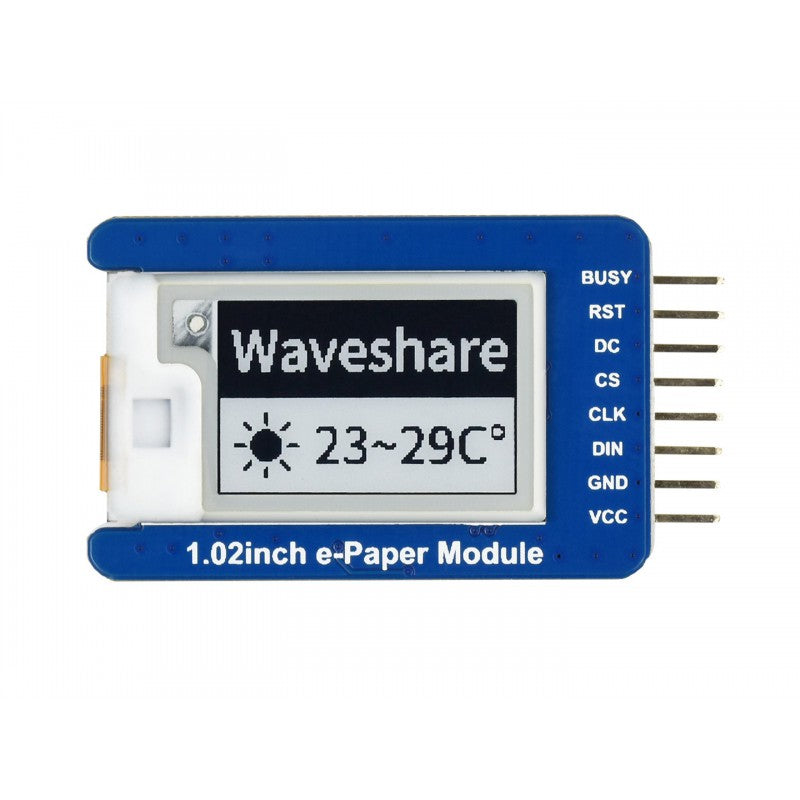

128×80, 1.02inch E-Ink display module, black/white dual-color

128×80, 1.02inch E-Ink display module, black/white dual-color, SPI interface

Overview

This is an E-Ink display module, 1.02inch, 128×80 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• SPI control interface, for working with host boards such as Raspberry Pi/Jetson Nano/Arduino/Nucleo

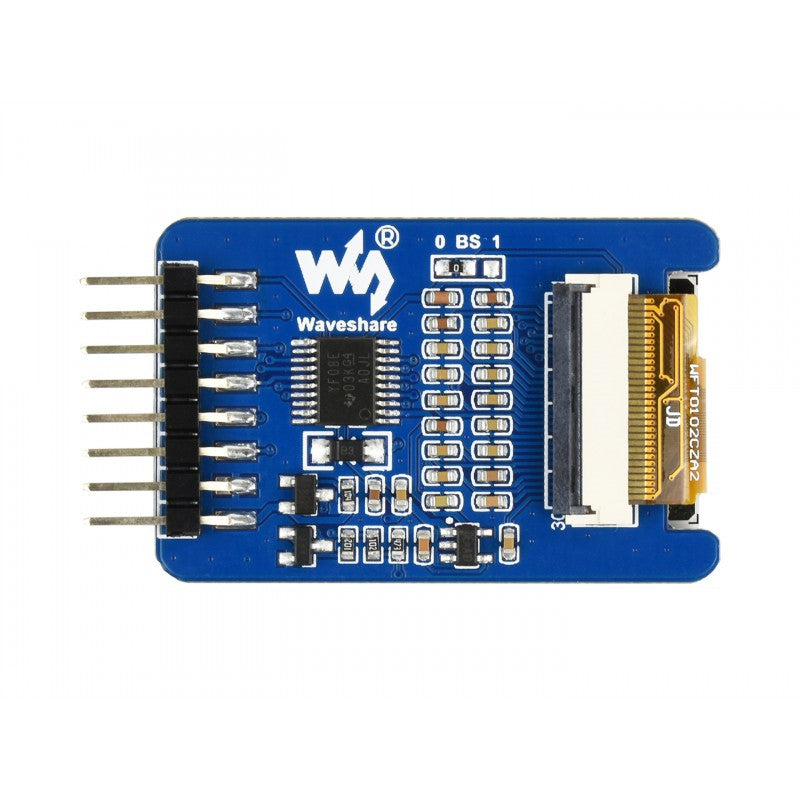

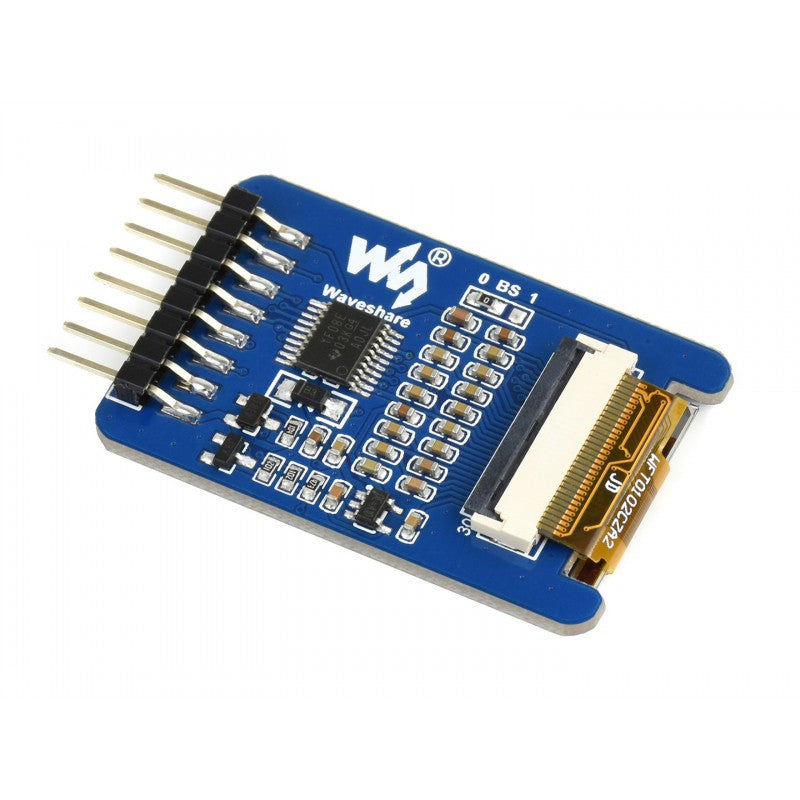

• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

• Operating voltage: 3.3V / 5V

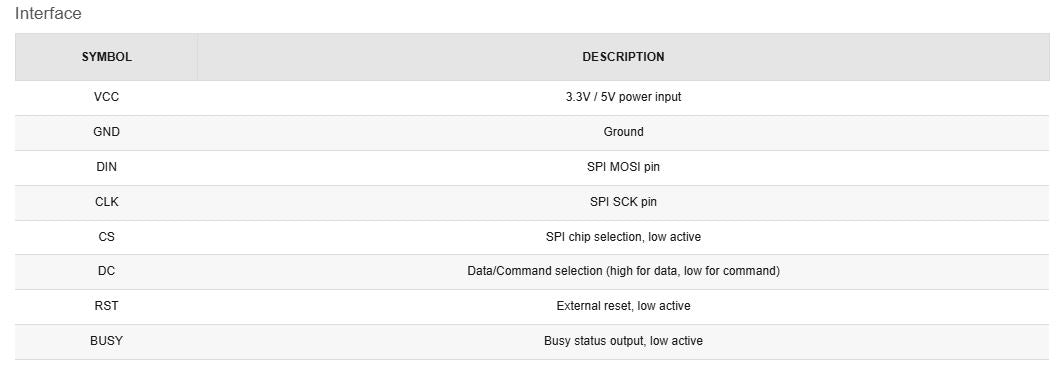

• Interface: 3-wire SPI, 4-wire SPI

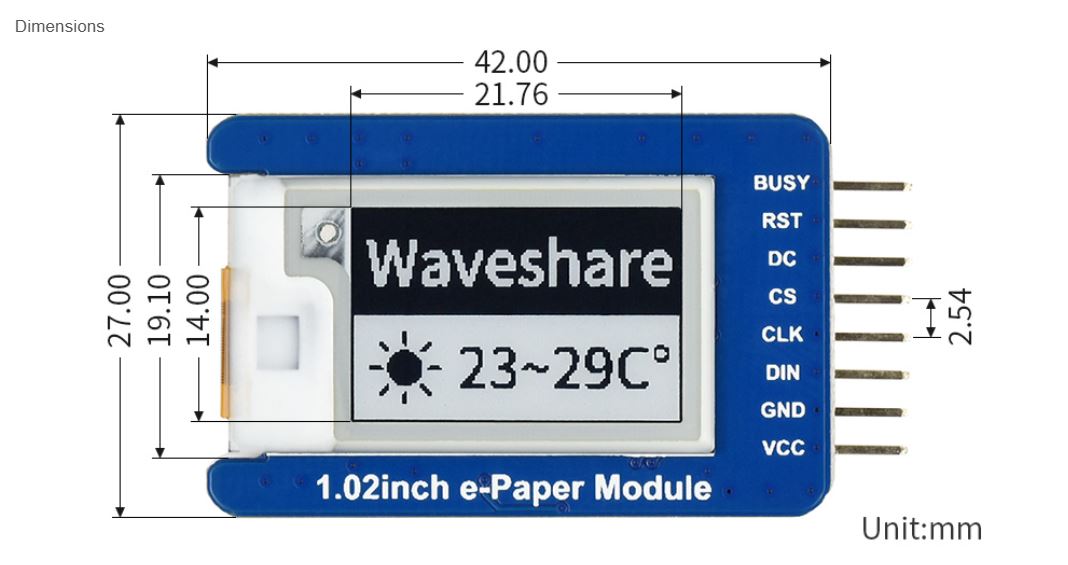

• Outline dimension: 42mm × 27mm
• Display size: 21.76mm × 14mm
• Dot pitch: 0.175 × 0.17
• Resolution: 128 × 80
• Display color: black, white
• Grey scale: 2
• Full refresh time: 2s
• Refresh power: 26.4mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°
