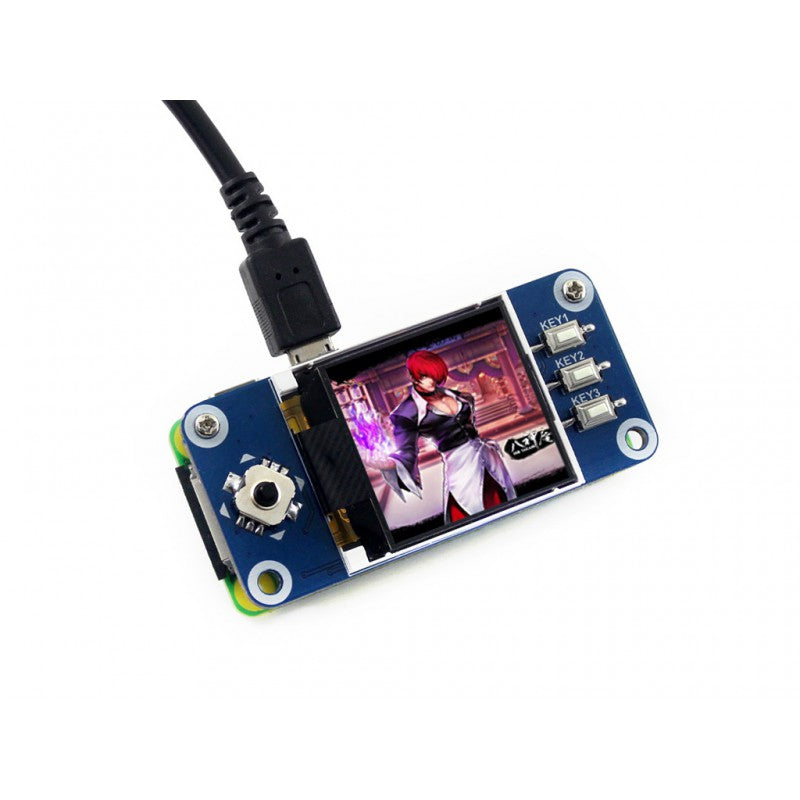

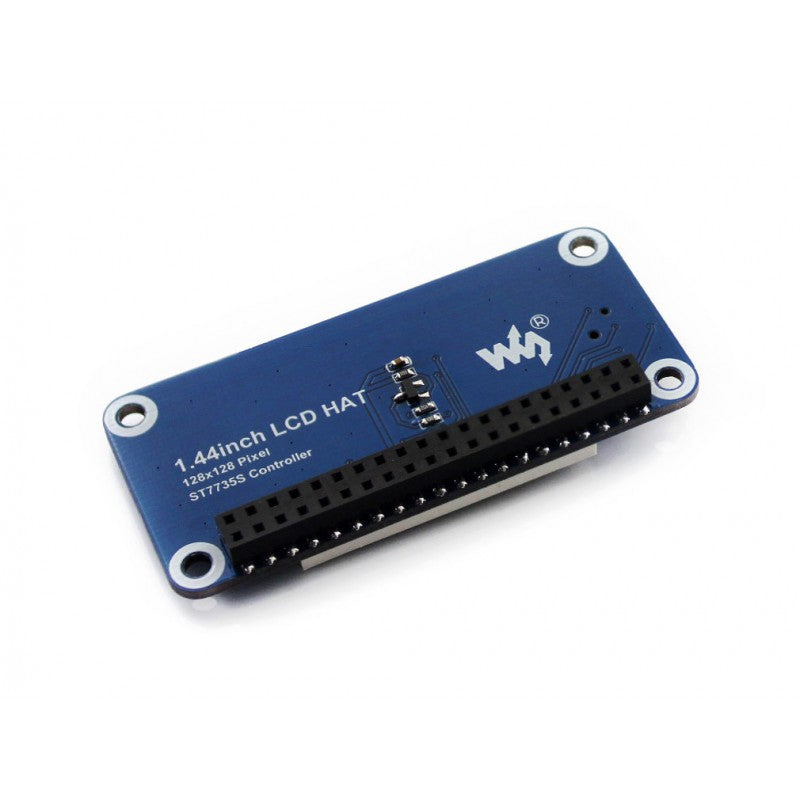

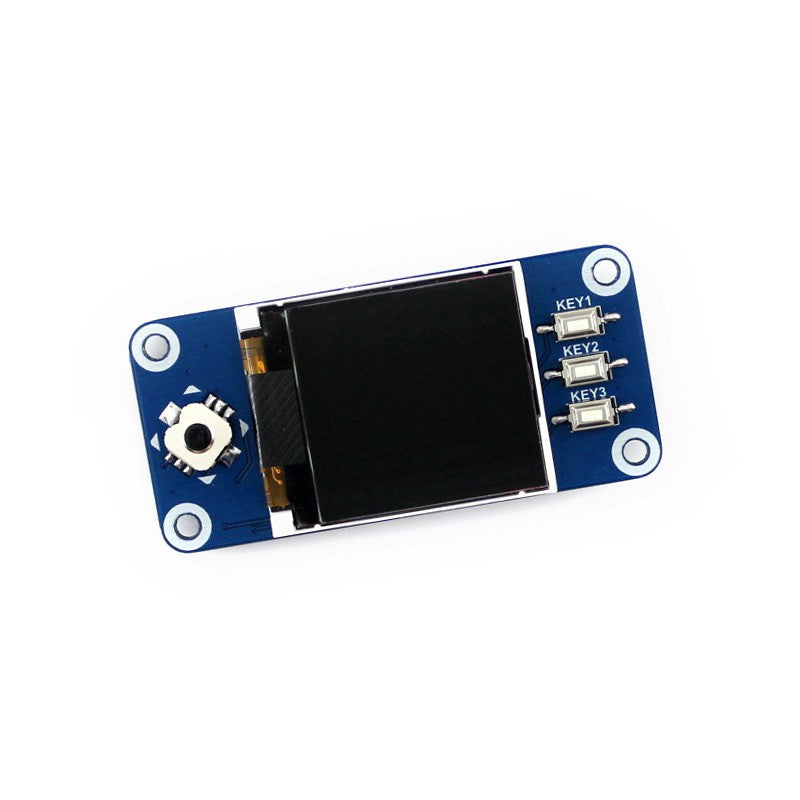

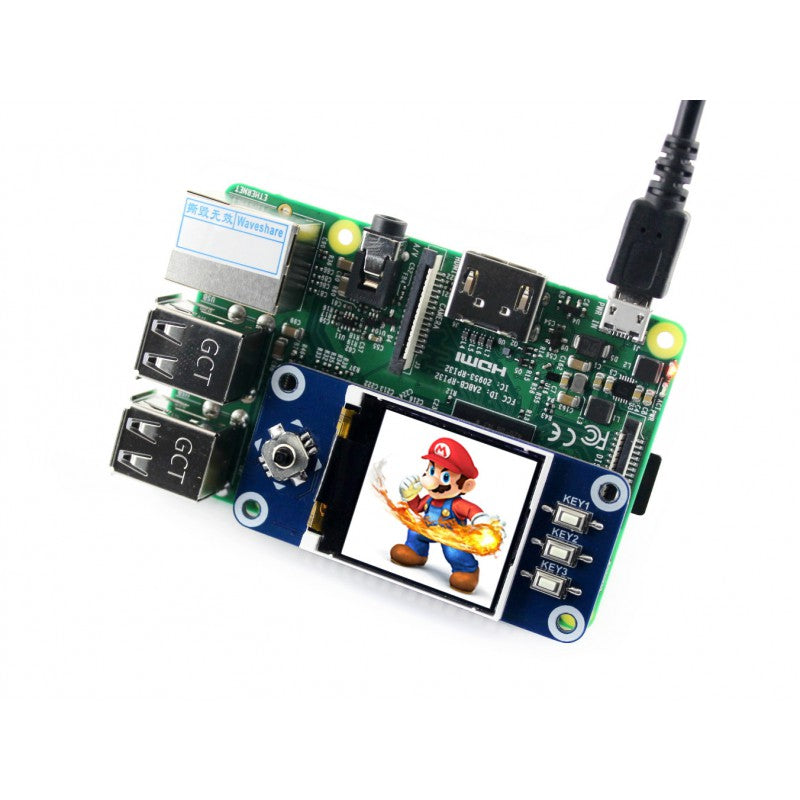

1.44inch LCD display HAT for Raspberry Pi, 128x128 pixels, SPI interface
Overview
This is an LCD display HAT for Raspberry Pi, 1.44inch diagonal, 128x128 pixels, with embedded controller, communicating via SPI interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
1x joystick (5-position), 3x pushbuttons, handy and useful
Comes with development resources and manual (examples for Raspberry Pi)
Specifications
Driver: ST7735S
Interface: SPI
Display color: RGB, 65K color
Resolution: 128x128
Backlight: LED
Operating voltage: 3.3V
