WaveShare

128x32, General 0.91inch OLED display Module

Name: 128x32, General 0.91inch OLED display Module
Brand: WaveShare
SKU: E52014-001
Price: 10.52 AUD
Availability: InStock

SKU:E52014-001

$10.52 AUD

Sale Sold out

Shipping calculated at checkout.

• Shipping cost $8 within AU, more details

• Returns accepted for defective items, more details.

View full details

Description

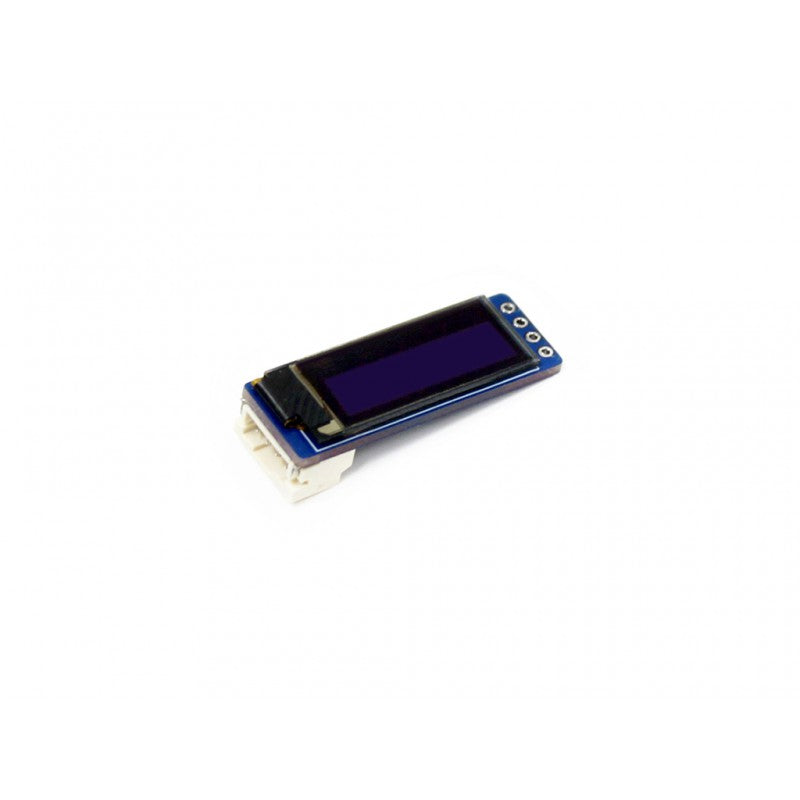

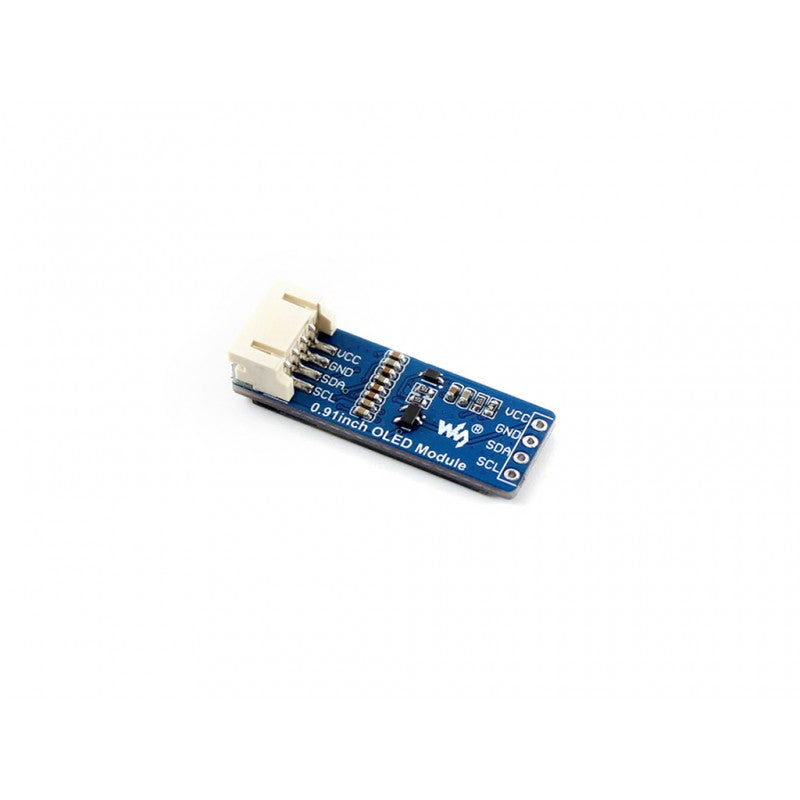

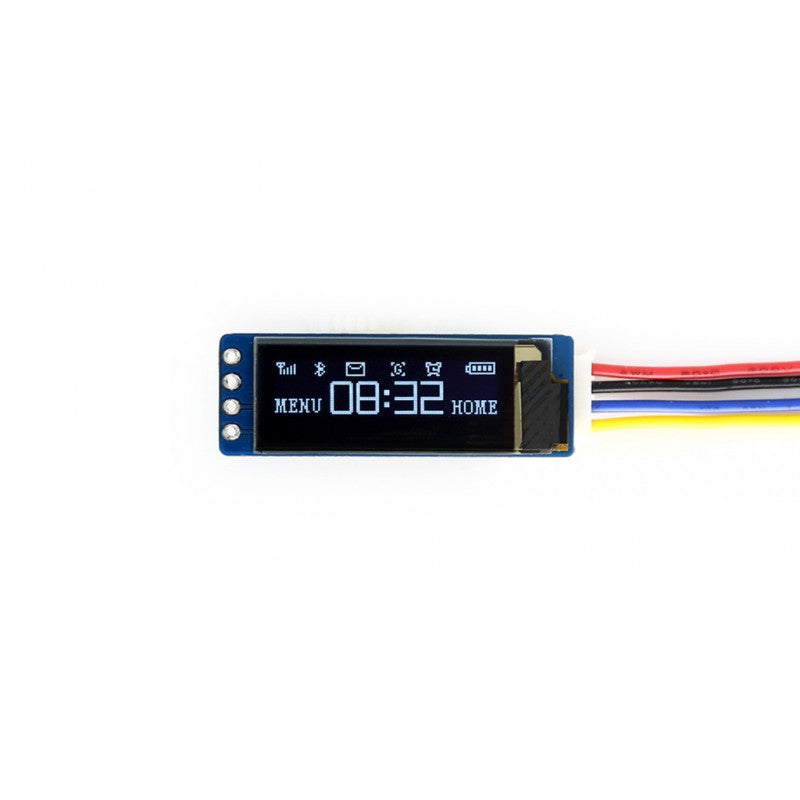

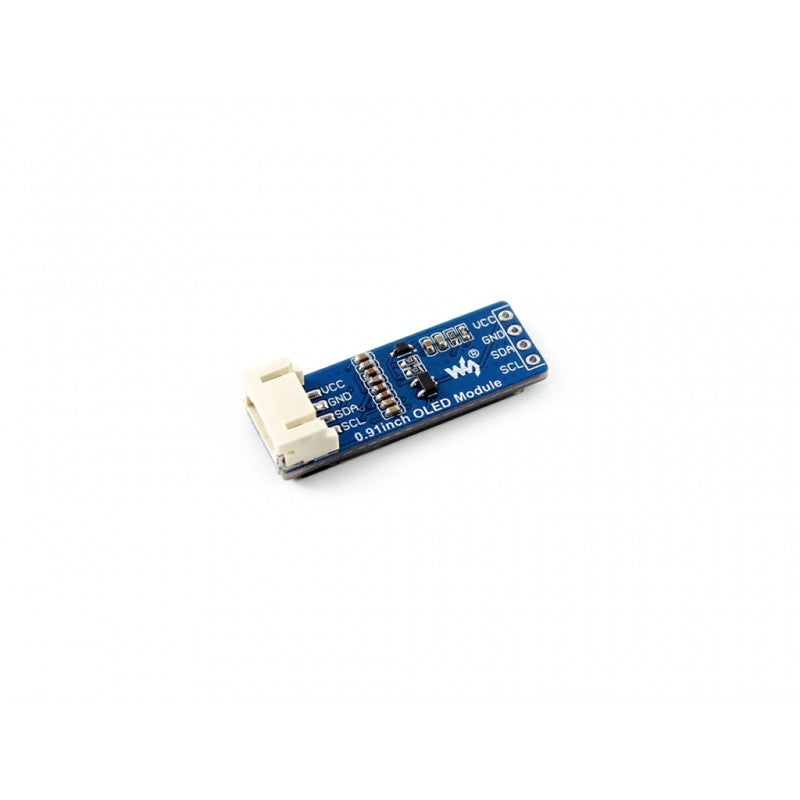

This is a general OLED display Module, 0.91inch diagonal, 128x32 pixels, with embedded controller, communicating via I2C interface.

Features

0.91inch small form factor
128x32 high resolution
I2C interface, requires only two signal pins
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Driver: 1306
Interface: I2C
Display color: White
Resolution: 128x32
Viewing angle: >160°
Operating voltage: 3.3V / 5V
Dimension: 36 x 12.5 (mm)

Documentation

Software
