Description

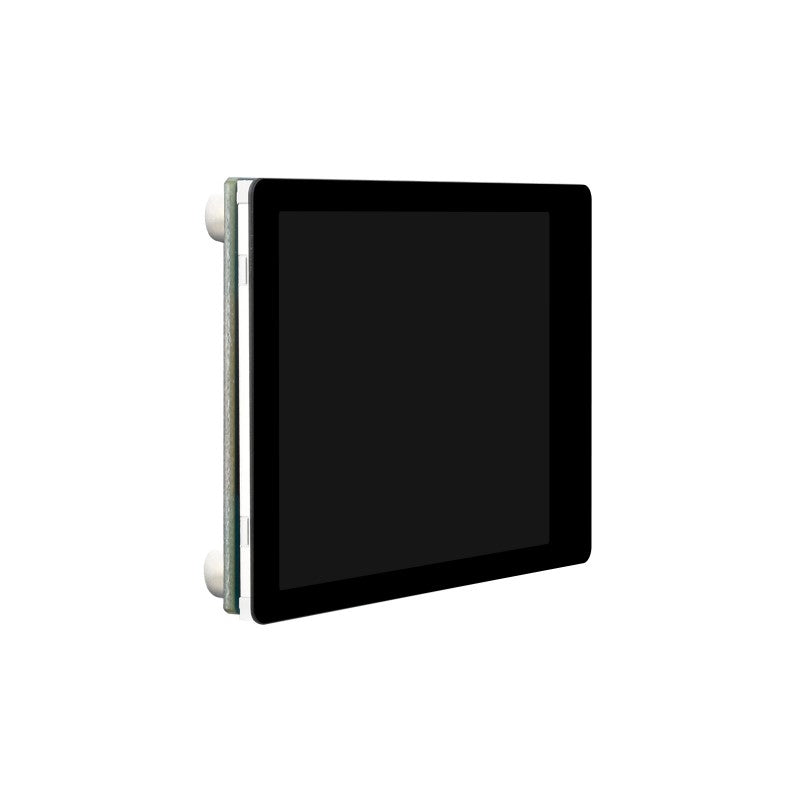

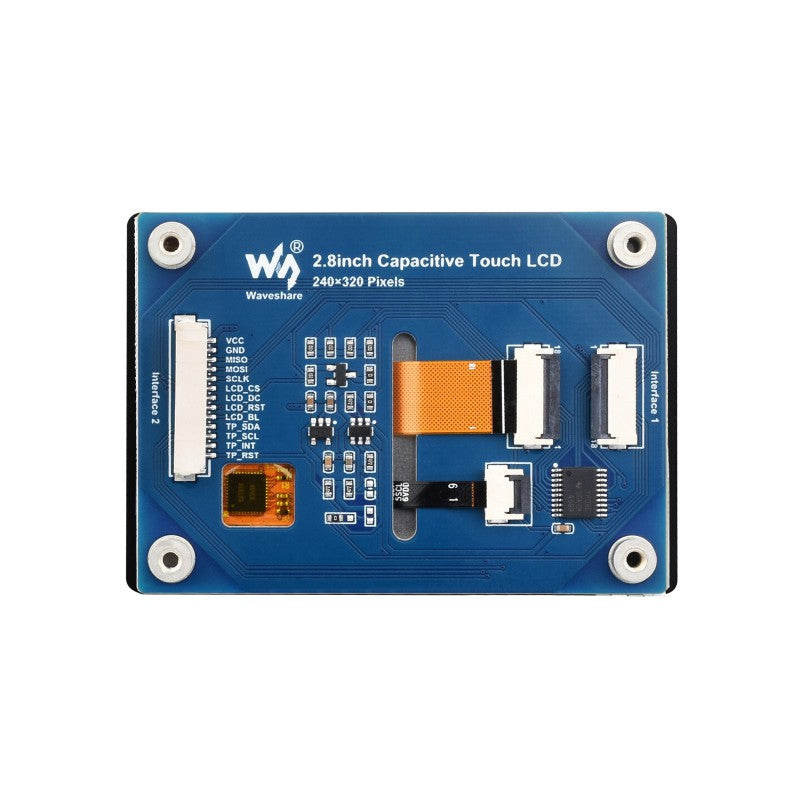

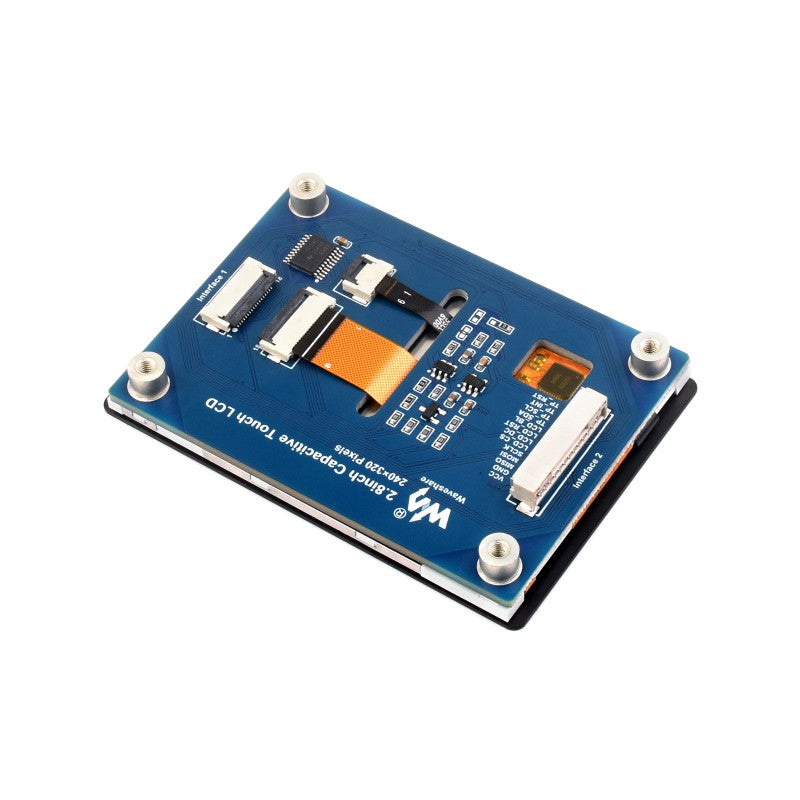

2.8inch LCD Display Module with Touch panel, Embedded with ST7789T3 Display Driver and CST328 Capacitive Touch Controller, TFT Display, 240×320 Resolution, Faster Response and More Durable
Features

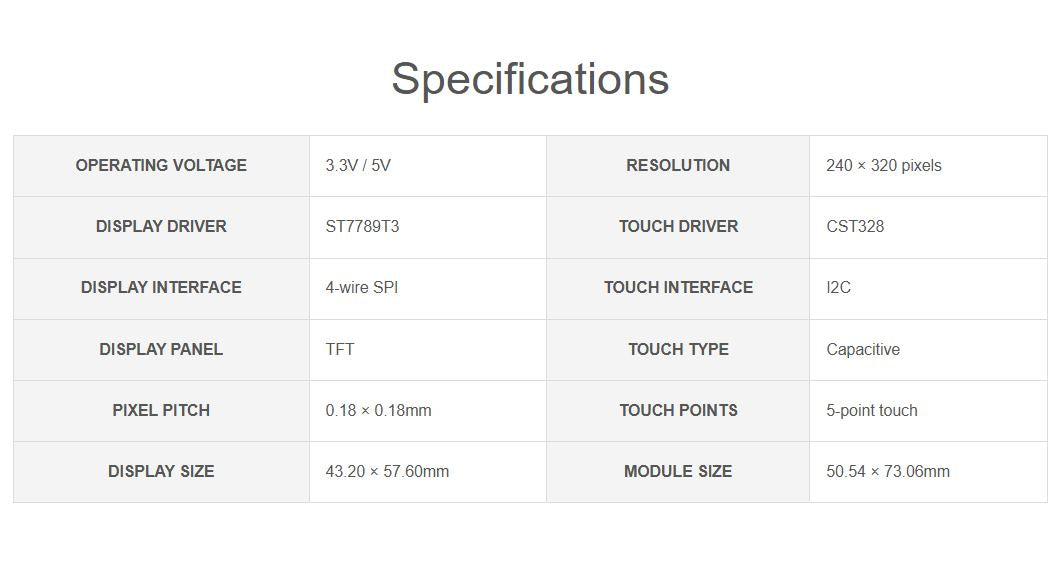

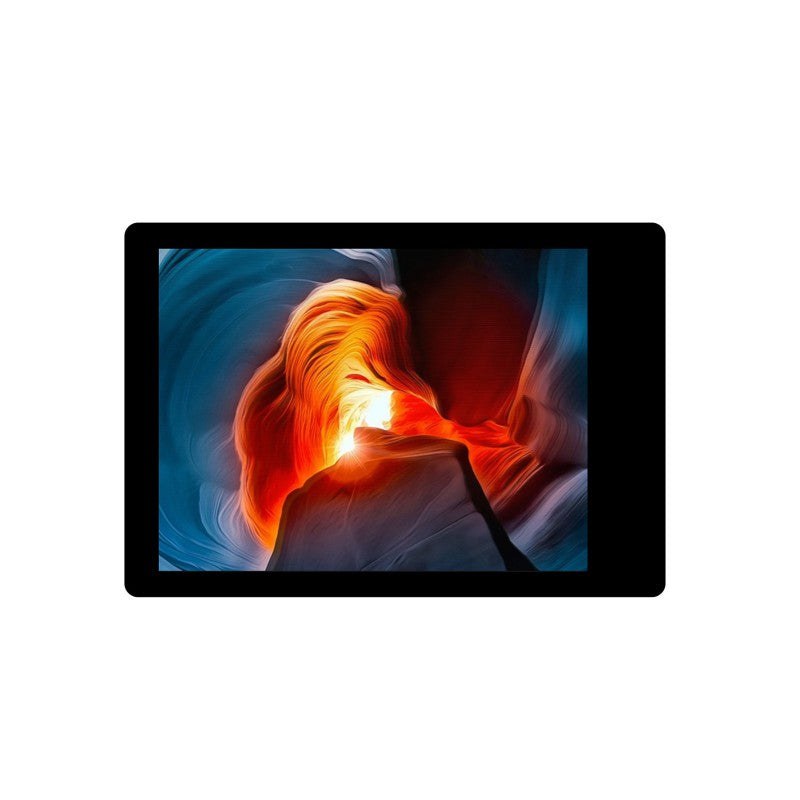

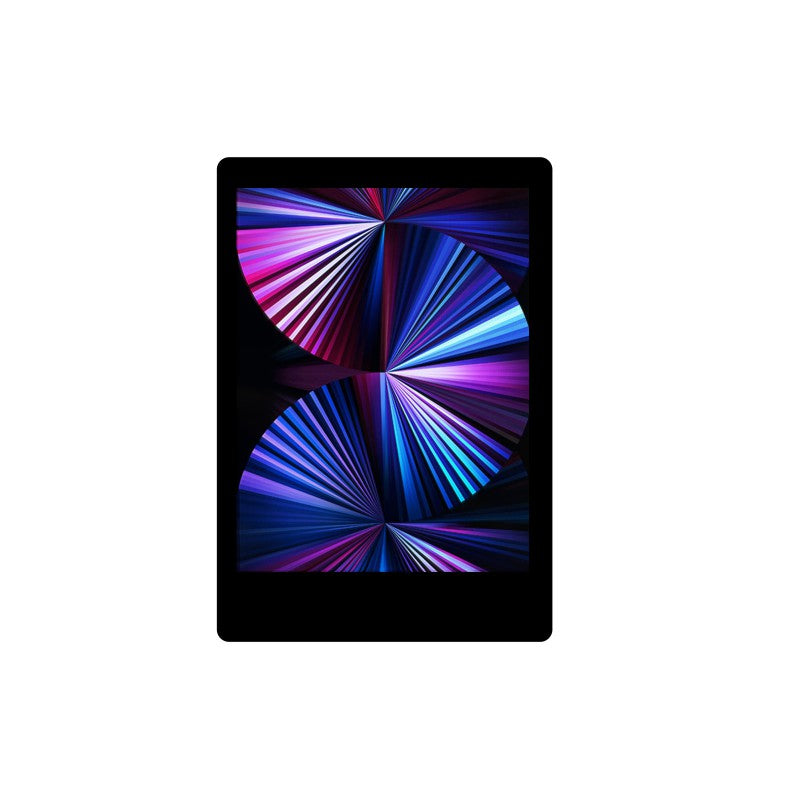

- 240×320 resolution, 262K colors, clear and colorful displaying effect
- High touch screen transmittance, fast response and long lifetime
- Embedded with ST7789T3 driver chip and CST328 capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins

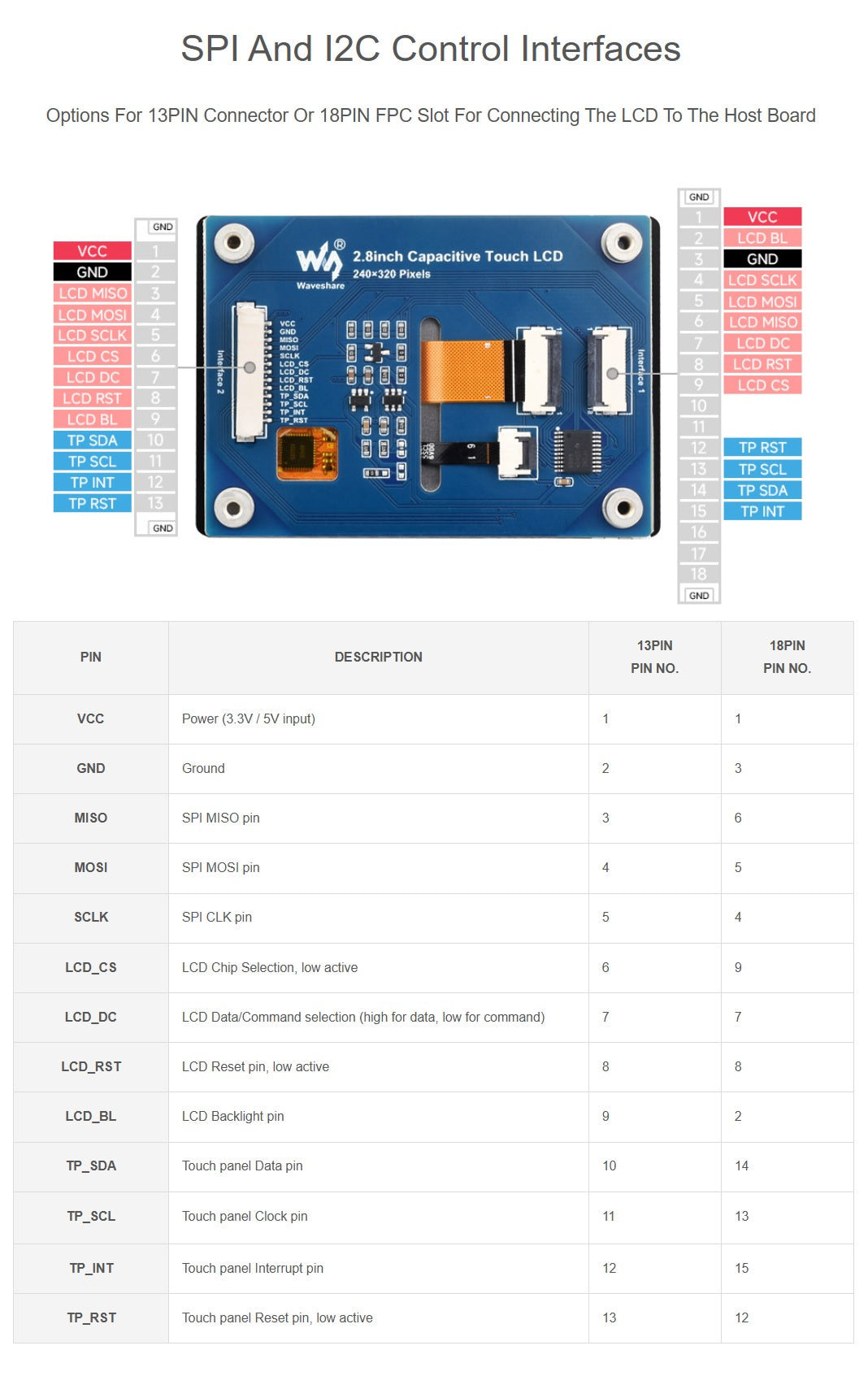

- Adapting 13PIN connector and 18PIN FPC slot for connecting the LCD module to the host board
- Onboard voltage translator, compatible with 3.3V / 5V operating voltage
- Comes with online development resources and manual (examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino)
Documentation
- Wiki
- Schematic
- ST7789T3 Datasheet
- 2.8inch Capacitive Touch LCD 3D Drawing
- 2.8inch Capacitive Touch LCD 2D Drawing
