Introduction

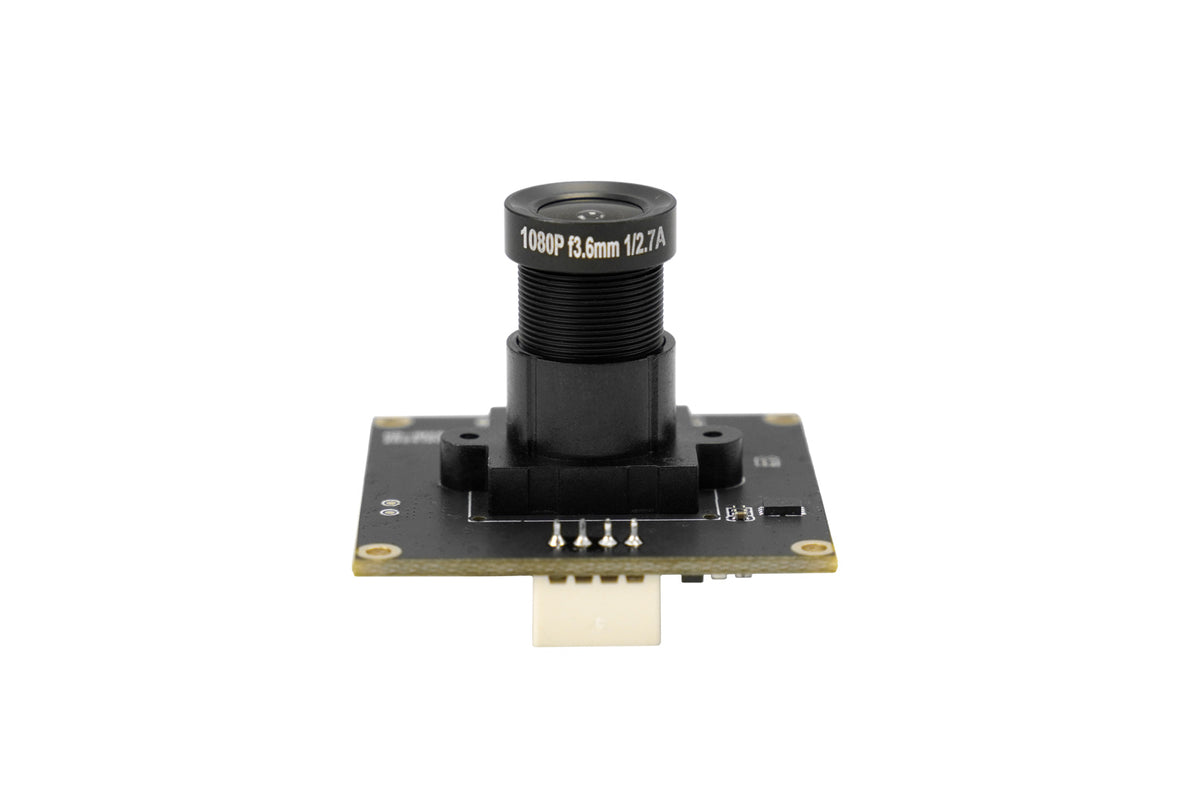

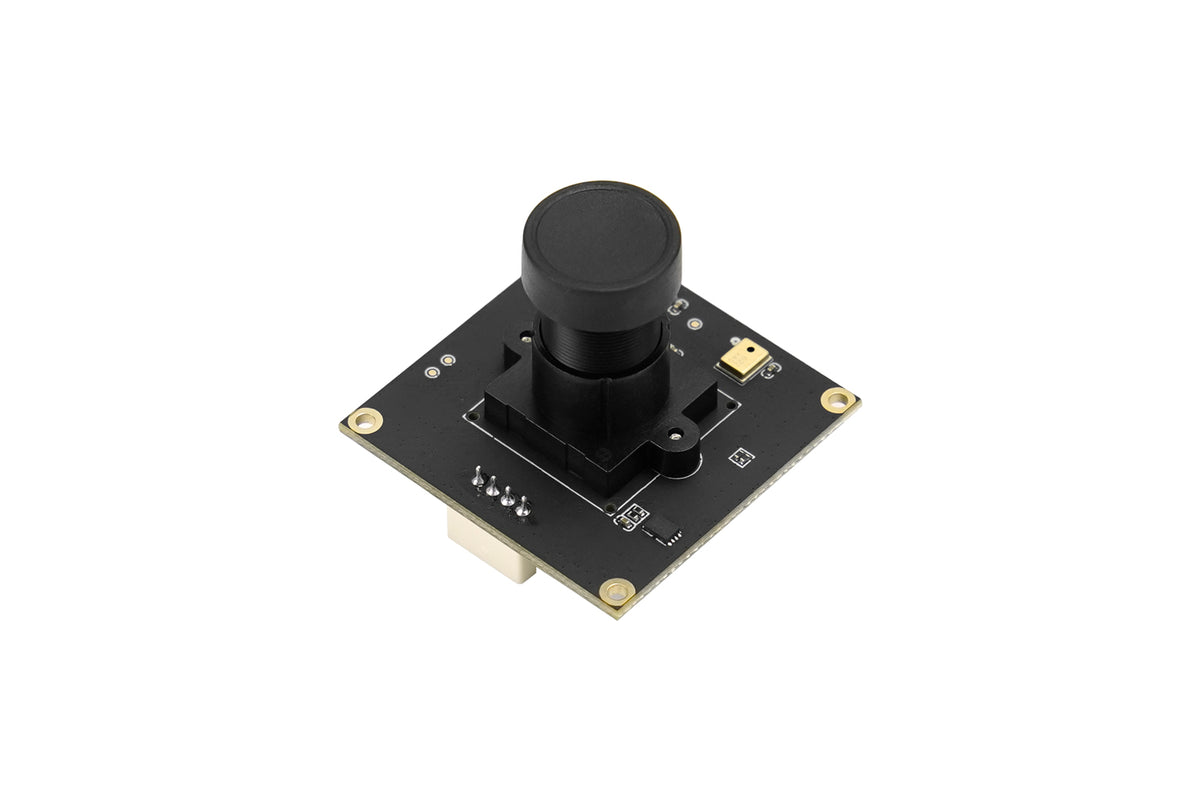

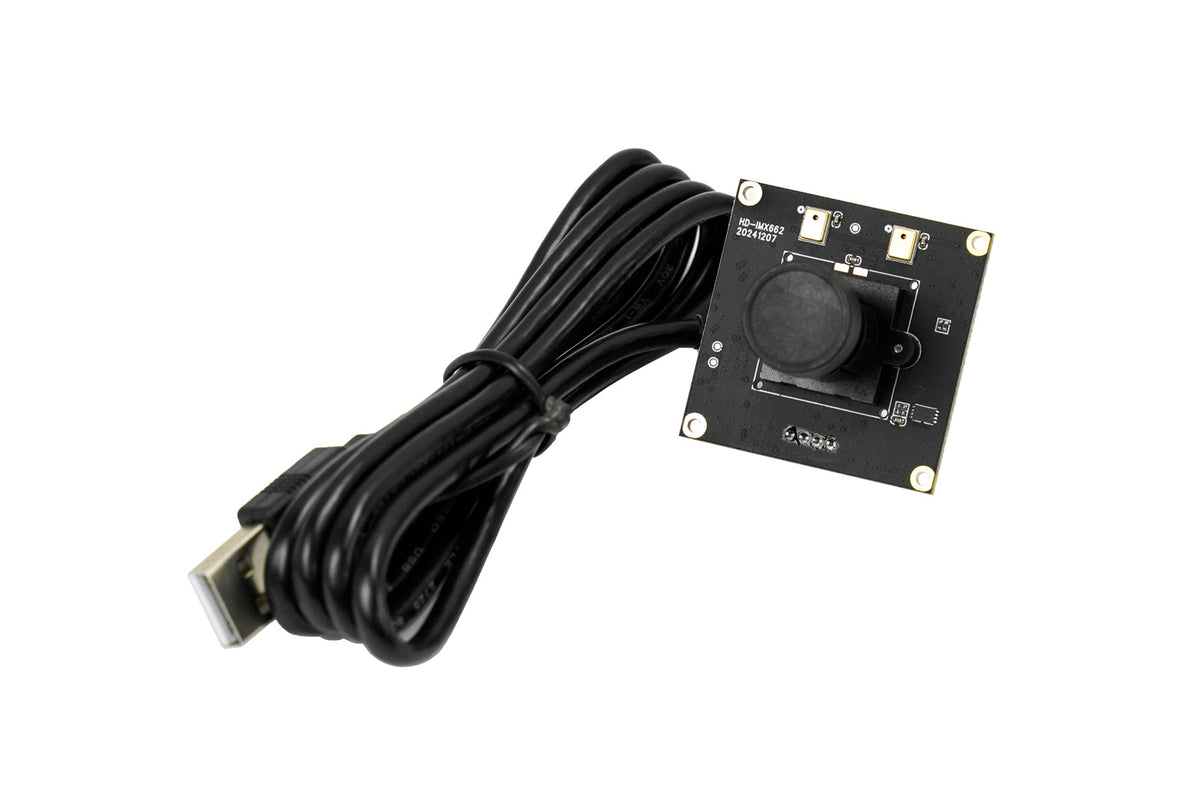

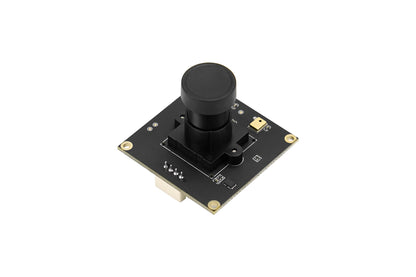

This is a 2 Megapixels driver-free night camera with plug-and-play functionality. Equipped with the Sony IMX662 sensor, it supports high dynamic range (HDR) and low-noise imaging, adapting to complex lighting environments. Utilizing MJPG/YUV compression formats, it offers multiple resolution and frame rate combinations from 1920×1080@60fps to 320×240@60fps, meeting both high-definition imaging and smooth transmission requirements. Compliant with the UVC protocol and USB OTG functionality, it is compatible with Raspberry Pi / LattePanda / NVIDIA Jetson Nano development boards, and Windows / Mac / Linux / Android systems without additional drivers.
Ideal for applications such as facial recognition systems, product detection in smart vending machines, object recognition on electronic scales, and more, this camera ensures precise detail capture and rapid response to interactive demands. It can be flexibly integrated into embedded devices, mobile terminals, or specialized hardware structures, catering to high-precision image acquisition needs across industries like healthcare, education, and smart home automation.
Specification
- CMOS/Sensor Model: IMX662
- Lens Size: 1/2.8 inch
- Pixel Size: 2.9μm × 2.9μm
- Signal-to-Noise Ratio: TBD
- USB Interface: USB 2.0
- Common Resolutions & Frame Rates:
- MJPG Format:
1920×1080 @60fps
1280×720 @60fps
1280×960 @60fps
960×936 @60fps
800×600 @60fps
640×480 @60fps
320×240 @60fps - YUV Format:
1920×1080 @5fps
1280×960 @5fps
1280×720 @10fps
960×936 @5fps
800×600 @20fps
640×480 @30fps
320×240 @60fps - Operating Voltage & Current: 5V, 140mA~90mA
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -30°C to 80°C
- Supported Systems:
Microsoft Windows 2000 SP2/XP/Vista/7/8/10
Mac OS X 10.4.8 and above (UVC-compliant)
Linux, Android, and other UVC-compliant systems - Driver-Free Protocol: USB 2.0 OTG
