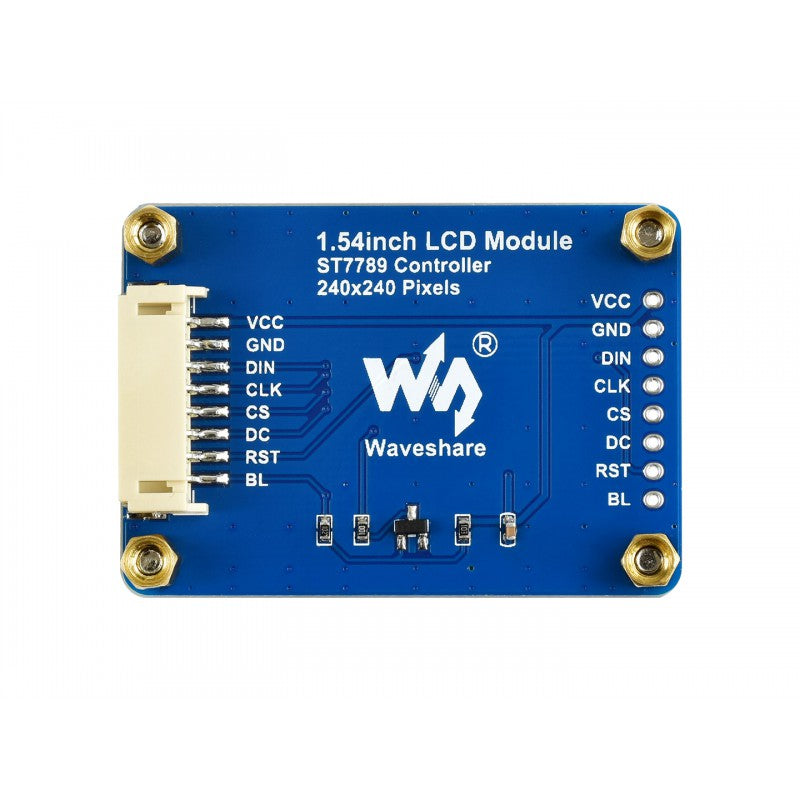

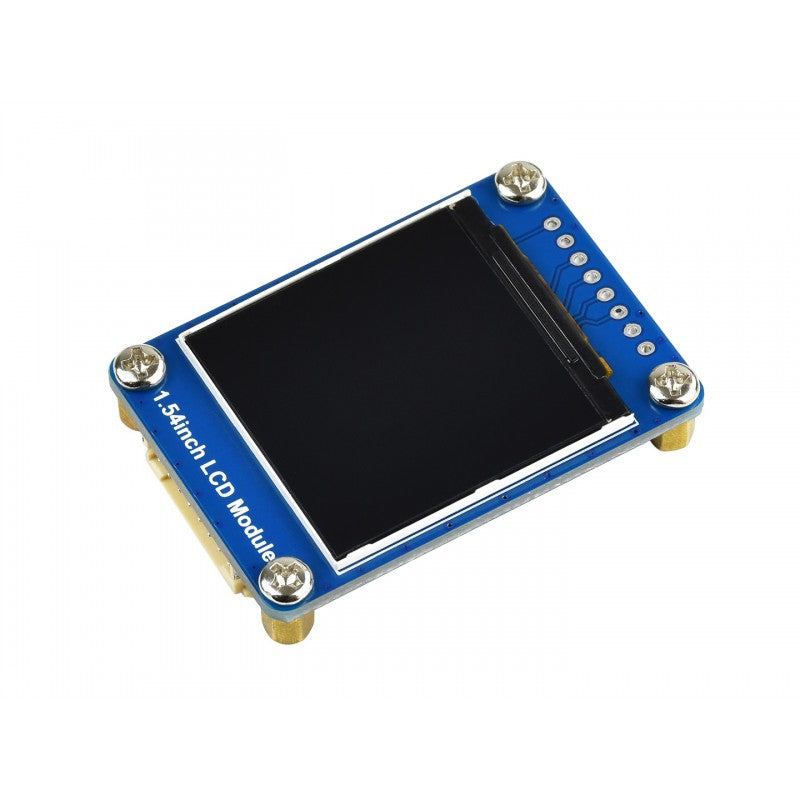

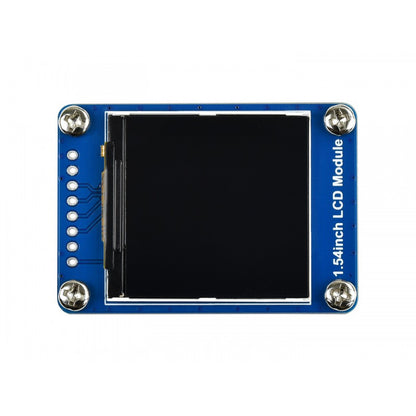

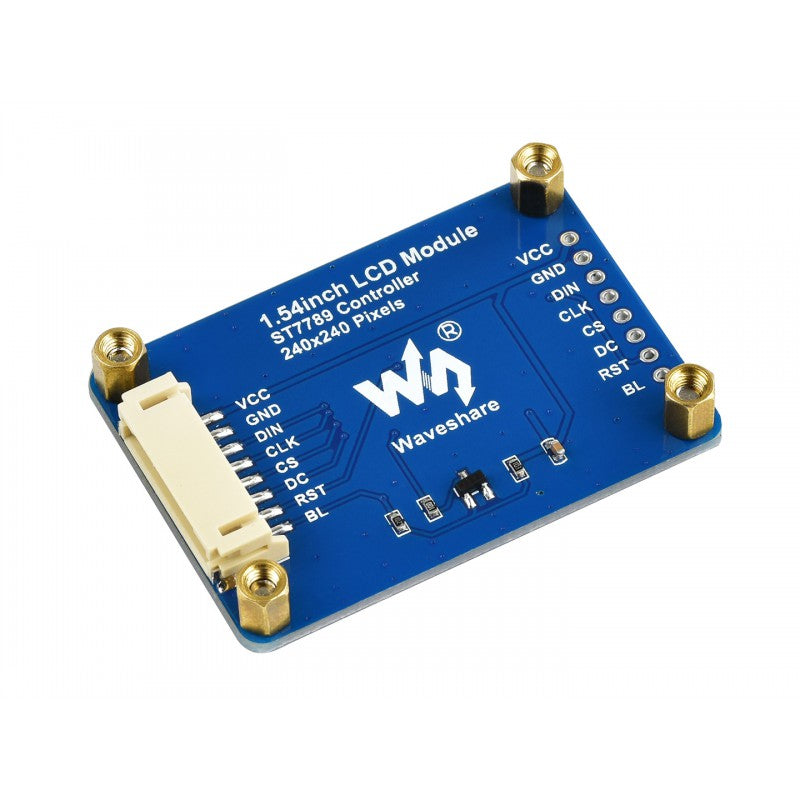

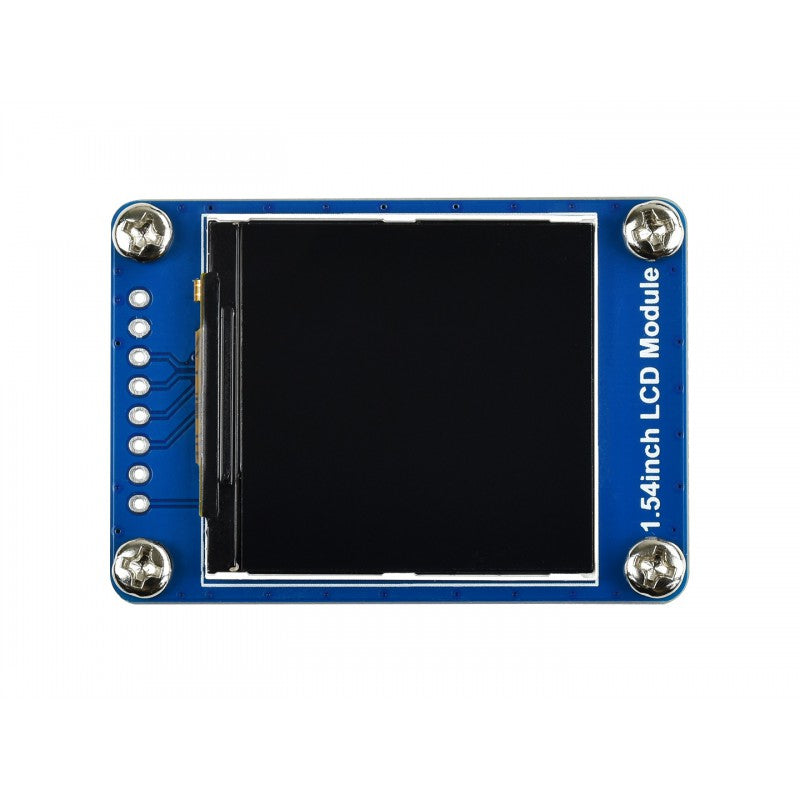

240×240, General 1.54inch LCD Display Module, IPS, 65K RGB

Description

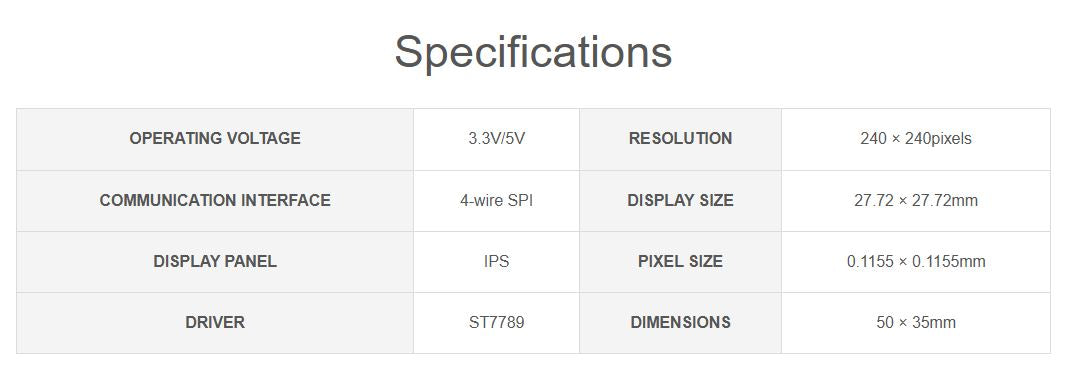

1.54inch LCD Display Module, IPS Screen, 65K RGB Colors, 240×240 Resolution, SPI Interface

Features

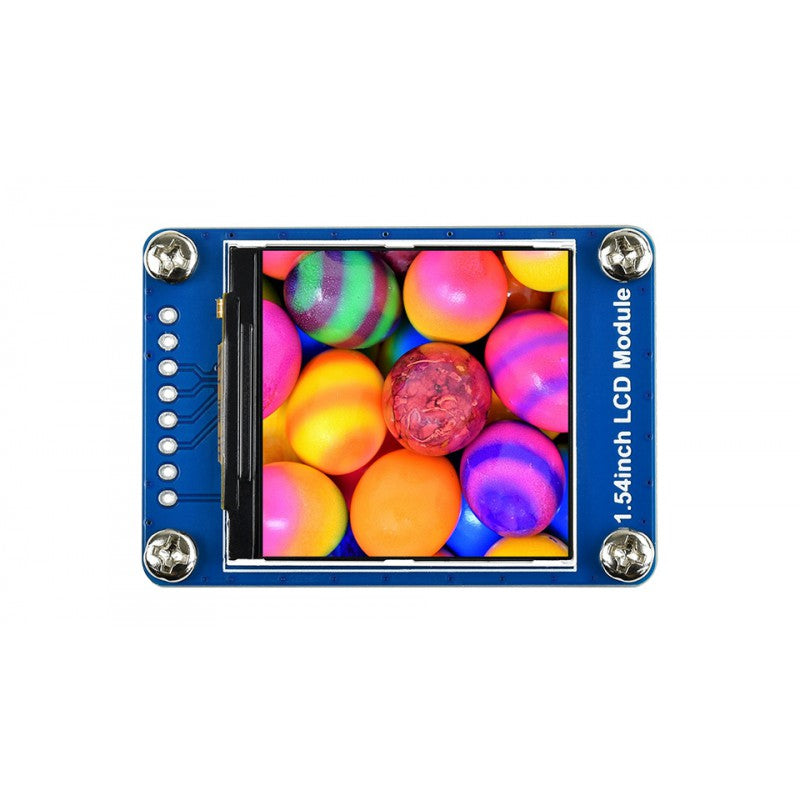

• 240×240 resolution, 65K RGB colors, clear and colorful displaying effect

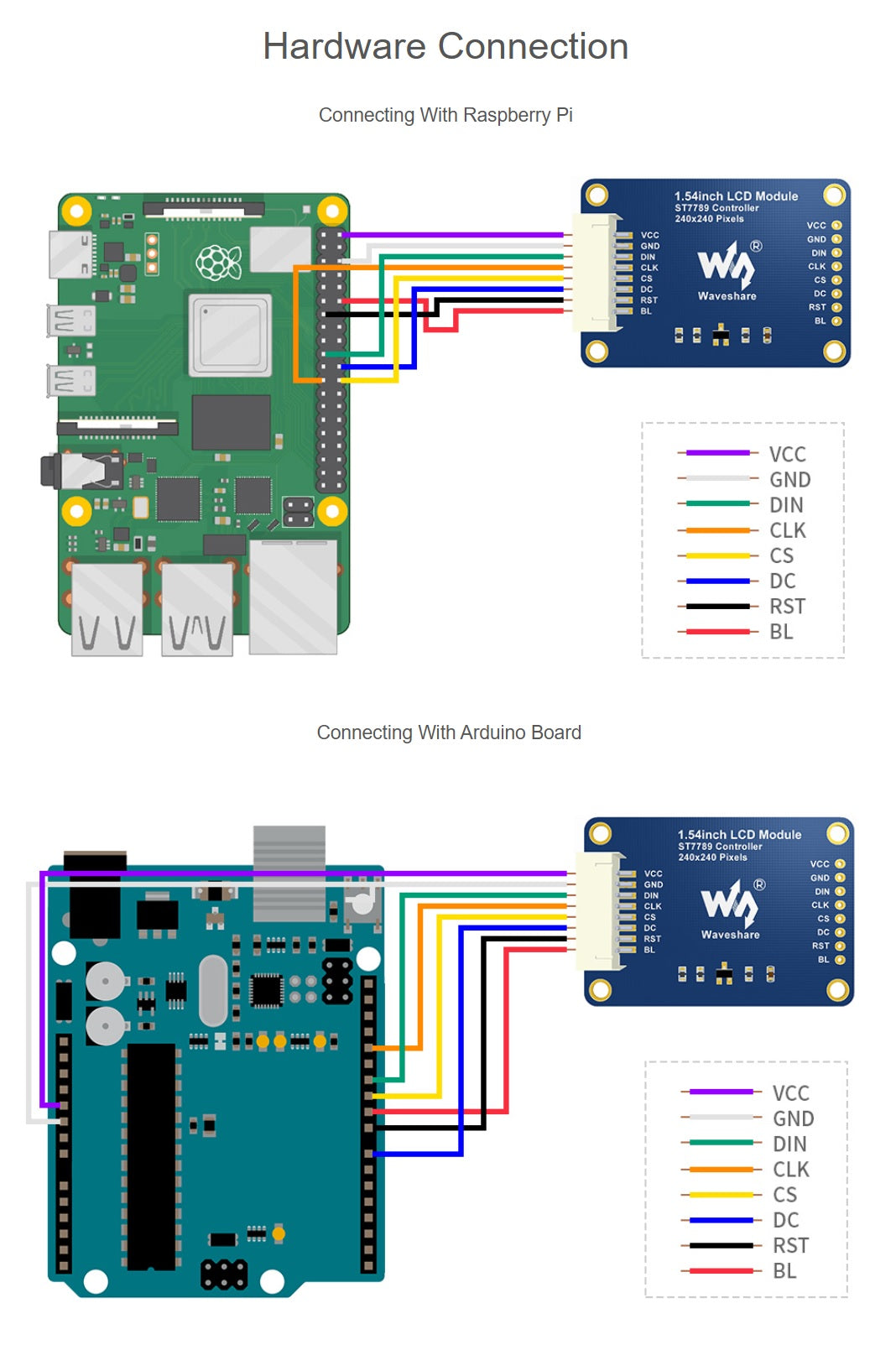

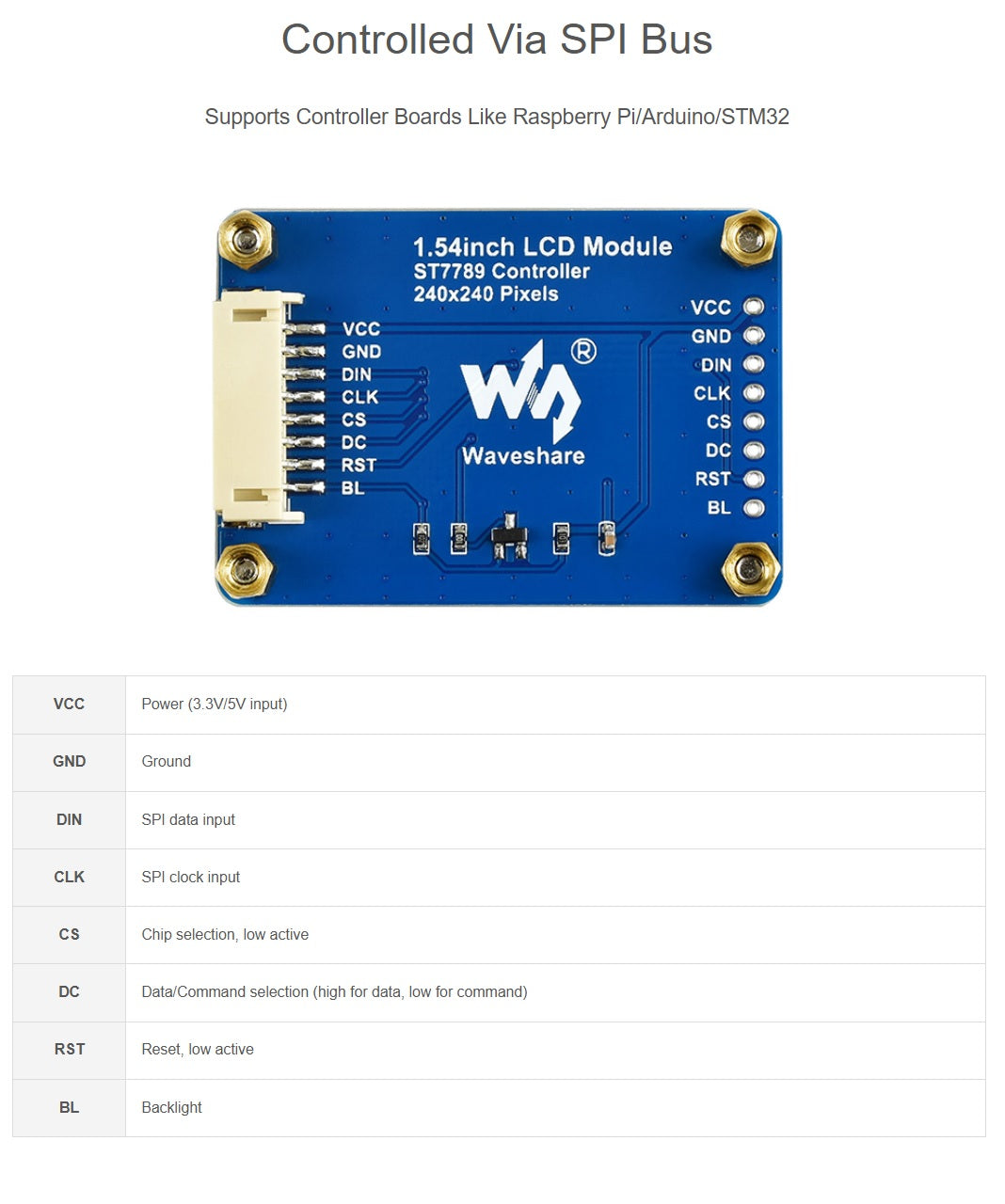

• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
• Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Documentation

• Wiki
• Schematic
• 2D Diagram
• 3D Diagram
• ST7789VW Datasheet

Software

• Zimo221 Chinese character conversion software
• Image2Lcd image bitmap conversion software
• Image bitmap conversion tutorial
• Font library conversion tutorial
• Flash_download_tool

Demo

• Demo
