1.3inch IPS LCD display HAT for Raspberry Pi, 240x240 pixels, SPI interface
Overview

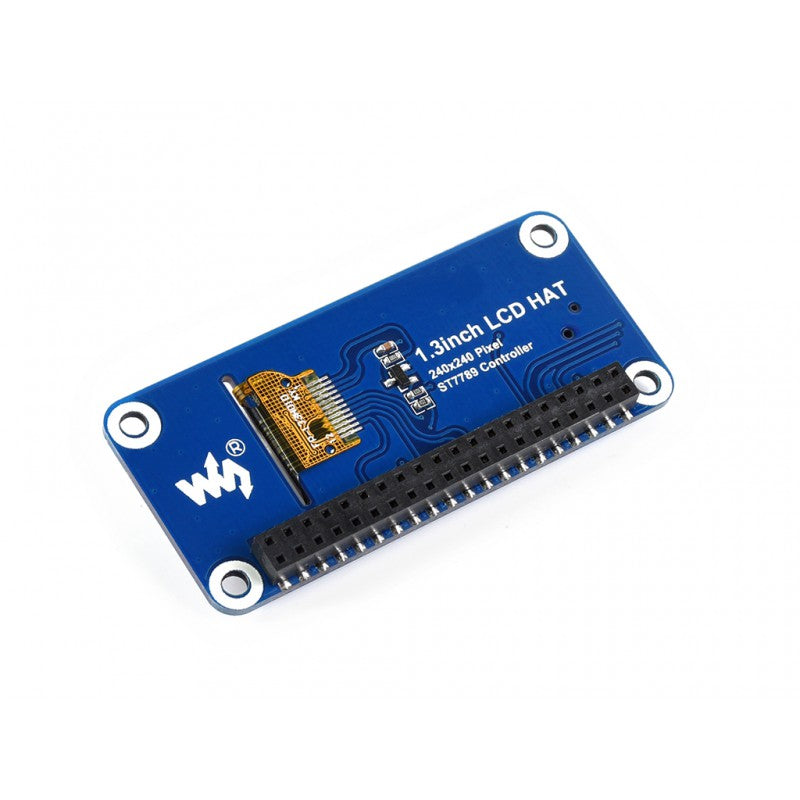

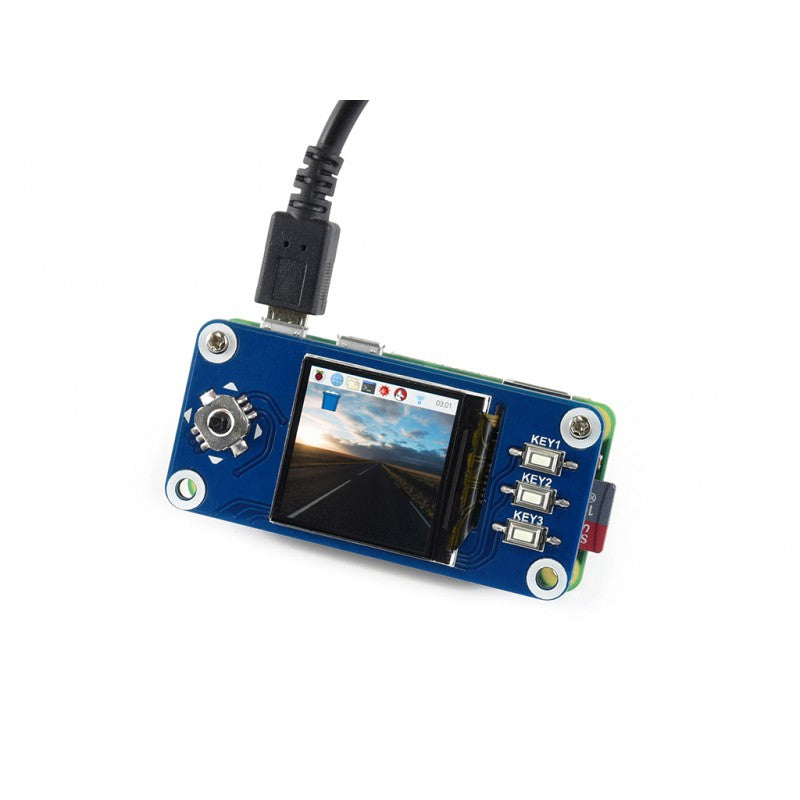

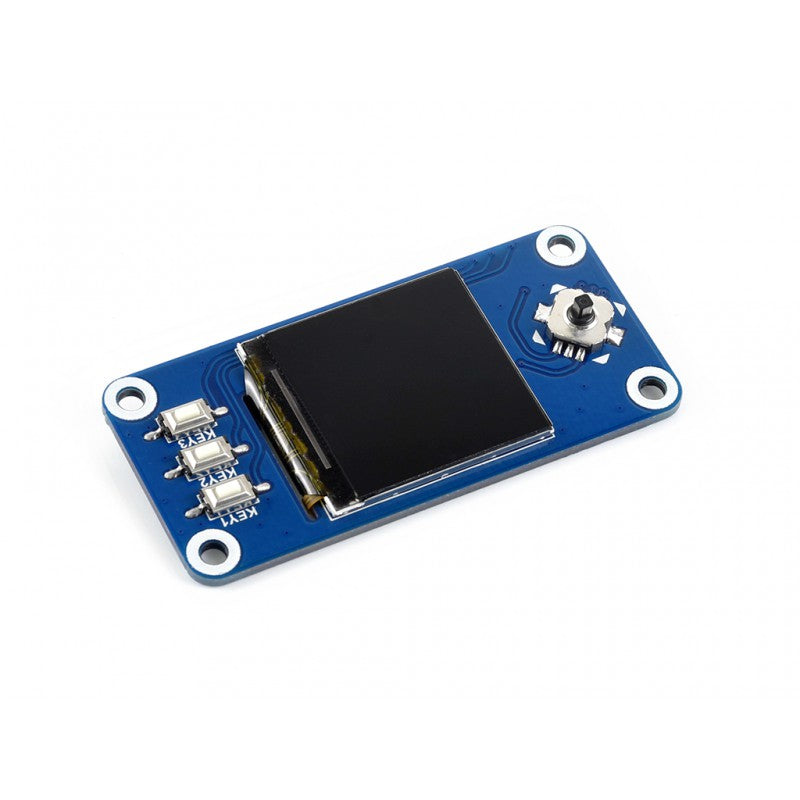

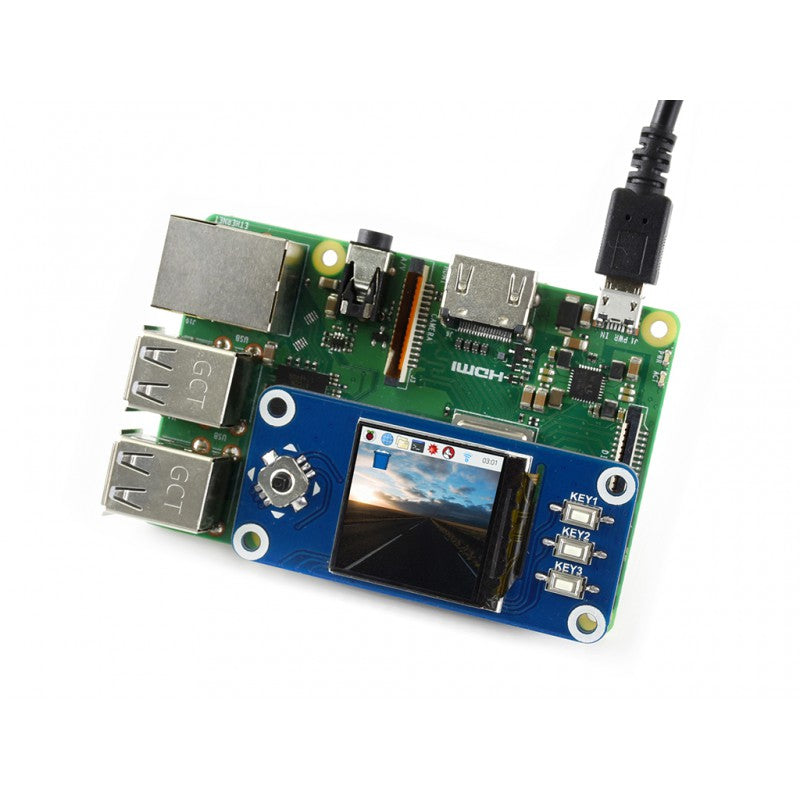

This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pixels, with embedded controller, communicating via SPI interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
IPS screen, wide viewing angle, better display
High definition in small size
1x joystick, 3x pushbuttons, handy and useful
Comes with development resources and manual (examples for Raspberry Pi)
Specifications
Driver: ST7789
Interface: SPI
Display color: RGB, 65K color
Resolution: 240x240
Backlight: LED
Operating voltage: 3.3V
