2D Codes Scanner Module (E), Barcode / 2D Code Scanner Module, Supports Metal DPM Code Recognition, Compatible With Multiple Barcode Formats Including DotCode And DM, Onboard USB And UART Interfaces

2D Codes Scanner Module (E), Barcode / 2D Code Scanner Module, Supports Metal DPM Code Recognition, Compatible With Multiple Barcode Formats Including DotCode And DM, Onboard USB And UART Interfaces

E37006-001

$115.10 AUD
$115.10 AUD
Sale Sold out
Shipping calculated at checkout.

• Free shipping in AU if oder ≥ $50

• For more shipping policy, more details

• Shipping to Non-Australia, contact us

• Accept 30-day returns, see details.

In stock
• Download datasheet
View full details

Product Overview

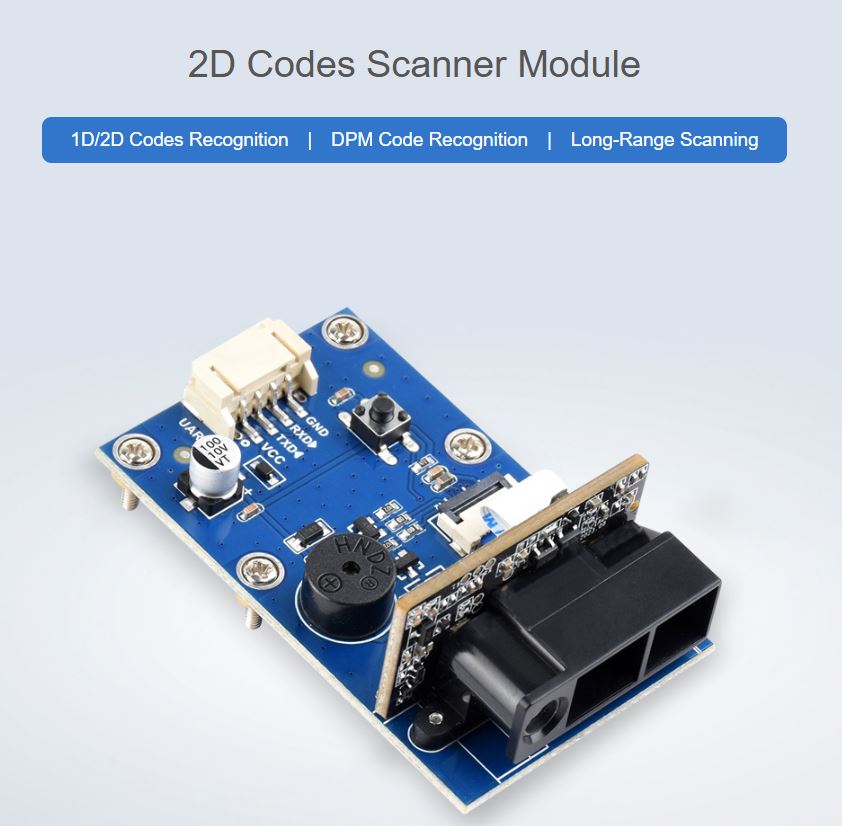

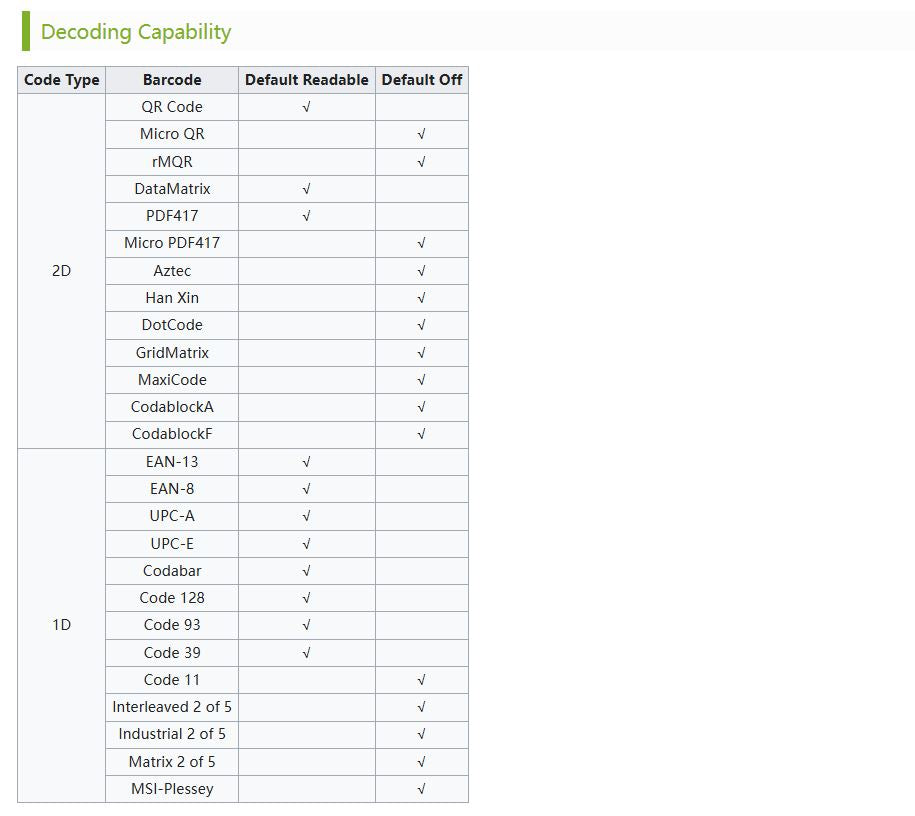

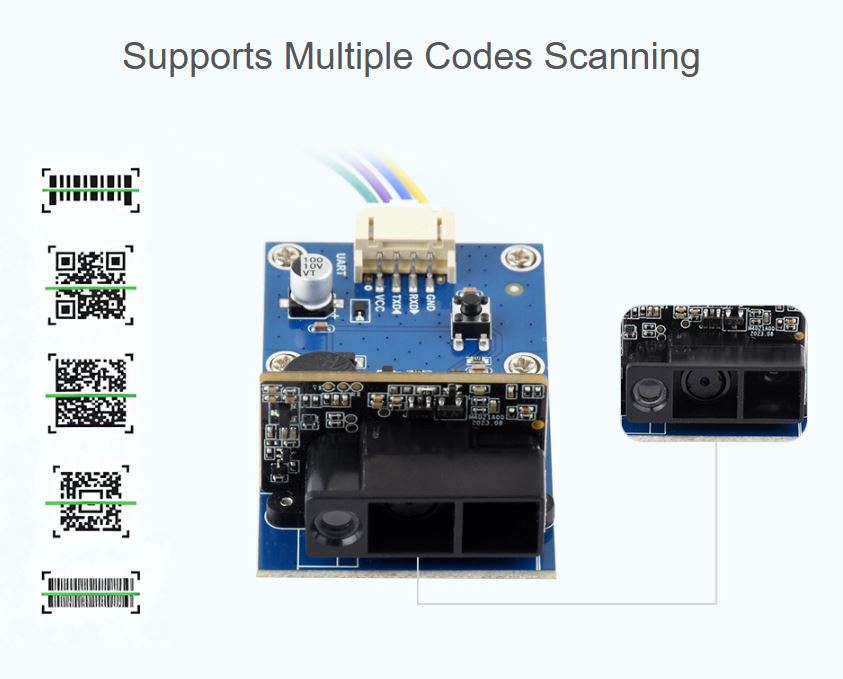

TheBarcode Scanner Module (E)is a Barcode/2D code scanner module, by using the intelligent image recognition algorithm, it can decode the 1D / 2D and DPM code on paper or PCB board quickly and accurately, compatible with multiple barcode formats including DotCode and DM, supports high accuracy, high speed and high contrast barcode scanning. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.

Specification

  • Resolution: 1080× 1280
  • Scan Angle: shorizontal 70°, vertical 55°, roll 360°
  • Scan Mode: Sensing, Continuous, Manual (default)
  • Communication Interface:

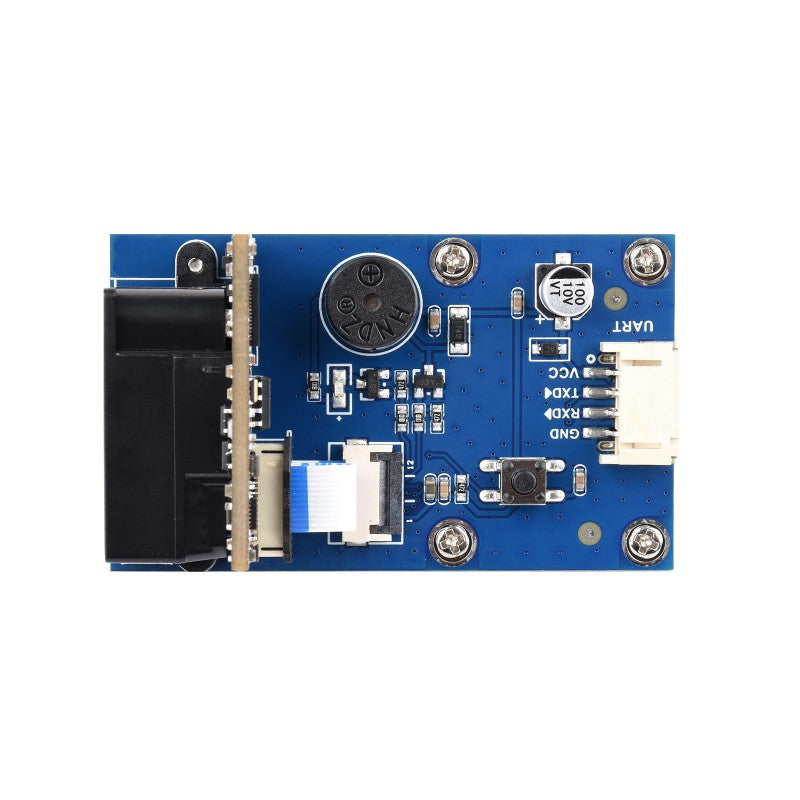

  1. UART port (default 9600 8N1)

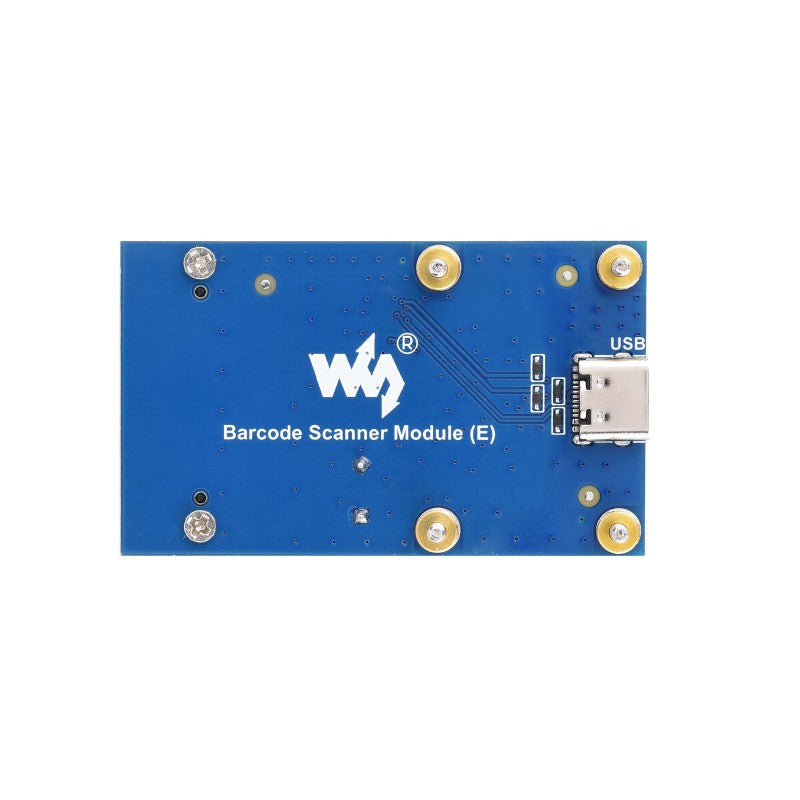

  2. USB (USB keyboard/USB virtual port)
  • Operating Voltage : 5V
  • Operating Current: 270mA
  • Standby Current: 140mA
  • Operating Temperature: -30 ~ +60°C
  • Storage Temperature: -40 ~ + 70°C
