2inch Capacitive Touch Display Module, Embedded with ST7789T3 Display Driver and CST816D Capacitive Touch Controller, IPS Display, 240×320 Resolution

Description

2inch Capacitive Touch Display Module, Embedded with ST7789T3 Display Driver and CST816D Capacitive Touch Controller, IPS Display, 262K Colors, 240×320 Resolution, Faster Response and More Durable

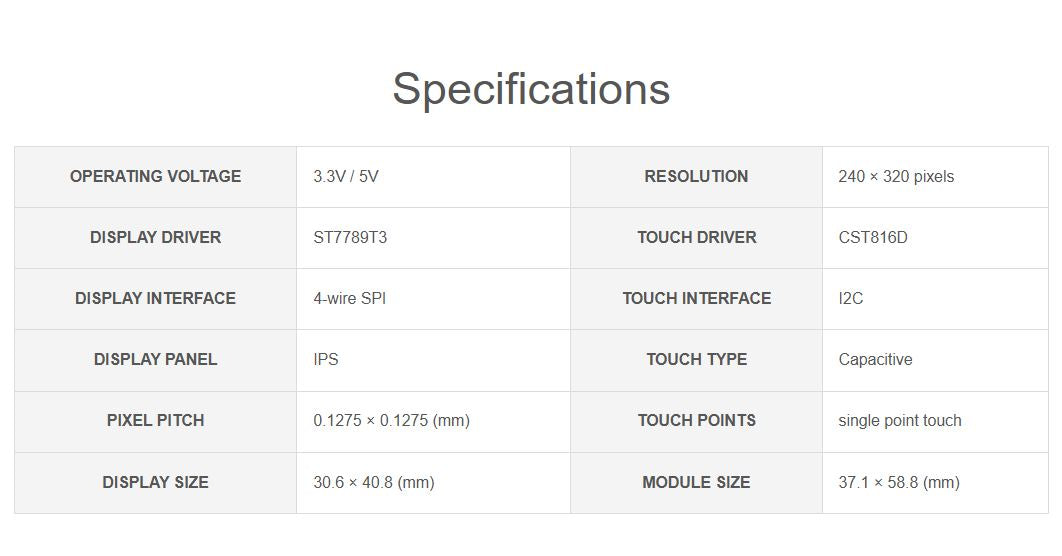

Features

• 240×320 resolution, 262K colors, clear and colorful displaying effect
• High touch screen transmittance, fast response and long lifetime
• Embedded with ST7789T3 driver chip and CST816D capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins

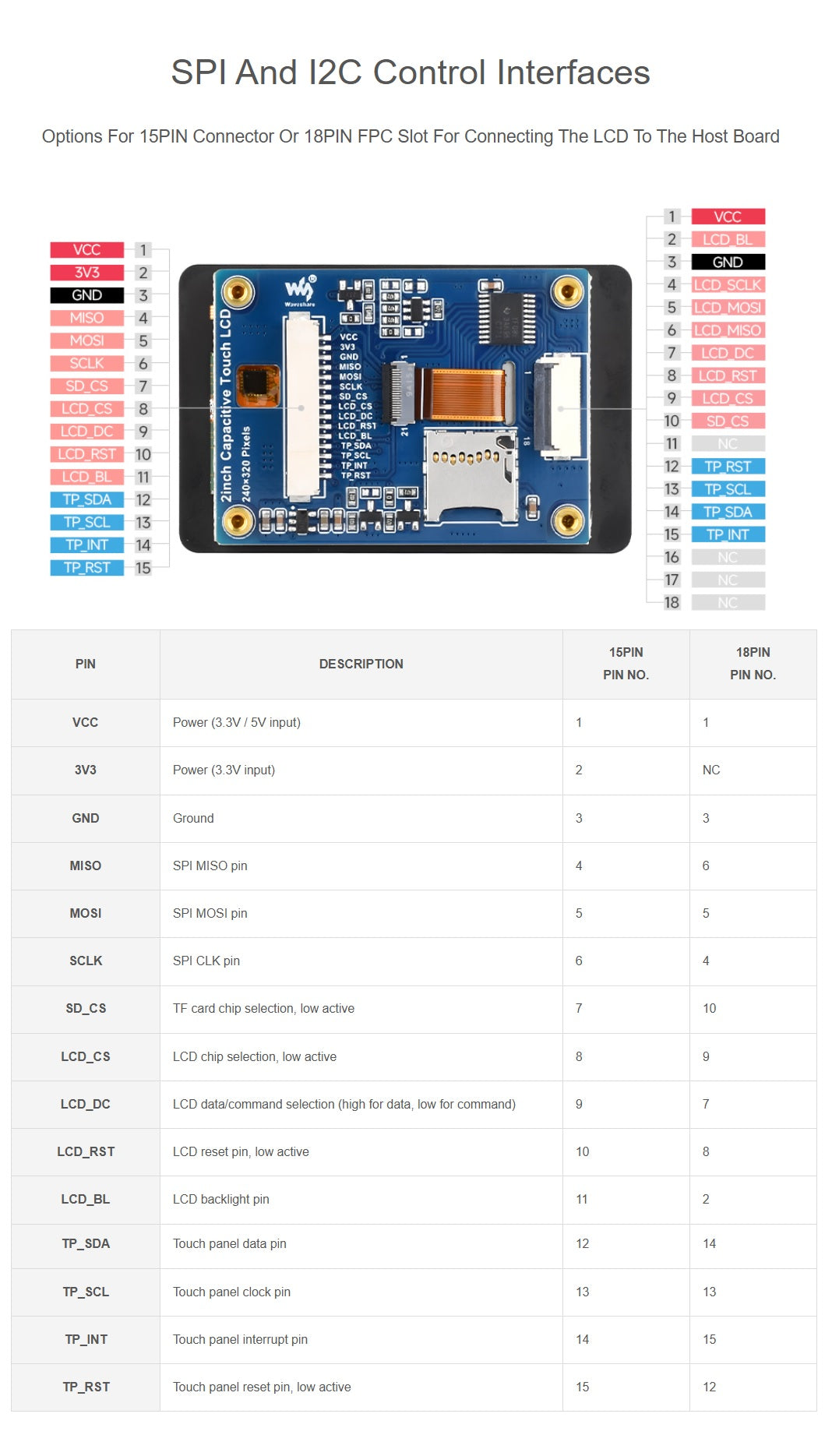

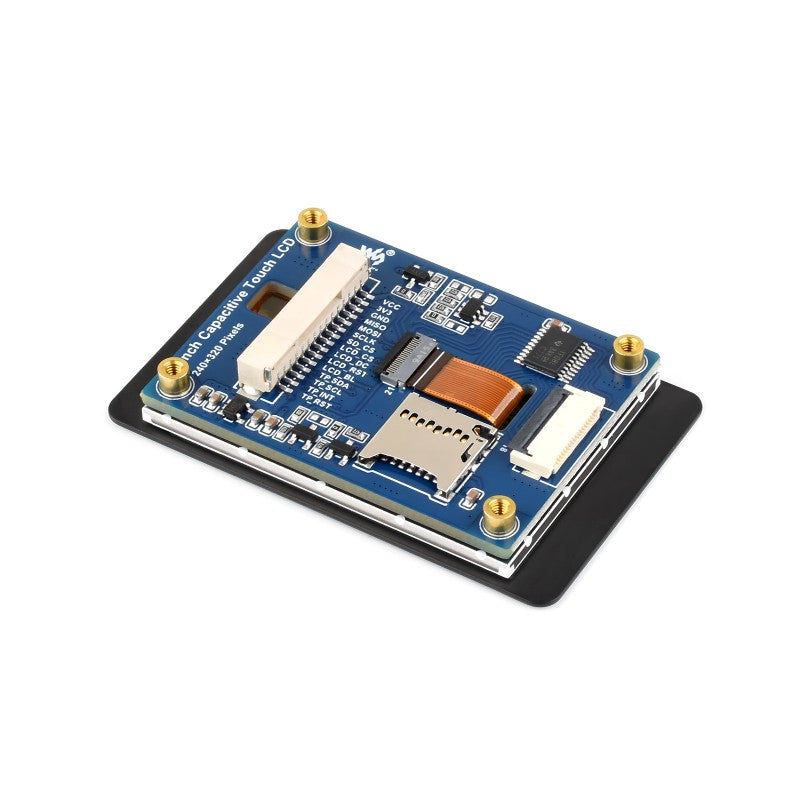

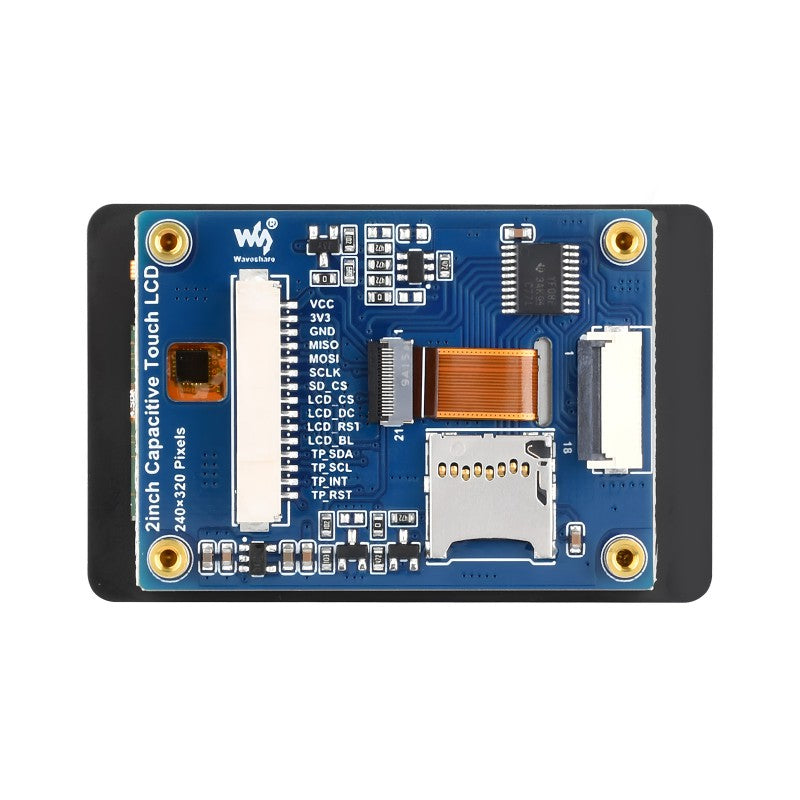

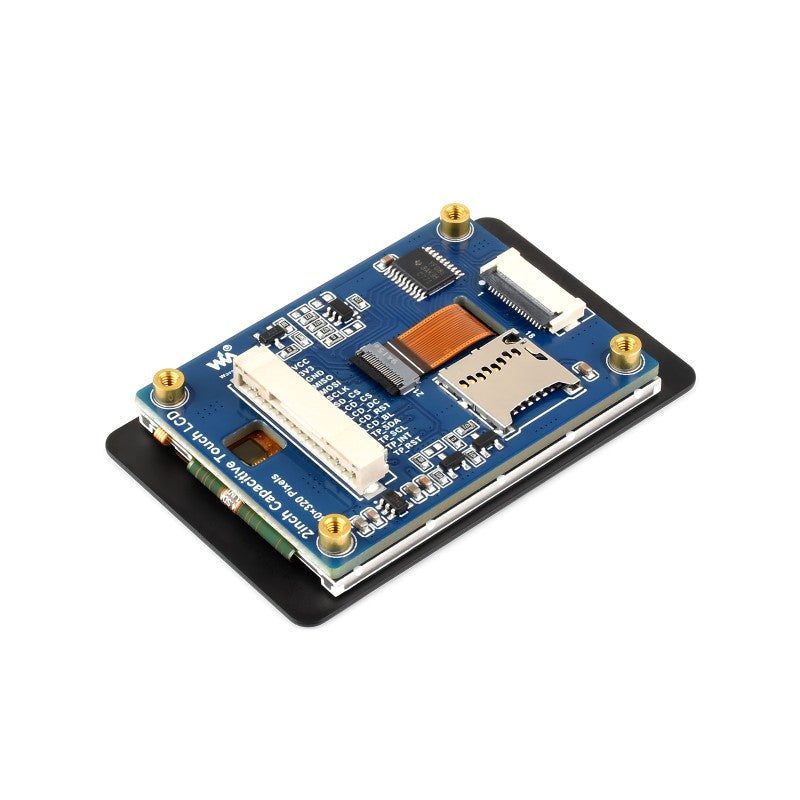

• Adapting 15PIN connector and 18PIN FPC slot for connecting the LCD module to the host board
• Onboard voltage translator, compatible with 3.3V / 5V operating voltage

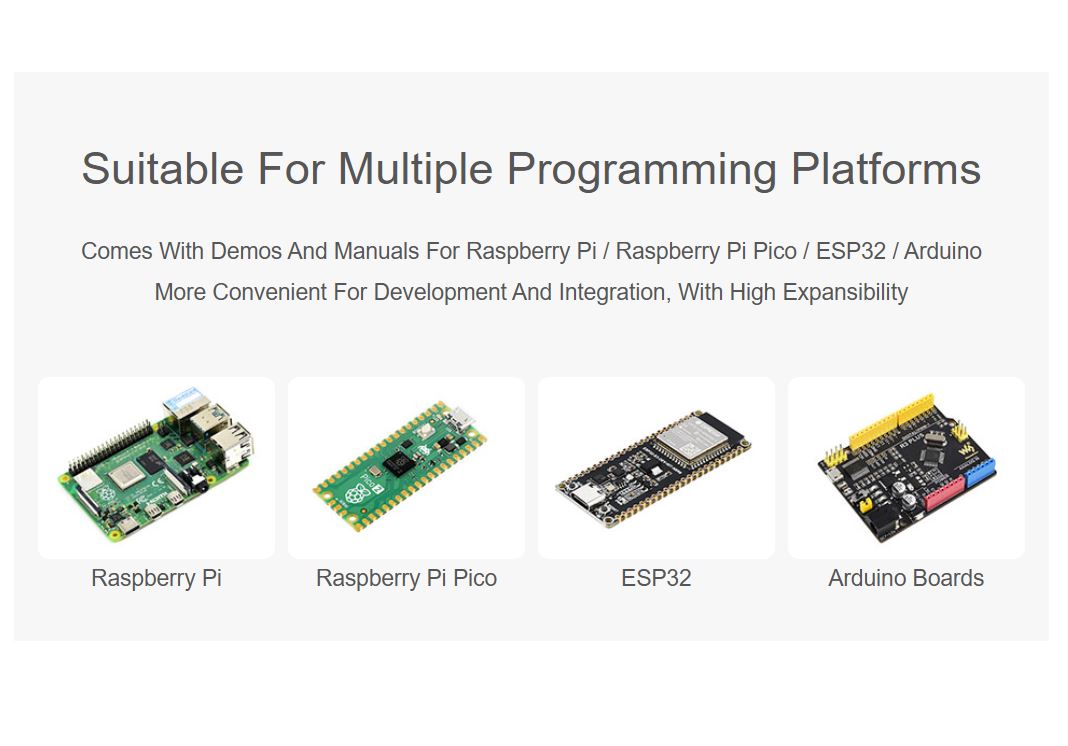

• Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino)

Documentation

• Wiki
• 2inch Capacitive Touch LCD Schematic
• ST7789T3 Datasheet
• CST816D Datasheet

3D Model

• 2inch Capacitive Touch LCD STEP file
• 2inch Capacitive Touch LCD PCBA STEP file

Demo

• ESP32S3 Demo
• Raspberry Pi Demo
• Raspberry Pi Pico Demo
• Arduino Demo
