Description

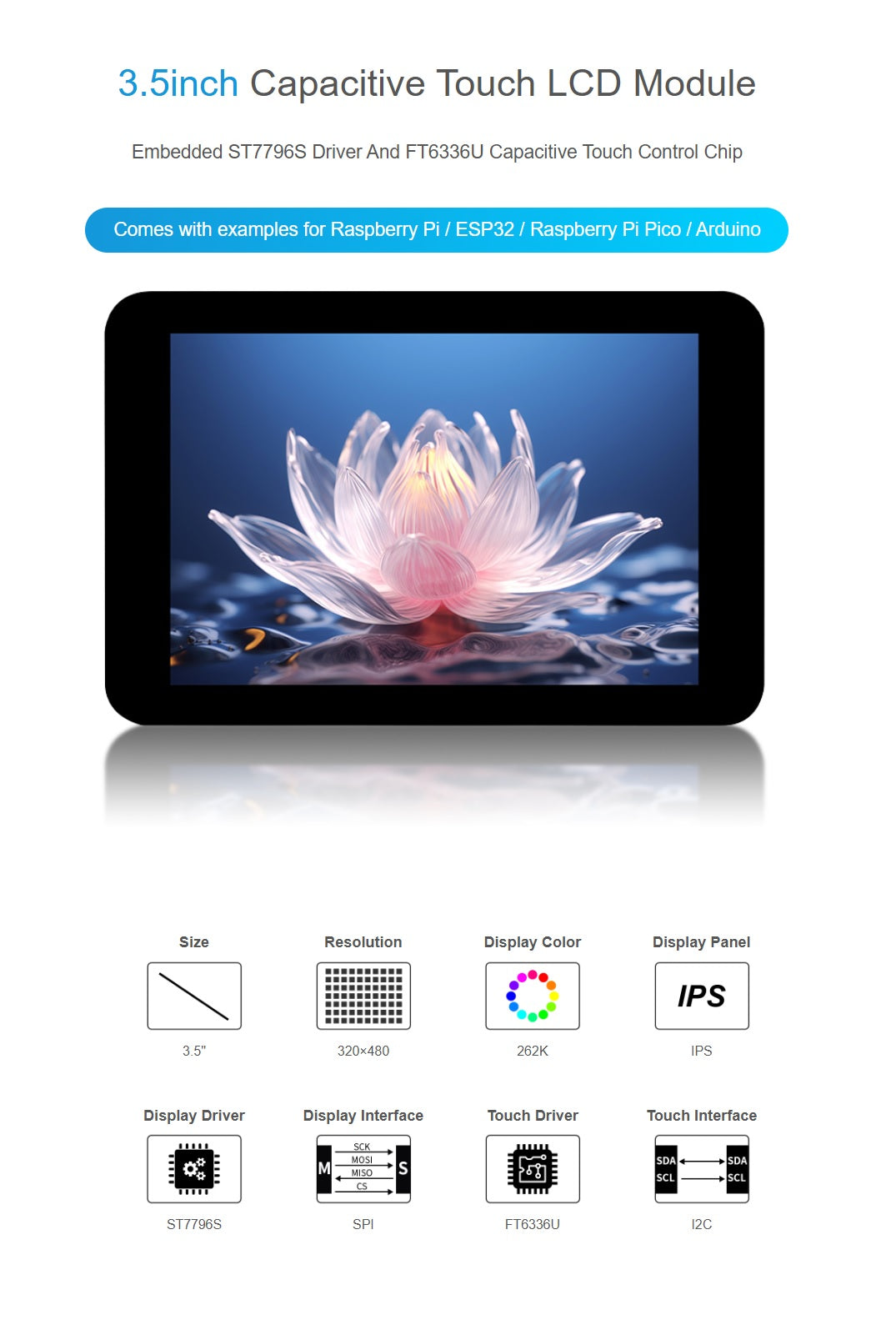

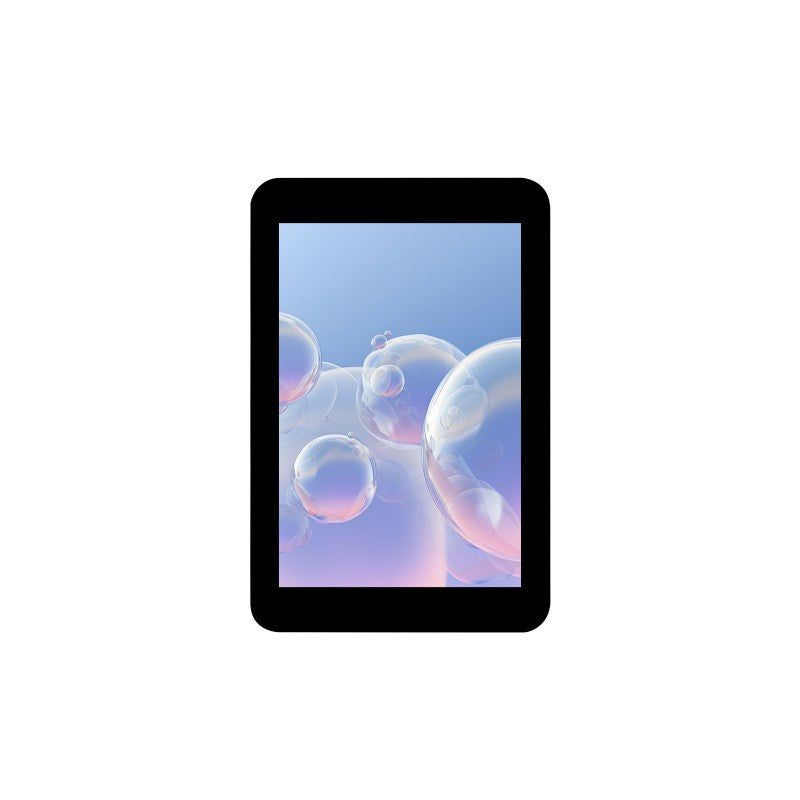

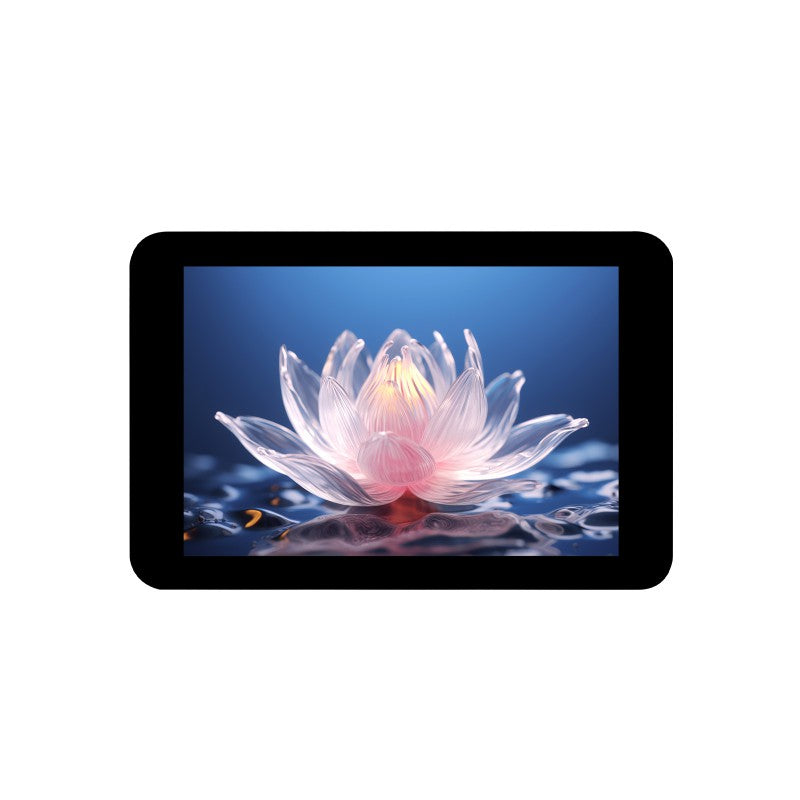

3.5inch Capacitive Touch Display Module, 320×480 Resolution, Embedded with ST7796S Display Driver and FT6336U Capacitive Touch Controller, IPS Display

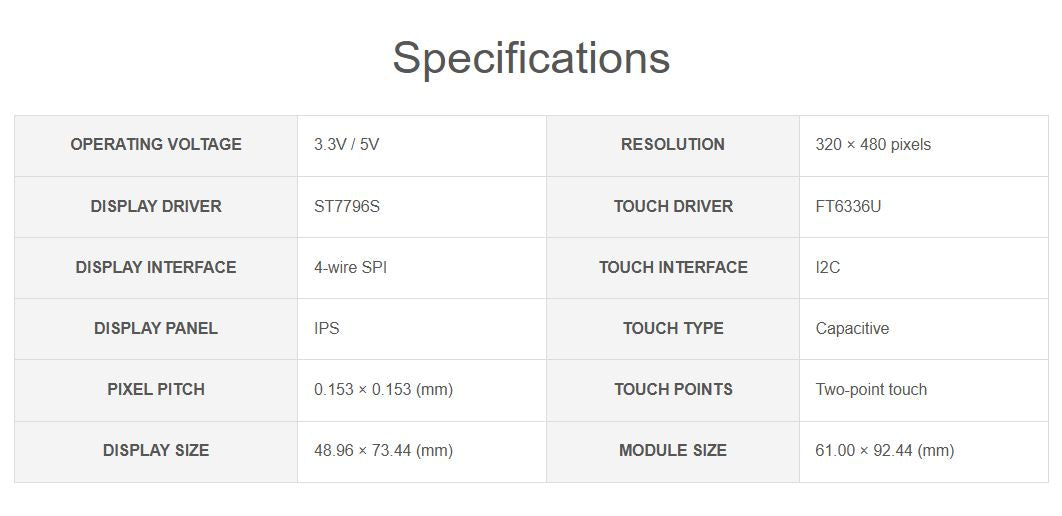

Features
- 320×480 resolution, 262K colors, clear and colorful displaying effect

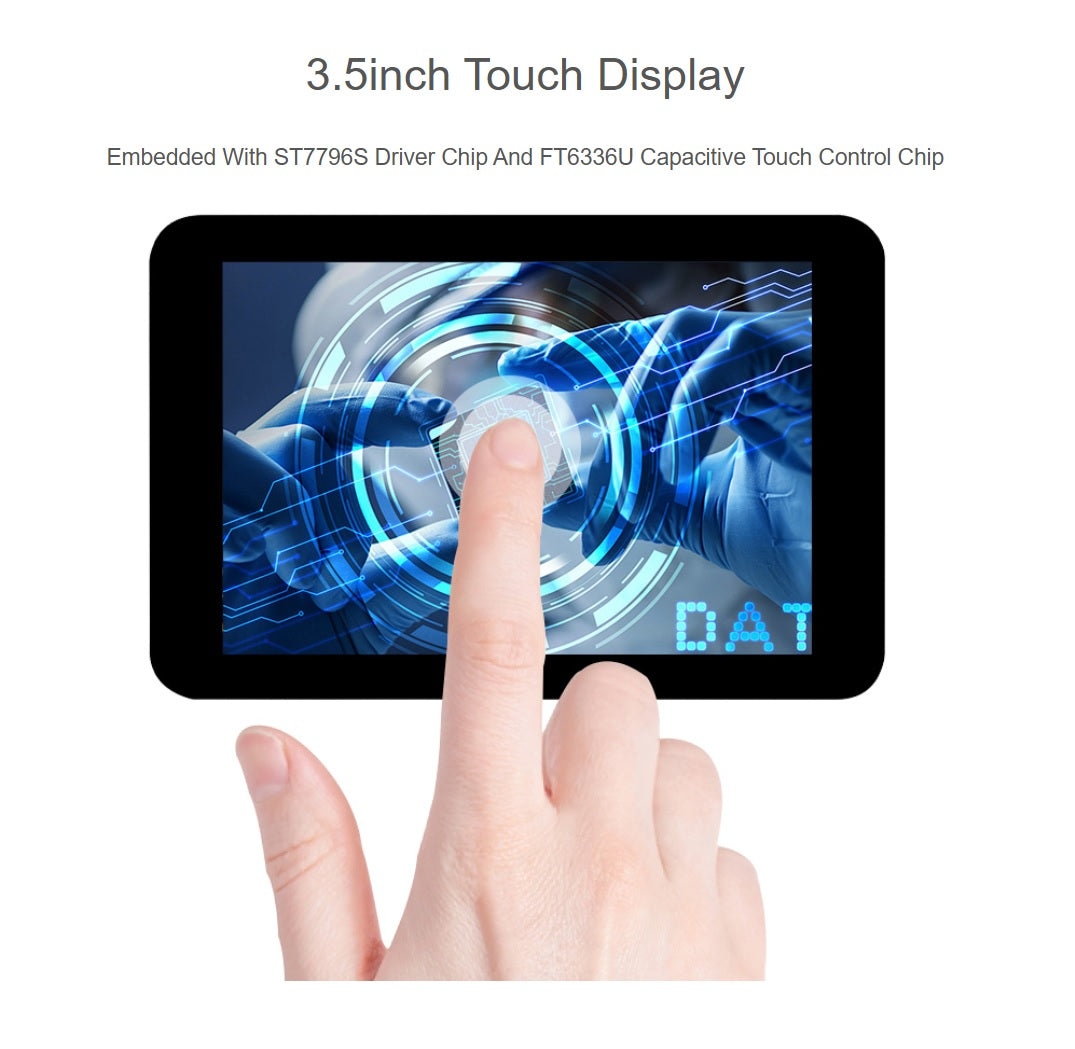

- High touch screen transmittance, fast response and long lifetime
- Embedded with ST7796S driver chip and FT6336U capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins

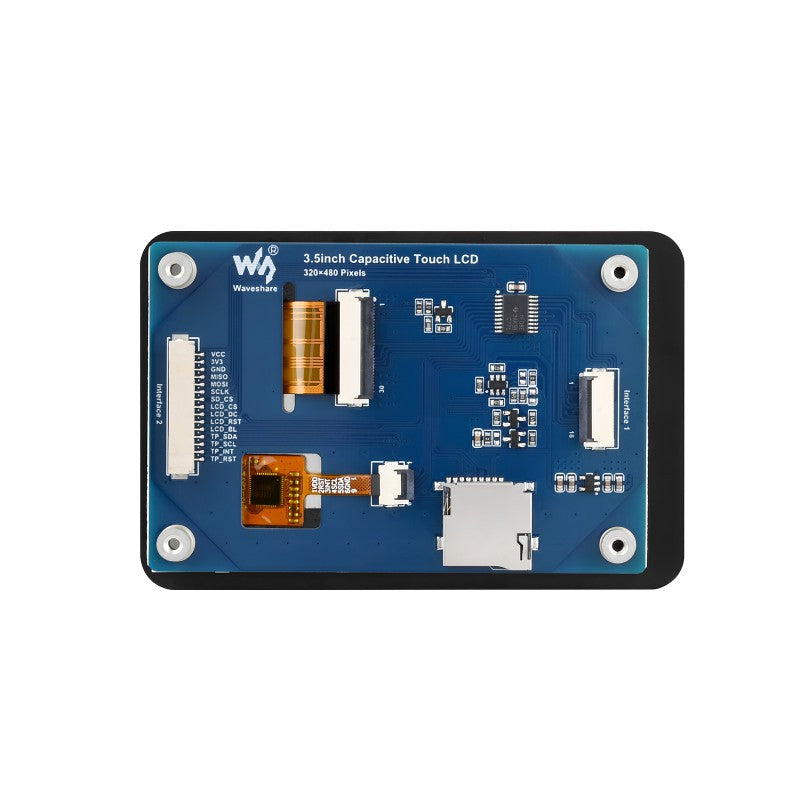

- Onboard TF card slot for storing more pictures, videos, music, etc.

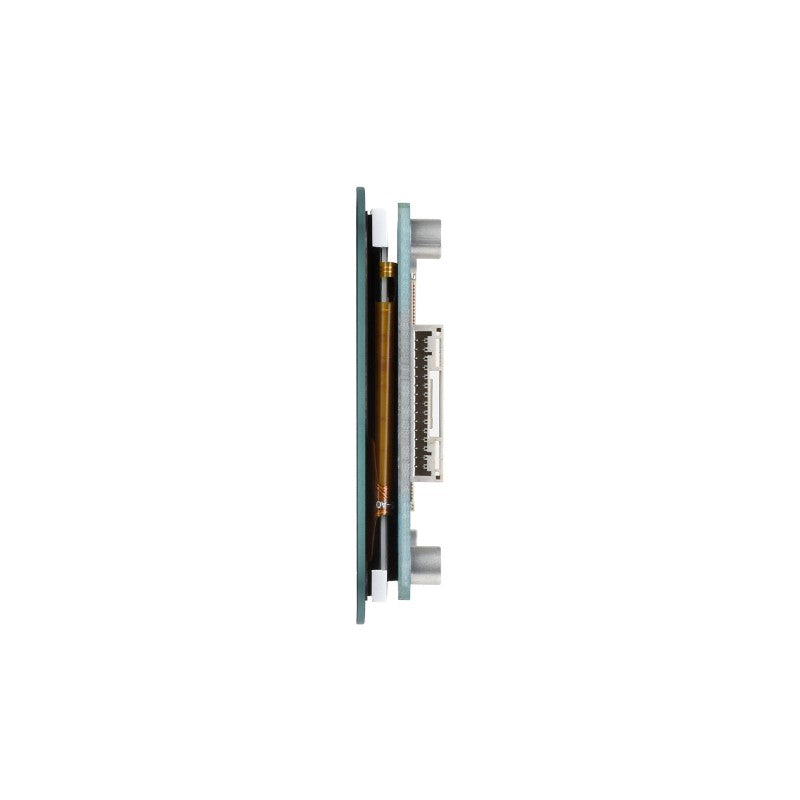

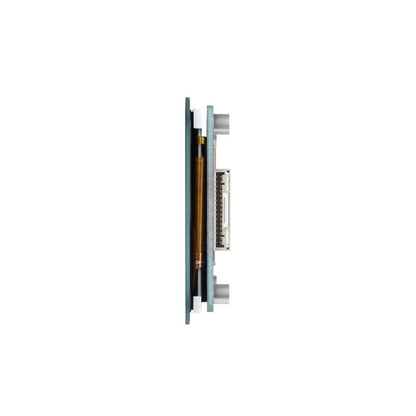

- Adapting 15PIN connector and 18PIN FPC slot for connecting the LCD module to the host board
- Onboard voltage translator, compatible with 3.3V / 5V operating voltage
- Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino)
Documentation
- Wiki
- 3.5inch Capacitive Touch LCD Schematic
- ST7796S Datasheet
- FT6336U Datasheet
- 3.5inch Capacitive Touch LCD 3D and 2D file
