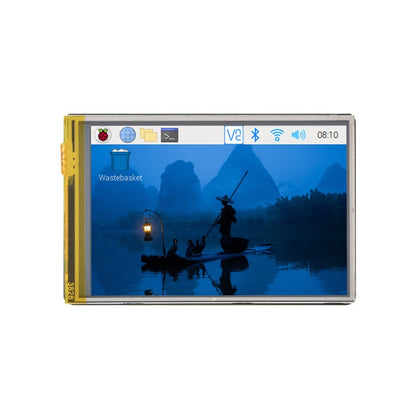

Description
The 3.5inch RPi LCD (G) is equipped with a resistive touch screen with a resolution of 320 × 480, supporting two connection methods: Pigo pin communication and GH1.25 11PIN cable connection, and providing example materials for Raspberry Pi, ESP32, Pico, Arduino, etc.

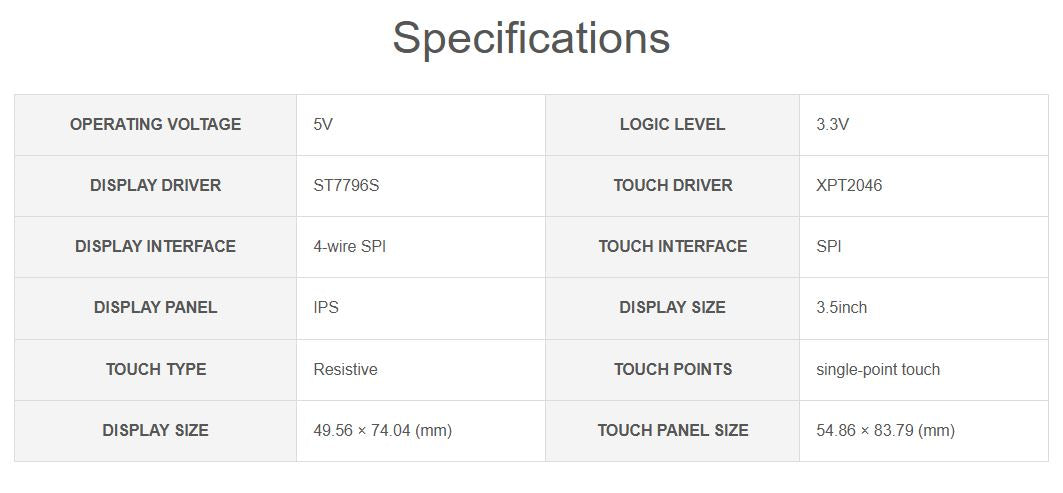

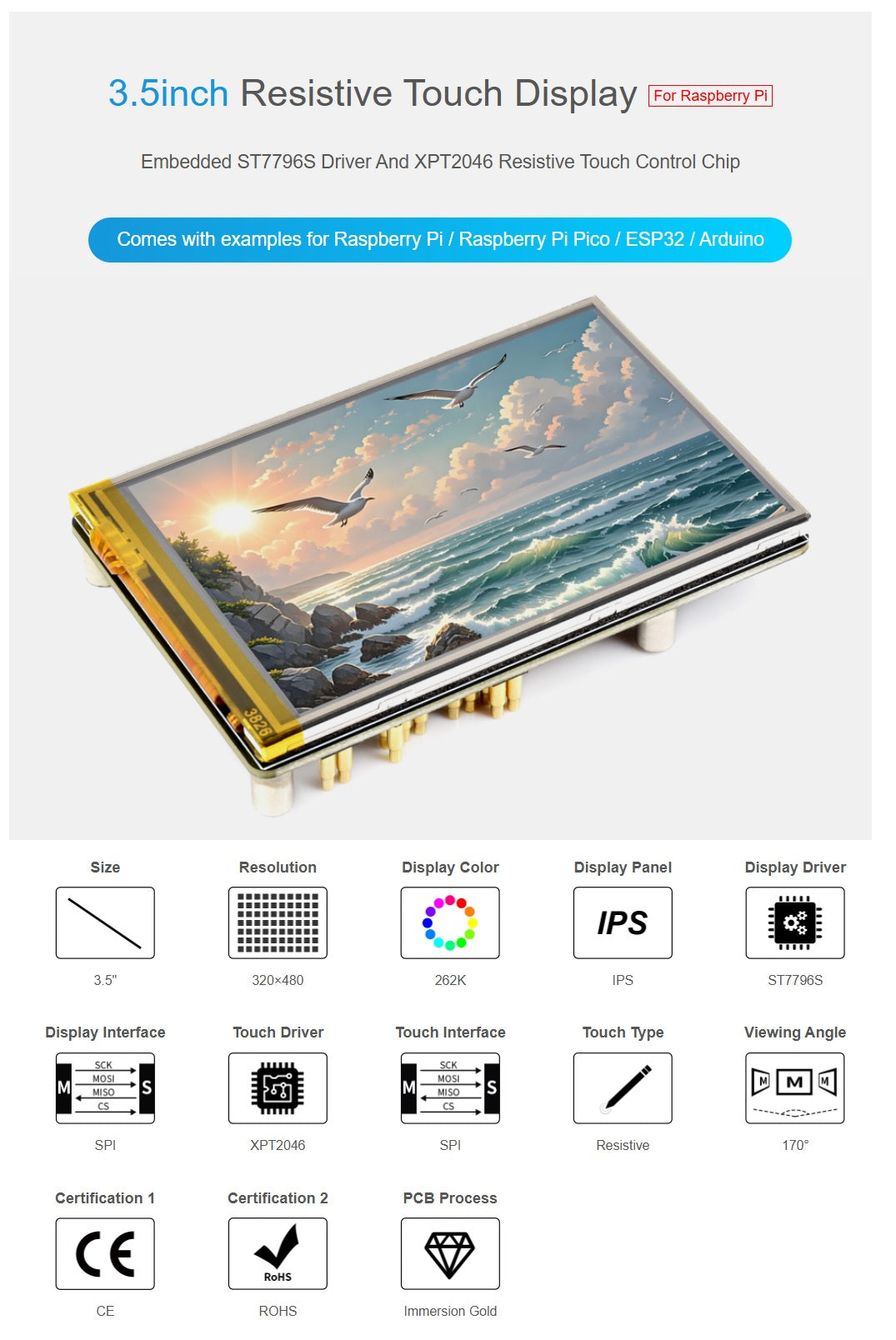

Features

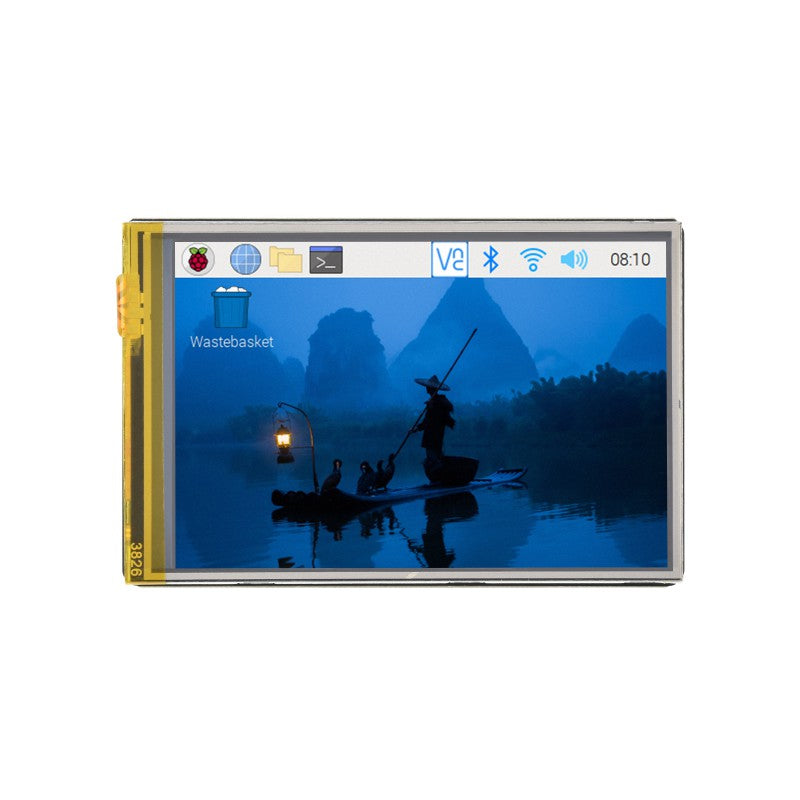

- 262K color display with 320 × 480 resolution for excellent visual effects

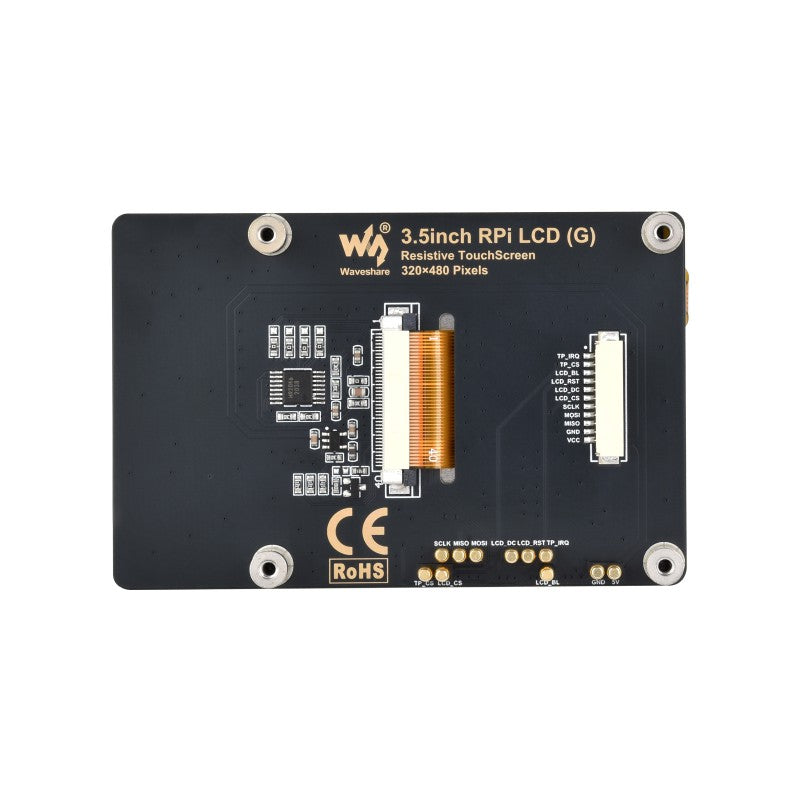

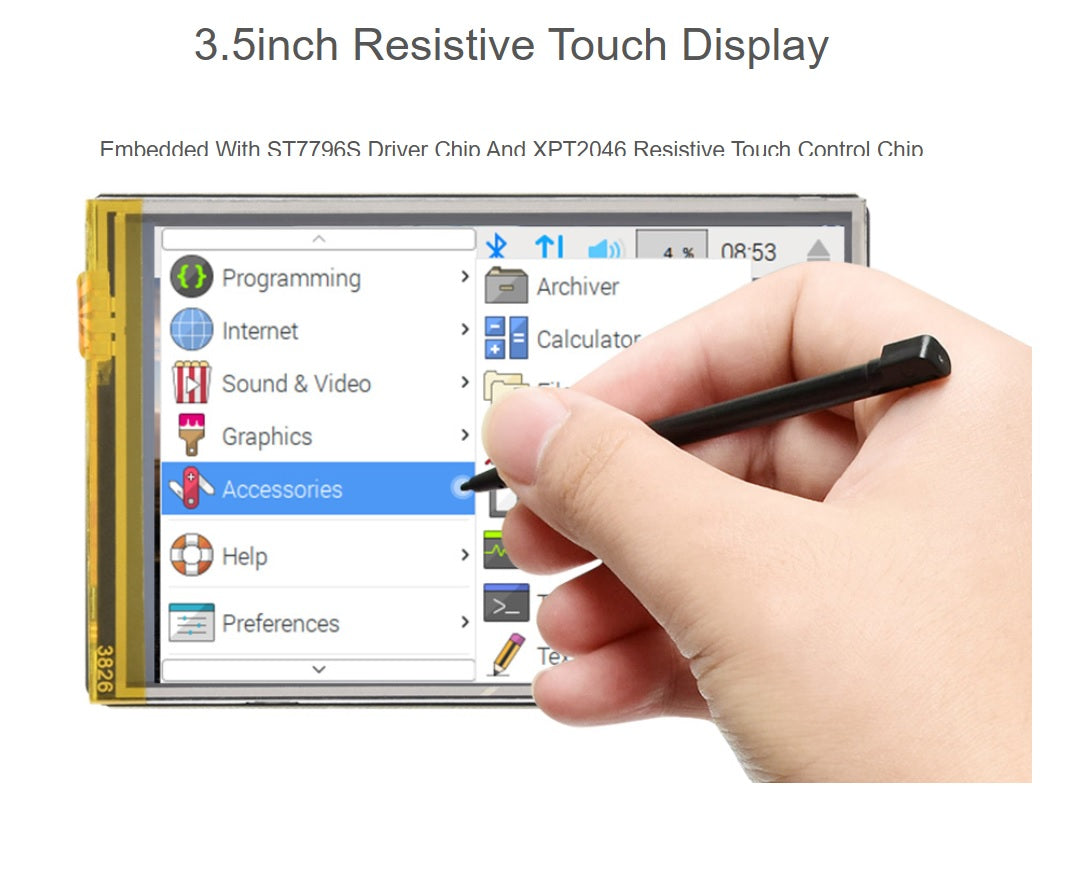

- Embedded with ST7796S driver chip and XPT2046 resistive touch control chip, using SPI communication, minimizes required IO pins

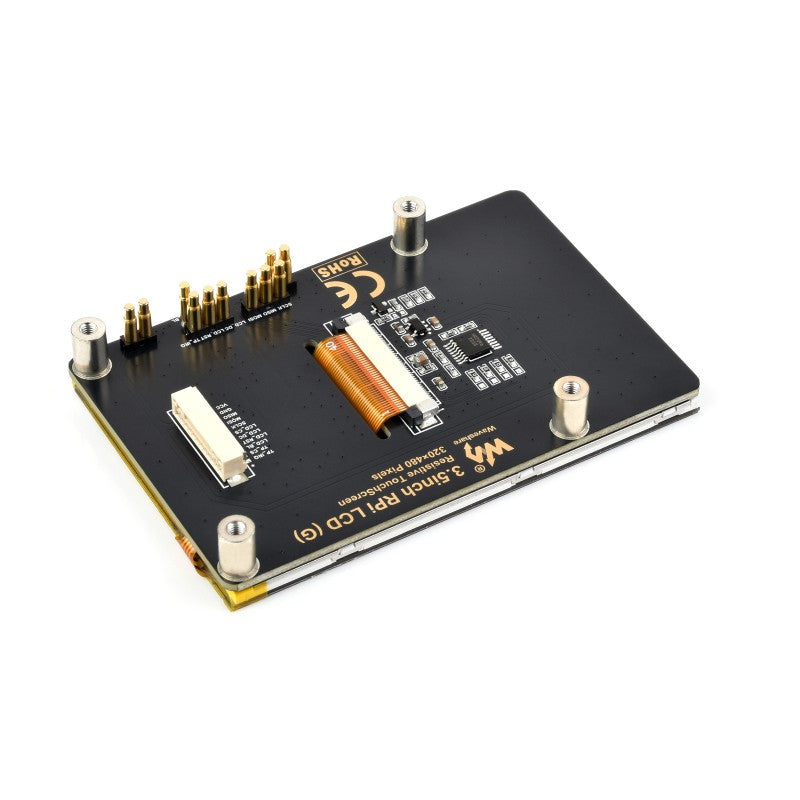

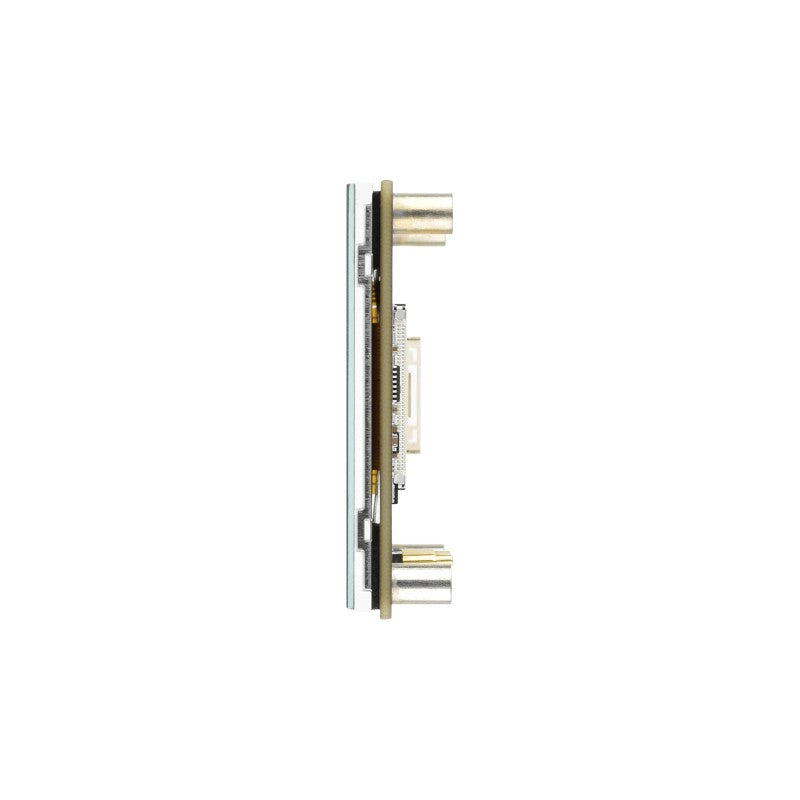

- Supports Pigo pin communication and GH1.25 11PIN cable connection
- Adopts Immersion Gold process, nice looking, with better durability
- Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)
Documentation
- Wiki
- 3.5inch RPi LCD (G) Schematic
- ST7796S Datasheet
- XPT2046 Datasheet
- Raspberry Pi Retropie system usage tutorial
Software
- Zimo221 Chinese character conversion software
- Image2Lcd image bitmap conversion software
- Image bitmap conversion tutorial
- Font library conversion tutorial
- Flash_download_tool
Diagram
- 3.5inch RPi LCD (G) 3D Diagram-STP
- 3.5inch RPi LCD (G) 2D Diagram-DXF
- 3.5inch RPi LCD (G) 2D Diagram-PDF
