Features
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32)

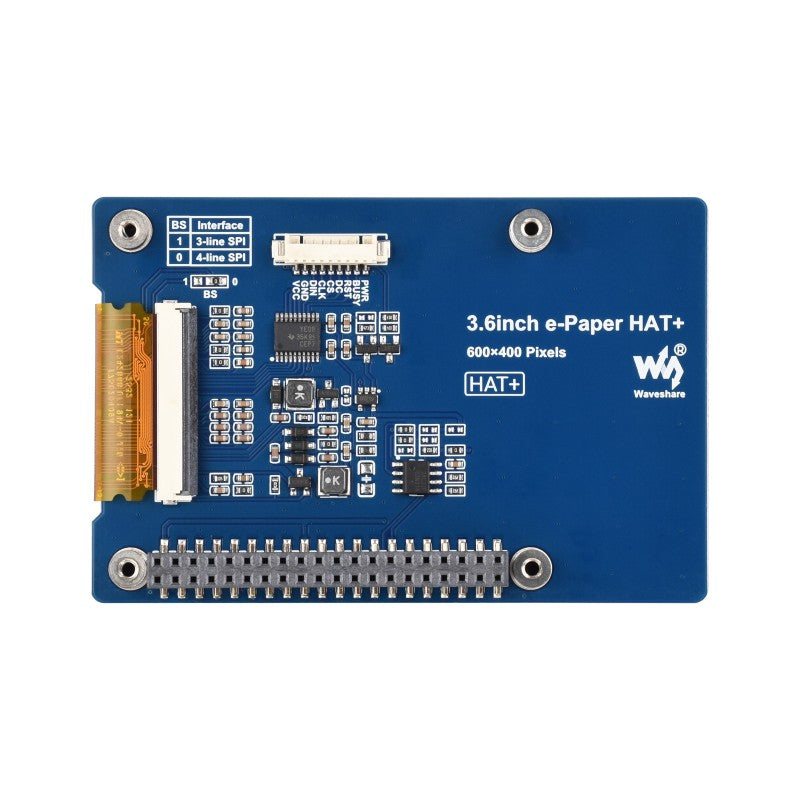

- Optional for e-Paper driver board:
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards and Jetson Nano
- Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
- Adapting SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32 / ESP32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specification
Related Links
-
Driver Board Schematic
- 3.6inch e-Paper (E) Datasheet
- Demo
- Github
- Create a Scatter Plot using Photoshop
- E-Paper API Analysis
- Character Conversion Software
- E-Paper Font Library Conversion Tutorial
- Image2Lcd.7z Image Bitmap Conversion Software
- Image2Lcd Image Bitmap Conversion Steps
- pwnagotchi Usage and Porting
- Raspberry Pi Documentation
- e-Paper Dashboard
- Quectel-Pi e-Paper Reader
- GPS Tracker
- TuyaOpen e-Paper Driver
