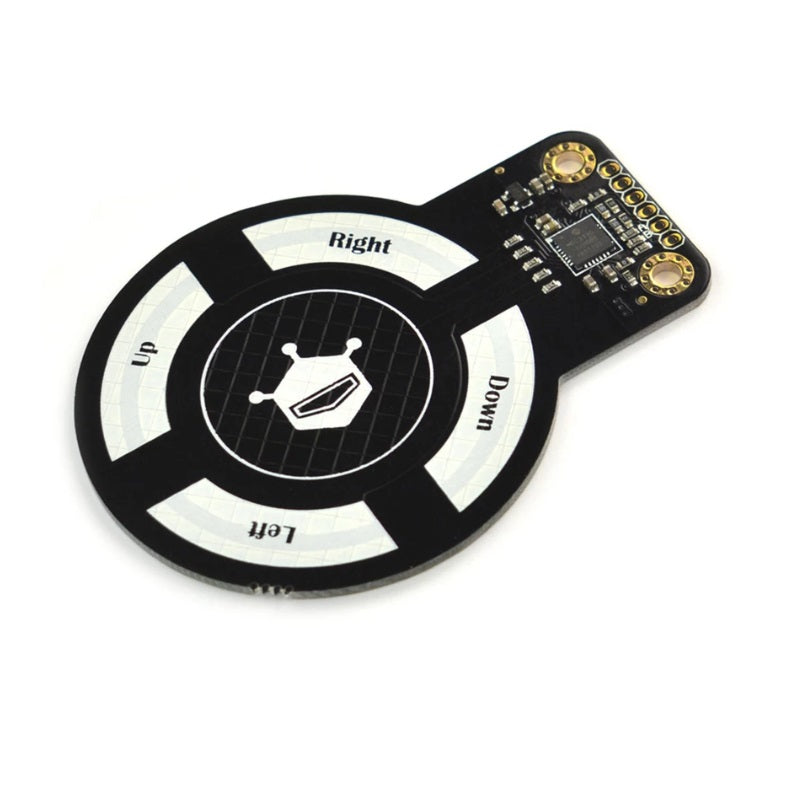

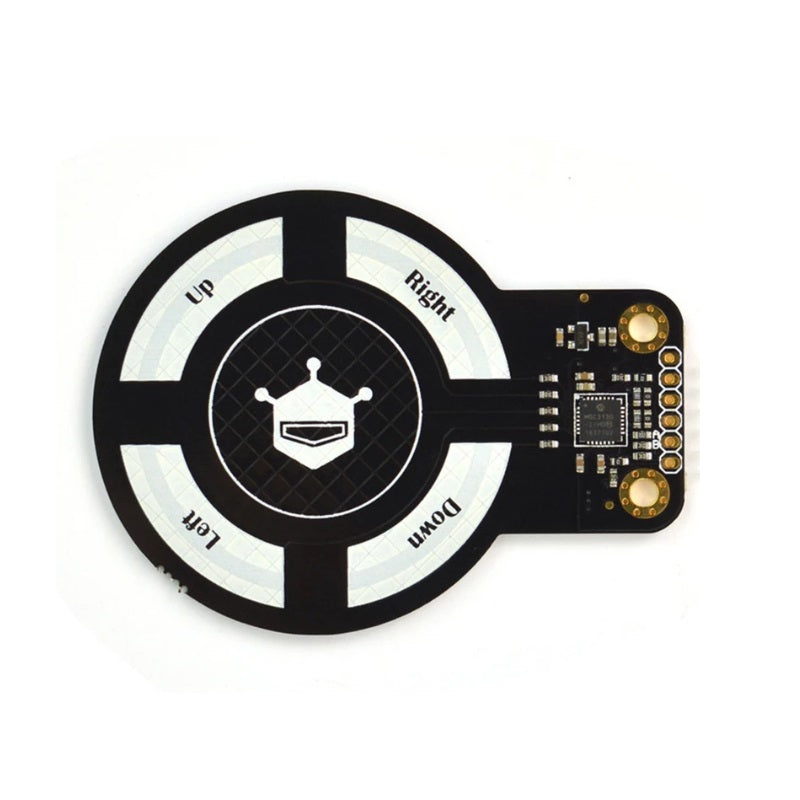

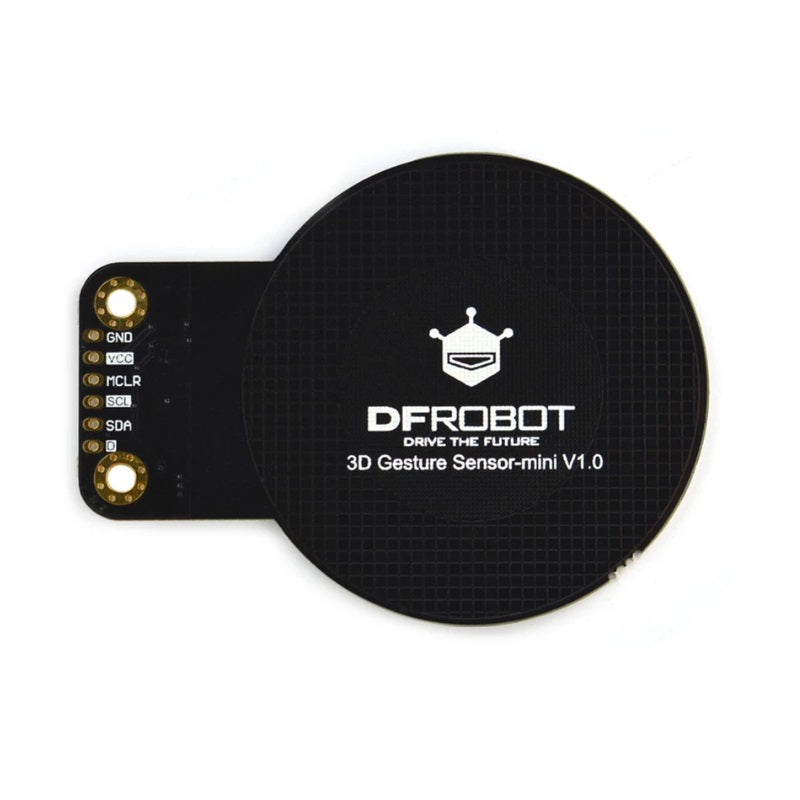

The DFRobot 3D gesture sensor is an interactive sensor that integrates 3D gesture recognition and motion tracking capabilities. It allows users to execute commands through natural hand and finger movements and can detect clockwise/counter-clockwise rotations and motion directions.
This gesture sensor utilizes Microchip MGC3X30 chip with GestIC® technology patent design. The chip enables 3D gesture recognition and motion tracking and includes a three-dimensional gesture input sensing system and a signal processing unit. It effectively detects gestures within a range of 0 to 10cm. It can be used in various interactive projects such as human-computer interaction experiences, smart home, IoT projects, innovative touchless applications, and education.
Specification
Operating Voltage: 3.3 - 5V
Interface Type: I2C
I2C Address: 0x42
Gesture Detection Range: 5cm
Distance Induction Range: 10cm
Dimensions : 72 x 54 mm / 2.83 x 2.12"
Operating Temperature: - 20 ℃ ~ + 85 ℃
Spatial Resolution: 150 dpi
