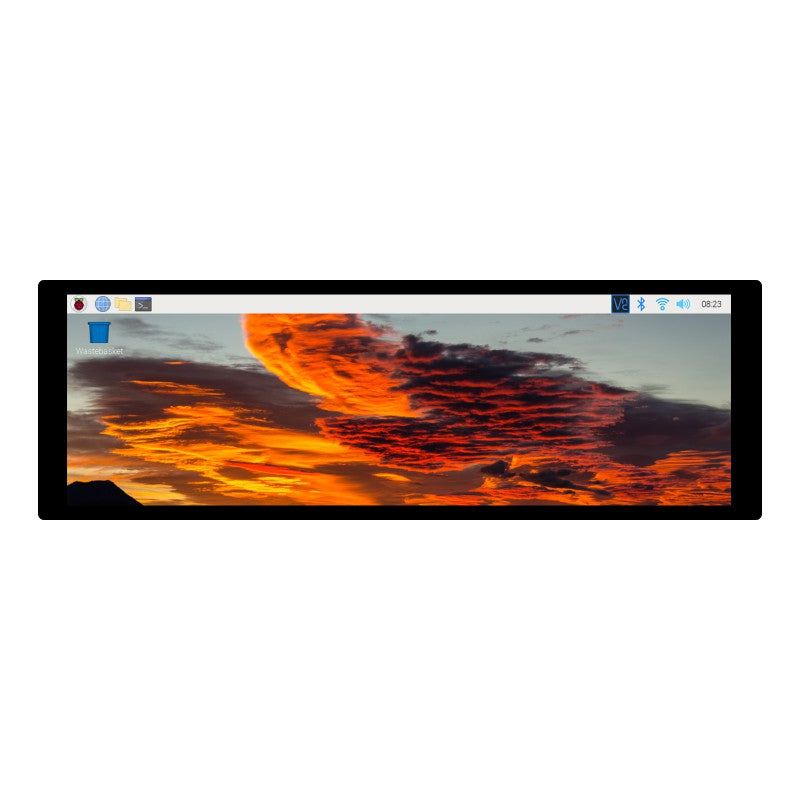

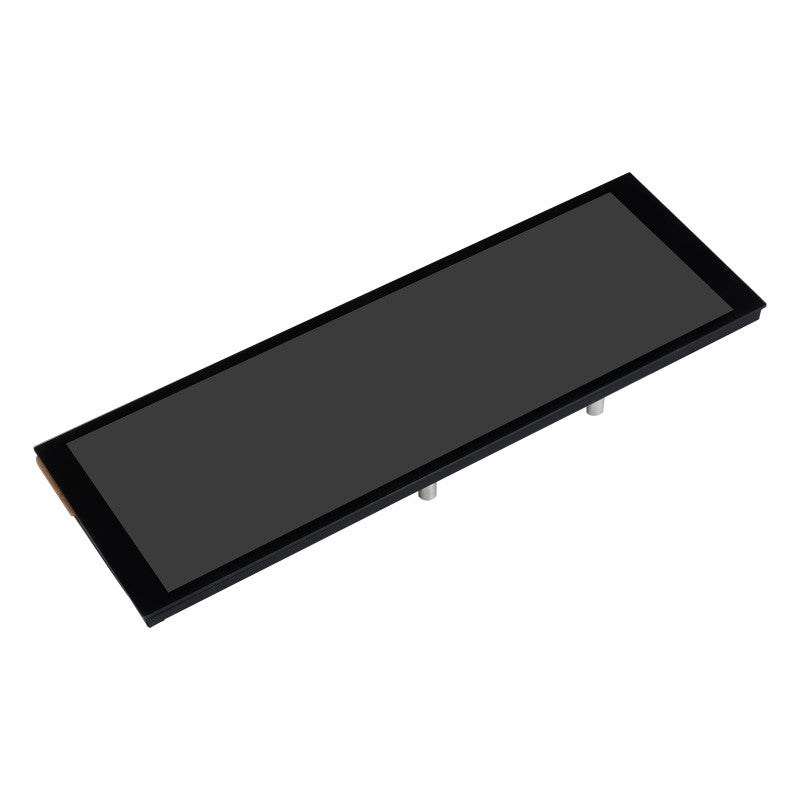

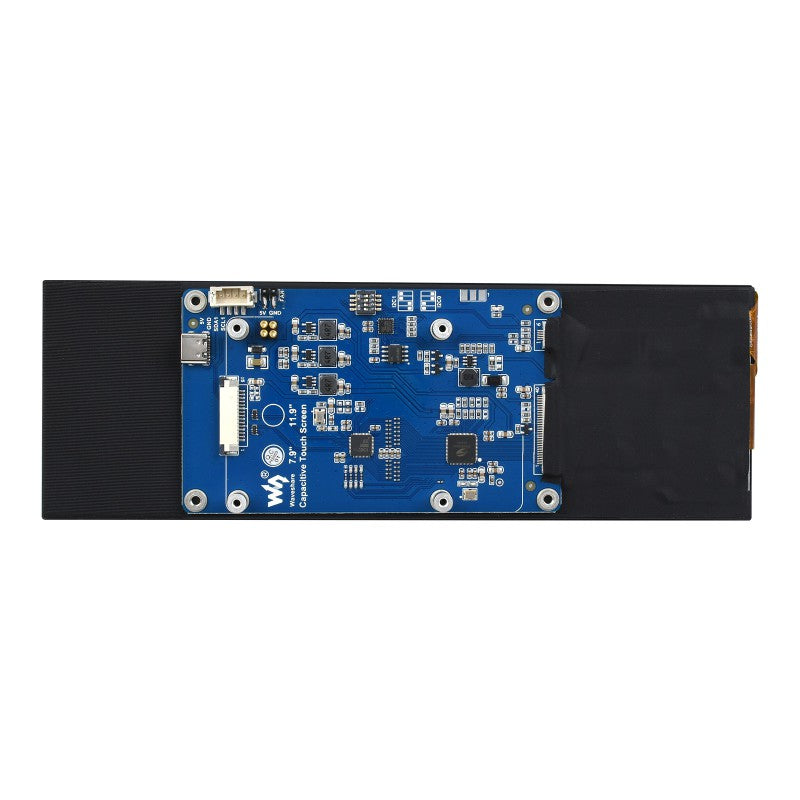

7.9inch Capacitive Touch Display for Raspberry Pi, 400×1280, IPS, DSI Interface

Description

7.9inch Capacitive Touch Display for Raspberry Pi, 400×1280, IPS, DSI Interface

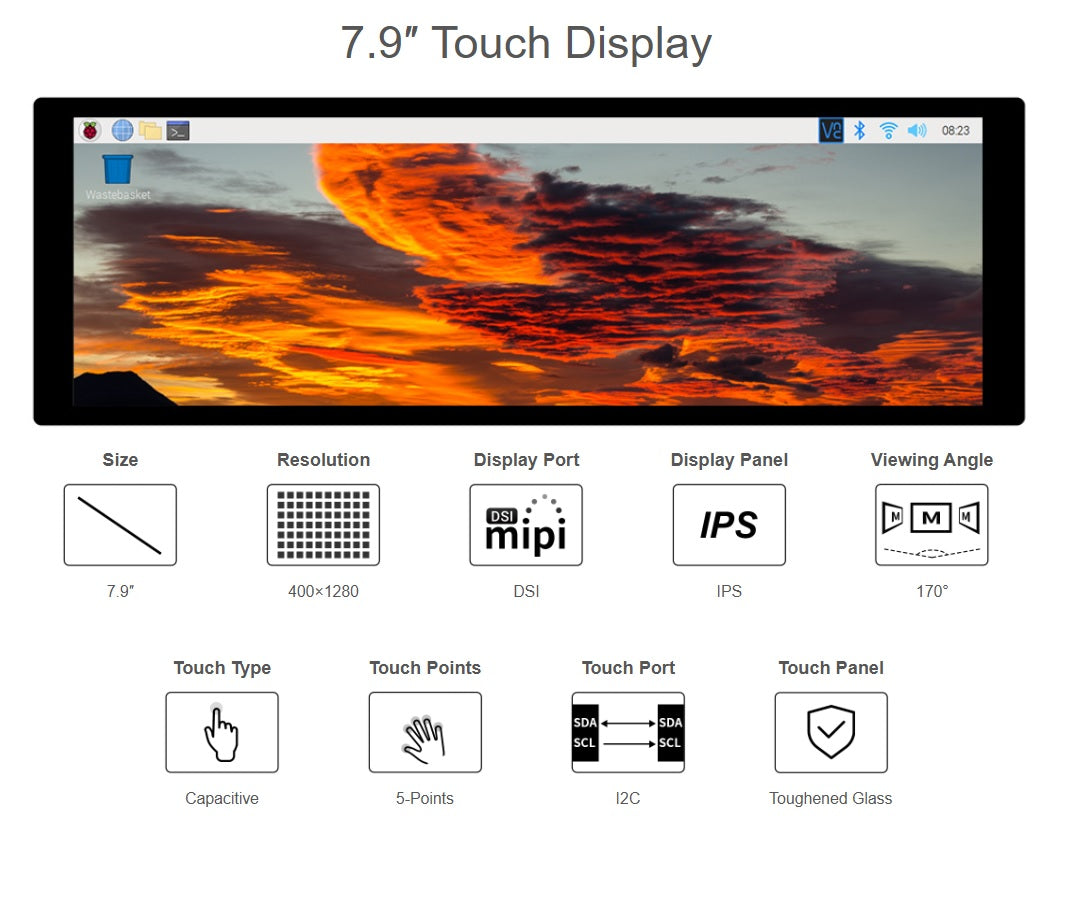

Features

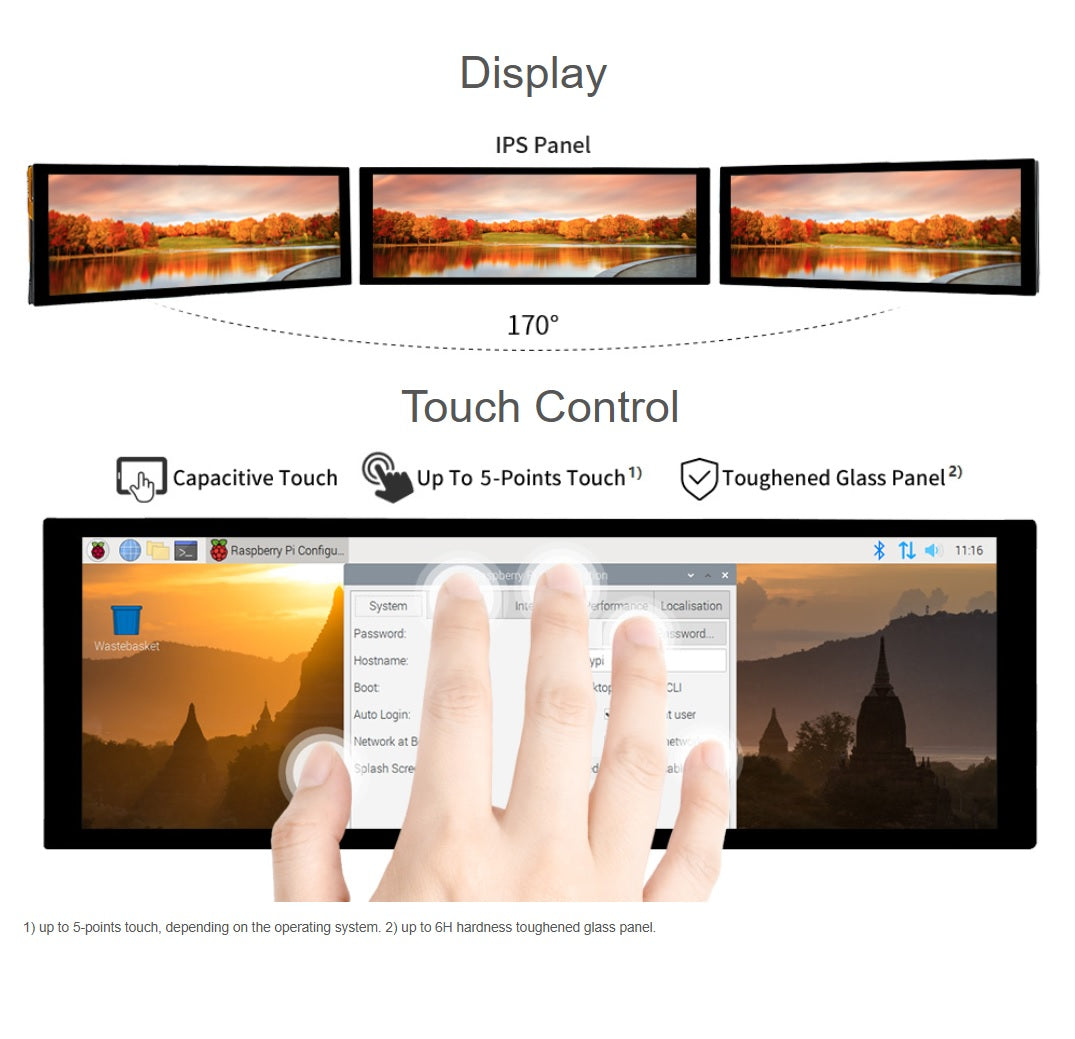

• 7.9inch DSI touch screen with five-point capacitive touch control
• IPS display panel with a hardware resolution of 400×1480
• Toughened glass touch panel, hardness up to 6H
• Support Pi5/CM5/4B/CM4/3B+/3A+/3B/CM3+/CM3
• Directly drive the LCD by the DSI interface on the Raspberry Pi, with up to 60Hz refreshing rate
• Supports Bookworm/Bullseye/Buster systems when working with Raspberry Pi

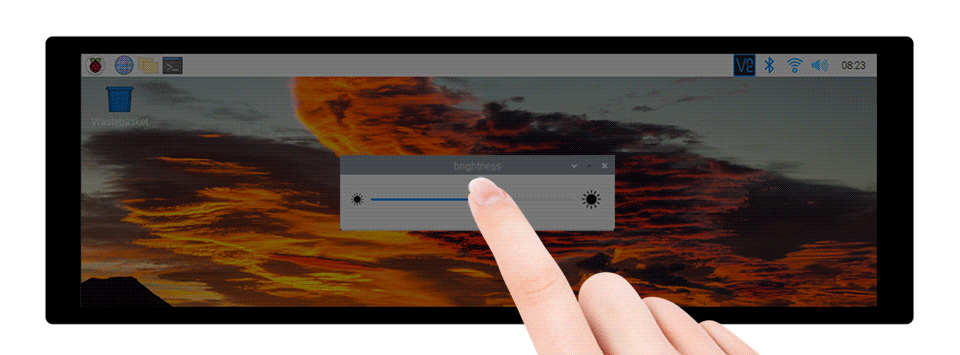

• Supports software control of backlight brightness

Documentation

• Wiki
• 7.9inch DSI LCD 3D Drawing
• 7.9inch DSI LCD 2D Drawing PDF

Software

• Panasonic_SDFormatter
• Win32DiskImager
• putty

Pre-Installed Images

• 7.9inch DSI LCD_220906_32_bullseye
• Waveshare DSI LCD - Pi4 pre-install image
• Waveshare DSI LCD - Pi3 pre-install image
