AMD/Xilinx Kintex7 XC7K325T/XC7K410T dev

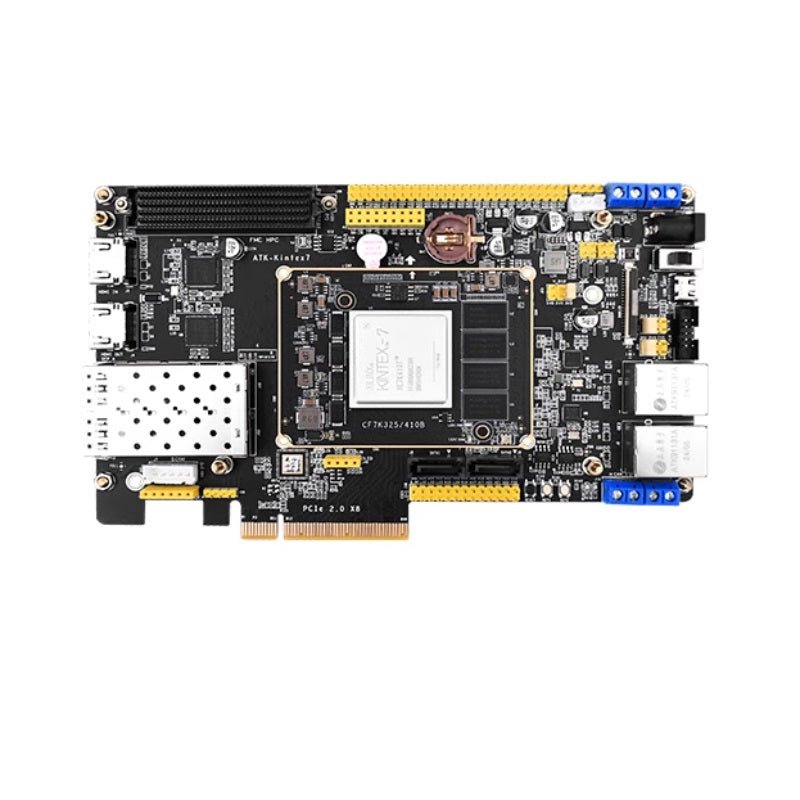

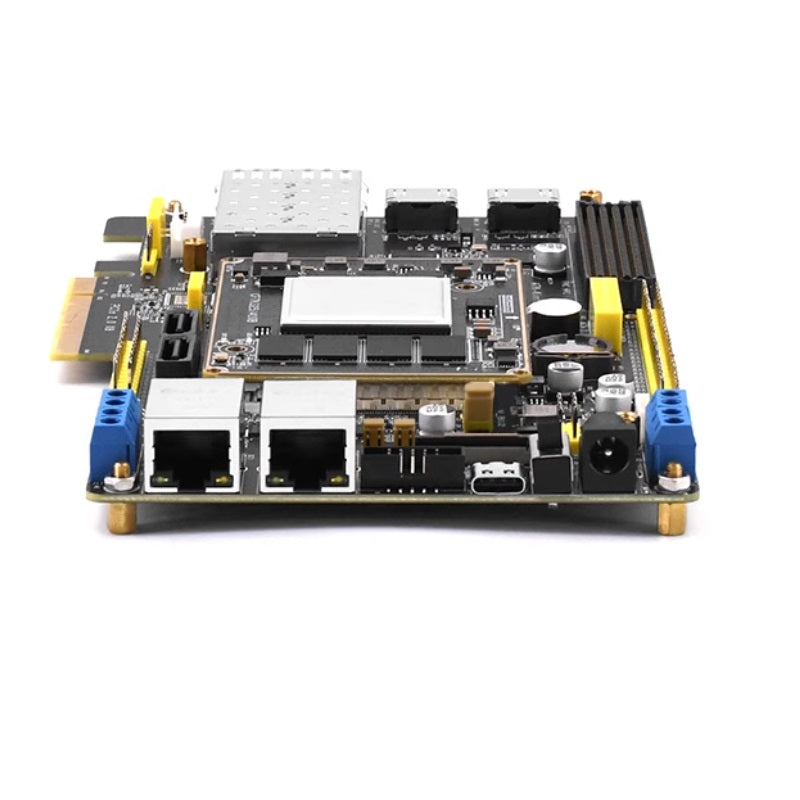

The development board baseboard resources are as follows:

-1 core board interface, compatible with PunkAtom K7-325T/K7-410T core boards
-EEPROM chip: AT24C64, Capacity: 64Kbit (8KB)
-2 RS485 interfaces
-2 CAN interfaces
-1 PCIe 2.0 X8 interface
-Two optical fiber interfaces
-1 power indicator (blue)
-2 status indicators (LED1~LED2: red)
-1 ATK module interface, compatible with ALIENTEK Bluetooth/GPS/MPU6050/RGB light modules
-1 standard RGB888 TFT-LCD interface
-1 OLED/Camera module interface
-1 USB to UART interface
-1 FAN interface
-1 active buzzer
-1 XADC interface
-Two HDMI interfaces (one input, one output)
-1 TF card slot
-Two Gigabit Ethernet interfaces
-1 JTAG debug/download port (10-pin)
-1 set of 5V power expansion ports (supports output and external input)
-1 set of 3.3V power expansion ports (supports output and external input)
-1 DC power input interface (Input voltage range: DC 6~16V)
-1 RTC backup battery holder (with battery included)
-1 RTC real-time clock (using PCF8563 chip)
-1 reset button (can serve as a reset signal for FPGA program execution)
-2 function buttons
-1 power switch (controls the entire board's power)
-1 FMC connector
-Two expansion ports: J38 uses a 2x26 pin header, J39 uses a 2x13 pin header, providing a total of 72 extended I/O pins. J38 includes one 3.3V and one 5V power interface; J39 includes only one 3.3V power interface.

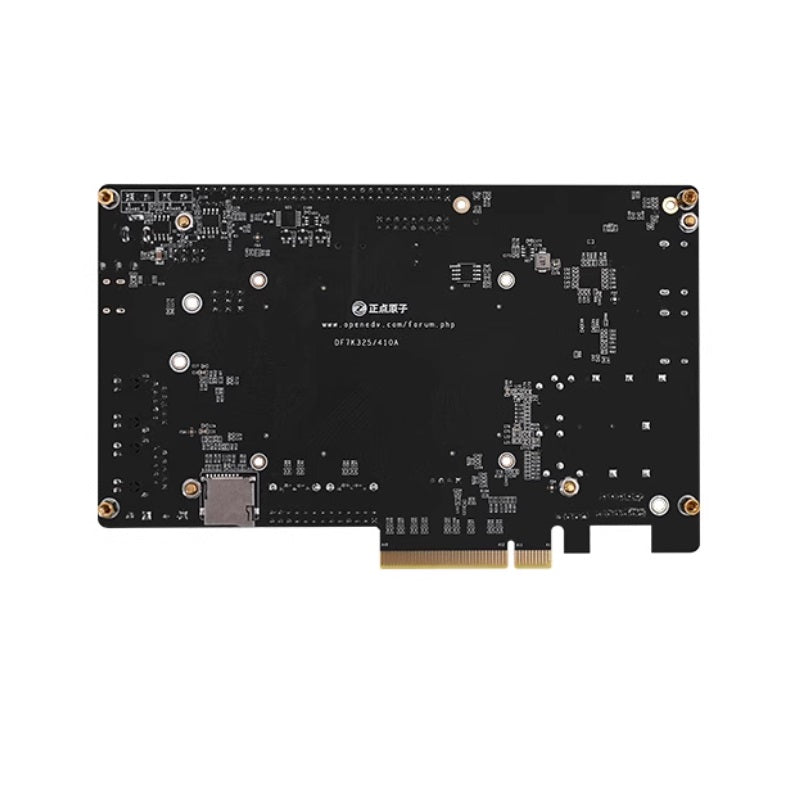

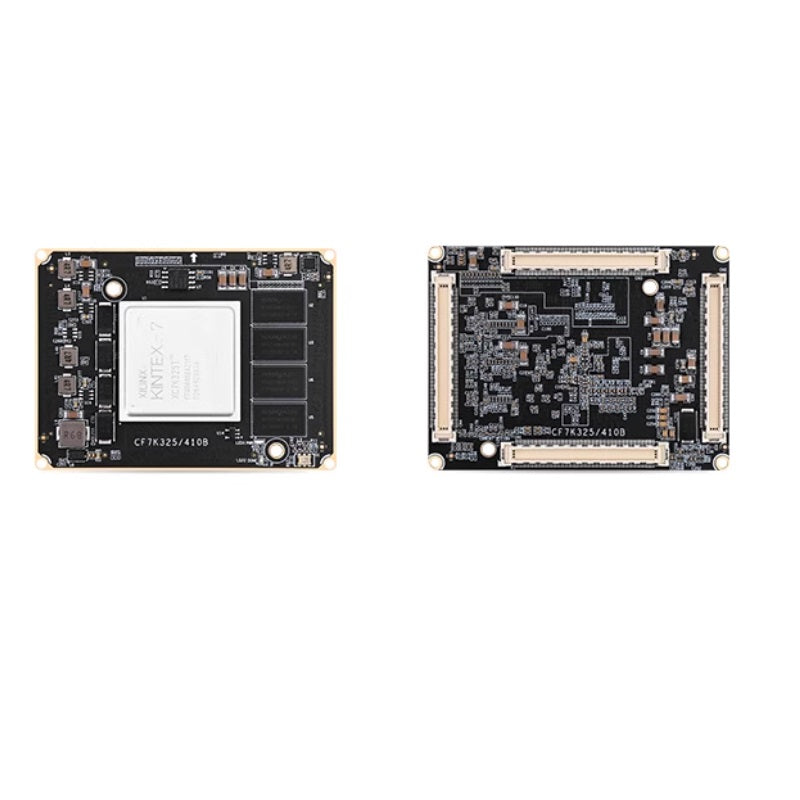

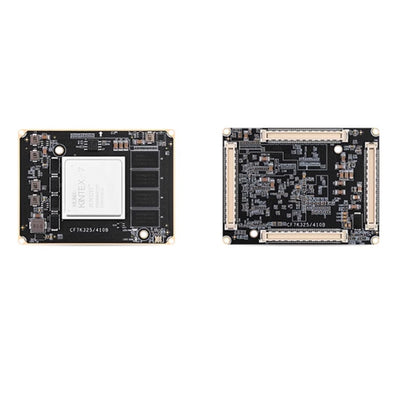

The K7-325T and K7-410T core boards are identical in terms of peripheral components, with the only difference being the main FPGA chip. The specific resources of the K7-325T and K7-410T core boards are as follows:

-The main FPGA chip uses the Xilinx Kintex-7 series. The K7-325T core board uses the XC7K325TFFG900-2I FPGA, which features up to 326K logic cells and 16Mbit of BRAM. The K7-410T core board uses the XC7K410TFFG900-2I FPGA, which features up to 406K logic cells and 28.6Mbit of BRAM.
-4 DDR3 SDRAM chips, model NT5CC256M16, each with 4Gbit capacity, totaling 16Gbit (2GB).
-1 QSPI FLASH, model N25Q128, capacity: 128Mbit (16MB).
-1 Crystal Oscillator: 100MHz, providing a differential clock to the FPGA.
-1 Power Indicator.
-1 Configuration Done Indicator (DONE LED).
