AMD/Xilinx Spartan6 XC6SLX9/XC6SLX16/XC6SLX25 surpasser pro

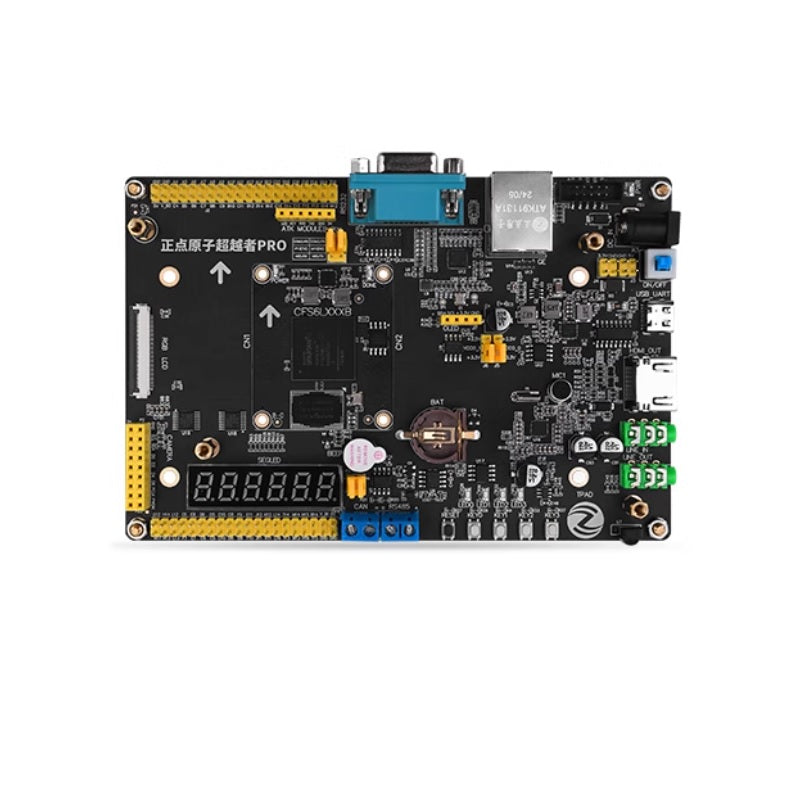

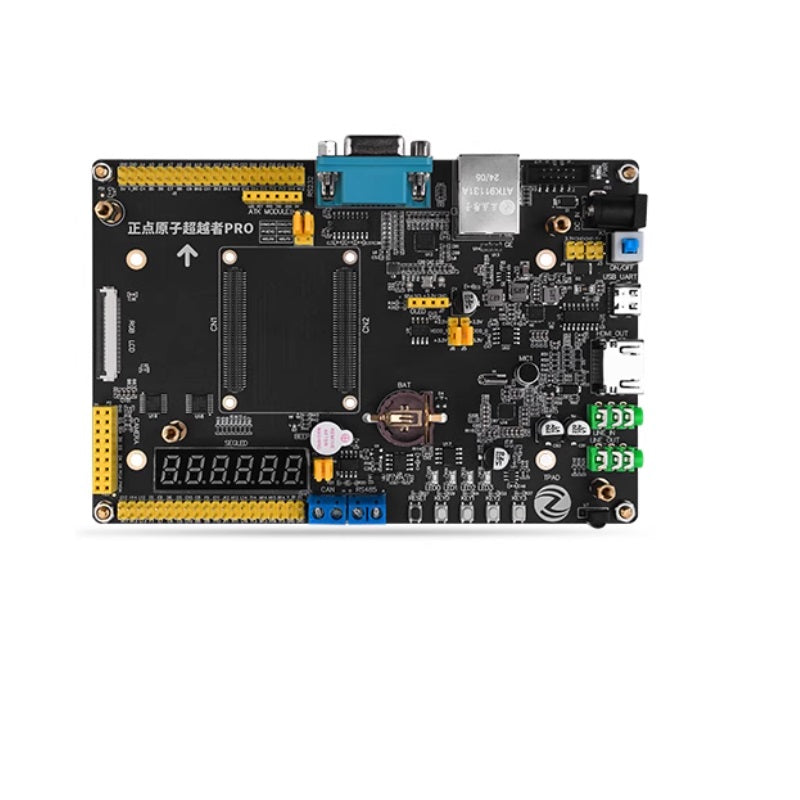

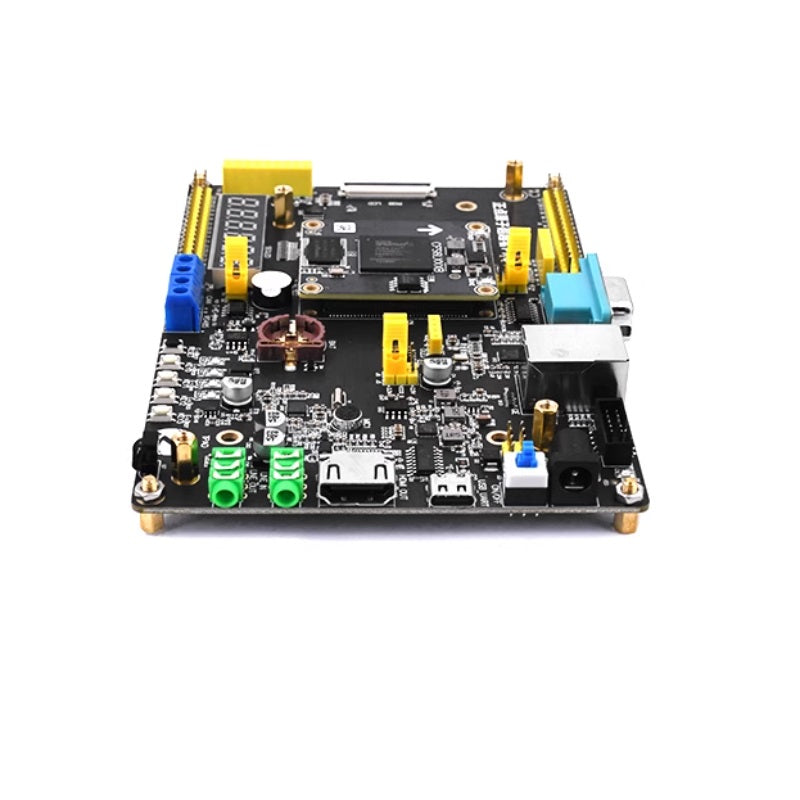

The resources of the PunkAtom Oversteer Pro baseboard are as follows:

- 1 core board interface, compatible with PunkAtom CFS6LXXXB core board
- EEPROM chip: AT24C64, capacity: 64Kbit (8KB)
- 1 power indicator (blue)
- 4 status indicators (LED0~LED3: red)
- 1 ATK module interface, compatible with PunkAtom Bluetooth/GPS/MPU6050/RGB light modules
- 1 standard RGB888 TFT-LCD interface
- 1 OLED/camera module interface
- 1 six-digit digital tube
- 1 RS232/RS485 selectable interface
- 1 CAN selectable interface
- 1 CAN interface
- 1 RS232 interface (female header)
- 1 RS485 interface
- 1 USB UART interface
- 1 HDMI interface
- 1 Gigabit Ethernet interface (RJ45)
- 1 active buzzer
- 1 infrared receiver

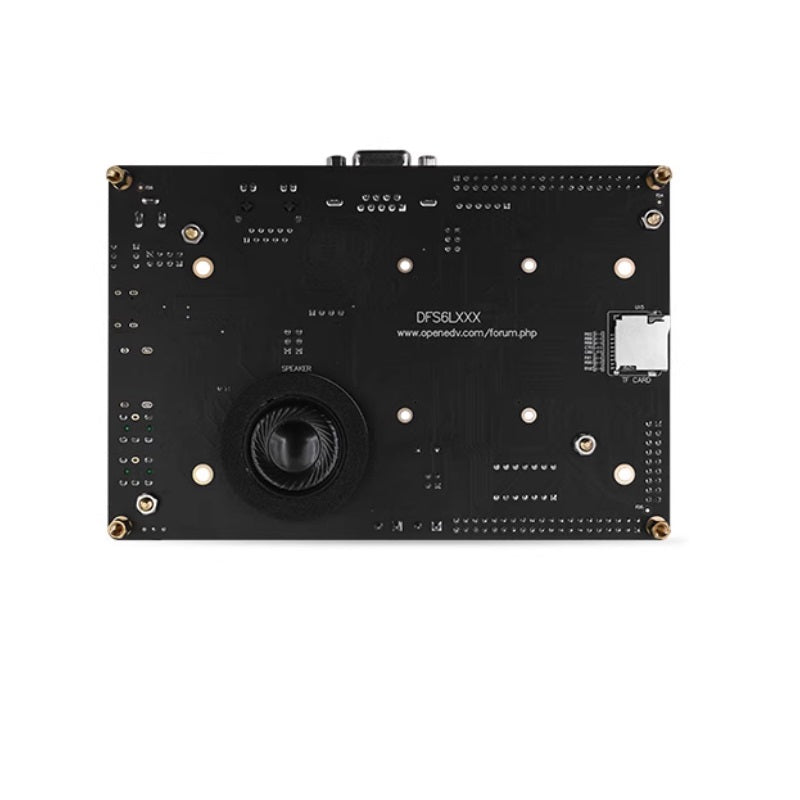

- 1 TF card slot (on the back of the board)
- 1 JTAG debug/download port, 10PIN interface
- 1 set of 5V/3.3V power expansion ports, supporting external power supply and external input power
- 1 DC power input interface (input voltage range: DC 6~16V)
- 1 RTC backup battery holder, with battery included
- 1 RTC real-time digital clock, using PCF8563 chip
- 1 MIC (for audio input)
- 1 audio input interface
- 1 headphone output interface
- 1 small speaker (on the back of the board)
- 1 reset button, which can serve as a reset signal for FPGA program execution
- 4 function buttons
- 1 capacitive touch button
- 1 power switch to control the power of the entire development board
- Two 20x2 expansion ports, totaling 80 extended I/O pins, each group includes 1 variable voltage interface and 1 5V power interface

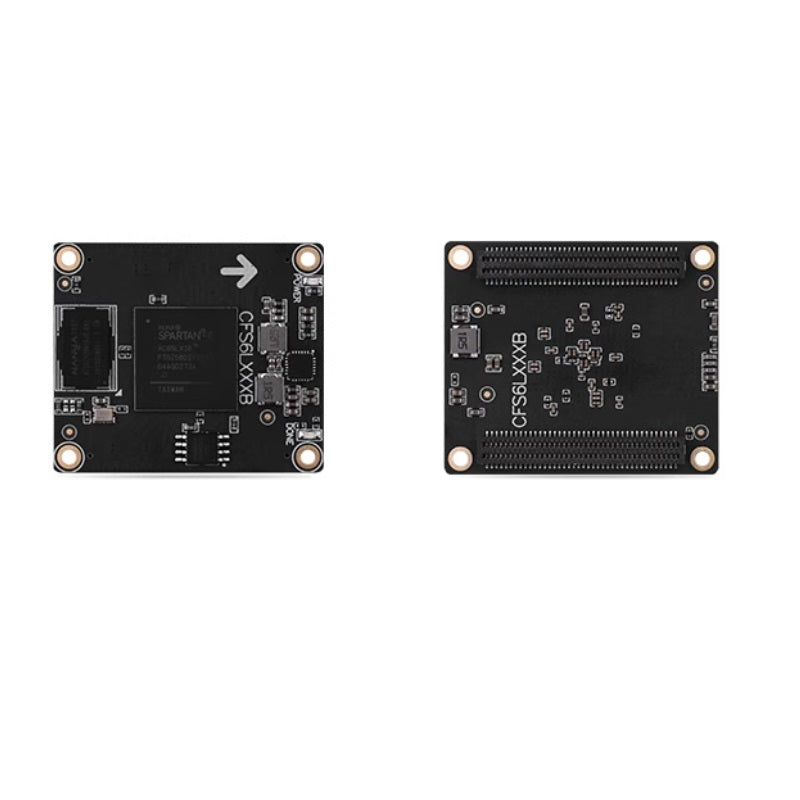

The resources of the PunkAtom Oversteer Pro core board are as follows:

- Main control chip: Xilinx Spartan6 series XC6SLX9/X16/X25, package: FTG256, speed grade: -2
- Crystal oscillator: 50MHz active crystal oscillator
- FLASH: Winbond W25Q128 QSPI FLASH, capacity: 128Mbit (16MB)
- DDR3: NT5CC128M16CP-DI, capacity: 2Gbit (256MB)
- 1 program download completion indicator (green)
