Alientek

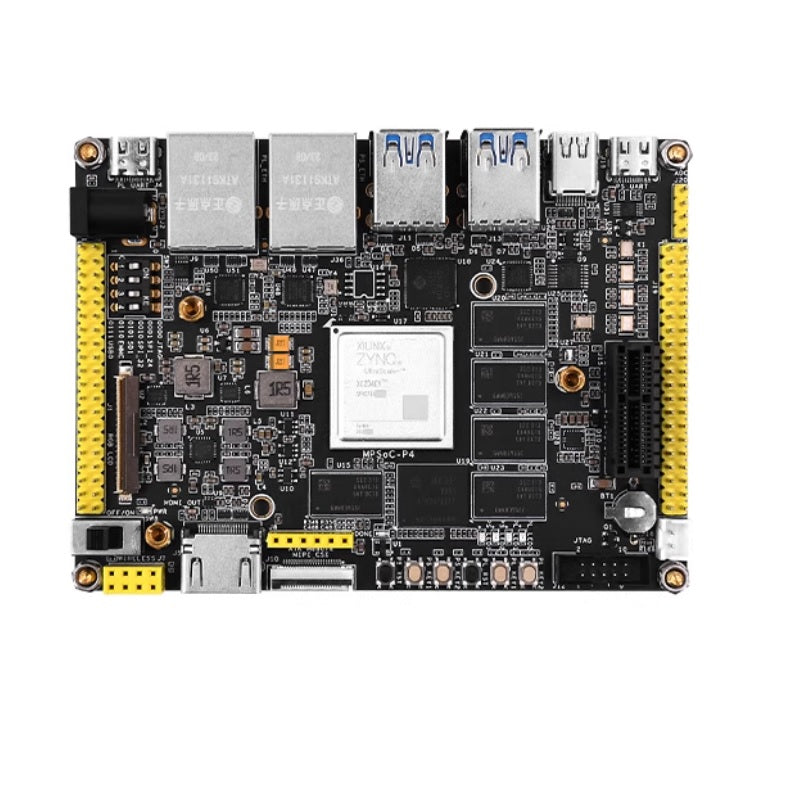

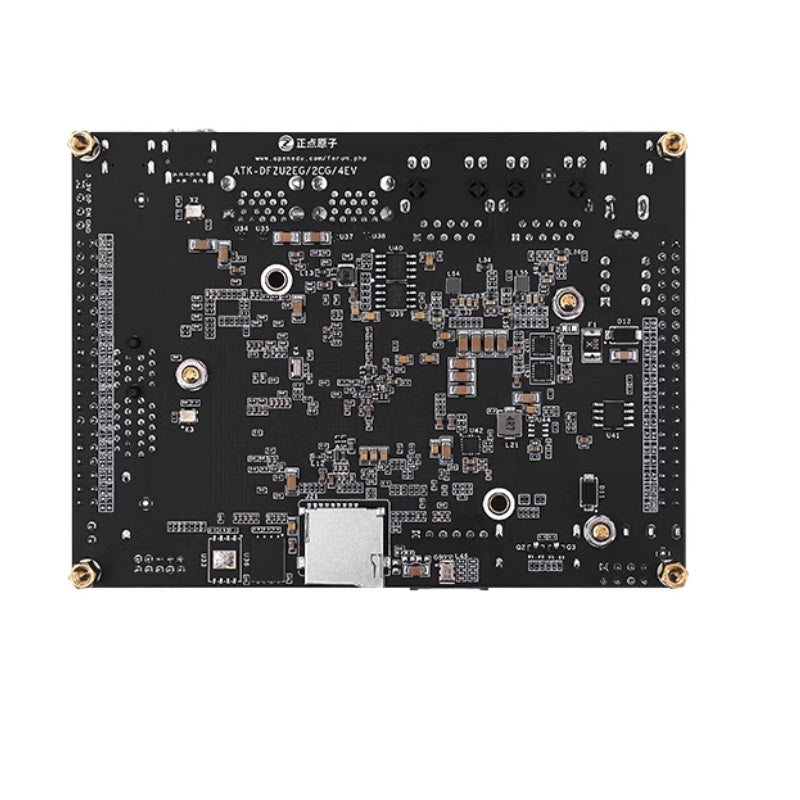

AMD/Xilinx Zynq UltraScale+ MPSoC-P4 XCZU2CG/XCUZU2EG/XCZU4EV p4

AMD/Xilinx Zynq UltraScale+ MPSoC-P4 XCZU2CG/XCUZU2EG/XCZU4EV p4

E05016-001

$412.85 AUD
$412.85 AUD
Sale Sold out
Shipping calculated at checkout.
FPGA

• Free shipping in AU if oder ≥ $50

• For more shipping policy, more details

• Shipping to Non-Australia, contact us

• Accept 30-day returns, see details.

In stock
• Download schematic
View full details

Product Overview

The ZU2CG/ZU2EG/ZU4EV chip delivers powerful performance and is designed for high-end data processing applications such as aerospace, autonomous driving systems, communication systems, industrial control, medical equipment, security systems, energy exploration, artificial intelligence, and high-performance computing.

Zynq UltraScale+MPSoC xczu2eg-sfvc784-2-i

  • Speed level: -2
  • Max IO: 252
  • CMT: 3
  • Total RAM: 6.5 Mb
  • DSP slice: 240
  • Logic Cells: 103K
  • LUT: 47K
  • Flip-Flops: 94K
  • APU: Four Core Arm Cortex-A53 MPCore (Max 1334MHz)
  • RPU: Dual Core Arm Cortex-R5F MPCore (Max 534MHz)
  • GPU: Arm Mali-400 MP2 (Max 600MHz)

Zynq UltraScale+MPSoC xczu4ev-sfvc784-2-i

  • Speed level: -1
  • Max IO: 252
  • CMT: 4
  • Total RAM: 20.6 Mb
  • DSP slice: 728
  • Logic Cells: 192K
  • LUT: 88K
  • Flip-Flops: 176K
  • APU: Four Core Arm Cortex-A53 MPCore (Max 1200MHz)
  • RPU: Dual Core Arm Cortex-R5F MPCore (Max 500MHz)
  • GPU: Arm Mali-400 MP2 (Max 600MHz)
  • VCU (only for EV): video decode unit, support H.264/H.265 format

    Zynq UltraScale+MPSoC xczu2cg-sfvc784-2-i

  • Speed level: -2
  • Max IO: 252
  • CMT: 3
  • Total RAM: 6.5 Mb
  • DSP slice: 240
  • Logic Cells: 103K
  • LUT: 47K
  • Flip-Flops: 94K
  • APU: Dual Core Arm Cortex-A53 MPCore (Max 1331MHz)
  • RPU: Dual Core Arm Cortex-R5F MPCore (Max 533MHz)

Memory

  • DDR4: 2.5GB ( PL 1, PS 4)
  • EEPROM: 8KB
  • eMMC: 8GB
  • QSPI Flash: 32MB

PL Communication

  • USB UART: 1
  • HDMI: 1
  • XAC: 1
  • Wireless interface: 1
  • 1G ETH: 1 (RJ45)
  • ATK interface: support Alientek Bluetooth/GPS/MPU6050/RGB

PS Communication

  • USB UART: 1
  • TF card interface: 1
  • 1G ETH: 1 (RJ45)
  • Mini DP: 1
  • USB3.0 Host: 4
  • PCIe: 1

Sensor

  • Camera MIPI: 1
  • Human-Machine Interaction
  • PL configuration LED: 1 (green)
  • PL LED: 2 (red)
  • PL key: 2
  • PL reset key: 1
  • PS key: 2
  • PS LED: 2(red)
  • PS reset key: 1
  • Power indicator: 1
  • IO: 60
  • TFT-LCD: 1 RGB888, support 4.3/7/10.1 inch RGB display
  • Power switch: 1
  • JTAG: 1 (10 pin)
  • Clock: PL 100MHz, PS 33.333MHz
