AMD/Xilinx Zynq UltraScale+ MPSoC-P4 XCZU3EG/XCZU4EV/XCZU5EV p5b

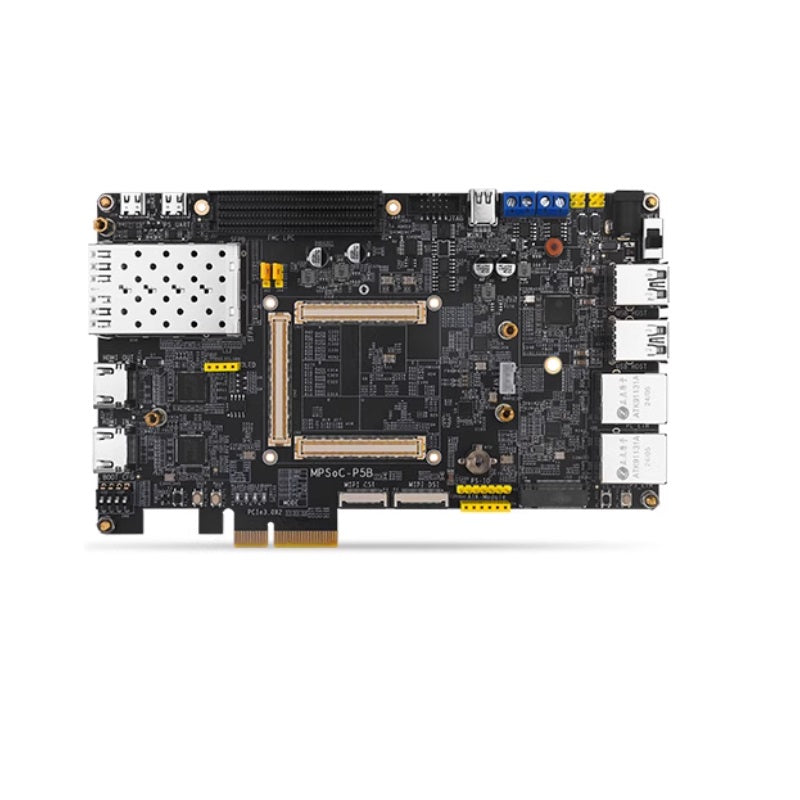

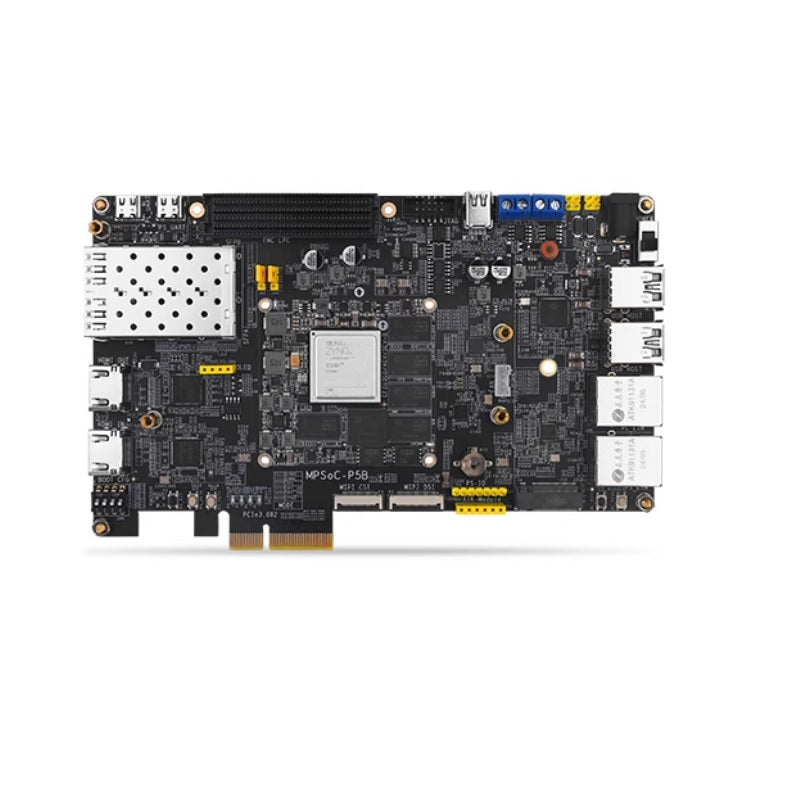

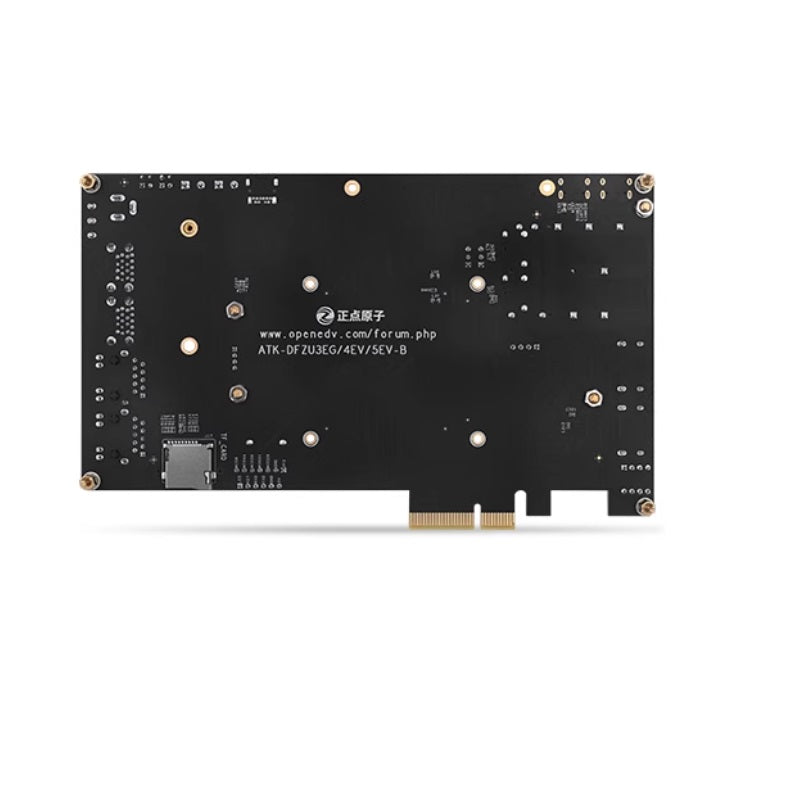

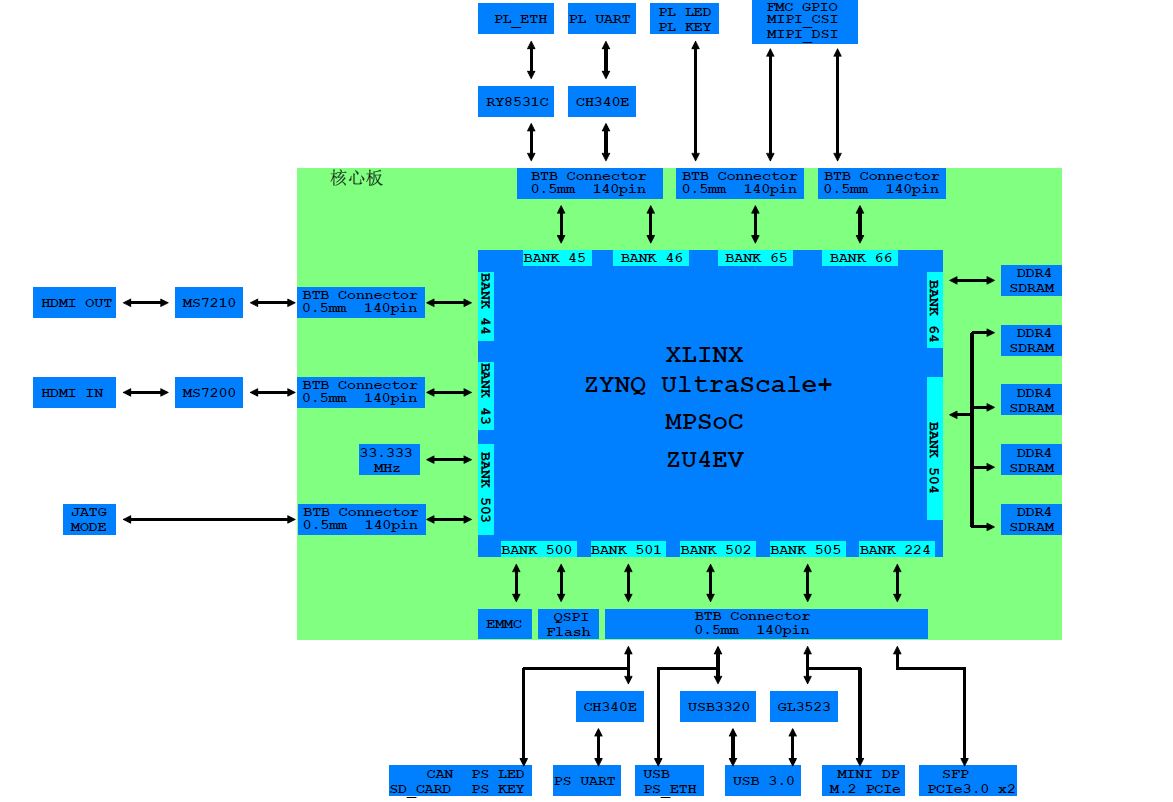

The base board resources of the ALIENTEK MPSoC-P5B development board are as follows:

- 1 board-to-board connector, compatible with CFZU3EG-B / CFZU4EV-B / CFZU5EV-B core boards
- 1 EEPROM chip: AT24C64, capacity: 64Kbit (8K bytes)
- 1 power indicator (blue)
- 1 x 12V DC power interface
- 2 PL LEDs (red)
- 2 PS LEDs (red)
- 1 PL reset button
- 1 PL function button
- 2 PS function buttons
- 5 clock sources
- 1 RTC battery holder with battery, providing power for the RTC integrated in the MPSoC
- 1 CAN interface, using TJA1050 transceiver chip
- 1 ATK MODULE interface, compatible with ALIENTEK Bluetooth/GPS/UART modules
- 1 x 6x1 PS-side IO expansion header (3.3V), providing 4 PS-side IO pins
- 1 BOOT mode selection switch
- 1 HDMI output interface
- 1 HDMI input interface
- 1 Mini DP interface
- 1 PCIe 3.0 x2 interface (only for 4EV/5EV)
- 1 M.2 interface
- 1 RS485 interface
- 2 fiber optic interfaces (only for 4EV/5EV)
- 4 x USB 3.0 (backward compatible with USB 2.0) HOST interfaces
- 1 FMC standard LPC interface
- 1 x 10-Pin JTAG interface for programming and debugging
- 1 set of 5V power input/output terminals
- 1 set of 3.3V power input/output terminals
- 2 bank voltage adjustable expansion headers
- 1 power switch for the entire board
- 1 PL Gigabit Ethernet interface (RJ45)
- 1 PS Gigabit Ethernet interface (RJ45)
- 1 Micro SD (TF_CARD) card interface
- 1 PL USB to UART interface
- 1 PS USB to UART interface
- 1 OLED interface

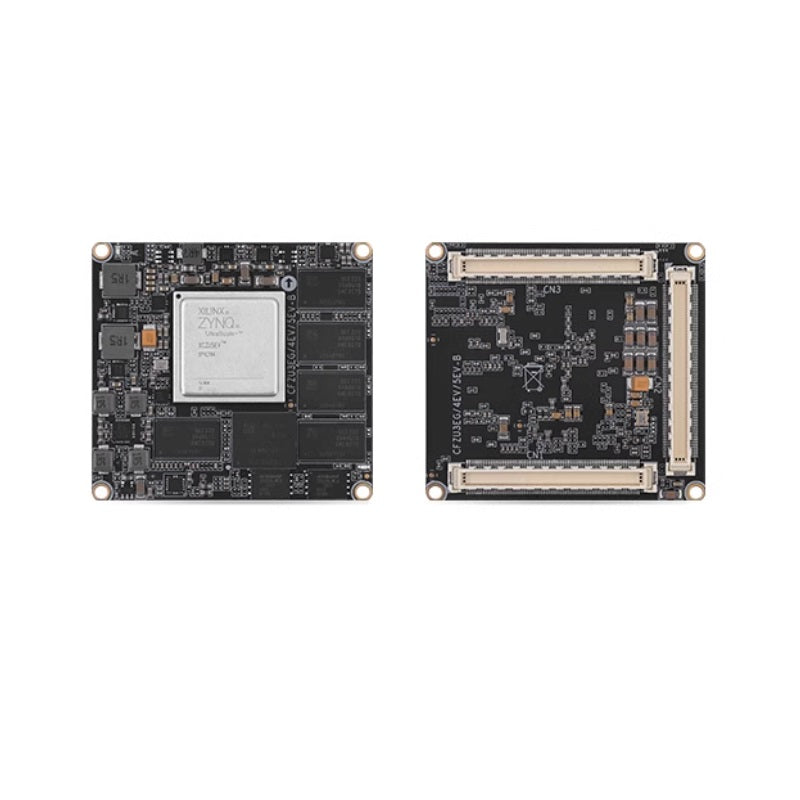

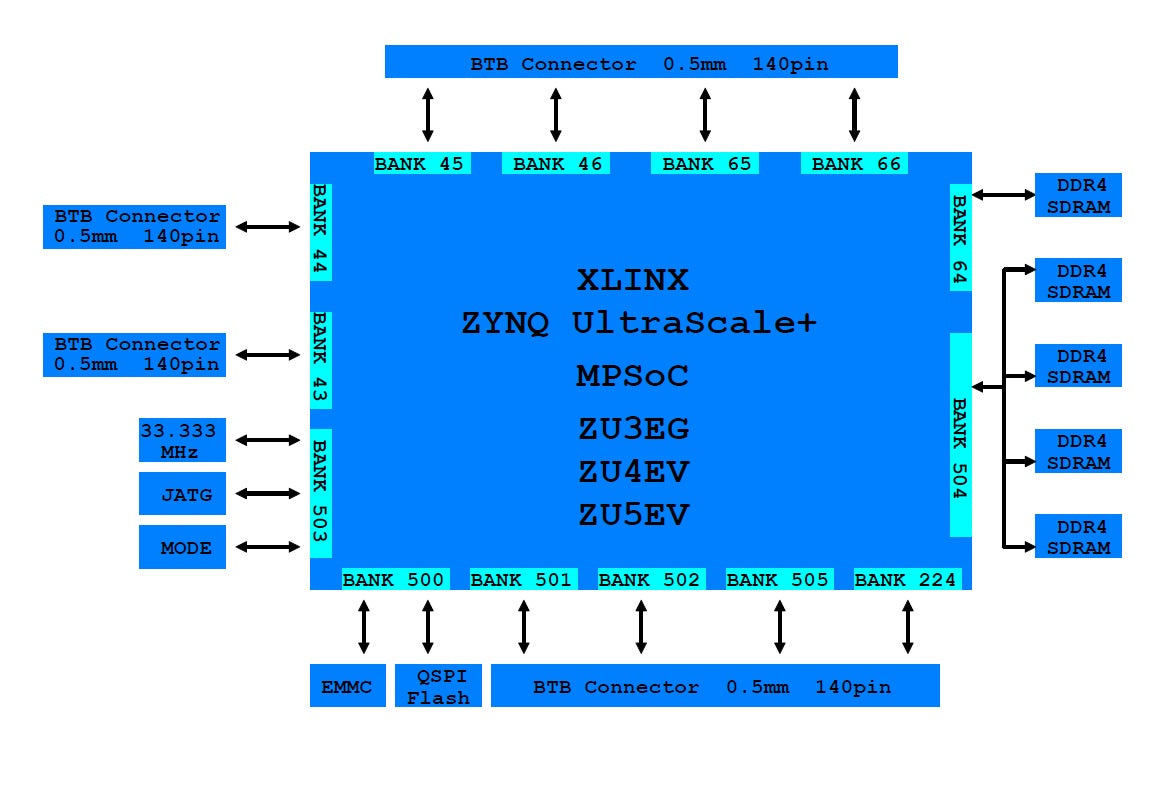

The MPSoC-P5B 3EG, MPSoC-P5B 4EV, and MPSoC-P5B 5EV core boards share identical peripheral configurations, with the only difference being the main MPSoC chip. The detailed resources of these core boards are as follows:

- The main onboard controller is from Xilinx's MPSoC UltraScale+ family:
> The 3EG core board uses the xczu3eg-sfvc784-2i, featuring 154K PL logic cells and 9.4 Mbit total RAM.
> The 4EV core board uses the xczu4ev-sfvc784-2i, featuring 192K PL logic cells and 20.6 Mbit total RAM.
> The 5EV core board uses the xczu5ev-sfvc784-2i, featuring 256K PL logic cells and 26.6 Mbit total RAM.

All three MPSoC variants (3EG, 4EV, 5EV) integrate a quad-core Arm Cortex-A53 MPCore (APU), a dual-core Arm Cortex-R5F MPCore (RPU) up to 500MHz, and an Arm Mali-400 MP2 (GPU) up to 600MHz. The speed grade for all core board chips is "-2".

- 4 x PS-side DDR4 SDRAM chips (model: K4A8G165WC-BCTD), each with 8 Gbit capacity, totaling 32 Gbit (4 GB)
- 1 x PL-side DDR4 SDRAM chip (model: K4A8G165WC-BCTD), with 8 Gbit (1 GB) capacity
- 1 x PL crystal oscillator: 100 MHz, providing a differential clock for the Programmable Logic
- 1 x PS crystal oscillator: 33.333 MHz, providing the clock for the Processing System CPU logic
- 1 power indicator (blue)
- 1 PL configuration status indicator (green)
- 2 x QSPI FLASH chips (model: W25Q256JWEIQ), each with 256 Mbit capacity, totaling 512 Mbit (64 MB)
- 1 eMMC (model: KLM8G1GETF-B041), capacity: 64 Gbit (8 GB)
