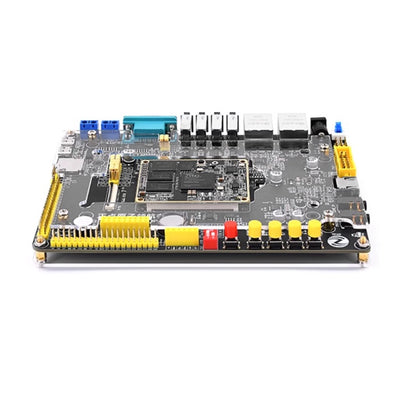

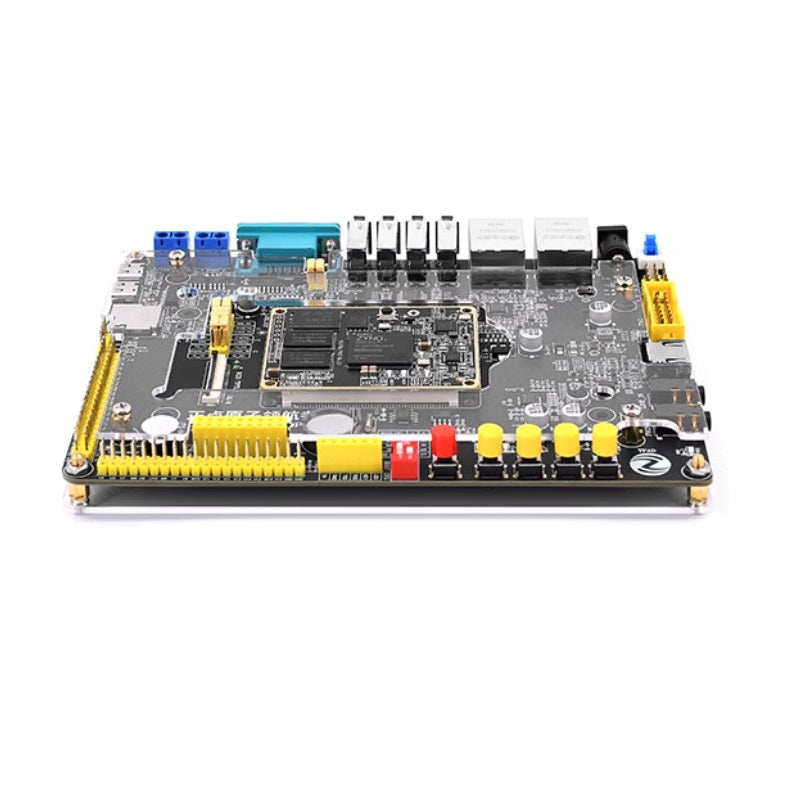

AMD/Xilinx ZYNQ XC7Z010 pilot v2

This development board is based on
XC7Z7010, CLG400 package.

•Abundant
Interfaces. The development board offers a wide range of standard peripheral
interfaces, enabling convenient experimentation and development with various
peripherals.•

•Flexible
Design. Adopting a core board + carrier board structure, many resources on the
development board can be flexibly configured to meet different usage
conditions. Two rows of 20×2 expansion headers (J4 expansion port is only
available for the ZYNQ 7020 core board) are exposed along the board edge,
providing a total of 72 extended I/O pins.•

•Sufficient
Resources. The board is equipped with a high-performance audio codec chip, an
HDMI interface, an RGB LCD interface, one PL Gigabit Ethernet port, one PS
Gigabit Ethernet port, four USB HOST interfaces, one USB SLAVE interface, and
various interface chips, meeting the requirements of diverse applications.•

•User-Friendly
Design. All interfaces are clearly marked with silkscreen labels and outlined
with boxes for intuitive use. Frequently used peripherals are highlighted with
large silkscreen labels for easy identification. The interface layout is
thoughtfully designed for ergonomic accessibility, and resources are reasonably
allocated to maximize utility.

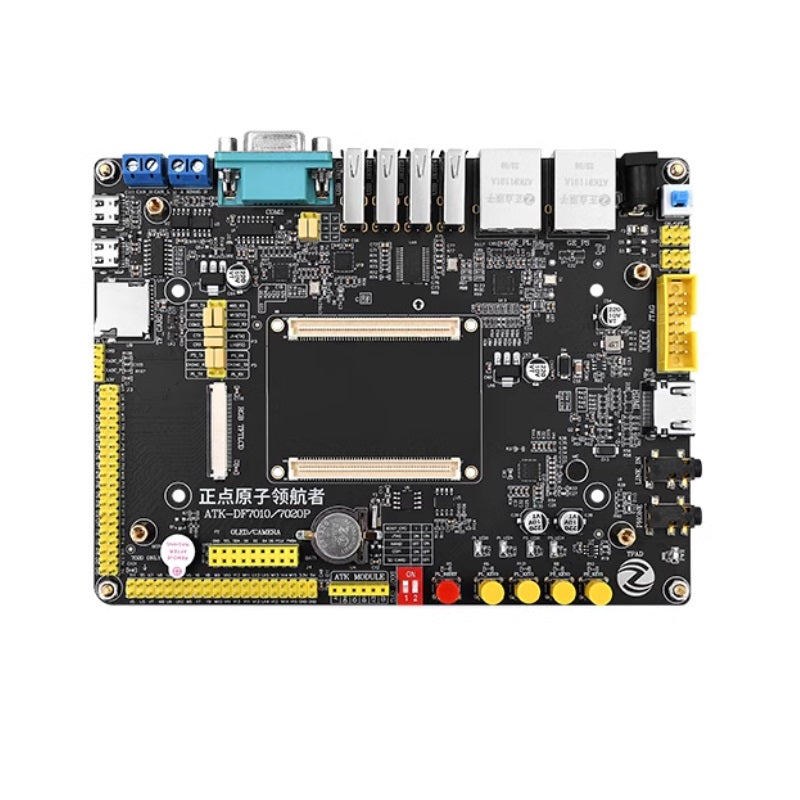

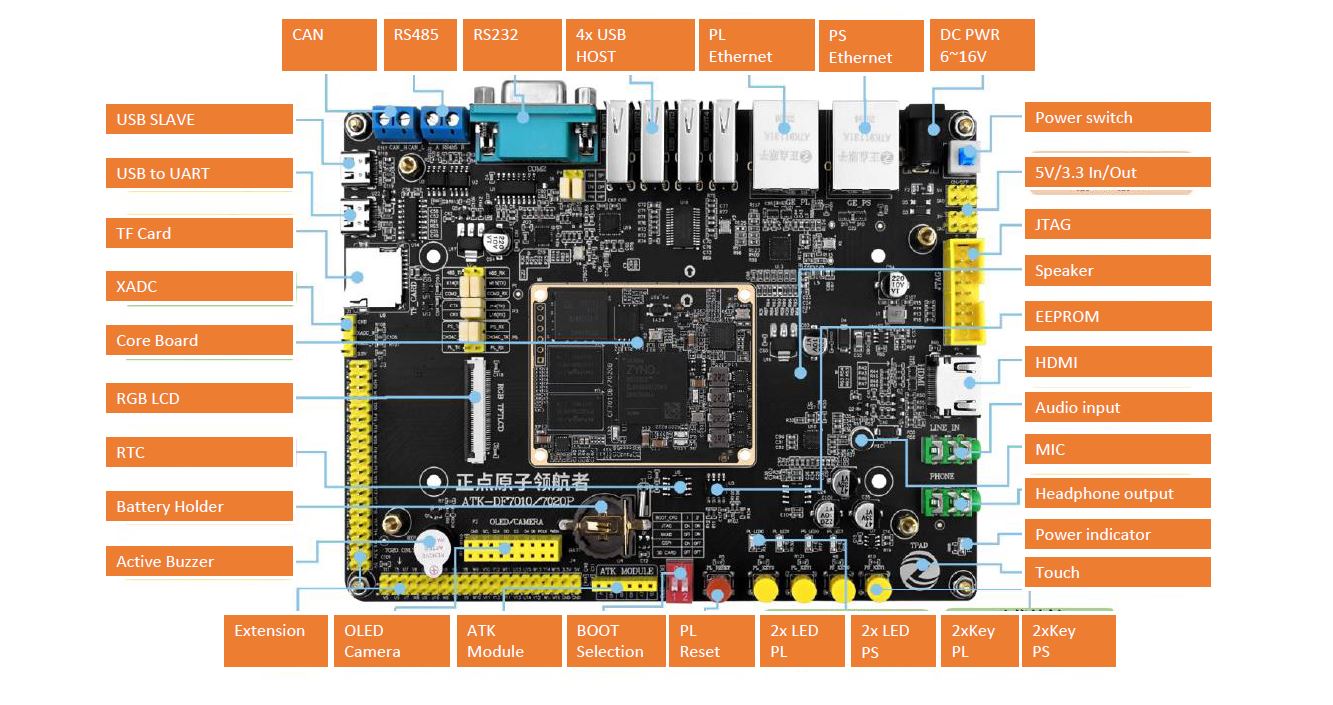

Base board

1 Core Board Connector Interface (one on top and one on bottom), compatible with ZYNQ 7020/ZYNQ 7010 core boards.
EEPROM Chip: AT24C64, 64 Kbit (8 KB) capacity.
1 Power Indicator (Blue)
2 PL LEDs (Red)
2 PS LEDs (Red)
1 Active Buzzer
1 PL Reset Button
2 PL Function Buttons
2 PS Function Buttons
1 Capacitive Touch Button
1 CAN Bus Interface, using TJA1050 transceiver chip.
1 RS232 Serial Port Interface (DB9 Female Connector)
1 RS485 Interface (shares I/O with the RS232 interface)
1 RS232/RS485 Selection Jumper
1 CAN Bus Selection Jumper
1 Standard RGB888 TFT-LCD Interface
1 XADC Interface
1 OLED/Camera Module Interface
Two 20x2 Expansion Headers, providing a total of 72 extended I/O pins (J4 header is only available for the ZYNQ-7020 core board). Each includes one 3.3V and one 5V power pin.
1 RTC (Real-Time Clock), chip model PCF8563.
1 RTC Battery Holder with CR1220 battery included.
1 ATK MODULE Interface, compatible with Alpha Bluetooth / GPS / UART modules.
1 BOOT Mode Selection Switch
1 Audio Output Interface
1 Audio Input Interface
1 High-Performance Audio Codec Chip (ES8388), supports recording, line-in, and audio playback.
1 Microphone (MIC)

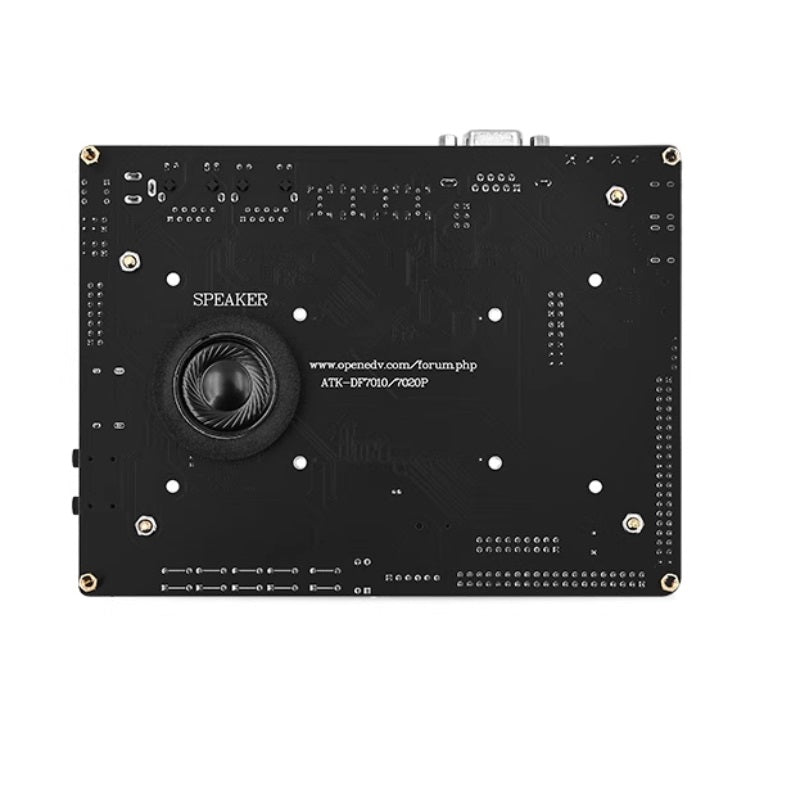

1 Small Speaker (located on the back of the board)
1 HDMI Output Interface
4 USB HOST Interfaces
1 USB SLAVE Interface
14-Pin JTAG Interface for board programming and debugging.
1 set of 5V Power Supply/Input Terminals
1 set of 3.3V Power Supply/Input Terminals
1 Power Switch for the entire development board.
1 DC Power Input Jack (Input Voltage Range: DC 6V ~ 16V)
1 PL Gigabit Ethernet Interface (RJ45)
1 PS Gigabit Ethernet Interface (RJ45)
1 Micro SD (TF_CARD) Card Interface
1 USB-to-Serial Port

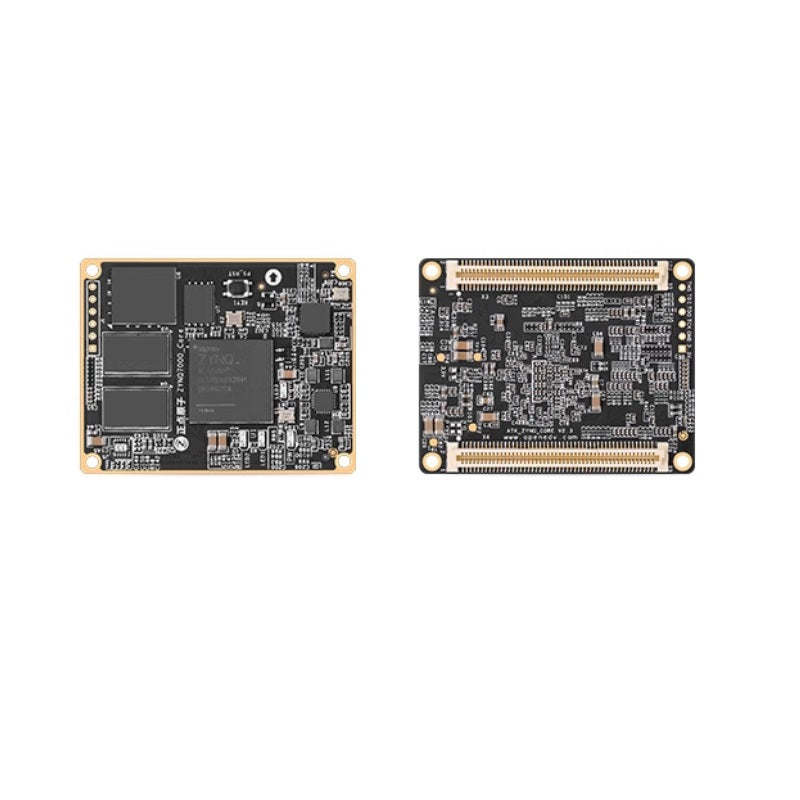

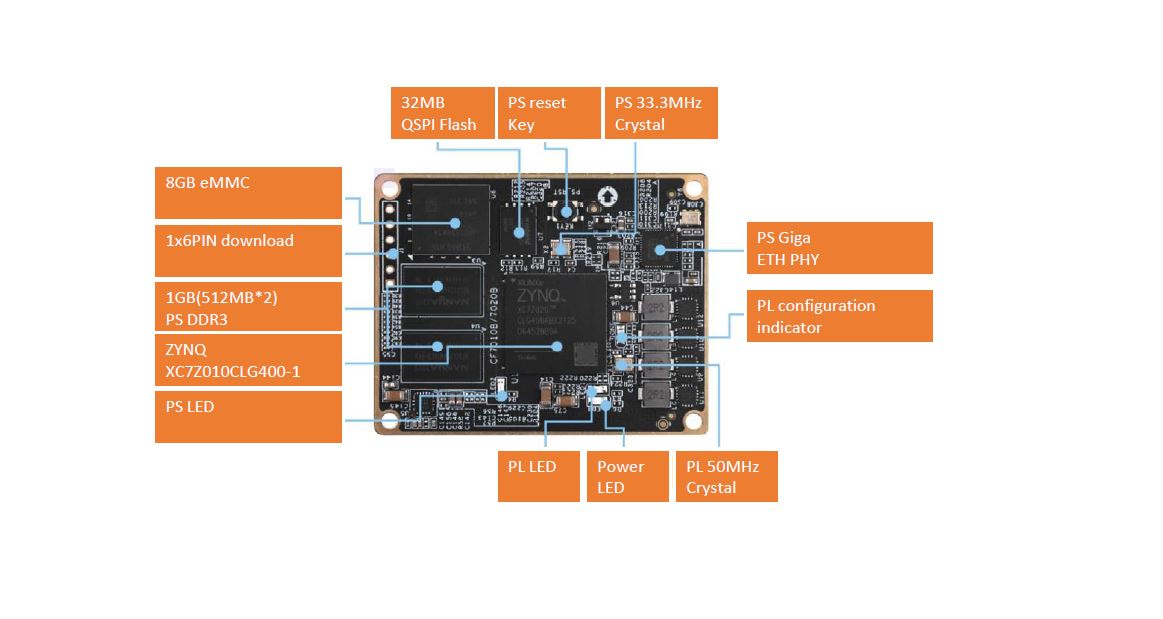

Core board
1x 1x6 Download Interface, functionally equivalent to the 14-pin JTAG interface on the baseboard.
1x PL LED
1x PS LED
1x PL Crystal Oscillator: 50MHz, providing the clock for the Programmable Logic.
1x PS Crystal Oscillator: 33.333MHz, providing the clock for the Processing System (CPU).
1x Power Indicator (Blue)
1x PL Configuration Status Indicator (DONE LED, Green)
1x PS Gigabit Ethernet PHY Chip: YT8521S
1x PS Reset Button
1x QSPI FLASH, model W25Q256, 32MB capacity.
1x eMMC, model KLM8G1GETF, 8GB capacity.
