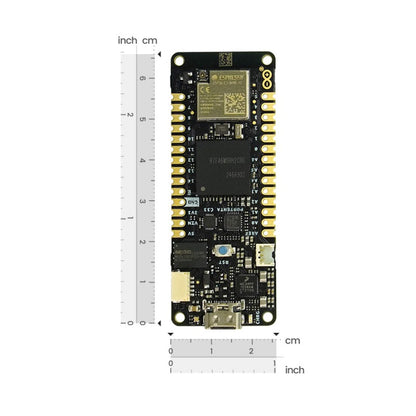

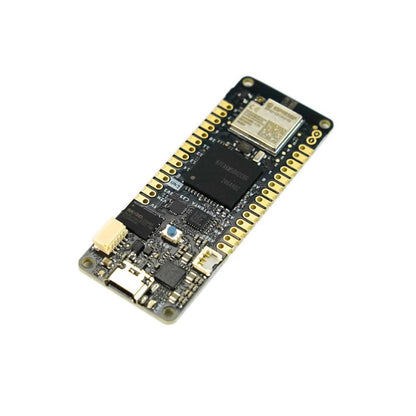

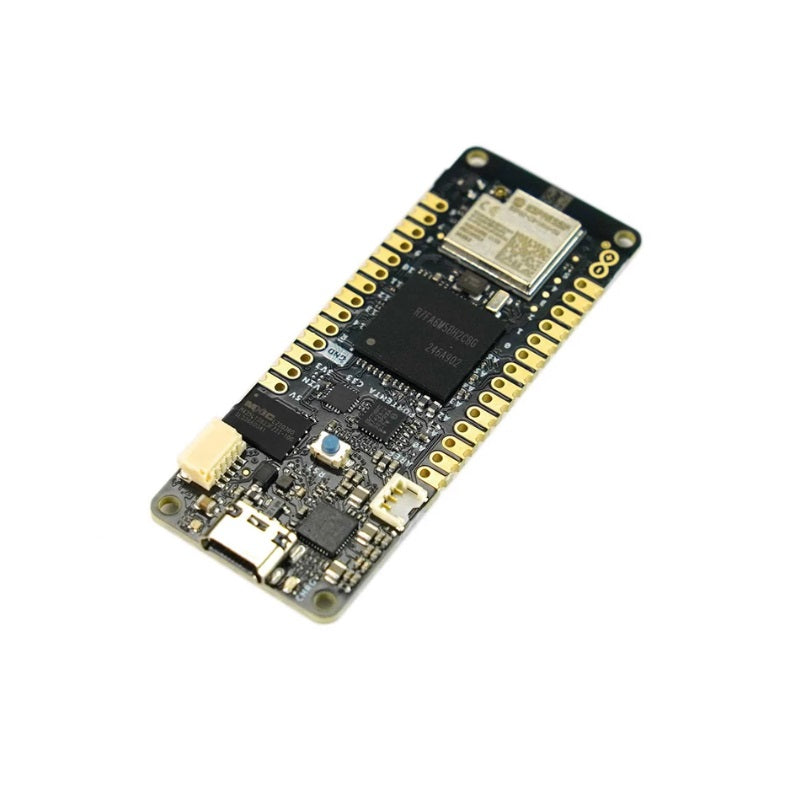

Arduino Portenta C33 development board

The Arduino Portenta C33 is a streamlined module that offers the high performance of the Arduino Portenta family at a lower price point, thanks to optimizations and streamlined features. Ideal to developing cost-effective, real-time applications, the Portenta C33 features the ARM® Cortex® M33 microcontroller by global leader Renesas and supports MicroPython and other high-level programming languages. Thanks to its onboard Wi-Fi and Bluetooth® Low Energy connectivity, the module stands out as an ideal solution for IoT gateways, remote control systems, fleet management, and process tracking.

While its secure element guarantees industrial-grade security at the hardware level, the Arduino Portenta C33 is also able to perform over-the-air firmware updates with the Arduino IoT Cloud or other third-party services.

Quickly deploying AI-powered projects becomes quick and easy with the Arduino Portenta C33 by leveraging a vast array of ready-to-use software libraries and Arduino sketches available, as well as widgets that display data in real time on Arduino IoT Cloud-based dashboards. What’s more, the module’s form factor is compatible with the Portenta and MKR ranges and features castellated pins – ready for automatic assembly lines and more efficient connections to other components.

Features

• Ideal for low-cost IoT applications with Wi-Fi/BLE® connectivity
• Supports MicroPython and other high-level programming languages
• Offers industrial-grade security at the hardware level and secure OTA firmware updates
• Leverages ready-to-use software libraries and Arduino sketches
• Perfect to monitor and display real-time data on Arduino IoT Cloud widget-based dashboards
• Compatible with Arduino Portenta and MKR families

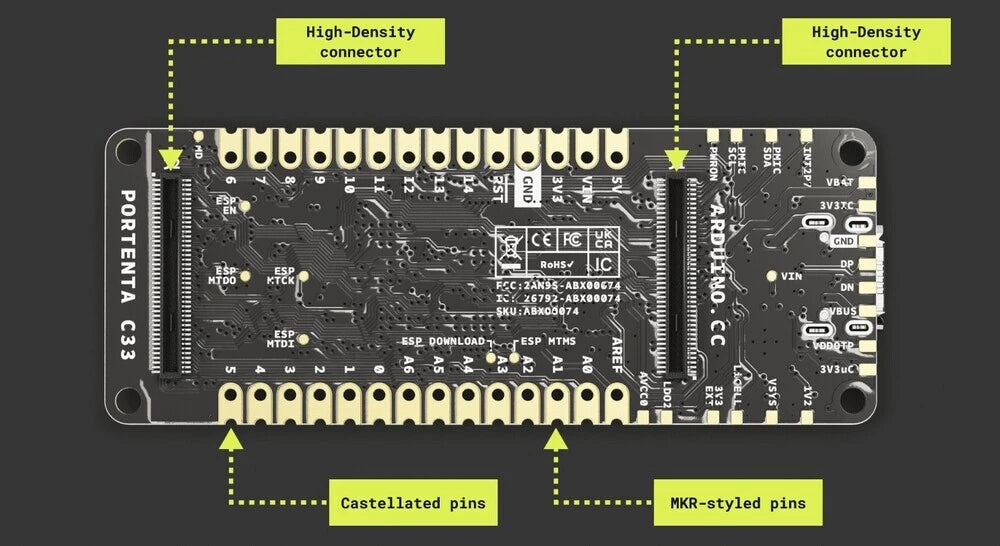

• Features castellated pins for automatic assembly lines

Applications

• Industrial IoT gateway
• Machine monitoring to track OEE/OPE
• Inline quality control and assurance
• Energy consumption monitoring
• Appliances control system
• Ready-to-use IoT prototyping solution

Specification

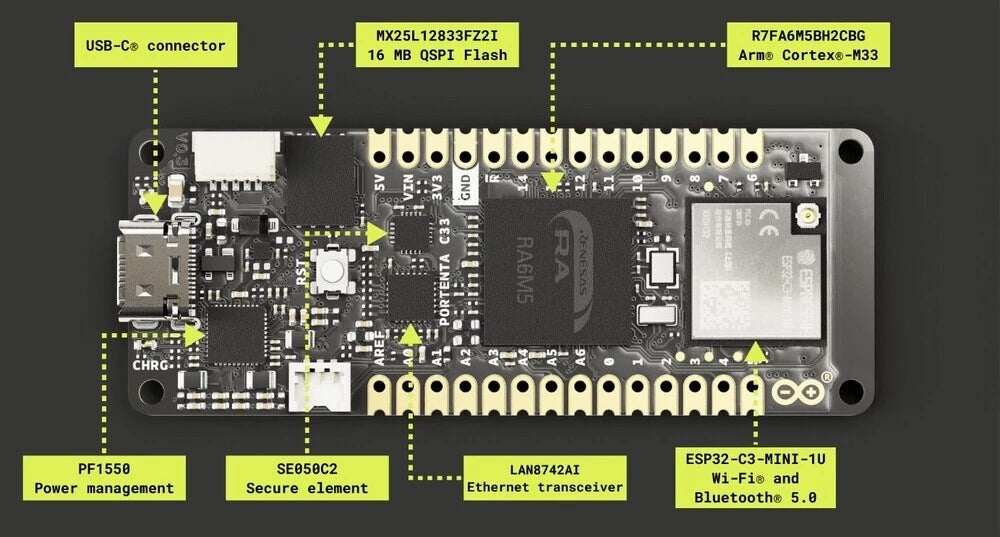

• Microcontroller: Renesas R7FA6M5BH2CBG ARM® Cortex® M33
            1x ARM® Cortex® - M33 core up to 200 MHz
            512KB onboard SRAM
            2MB onboard Flash
            Arm TrustZone®
            Secure Crypto Engine 9
• External Memories: 16 MByte QSPI Flash
• USB-C: USB-C High Speed
• Connectivity
            100Mbit Ethernet interface (PHY)
            Wi-Fi
            Bluetooth® Low Energy

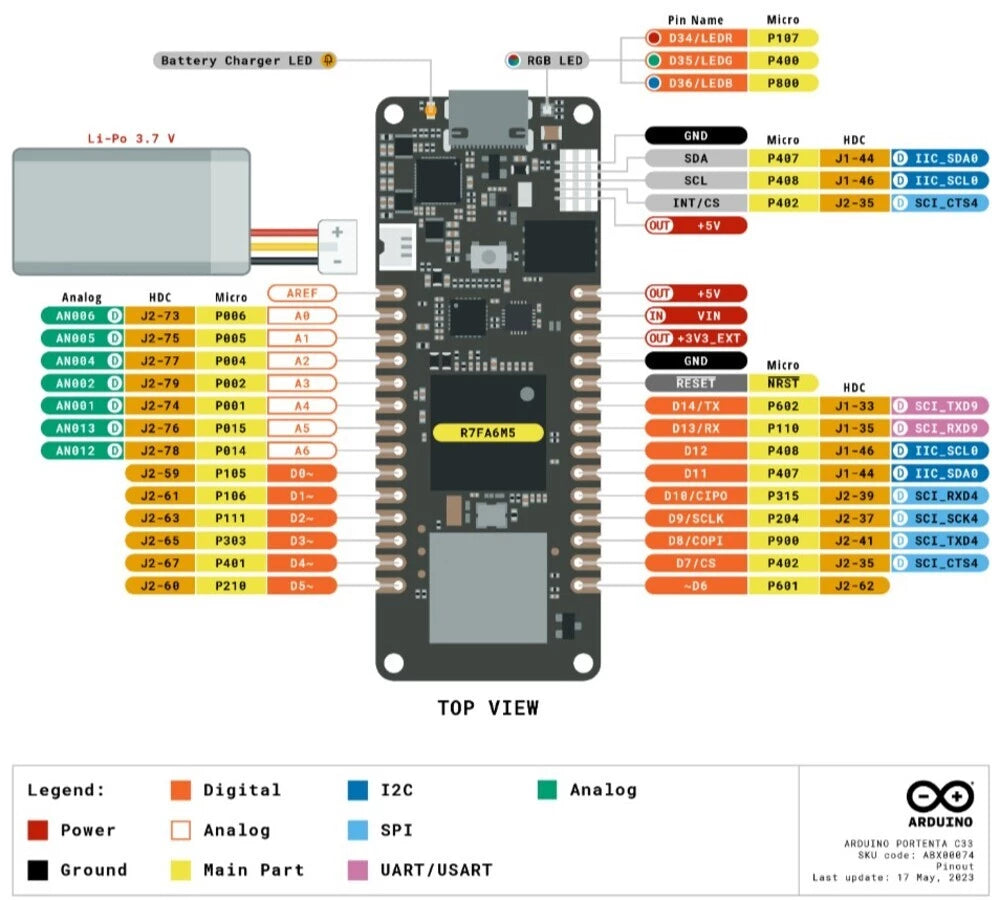

• Interfaces
            CAN
            SDCard
            ADC
            GPIO
            SPI
            I2S
            I2C
            JTAG/SWD
• Security: NXP® SE050C2 Secure Element
• Operating Temperatures:-40° C to +85° C (-40° F to 185°F)

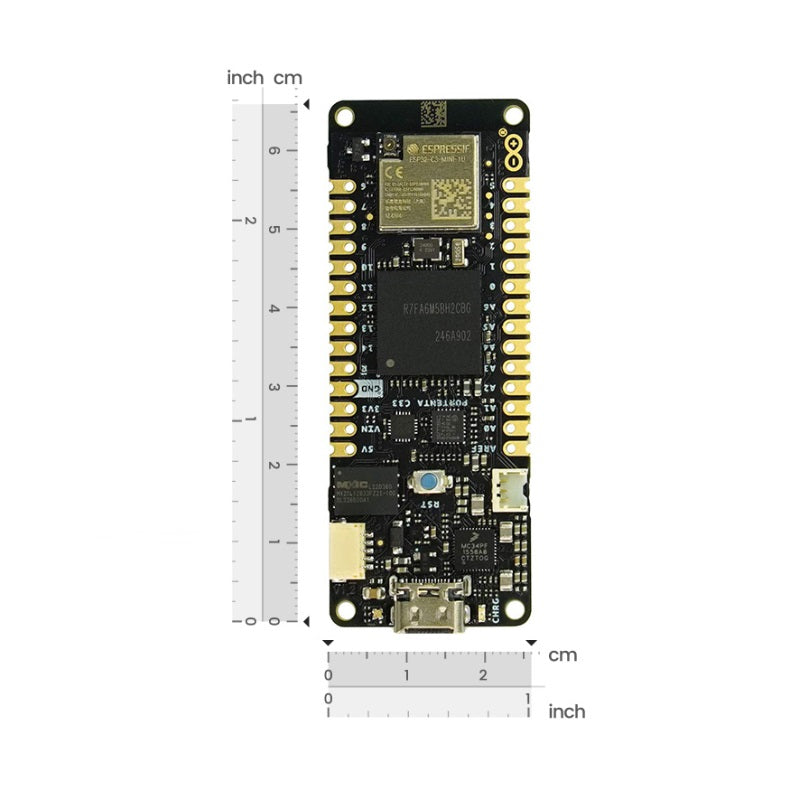

• Dimensions:66.04 mm x 25.40 mm
