Core1262 LF/HF LoRa Module, SX1262 chip, Long-Range Communication, Anti-Interference, Suitable for Sub-GHz band

Introduction

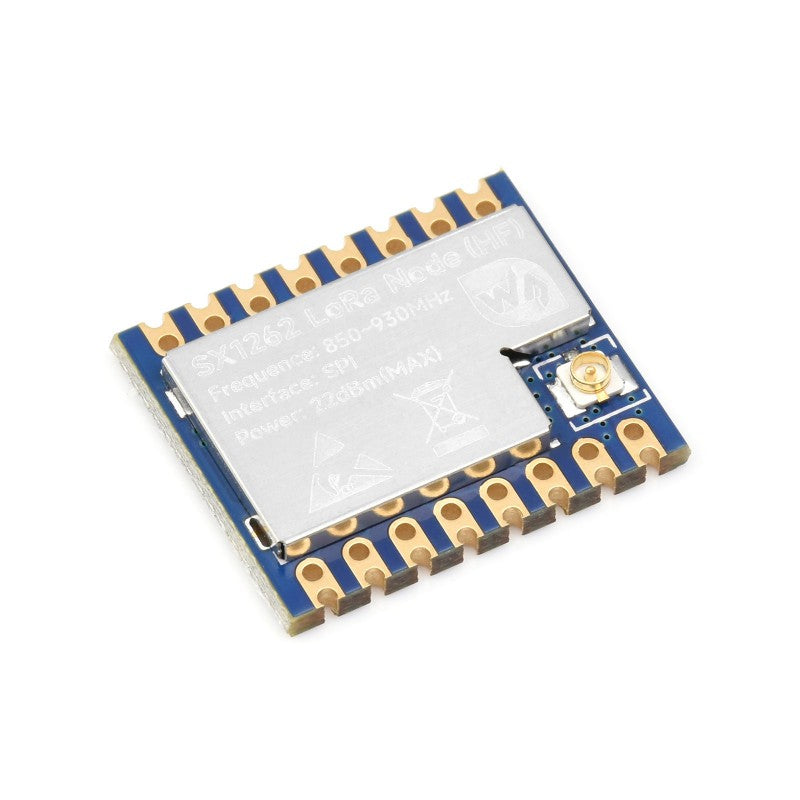

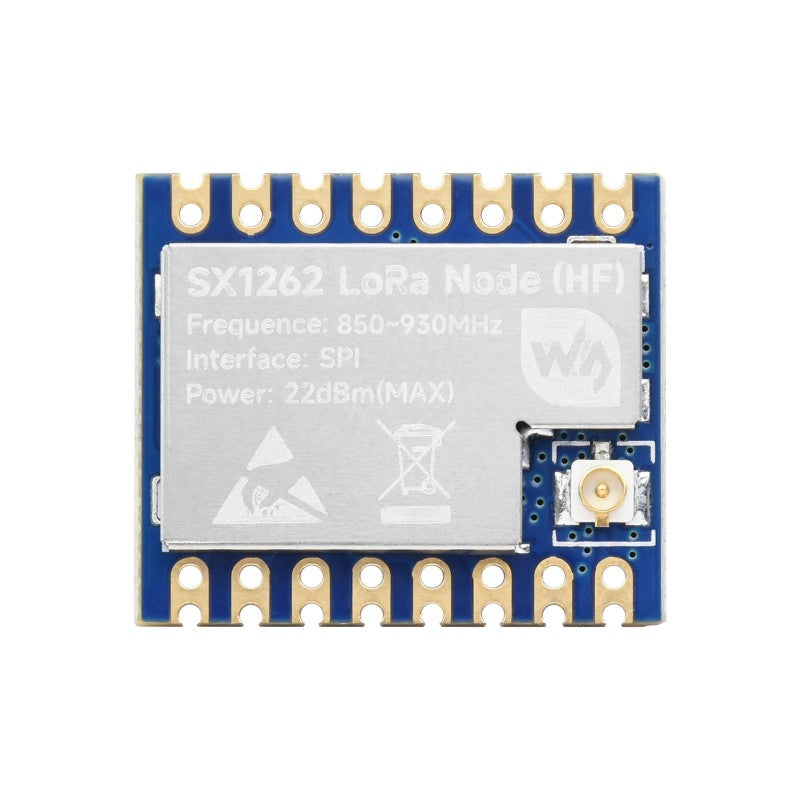

Core1262-868M is a LoRa core module that incorporates a new-generation SX1262 chip. It is mini and features long-range transmission and high anti-interference capability. The module uses the Sub-GHz band, and combined with the LoRa gateway, it can be connected to servers like the TTN server to build the LoRa network.

Note:

1. The product's original name is Core1262-868M, later renamed as Core1262-HF, suitable for 850~930MHz frequency band.

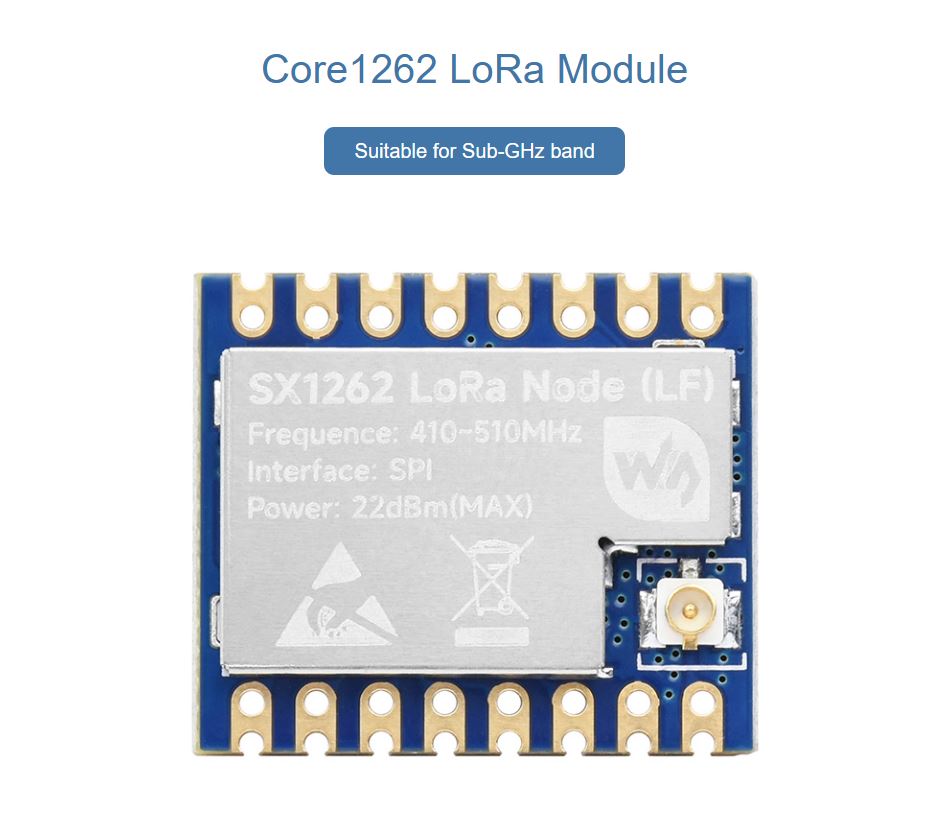

2. Add Core1262-LF, suitable for 410~490MHz frequency band.

Features

• The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278.
• Suitable for Sub-GHz band, combined with the gateway, quick connect to cloud servers to build LoRa/LoRaWAN network.
• Suitable for the application scenarios such as industry, smart home, and data acquisition.
• Adopts high-quality components such as TCXO for working stably under harsh conditions.
• Comes with online development resources and manual (examples for Raspberry Pi Pico/STM32).

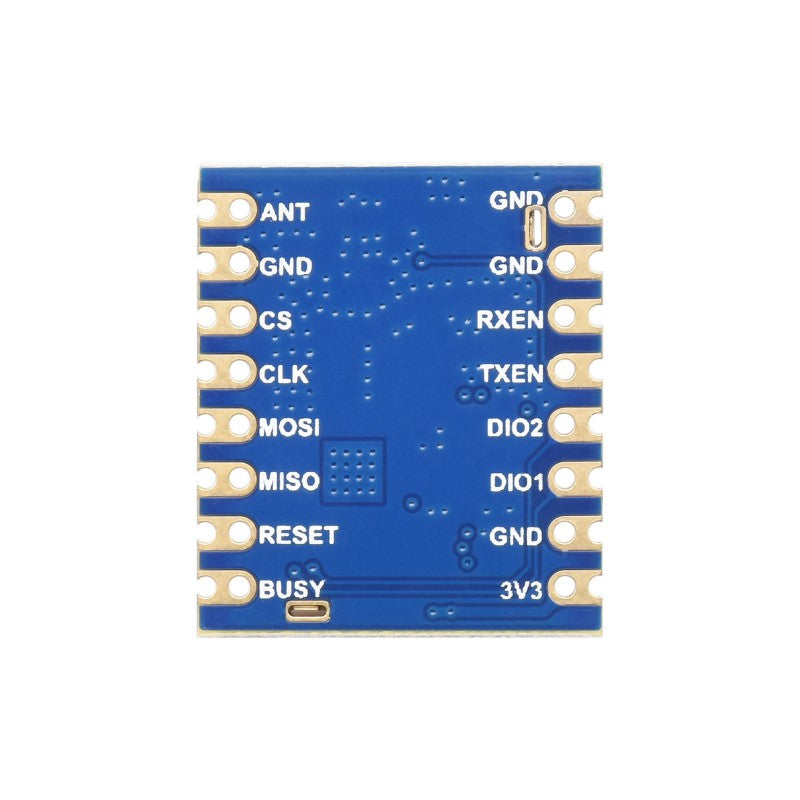

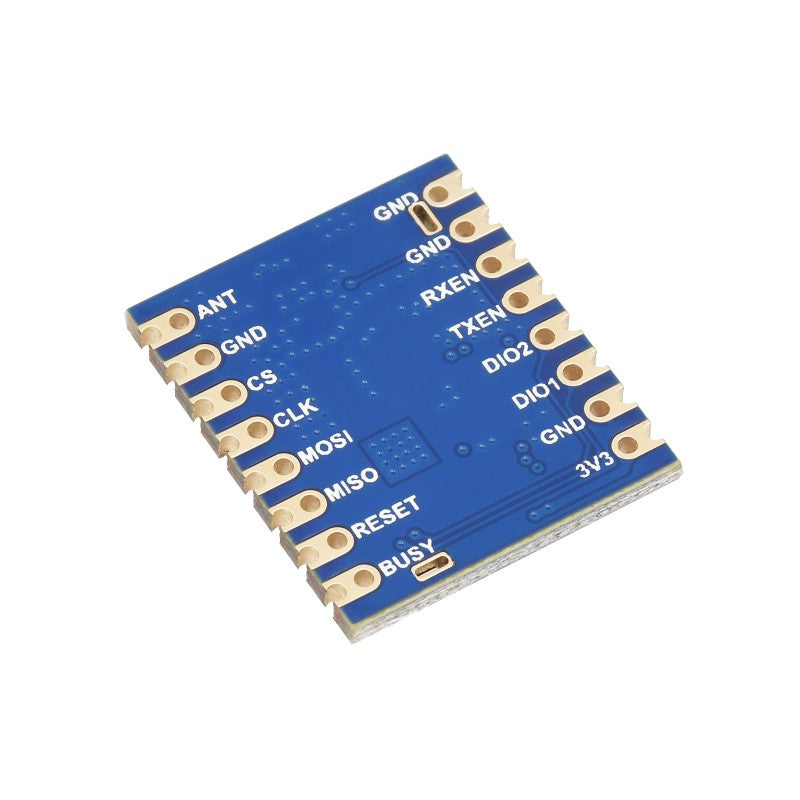

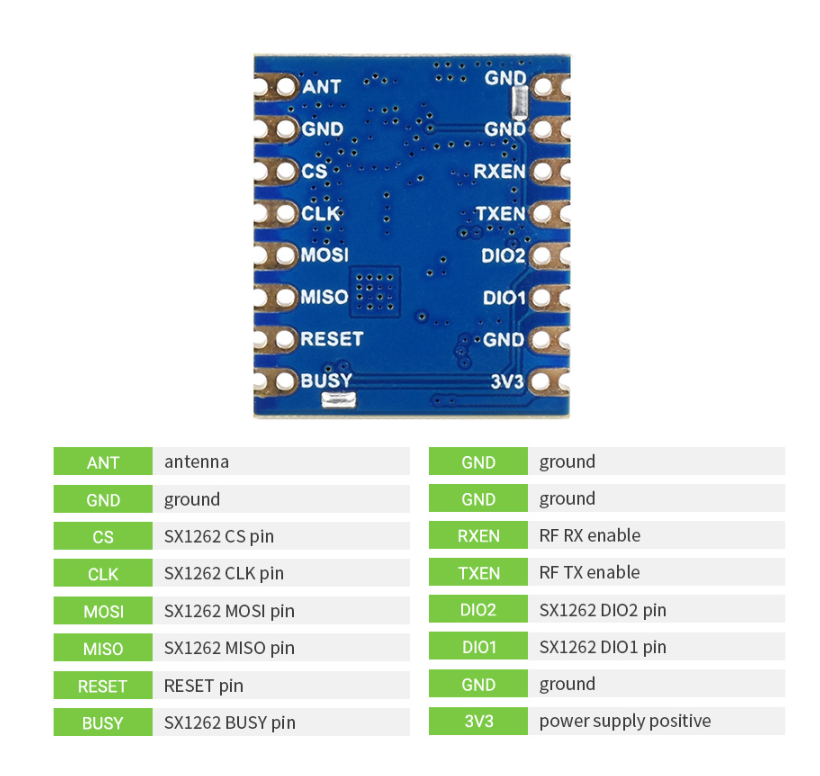

Pin Definition

Documentation

• Schematic
• Datasheet
