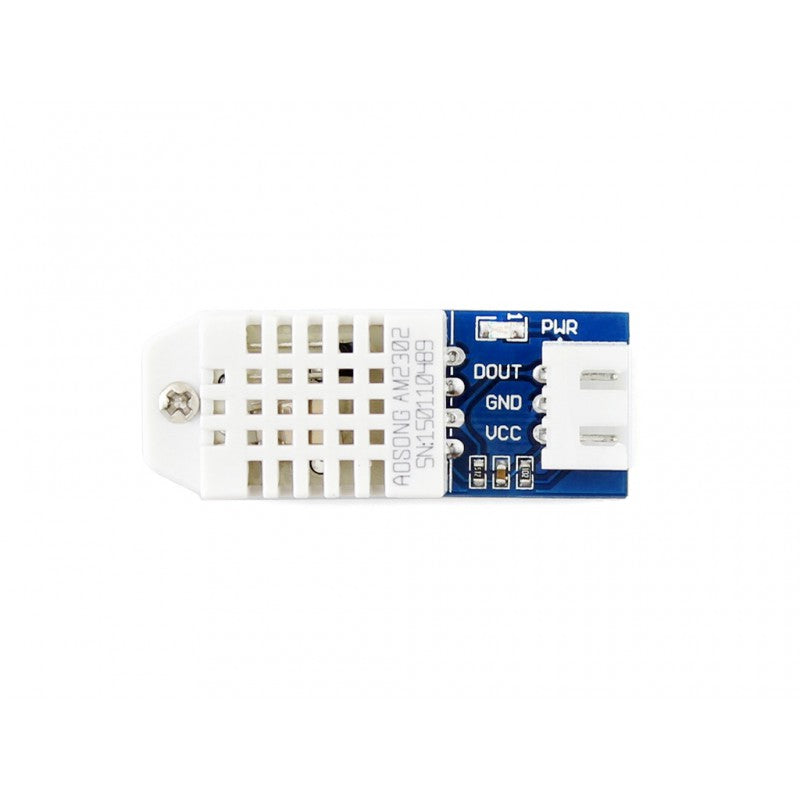

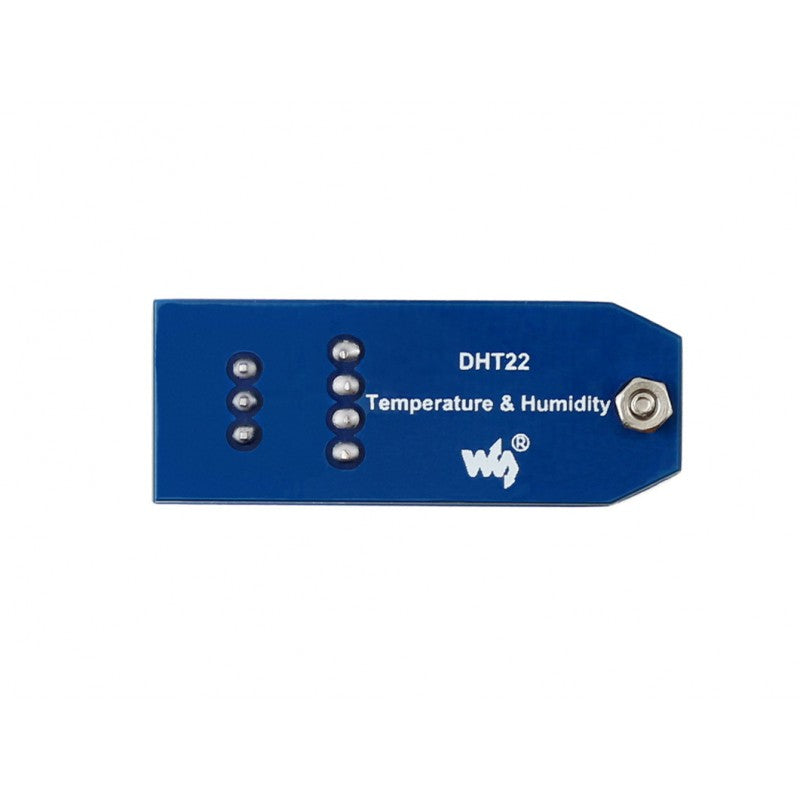

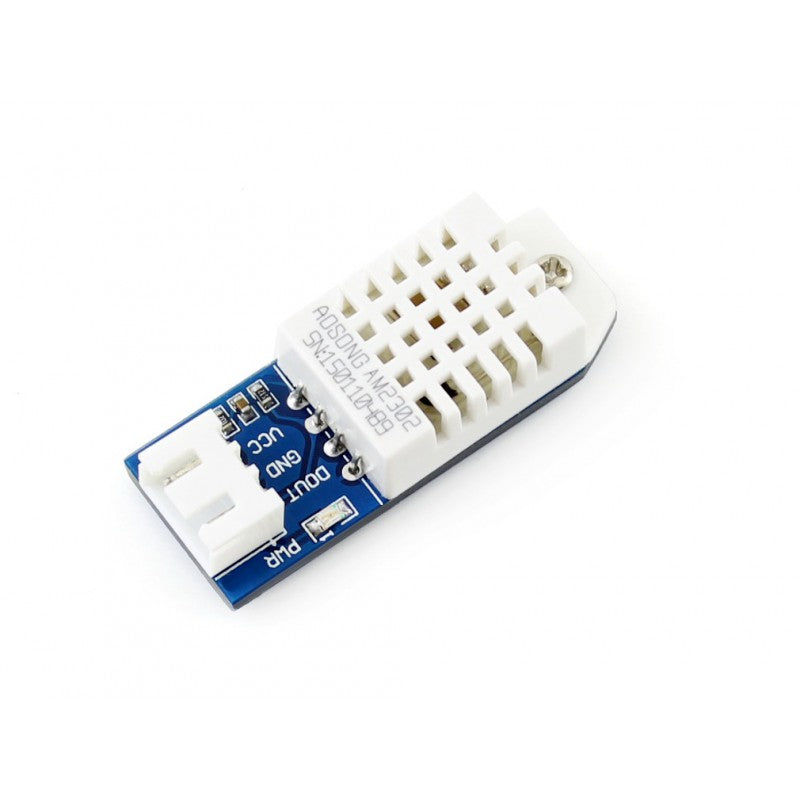

This is a calibrated digital temperature and humidity module with onboard sensor DHT22, which features higher accuracy and wider measuring range than DHT11.
It can be used for detecting ambient temperature and humidity, through the standard single-wire interface.
Specifications
TemperatureResolution : 0.1°CAccuracy : ±0.5℃Measuring range : -40°C ~ 80°C
Recommended storage conditionTemperature : 10°C ~40°CHumidity : 60%RH or below
Applications
Weather station
Humidity controller
Test & detection device
How to Use

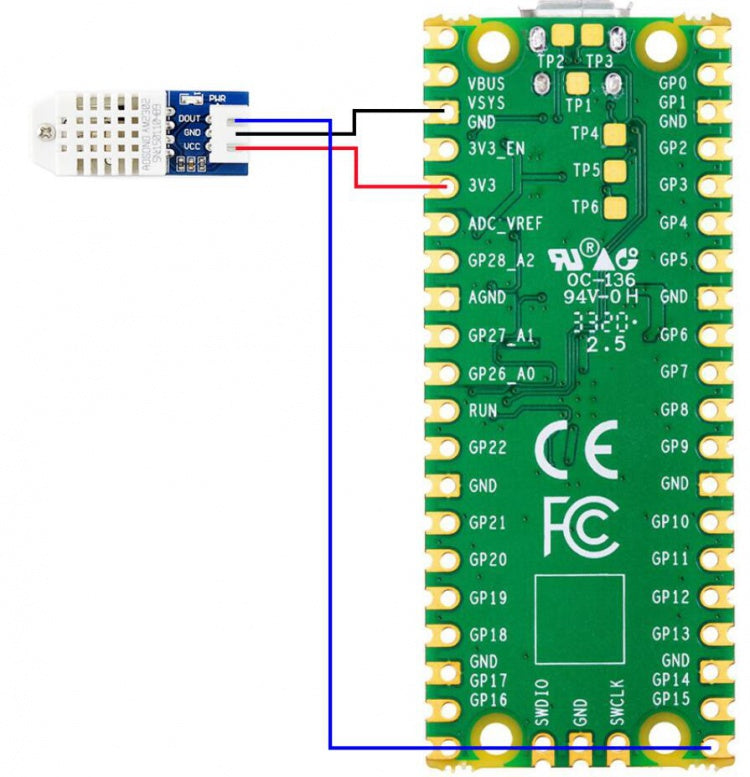

In the case of working with a MCU:
VCC ↔ 3.3V ~ 5.5V
GND ↔ GND
DOUT ↔ MCU.IO
