Digital LTR390-UV Ultraviolet Sensor (C), Direct UV Index Value Output, I2C

Digital LTR390-UV Ultraviolet Sensor (C), Direct UV Index Value Output, I2C

SKU:E31001-001

Regular price $17.22 AUD
Regular price Sale price $17.22 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $8 within AU, more details

• Returns accepted for defective items, more details.

• Shopping Inquiry: contact@mlab.com.au

Quantity
In Stock: Oversea (7–10 business days Lead Time)
View full details

Overview

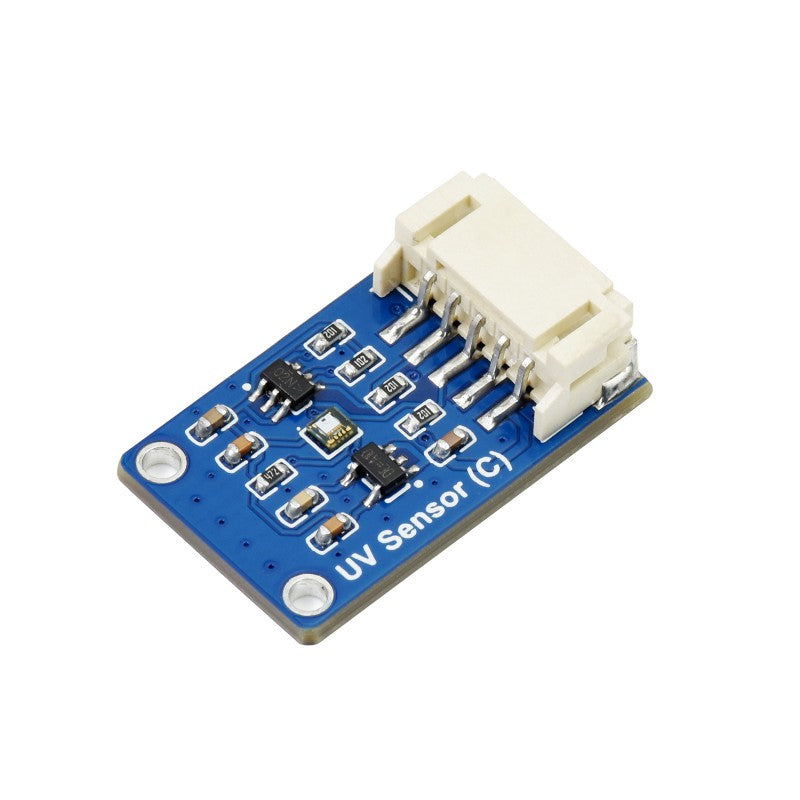

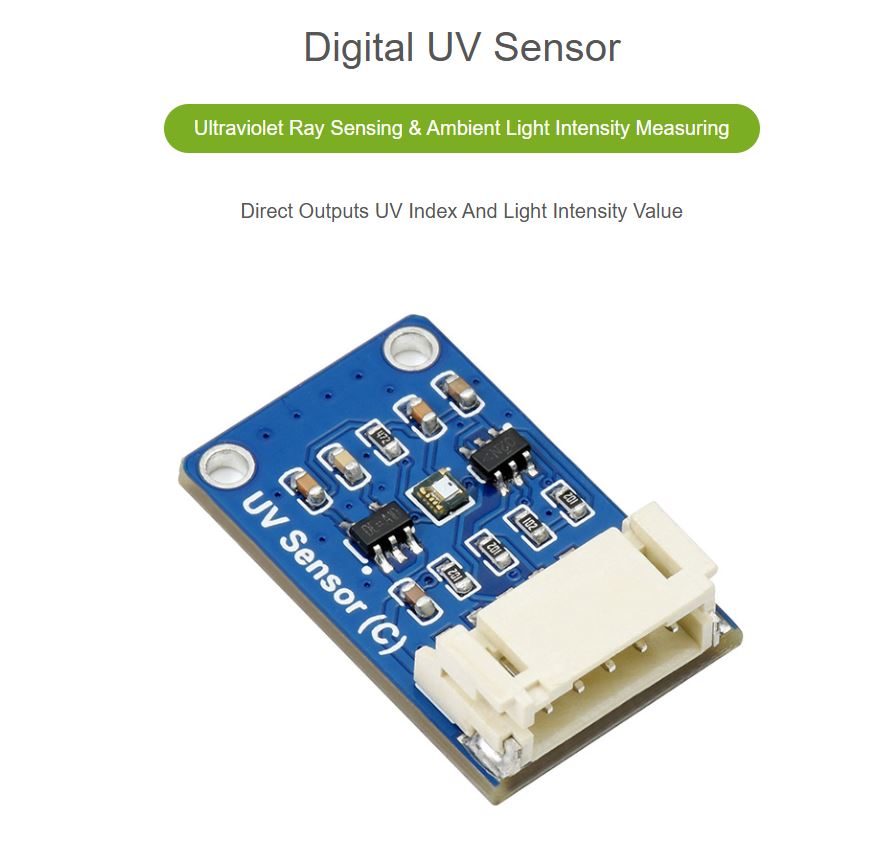

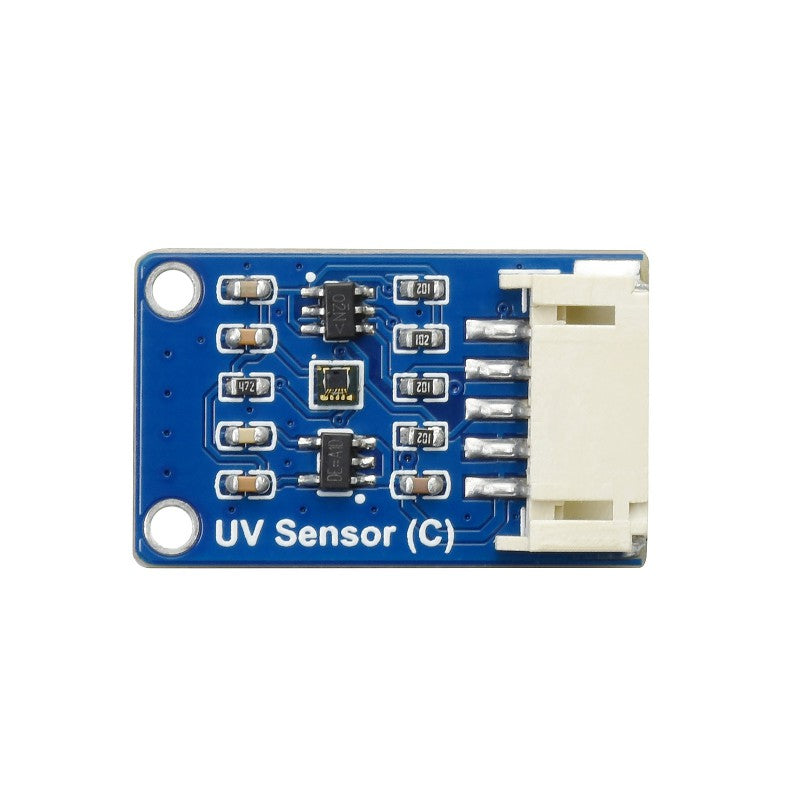

UV Sensor (C) is an I2C digital UV sensor expansion board equipped with LTR390-UV-01, which can be used to measure UV and human visible light and can output light intensity data. UV Sensor (C) has the characteristics of sensitive sensing, fast response, and small size. Its core sensor LTR390-UV-01 is integrated on an expansion board (27 × 20mm), which can be easily integrated into the device.

Features

  • Using LTR390-UV-01, can measure ultraviolet and visible light of the human eye.
  • Built-in ADC, can directly output light intensity through the I2C interface, not easy to be disturbed by noise.
  • With interrupt output and programmable upper and lower thresholds.
  • On-board level conversion circuit, compatible with 3.3V/5V working level.
  • Provide complete supporting information manual (Raspberry/Arduino/STM32 sample program and user manual, etc.)

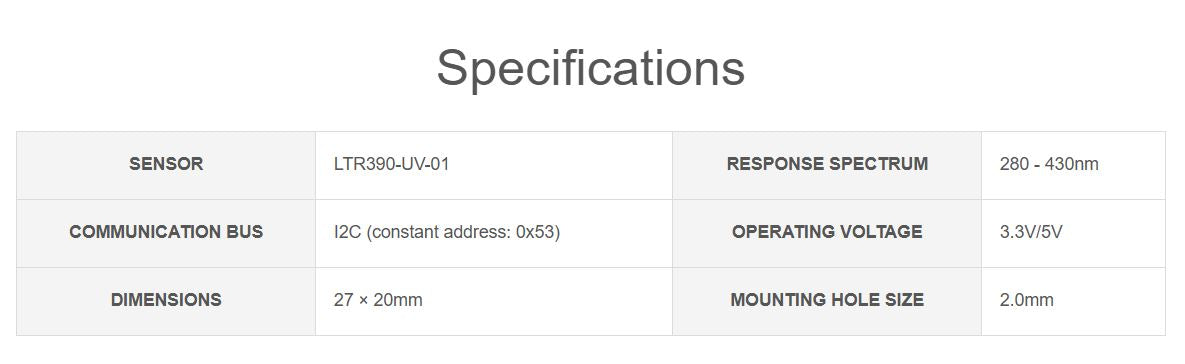

Specification

  • Operating voltage: 3.3V/5V
  • Sensor: LTR390-UV-01
  • Response wavelength: 280 - 430nm
  • Communication interface: I2C (fixed address: 0 x 53)
  • Product size: 27 × 20mm
  • Fixed aperture: 2.0mm

Application

  • Ultraviolet tester
  • Outdoor ultraviolet detector
  • Germicidal lamp
