Description
This product is designed by Waveshare with onboard 2.8inch LCD display, 6-axis sensor, temperature and humidity sensor, and TF card slot, providing the hardware foundation for display, sensing, voice, and multimedia storage. With these hardware resources, it supports fun interactive mini-games and voice wake-up. It allows access to online AI large model platforms, enabling intelligent voice interaction and continuous upgrades. It comes pre-installed functions such as AI conversation, audio playback, a gravity ball game, 2048 game, and weather. It can be used directly as an AI chatting toy, while also supporting customization and secondary development.
- Equipped with the ESP32-C6-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 160MHz main frequency, and built-in 16MB Flash memory
- Integrated Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
- Onboard Batt recharge management module, with reserved 3.7V MX1.25 Lithium Batt header for connecting external Batt
- Type-C port, improving device compatibility, easier to use

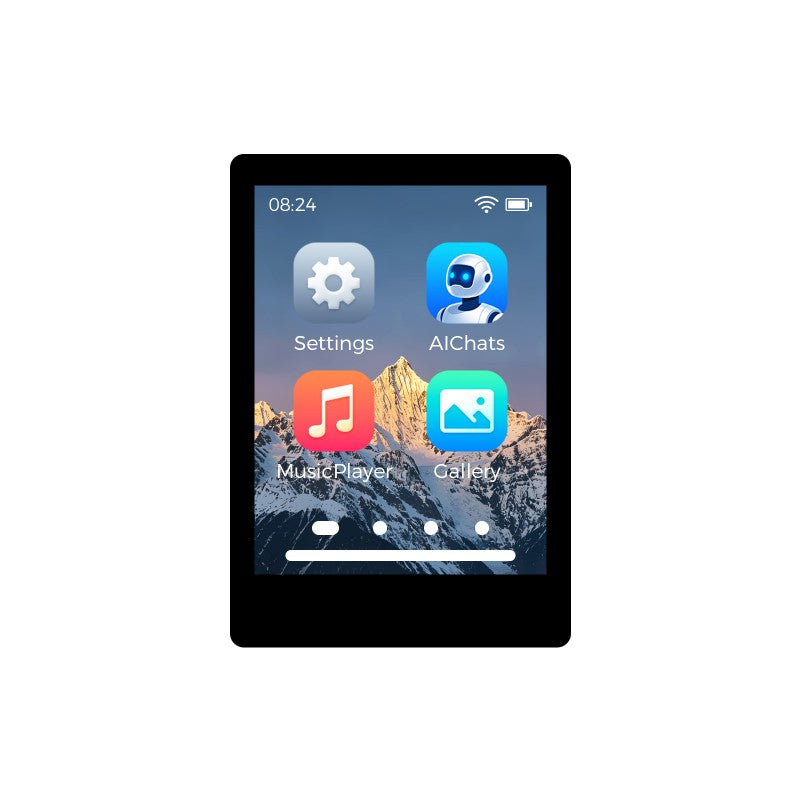

- Onboard 2.8inch LCD display, 240 × 320 resolution, 262K color
- Supports capacitive touch controlled via I2C interface, with interrupt support
- Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
- Onboard QMI8658 6-axis sensor, RTC sensor, SHTC3 temperature and humidity sensor, TF card slot, etc.
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
- Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker
- Supports ESP-IDF, Arduino, and other development environments, with rich resources for quick and easy development

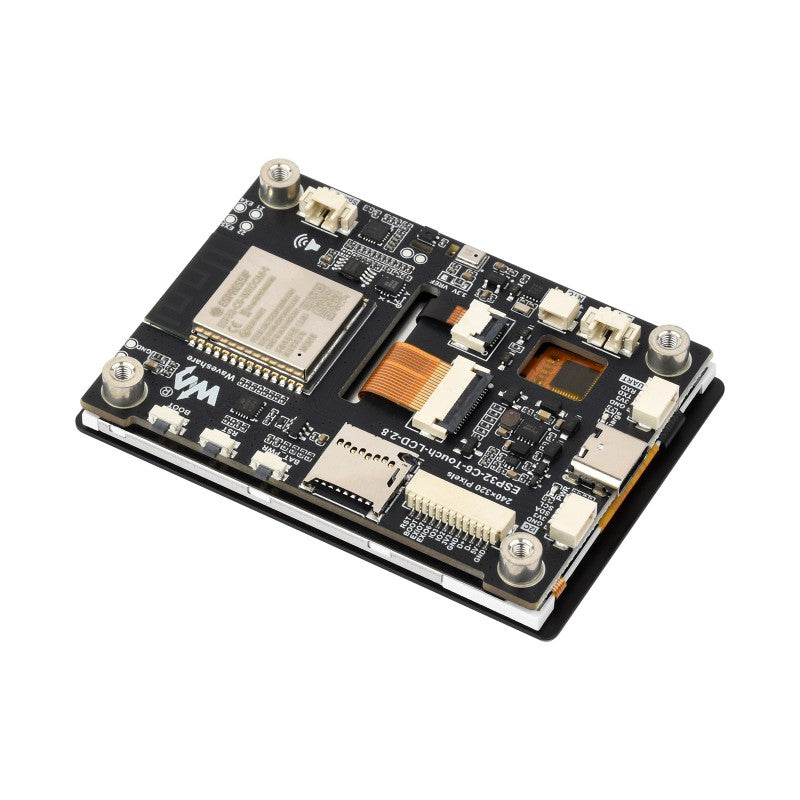

Onboard Resource
-
ESP32-C6-WROOM-1
-
Expansion IO pads
-
MX1.25 2PIN speaker header
Audio output signal, for connecting external speaker -
ES8311
low-power audio codec chip -
NS4150B
audio power amplifier chip -
SHTC3 temperature and humidity sensor
provides temperature and humidity measurement for environmental monitoring applications -
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer -
Onboard microphone
-
PCF85063 RTC chip
-
SH1.0 2PIN RTC Batt header
for connecting rechargeable RTC Batt -
MX1.25 2PIN Lithium Batt header
for 3.7V Lithium Batt, supports charging and discharging -
UART header
-
Charging indicator
Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected) -
USB Type-C port
-
ETA6098 charging management chip
-
I2C header
-
SH1.0 12PIN connector
-
TF card slot
supports TF card up to 64GB -
Power ON/OFF chip
-
BAT power button
When a Batt is connected, long press 2s to power off, short press 1s to power on -
CH32V003 IO expansion chip
-
RESET button
-
BOOT button
for entering download mode, and can also be reused as a general-purpose button - 2.8inch display panel connector
