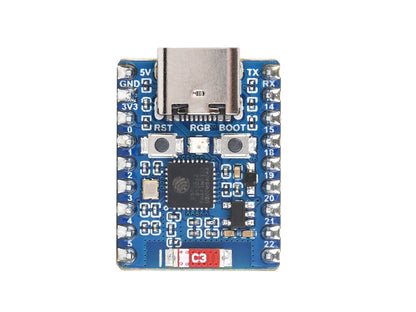

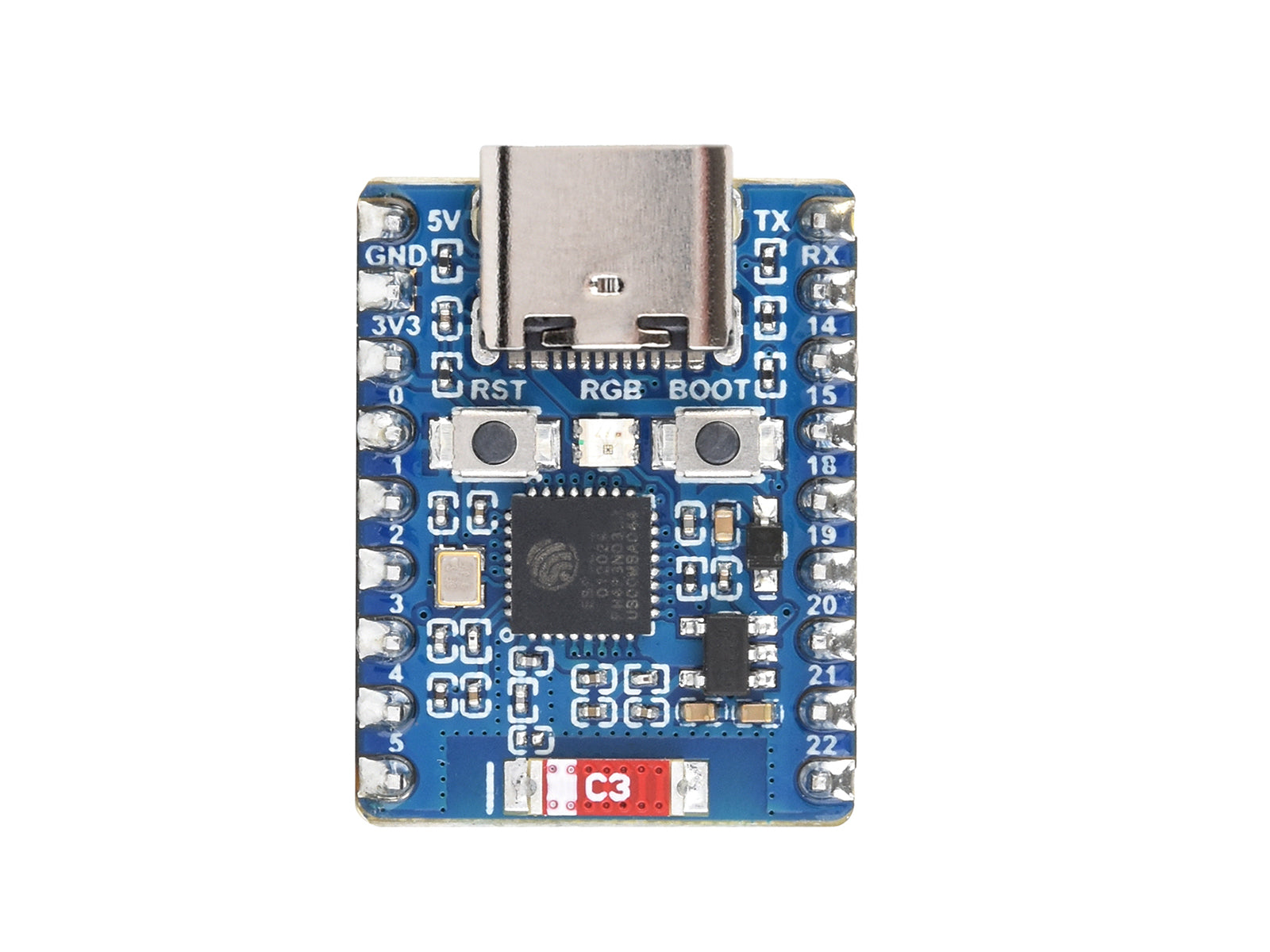

ESP32-C6-Zero Development Board

ESP32-C6-Zero Development Board

SKU:E01007-001

$12.10 AUD
$12.10 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $5 within AU, more details

• Shipping to Non-Australia, contact us

• Returns accepted for defective items, more details.
View full details

Description

The ESP32-C6-Zero is a low-cost, high-performance microcontroller development board with a compact size and rich peripheral interfaces.
Adopts ESP32-C6FH4 as the main chip, with RISC-V 32-bit single-core processor, support up to 160 MHz, and built-in 320KB ROM, 512KB HP SRAM and 16KB LP SRAM. It can be compatible with multiple peripheral devices and is easier to use in different application scenarios.
You can choose ESP-IDF development environment or Arduino IED for development so that you can easily and quickly get started and apply it to the product.

Features

  • Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
  • Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory
  • Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
  • Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
  • Onboard USB Type-C port, 22 × GPIO pins allows flexibly configuring pin functions

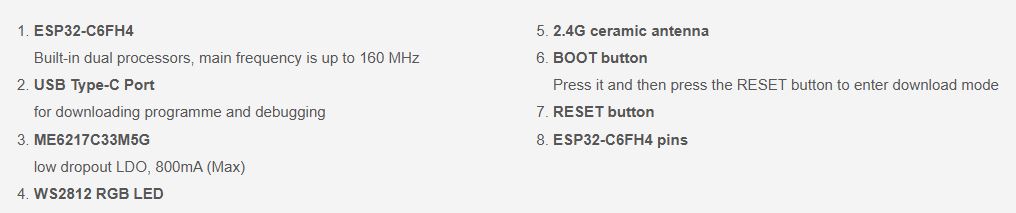

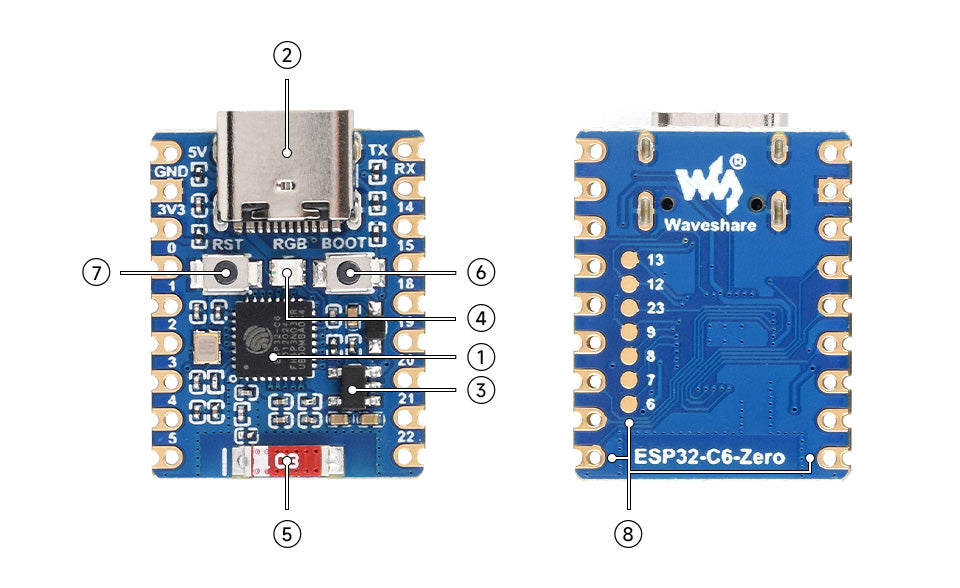

Block Diagram

  1. ESP32-C6FH8
    Built-in dual processors, main frequency is up to 160 MHz
  2. USB Type-C Port
    for downloading programme and debugging
  3. ME6217C33M5G
    low dropout LDO, 800mA (Max)
  4. WS2812 RGB LED
  5. 2.4G ceramic antenna
  6. BOOT button
    Press it and then press the RESET button to enter download mode
  7. RESET button
  8. ESP32-C6FH8 pins

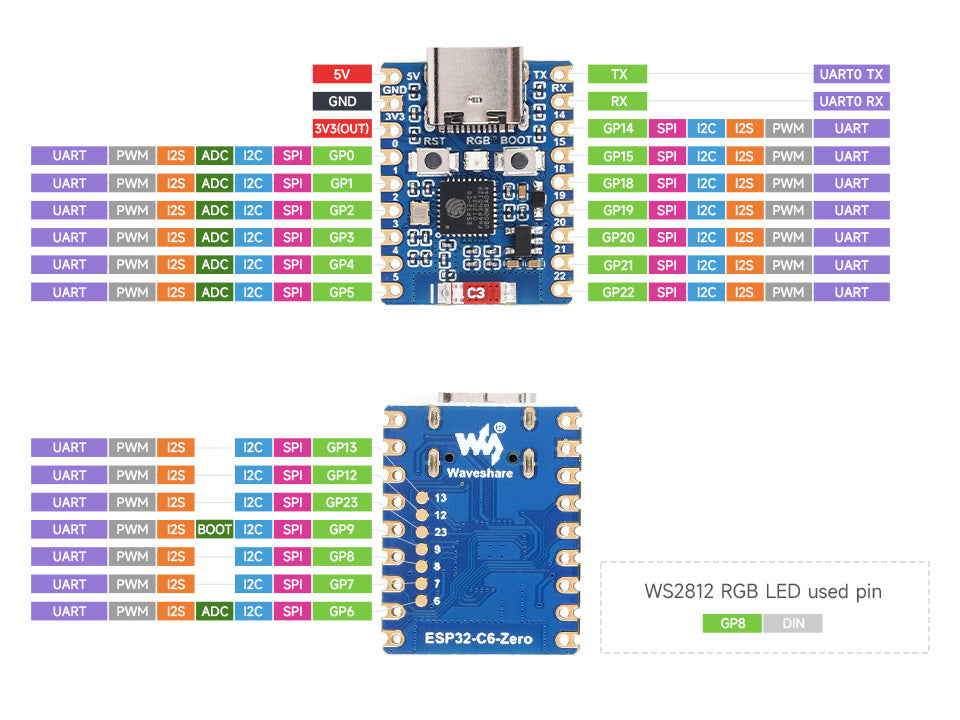

Pin List
