ESP32-H2-Zero Development Board

ESP32-H2-Zero Development Board

SKU:E01011-001

$10.00 AUD
$10.00 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $5 within AU, more details

• Shipping to Non-Australia, contact us

• Returns accepted for defective items, more details.
View full details

Description

The ESP32-H2-Zero is an entry-level RISC-V microcontroller development board integrating BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). It is compact in size and powerful, with multiple peripheral interfaces. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications.
Adopts ESP32-H2FH4S module, which is equipped with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash; Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, ADC and other interfaces, more convenient to use and expand a variety of peripheral modules.
Comes with online examples and tutorials for ESP-IDF development environment, so that you can easily and quickly get started and apply it to the product.

Features

  • Adopts ESP32-H2FH4S chip with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash
  • Integrated BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
  • Type-C connector, easier to use
  • Rich peripheral interfaces, offer strong compatibility and expandability
  • Castellated module allows soldering directly to carrier boards

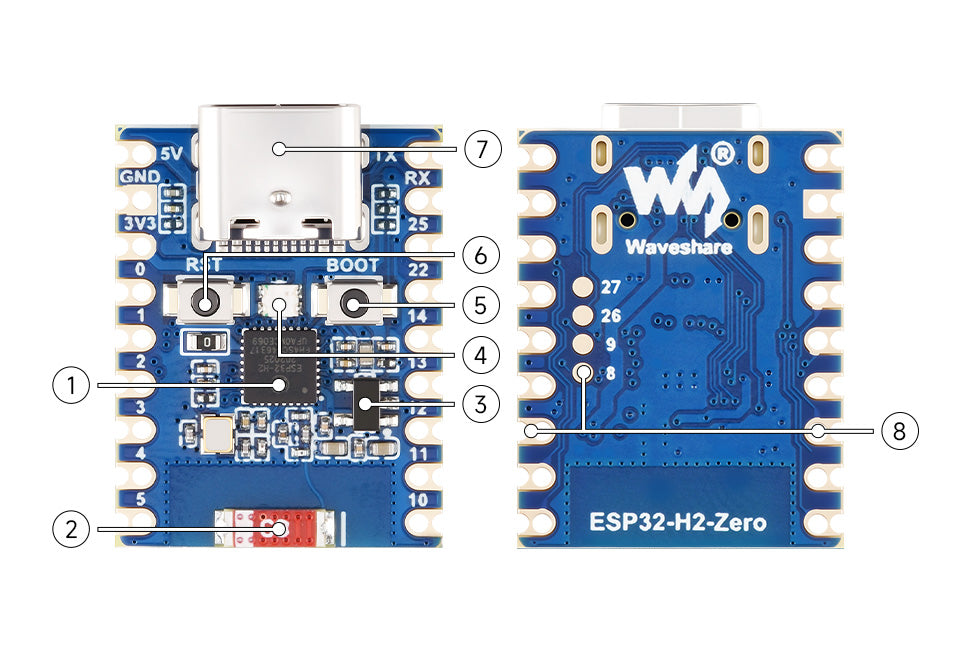

Block Diagram

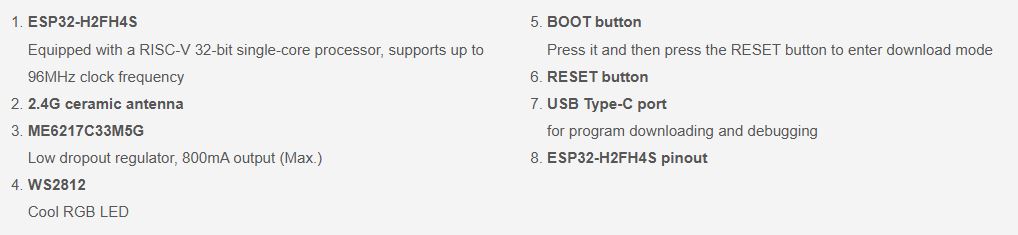

  1. ESP32-H2FH4S
    Equipped with a RISC-V 32-bit single-core processor, supports up to 96MHz clock frequency
  2. 2.4G ceramic antenna
  3. ME6217C33M5G
    Low dropout regulator, 800mA output (Max.)
  4. WS2812
    Cool RGB LED
  5. BOOT button
    Press it and then press the RESET button to enter download mode
  6. RESET button
  7. USB Type-C port
    for program downloading and debugging
  8. ESP32-H2FH4S pinout

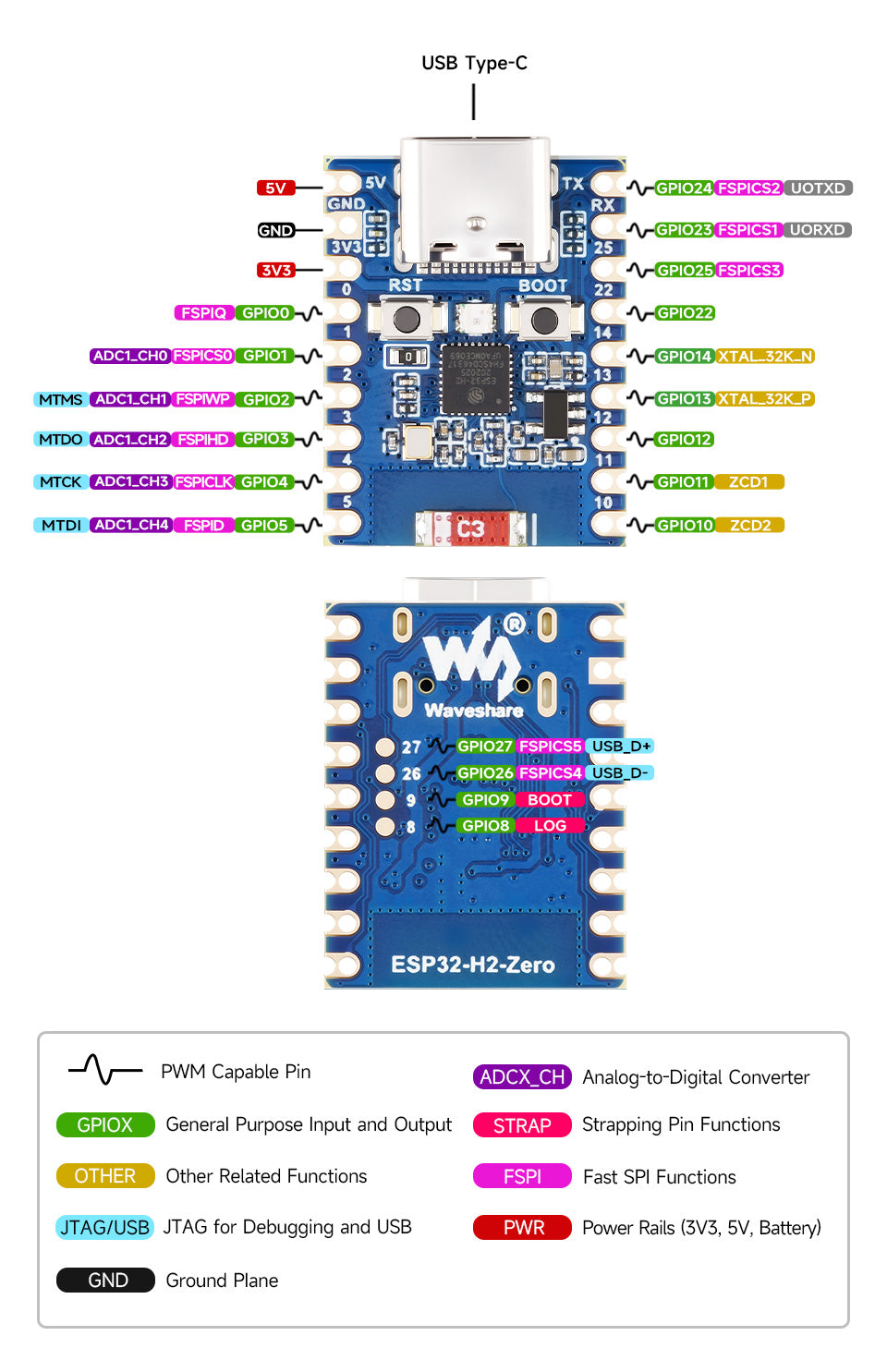

Pin List
