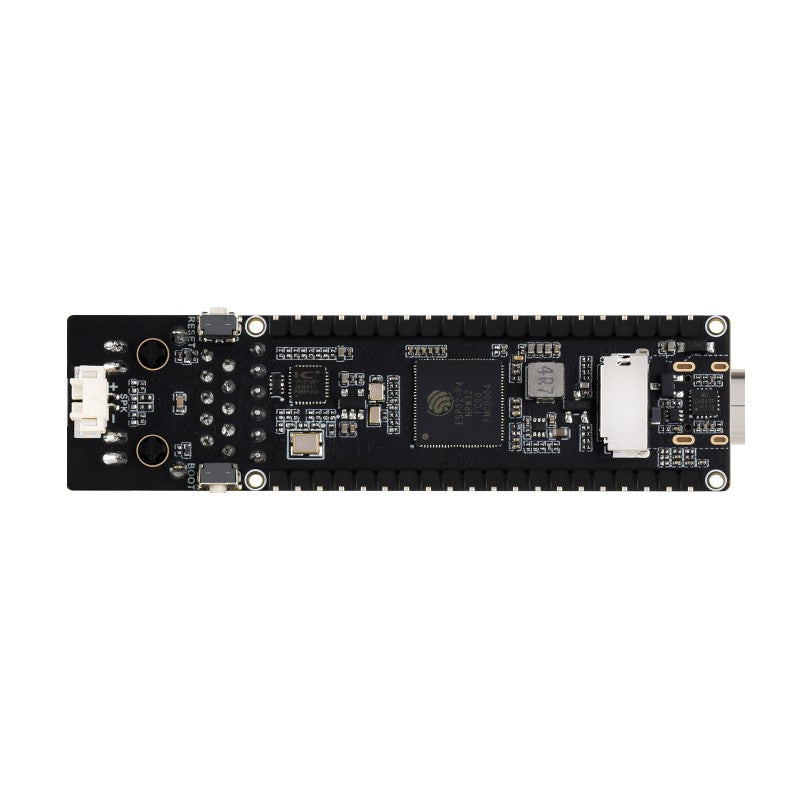

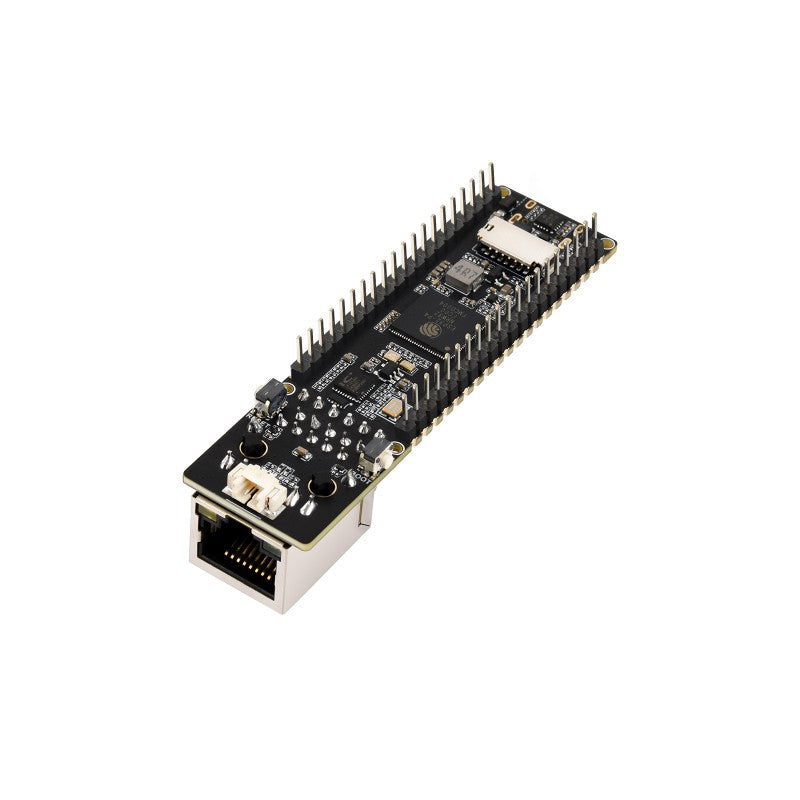

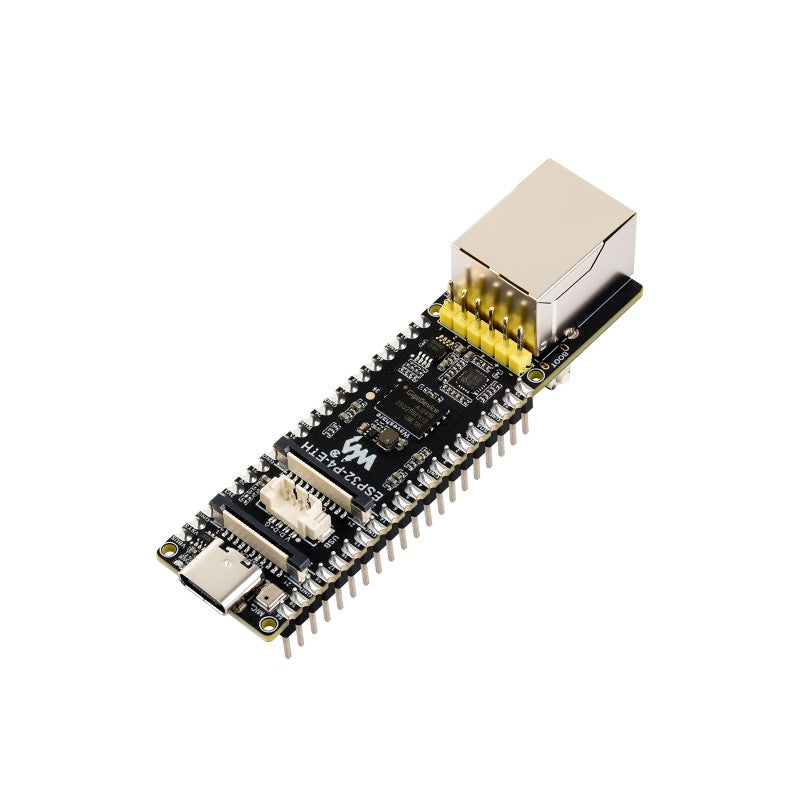

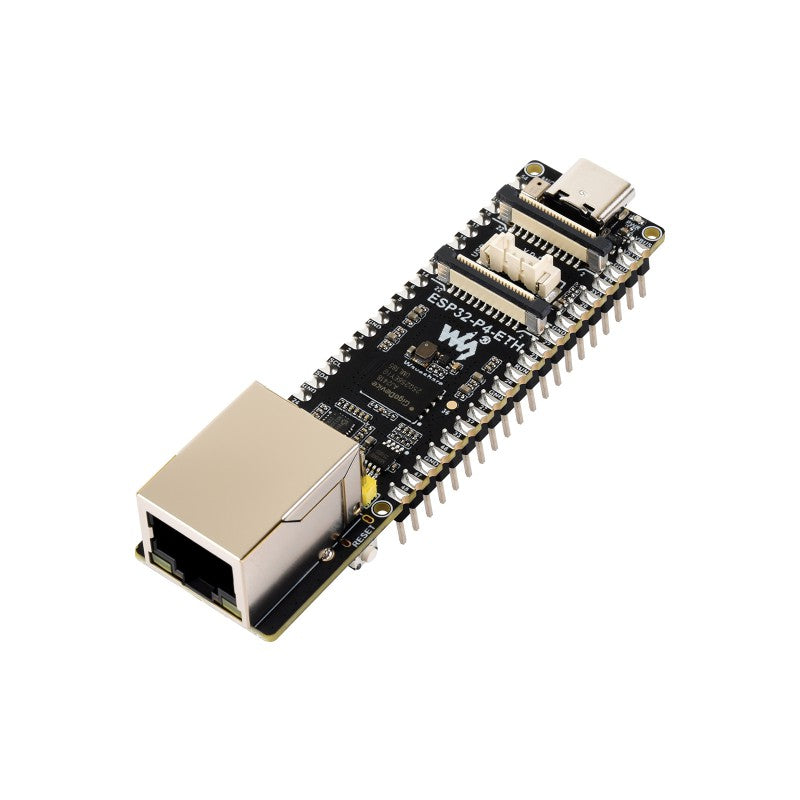

ESP32-P4-ETH Development Board

ESP32-P4-ETH Development Board

SKU:E01016-001

$26.31 AUD
$26.31 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $5 within AU, more details

• Shipping to Non-Australia, contact us

• Returns accepted for defective items, more details.
View full details

Description

This product is a multimedia development board based on ESP32-P4. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, Ethernet port and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs, enabling a wider range of application adaptability.
The ESP32-P4 adopts a dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-ETH meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

Features

  • High-performance MCU with RISC-V 32-bit dual-core and single-core processors
  • 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
  • Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG codecs, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP) and H.264 video encoder
  • 32MB PSRAM in the chip's package, onboard 32MB Nor Flash
  • Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header, etc.
  • Adapting 2*20 GPIO headers with 27 x remaining programmable GPIOs
  • Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

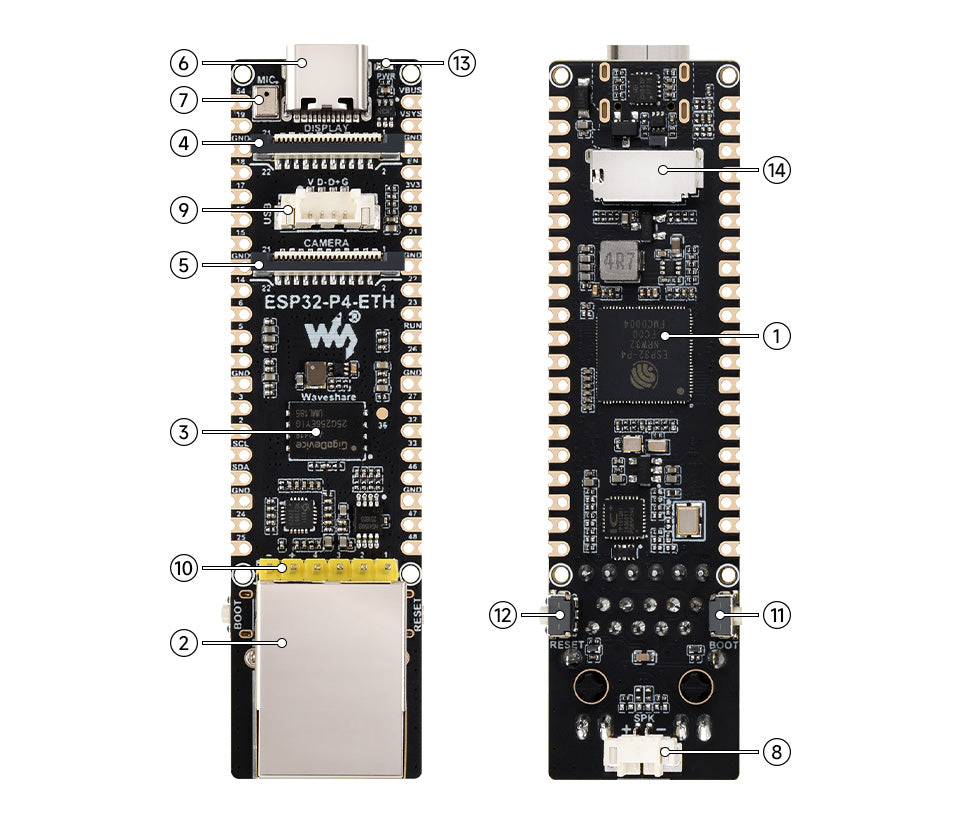

Block Diagram

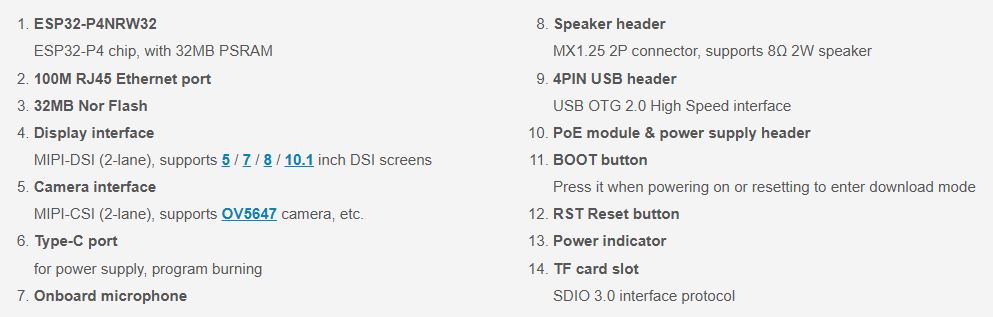

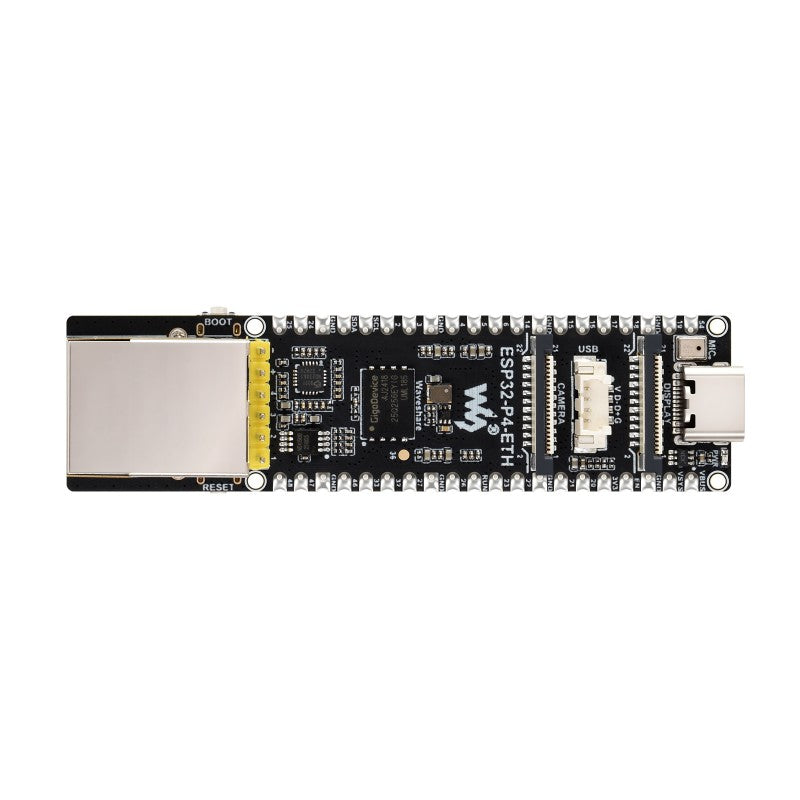

  1. ESP32-P4NRW32
    ESP32-P4 chip, with 32MB PSRAM
  2. 100M RJ45 Ethernet port
  3. 32MB Nor Flash
  4. Display interface
    MIPI-DSI (2-lane), supports 5/7/8/10.1 inch DSI screens
  5. Camera interface
    MIPI-CSI (2-lane), supports OV5647 camera, etc.
  6. Type-C port
    for power supply, program burning
  7. Onboard microphone
  8. Speaker header
    MX1.25 2P connector, supports 8Ω 2W speaker
  9. 4PIN USB header
    USB OTG 2.0 High Speed interface
  10. PoE module & power supply header
  11. BOOT button
    Press it when powering on or resetting to enter download mode
  12. RST Reset button
  13. Power indicator
  14. TF card slot
    SDIO 3.0 interface protocol

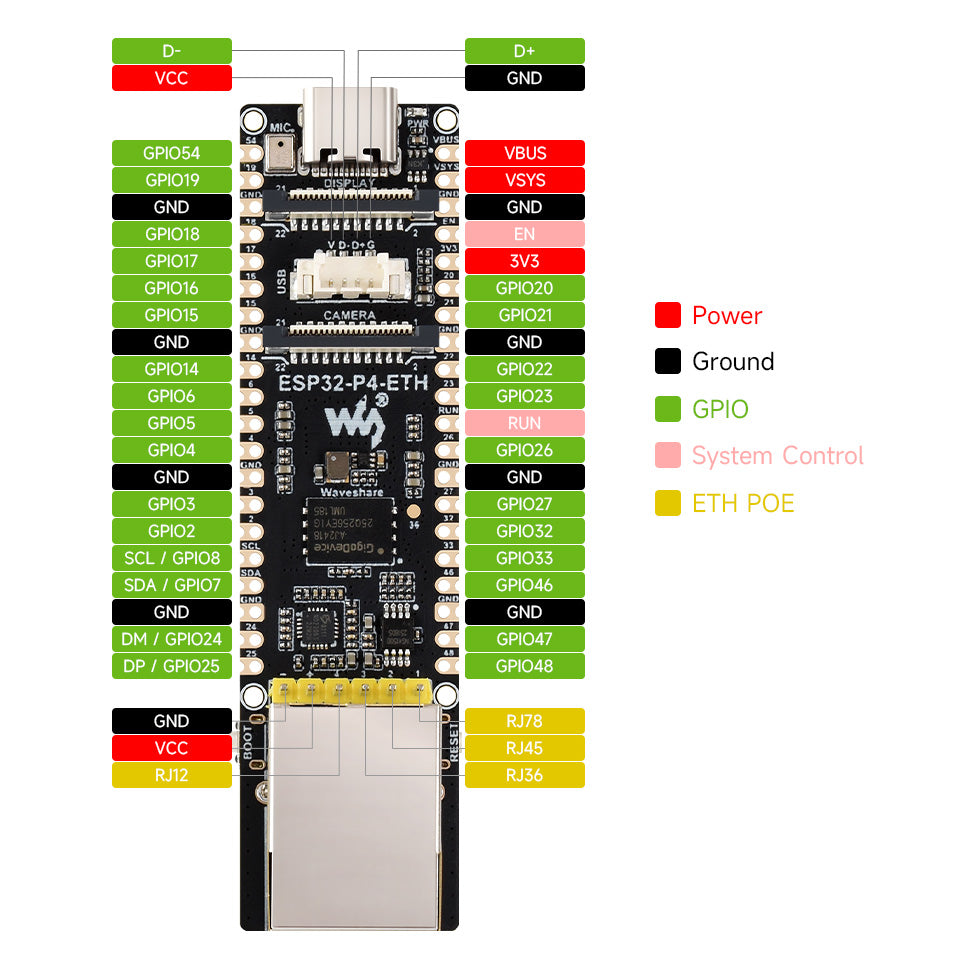

Pin List
