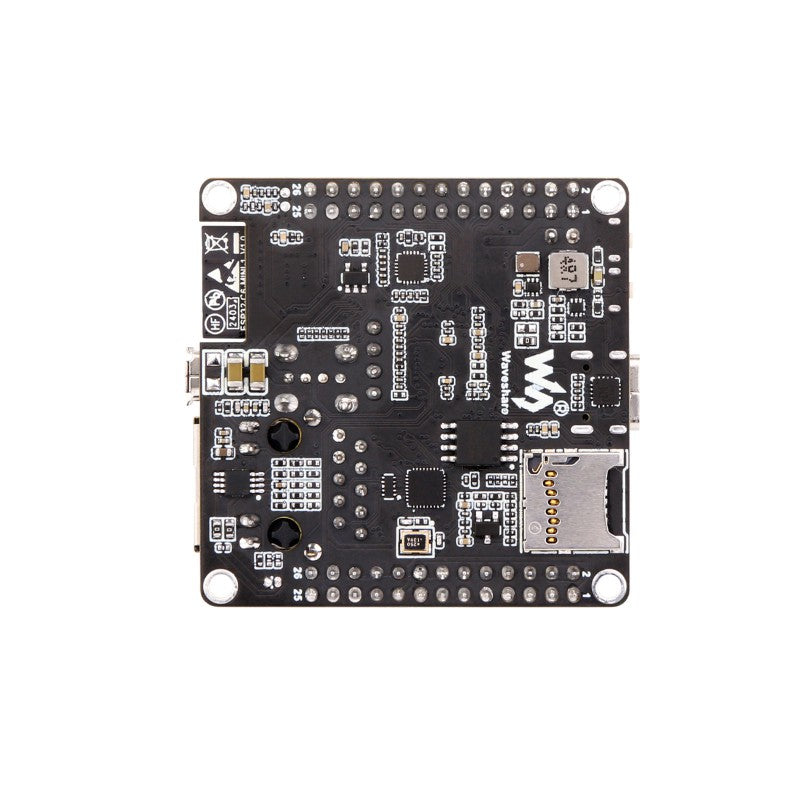

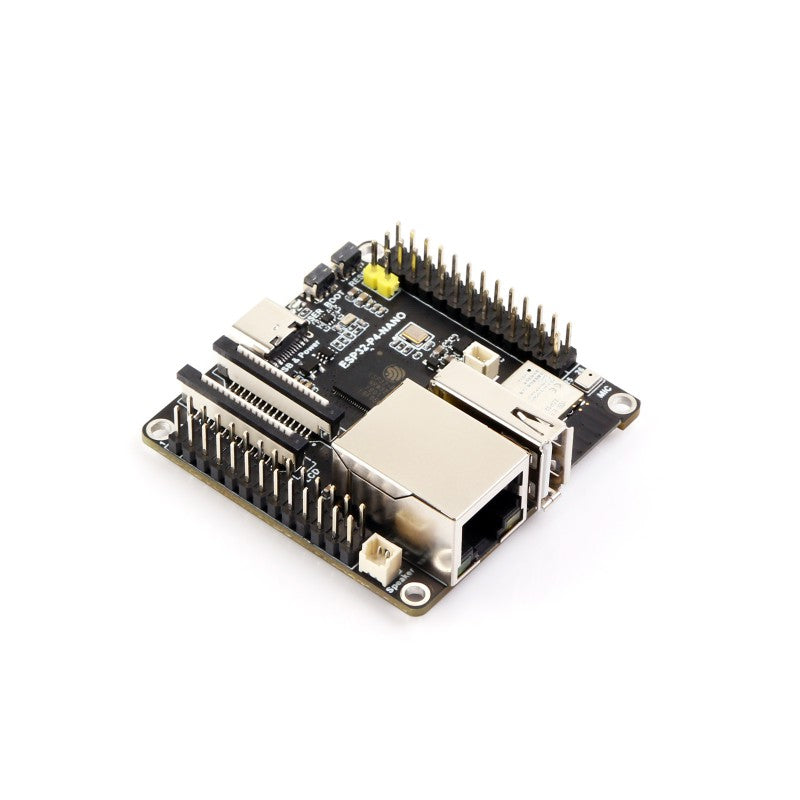

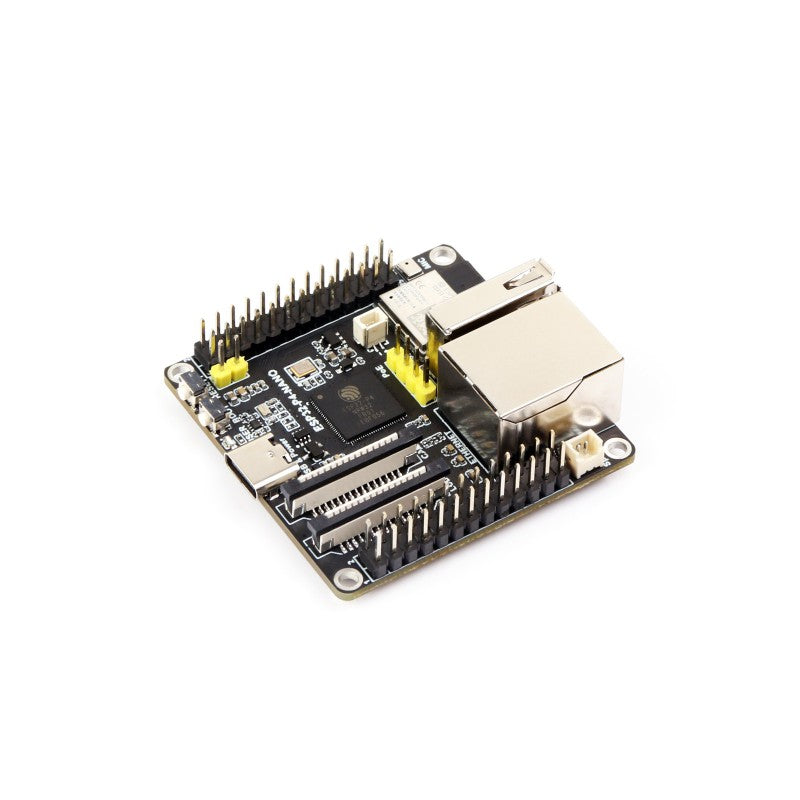

ESP32-P4-Nano Development Board

ESP32-P4-Nano Development Board

SKU:E01014-001

$32.98 AUD
$32.98 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $5 within AU, more details

• Shipping to Non-Australia, contact us

• Returns accepted for defective items, more details.
View full details

Description

This product is a high-performance development board based on the ESP32-P4 chip with RISC-V dual-core and single-core processors, and features rich Human-Machine Interfaces, including MIPI-CSI (with integrated Image Signal Processor) and MIPI-DSI interface. It supports a comprehensive range of commonly used peripherals including SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. Additionally, it offers support for USB OTG 2.0 HS, Ethernet, and SDIO Host 3.0, facilitating high-speed connectivity.

The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-NANO meets the advanced requirements of Human-Machine Interfaces, efficient edge computing, and increased IO-connectivity.

Features

  • High-performance MCU with RISC-V 32-bit dual-core and single-core processors
  • 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
  • Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
  • 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
  • Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc.
  • Adtaping 2*2*13 GPIO headers with 28 x programmable GPIOs
  • Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Block Diagram

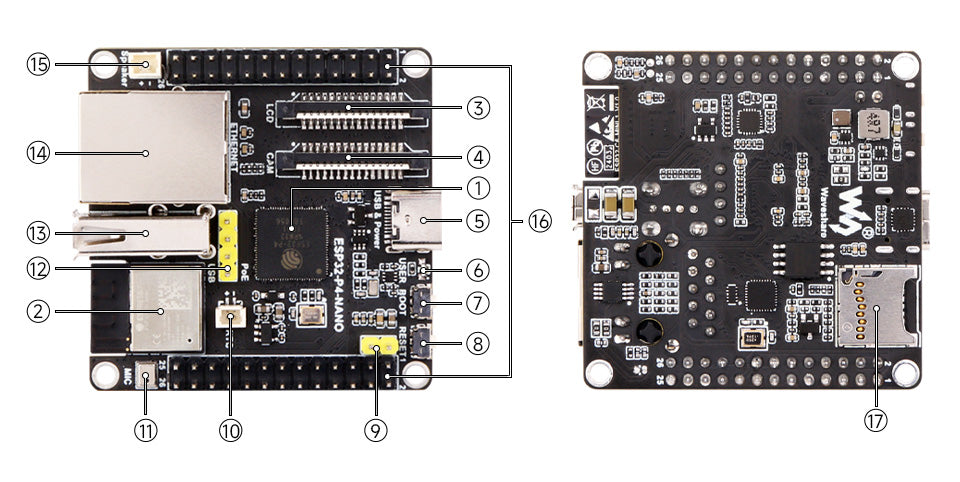

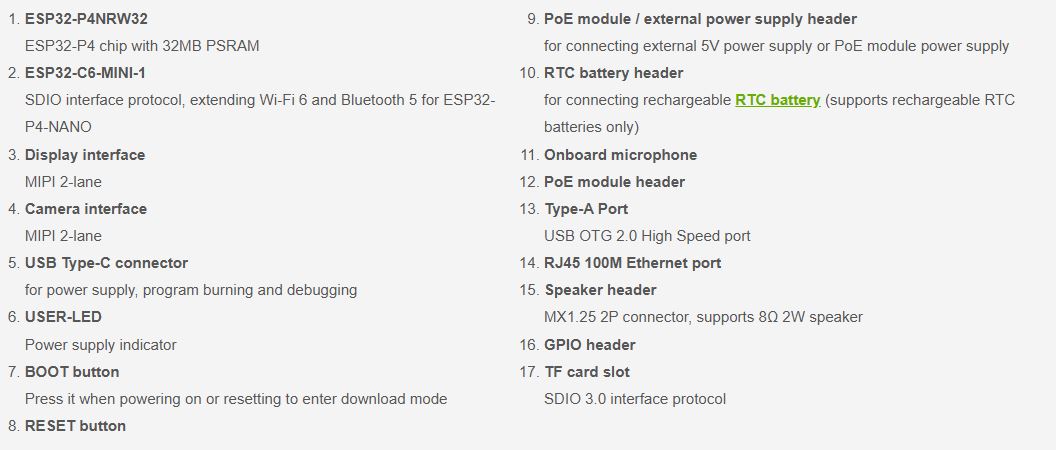

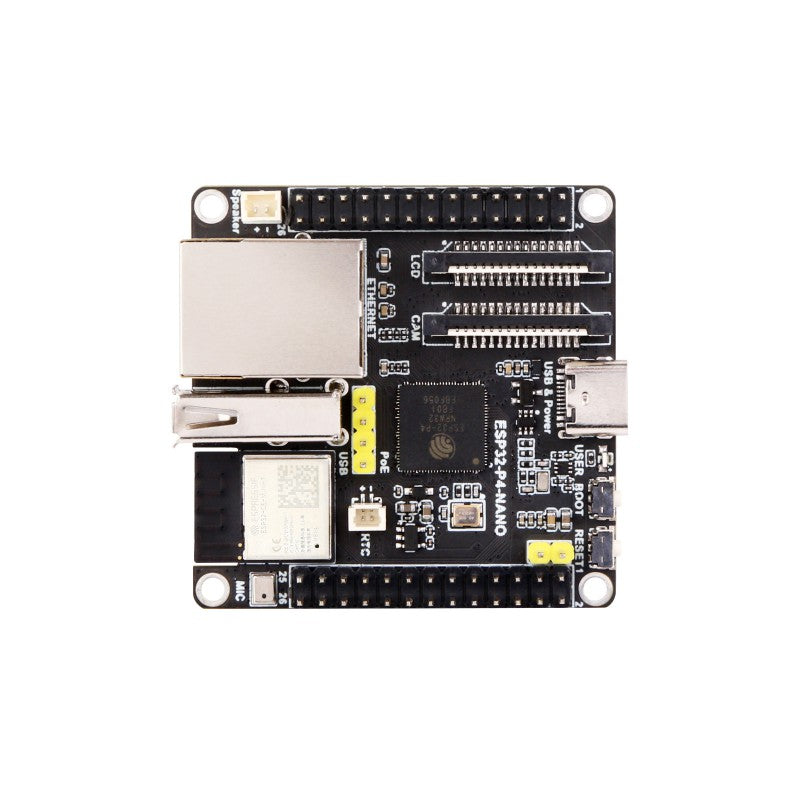

  1. ESP32-P4NRW32
    ESP32-P4 chip with 32MB PSRAM
  2. ESP32-C6-MINI-1
    SDIO interface protocol, extending Wi-Fi 6 and Bluetooth 5 for ESP32-P4-NANO
  3. Display interface
    MIPI 2-lane
  4. Camera interface
    MIPI 2-lane
  5. USB Type-C connector
    for power supply, program burning and debugging
  6. USER-LED
    Power supply indicator
  7. BOOT button
    Press it when powering on or resetting to enter download mode
  8. RESET button
  9. PoE module / external power supply header
    for connecting external 5V power supply or PoE module power supply
  10. RTC battery header
    for connecting rechargeable RTC battery (supports rechargeable RTC batteries only)
  11. Onboard microphone
  12. PoE module header
  13. Type-A Port
    USB OTG 2.0 High Speed port
  14. RJ45 100M Ethernet port
  15. Speaker header
    MX1.25 2P connector, supports 8Ω 2W speaker
  16. GPIO header
  17. TF card slot
    SDIO 3.0 interface protocol

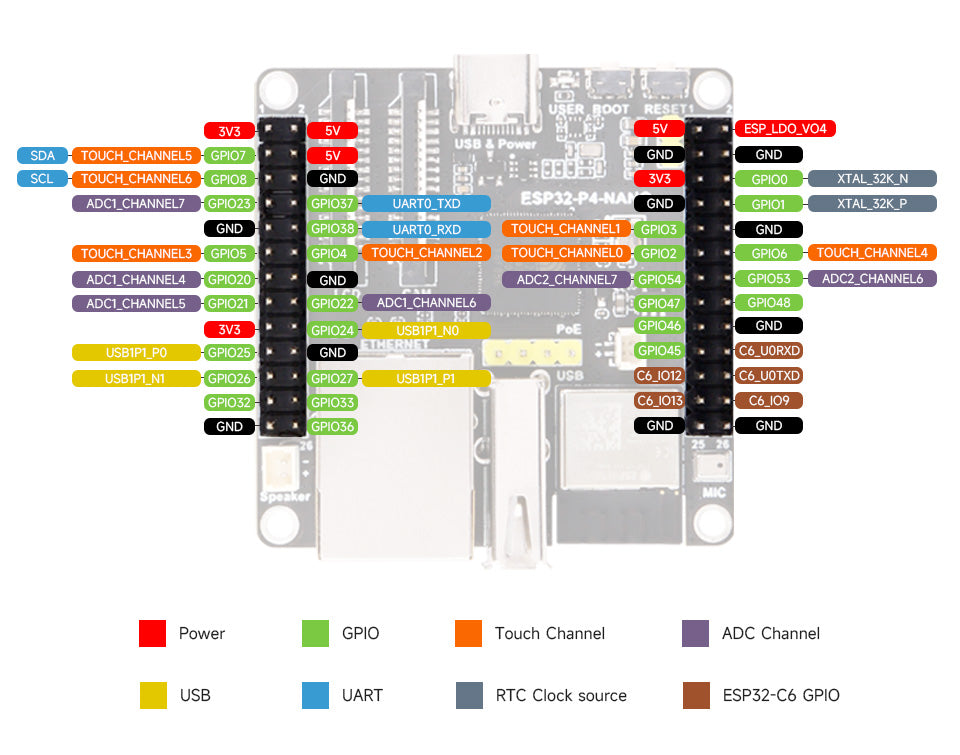

Pin List

Documentation

Software

Demo

Youtube

This section features third - party project resources. We merely provide links and bear no responsibility for content updates or maintenance. Thank you for your understanding.


That Project-StickiNote: A Sticky Notes App for ESP32-P4 & MIPI DSI!

That Project- ESP32-P4 Grid Board: BLE Text UI on a 10.1" Display (LVGL + Flutter App)
