ESP32-S3 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI Interface, Supports Wi-Fi and Bluetooth 5

ESP32-S3 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI Interface, Supports Wi-Fi and Bluetooth 5

SKU:E54004-001

$41.81 AUD
$41.81 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $8 within AU, more details

• Returns accepted for defective items, more details.
View full details

Description

The ESP32-S3-Touch-AMOLED-1.32 is a compact 1.32inch AMOLED capacitive touch display development board designed by Waveshare. Onboard power management module, low power audio codec circuit, and MIC, adapting 12PIN expansion I/O interface, Lithium Batt. header, and speaker header, suitable for applications such as AI voice agents.

Features

  • Equipped with ESP32-S3 high-performance Xtensa 32-bit LX7 dual-core processor, operating at up to 240 MHz.
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an onboard antenna.
  • Built-in 512KB SRAM and 384KB ROM, stacked with 8MB PSRAM and 8MB Flash.

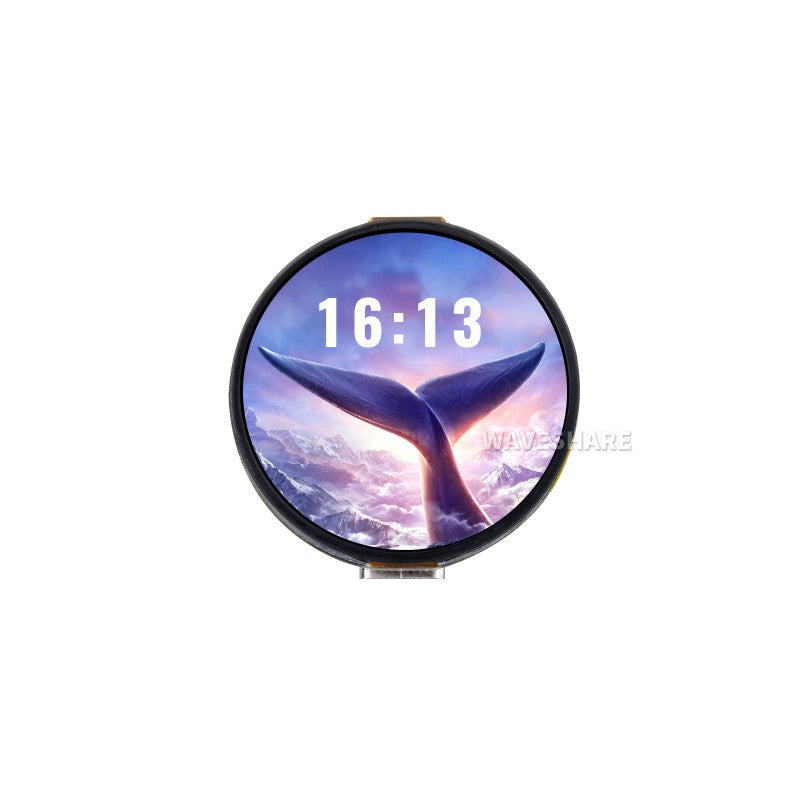

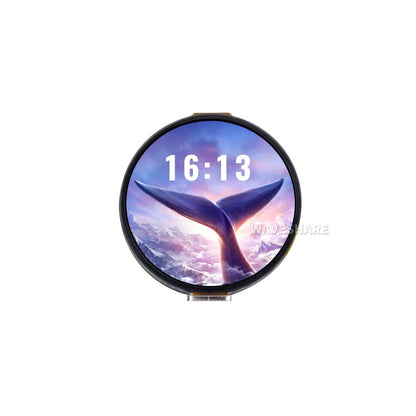

  • Features a 1.32inch capacitive touch HD AMOLED display with a resolution of 466 × 466, supporting 16.7 million colors for clear and vibrant image display.
  • Built-in CO5300 driver chip and CST820 capacitive touch controller chip, communicating via QSPI and I2C interfaces respectively, minimizing the use of I/O pin resources
  • Onboard two side buttons, PWR and BOOT, with customizable functions for convenient custom button operation development
  • Onboard 3.7V MX1.25 lithium battery recharge/discharge header.
  • Integrates an ES8311 low-power audio codec chip, supporting high-quality audio input and output for various applications like voice interaction and audio playback.
  • Exposes a 12PIN SH1.0 expansion interface for DIY functional extensions.
  • Utilizes an AMOLED screen, offering higher contrast, wider viewing angles, richer colors, faster response times, and superior visual effects, along with advantages like a slim design, low power consumption, and flexibility.

Onboard Resources

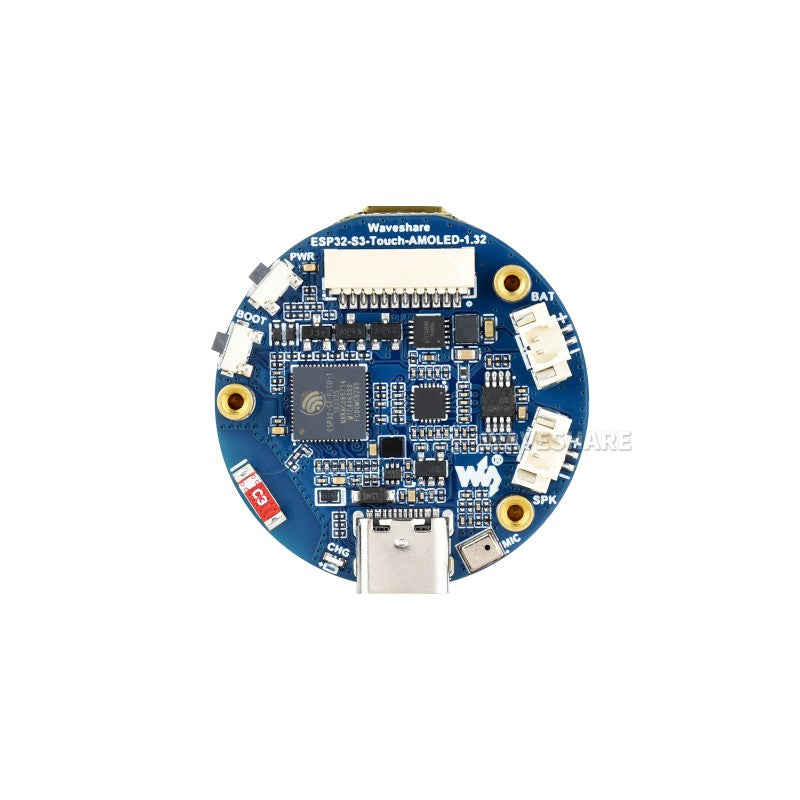

  1. ESP32-S3-PICO-1-N8R8 Wi-Fi and Bluetooth SoC, operating at 240MHz, stacked with 8MB PSRAM and 8MB Flash.
  2. PWR Power Button Can be used with programs to control power when operating on a battery.
  3. BOOT Button Hold the BOOT button and power on the device again to enter download mode.
  4. MX1.25 2PIN Lithium Battery Header For connecting a lithium battery, enabling battery-powered operation.
  5. MX1.25 2PIN Speaker Header Audio signal output, for connecting an external speaker.
  6. SH1.0 12PIN Interface For connecting external devices and debugging, allowing flexible peripheral configuration.
  7. Type-C Interface Used for program flashing and log printing.
  8. Microphone For audio capture.
  9. Onboard Ceramic Antenna Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE).
  10. ES8311 High-performance, low-power audio codec chip.
