ESP32-S3 1.85inch Round LCD Development Board, 360×360, Supports Wi-Fi & Bluetooth BLE 5, AI Speech, Smart Speaker Box, ESP32 With Display

Description

ESP32-S3-Touch-LCD-1.85C is a microcontroller development board with 2.4GHz Wi-Fi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.85inch LCD display which can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, it is suitable for the quick development of the HMI and other ESP32-S3 applications.

Features

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
• Onboard 1.85inch LCD display, 360×360 resolution, 262K color
• Supports capacitive touch controlled via I2C interface, with interrupt support
• Adapting UART, I2C and some IO interfaces
• Onboard audio codec chip, dual microphones, RTC sensor, TF card slot and battery recharge management module, etc.
• Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Onboard Resource

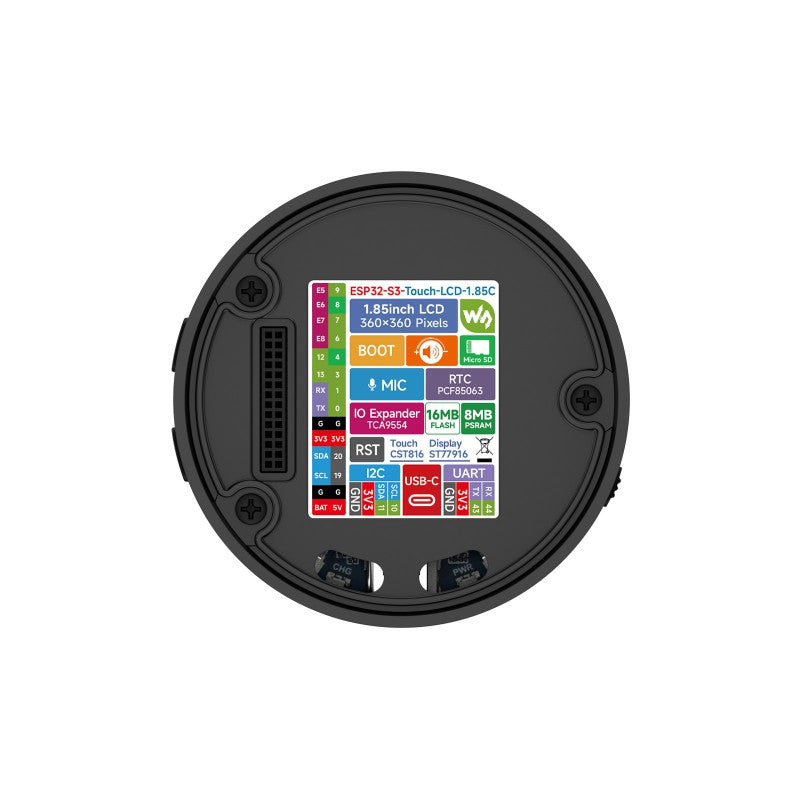

1. ESP32-S3R8
   Dual-core processor, up to 240MHz operating frequency
2. 16MB Flash
3. TCA9554PWR
   GPIO expander chip
4. RTC chip
   PCF85063 RTC chip
5. Amplifier chip
6. PCM5101 audio decoder
7. Battery recharge manager
8. MP1605GTF-Z
   Power module, supports up to 3.3V 2A output
9. Volume adjustment knob
10. TF card slot
11. IPEX1 connector
    Switching to use the external antenna via resoldering an onboard resistor
12. Onboard ceramic antenna
13. Battery power supply ON/OFF
14. Speaker header
15. Microphone
16. MX1.25 battery header
    MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging
17. UART header
18. Power indicator
19. USB Type-C port
20. Charge indicator
    Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
21. I2C header
    connecting with internal chip, only supports the I2C peripherals and cannot be mapped to other functions
22. RTC battery header
    for connecting rechargeable RTC battery
23. 1.27mm pin header
    Reserved 28PIN header, adapting GPIO and other function pins
24. RESET button
25. BOOT button
