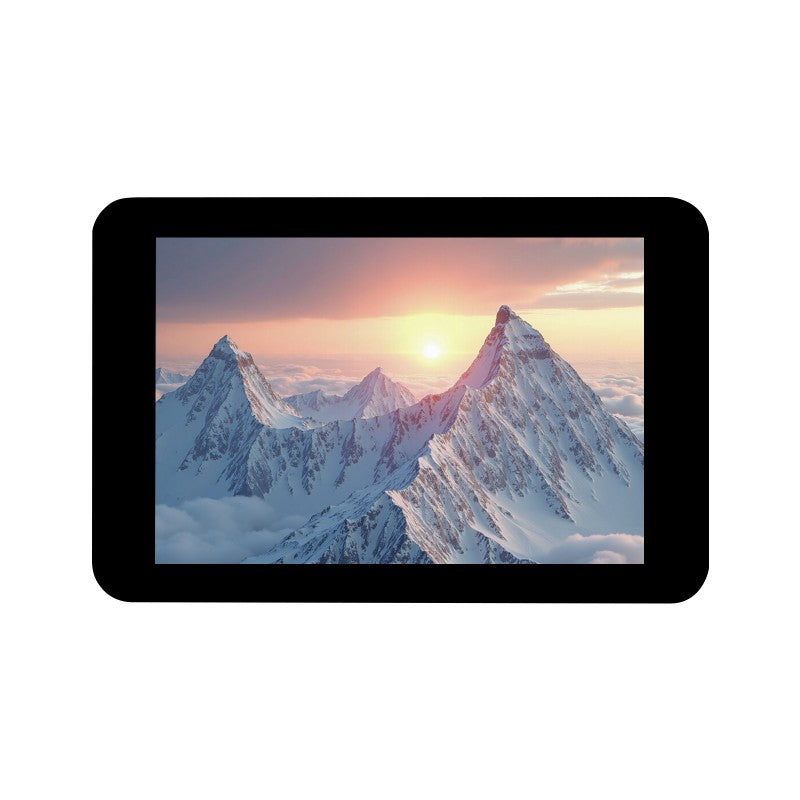

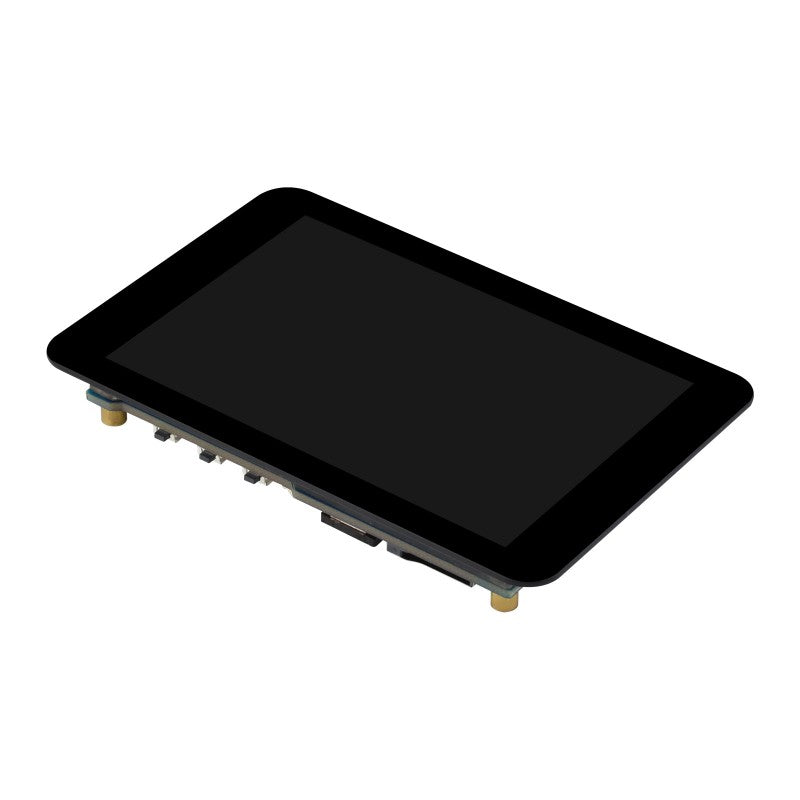

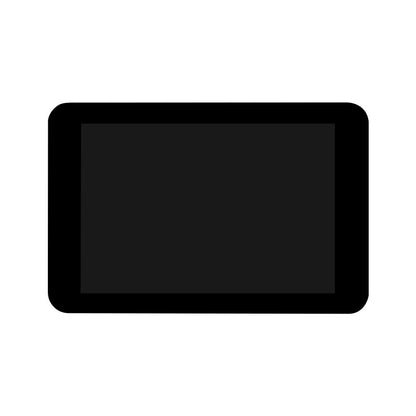

ESP32-S3 3.5inch Capacitive Touch Display Development Board, 320×480 Pixels, IPS Panel, 262K Color, Onboard Camera Interface, Supports Wi-Fi and Bluetooth 5, ESP32 With Display

ESP32-S3 3.5inch Capacitive Touch Display Development Board, 320×480 Pixels, IPS Panel, 262K Color, Onboard Camera Interface, Supports Wi-Fi and Bluetooth 5, ESP32 With Display

E50045-001

$49.30 AUD
$49.30 AUD
Sale Sold out
Shipping calculated at checkout.

• Free shipping in AU if oder ≥ $50

• For more shipping policy, more details

• Shipping to Non-Australia, contact us

• Accept 30-day returns, see details.

In stock
View full details

Product Overview

Description

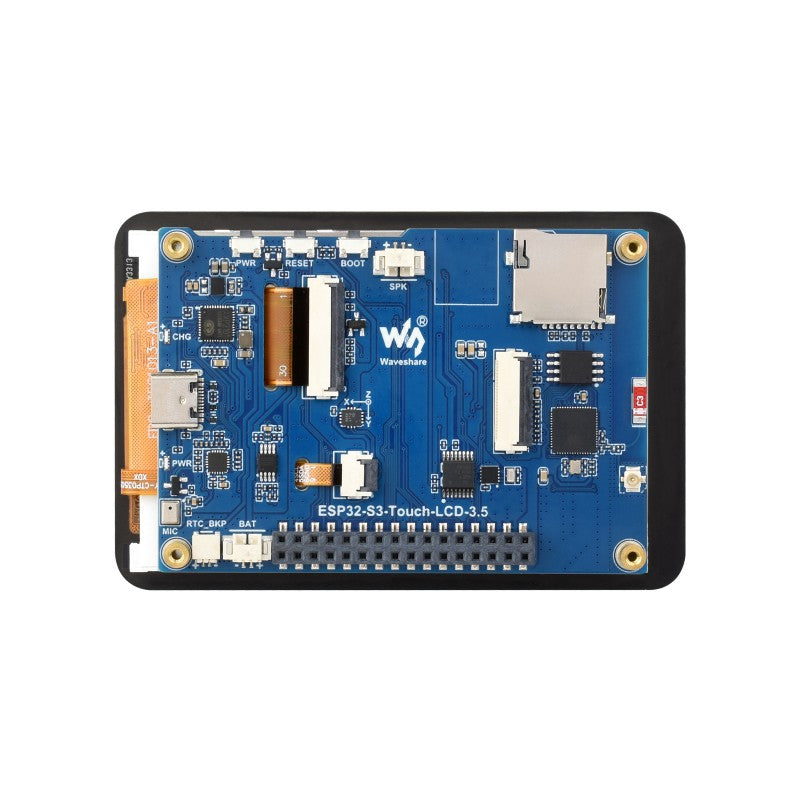

ESP32-S3-Touch-LCD-3.5 is a high-performance, highly integrated MCU board. Onboard 3.5inch capacitive touch IPS display, power management IC, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, low power audio codec, and so on, which makes it easy for you to develop and integrate into the products quickly.

Features

  • Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
  • Type-C connector, improving device compatibility, easier to use
  • Onboard 3.5inch capacitive touch display for clear color picture display, 320 × 480 resolution, 262K color
  • Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
  • Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery header for connecting a backup battery, ensuring RTC function during the replacement of the main battery
  • Onboard PWR and BOOT programmable buttons for easy custom function development
  • Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
  • Adapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debugging
  • Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
  • Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640
  • Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.
