ESP32-S3 4inch Display Development Board, 480×480, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 With Display

ESP32-S3 4inch Display Development Board, 480×480, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 With Display

SKU:E54013-001

$59.04 AUD
$59.04 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $8 within AU, more details

• Returns accepted for defective items, more details.
View full details

Description

ESP32-S3-LCD-4 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates 16MB Flash and 8MB PSRAM. Onboard 4inch 480 × 480 LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces to quickly develop the HMI of ESP32-S3, suitable for scenarios such as smart control panel, home gateway, intelligent interactive panel, industrial control, and smart lighting control.

  • Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

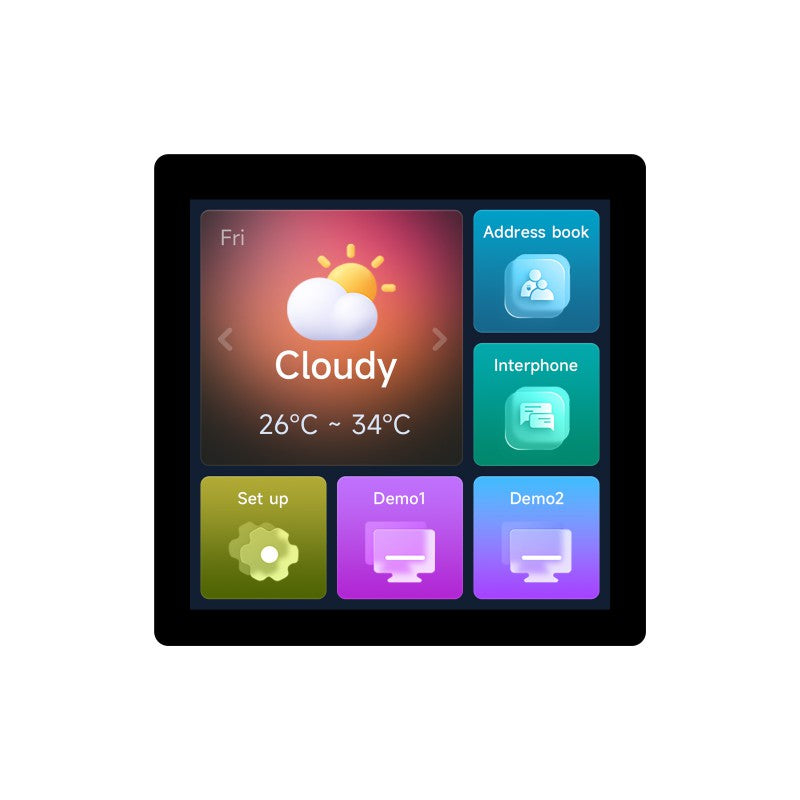

  • Onboard 4inch LCD display, 480×480 resolution, 65K color
  • Supports capacitive touch control via I2C interface, 5-point touch with interrupt support (for touch version only)
  • Onboard CAN, RS485, I2C interface and TF card slot, and integrates full-speed USB port
  • Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios

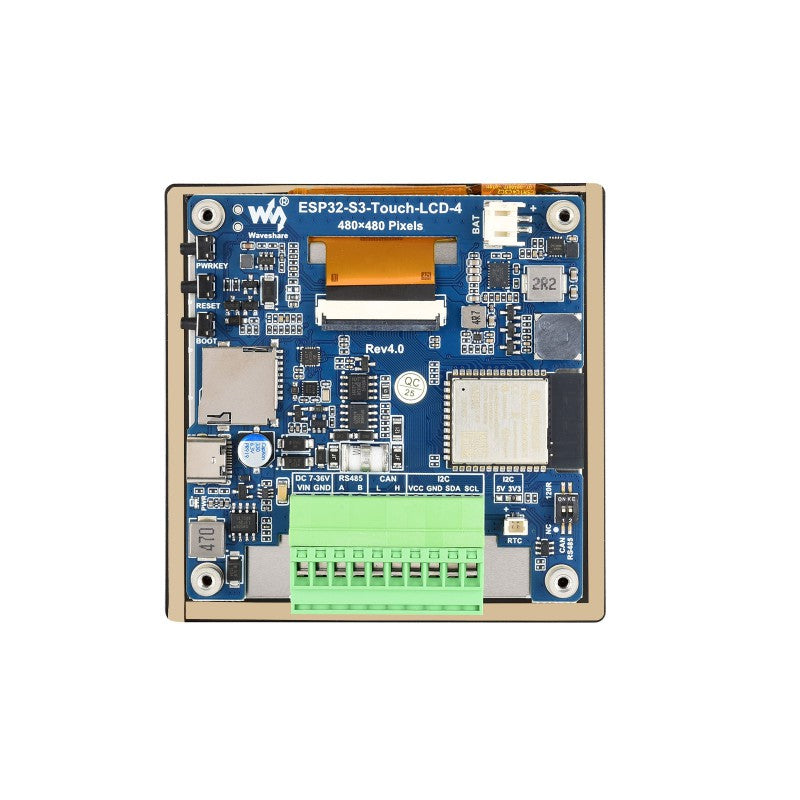

Onboard Resource

  1. ESP32-S3N16R8
    The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash
  2. Batt charging and discharging chip
    supports Batt charging and discharging
  3. TJA1051T/3/1J
    CAN transceiver
  4. RS485 chip
    RS485 transceiver
  5. PCF85063
    RTC chip
  6. CH32
    IO expansion chip
  7. XL1509-ADJE1 power chip
    Supports 7~36V DC power input
  8. 3.5mm 10pin screw terminal slot
    for installing 3.5mm 10pin screw terminal block
  9. RTC battery header
    for connecting rechargeable RTC battery (only supports rechargeable RTC battery)
  10. USB Type-C port
    ESP32-S3 USB interface, for power supply, burning program and printing logs
  11. TF card slot
  12. PH2.0 Lithium battery header
    PH2.0 2P connector, for 3.7V Lithium battery, supports charging and discharging
  13. Buzzer
    sound-producing peripheral
  14. RS485 and CAN terminal resistor selection
    close by defaul
  15. Power supply indicator
  16. BOOT button
  17. RESET button
  18. PWRKEY button
    Power ON/OFF button when using battery for power supply
