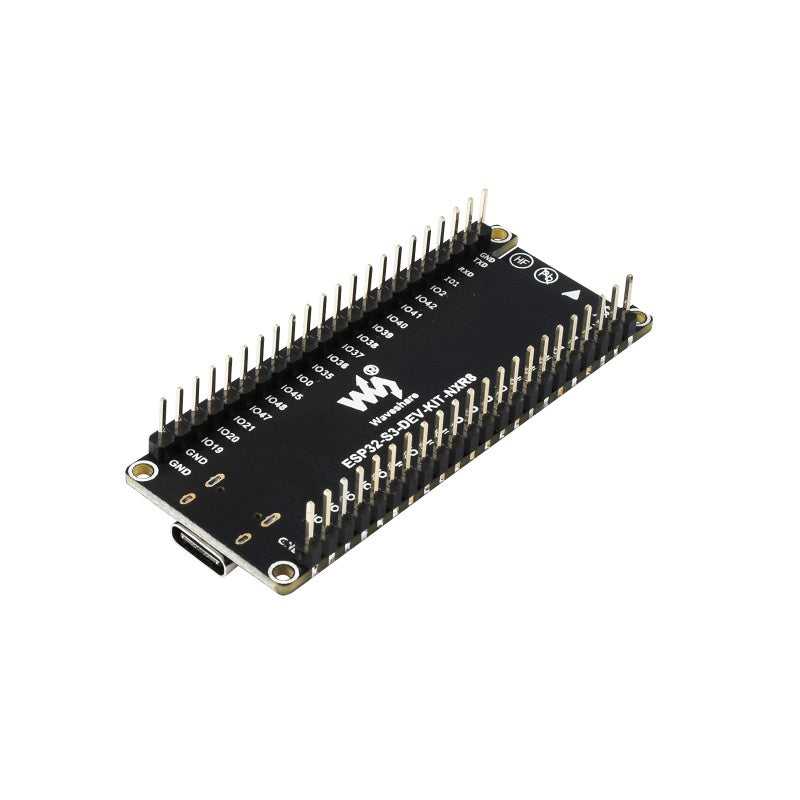

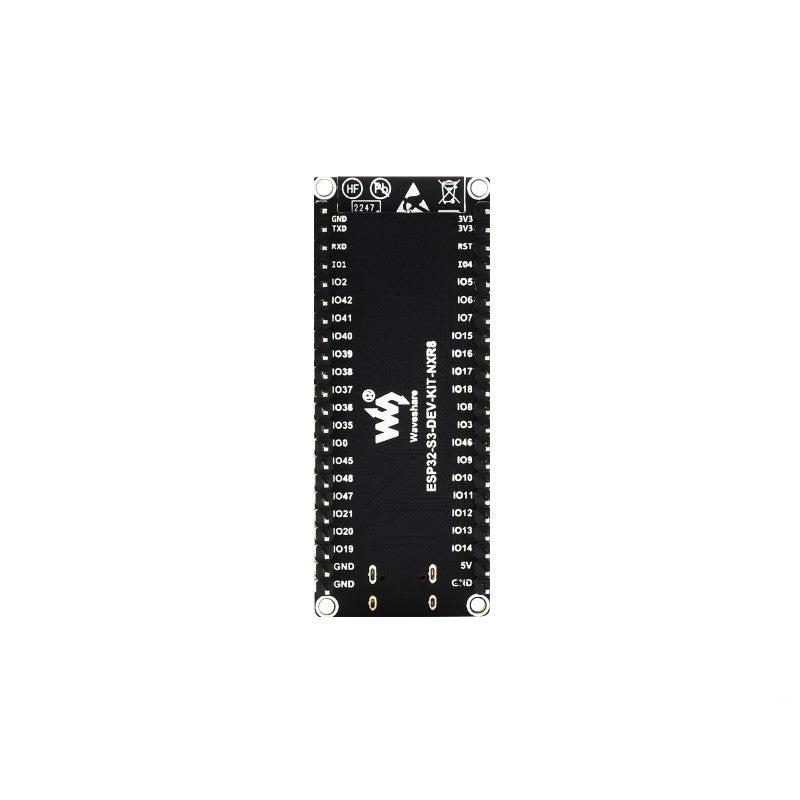

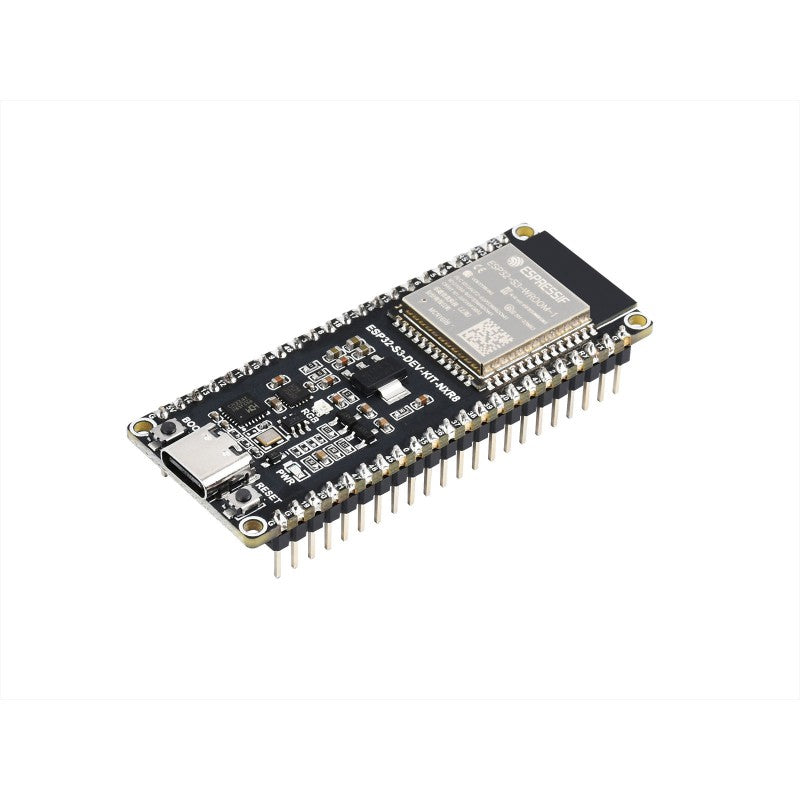

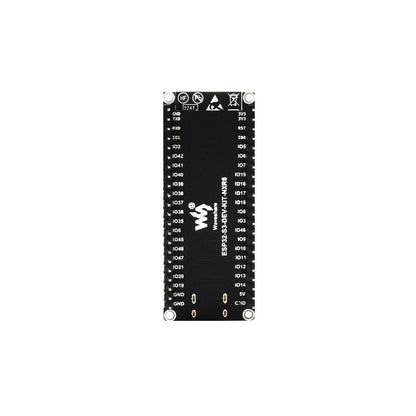

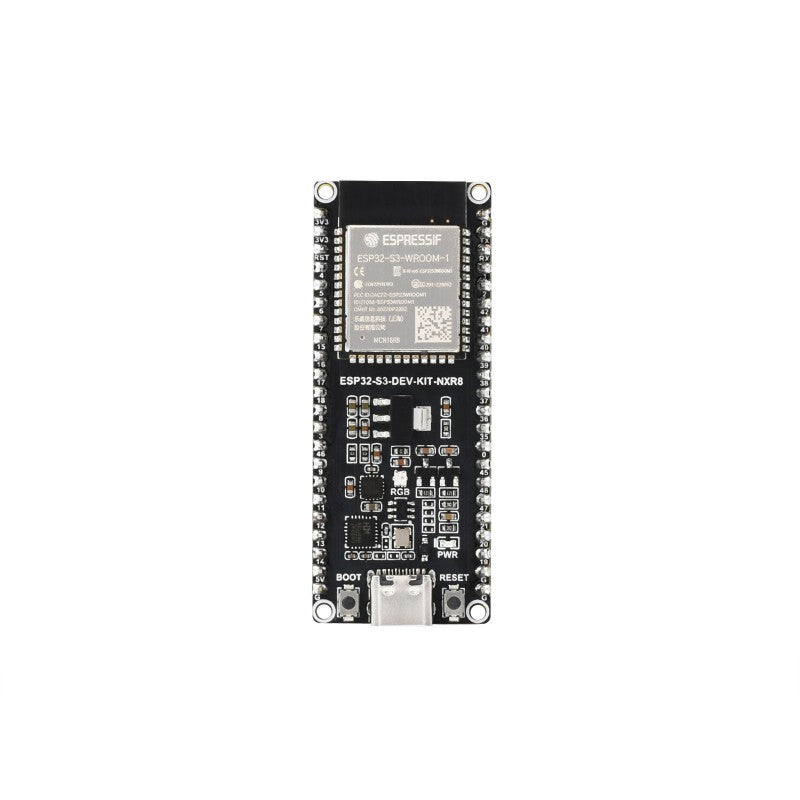

ESP32-S3-Dev Development Board

This product is a compact-size microcontroller development board with multiple digital interfaces.

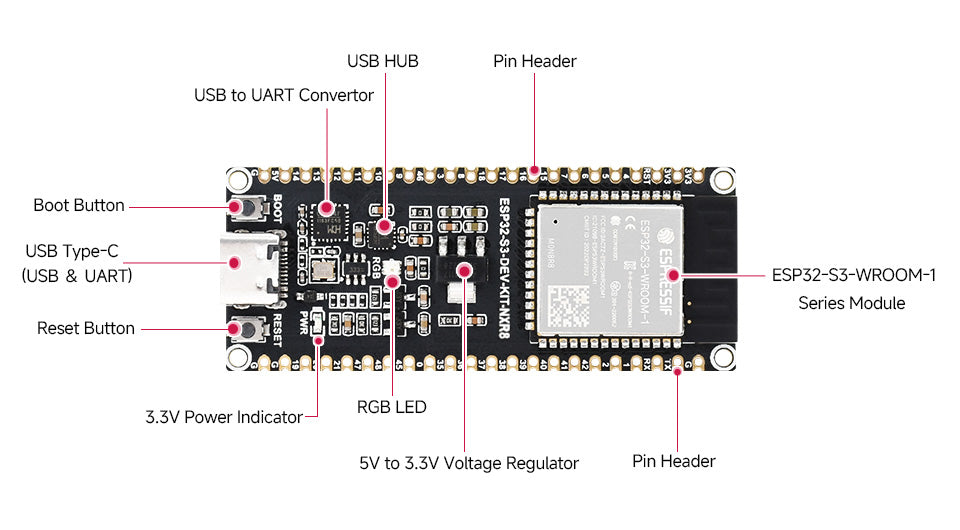

Adopts ESP32-S3-WROOM-1 series module, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, built-in 512 KB SRAM (TCM) and 8MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port. Compatible with the pinout of ESP32-S3-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.

You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.

Key features include:

• Adopts ESP32-S3-WROOM-1 series module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
• Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 16MB Flash memory
• Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
• Type-C connector, easier to use

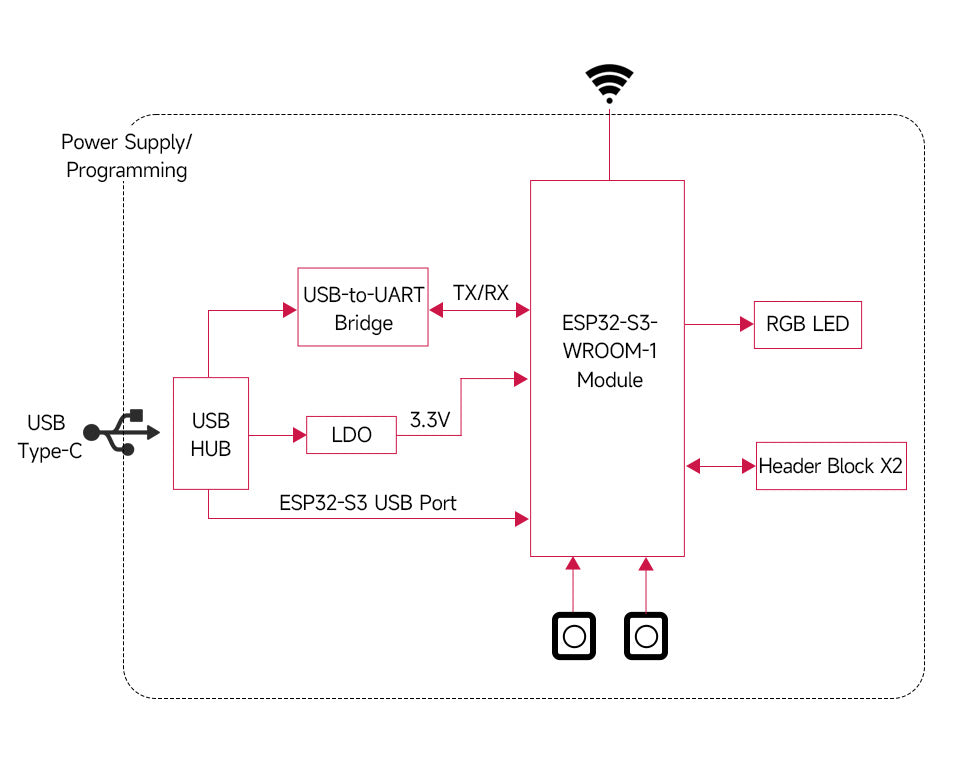

• Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface

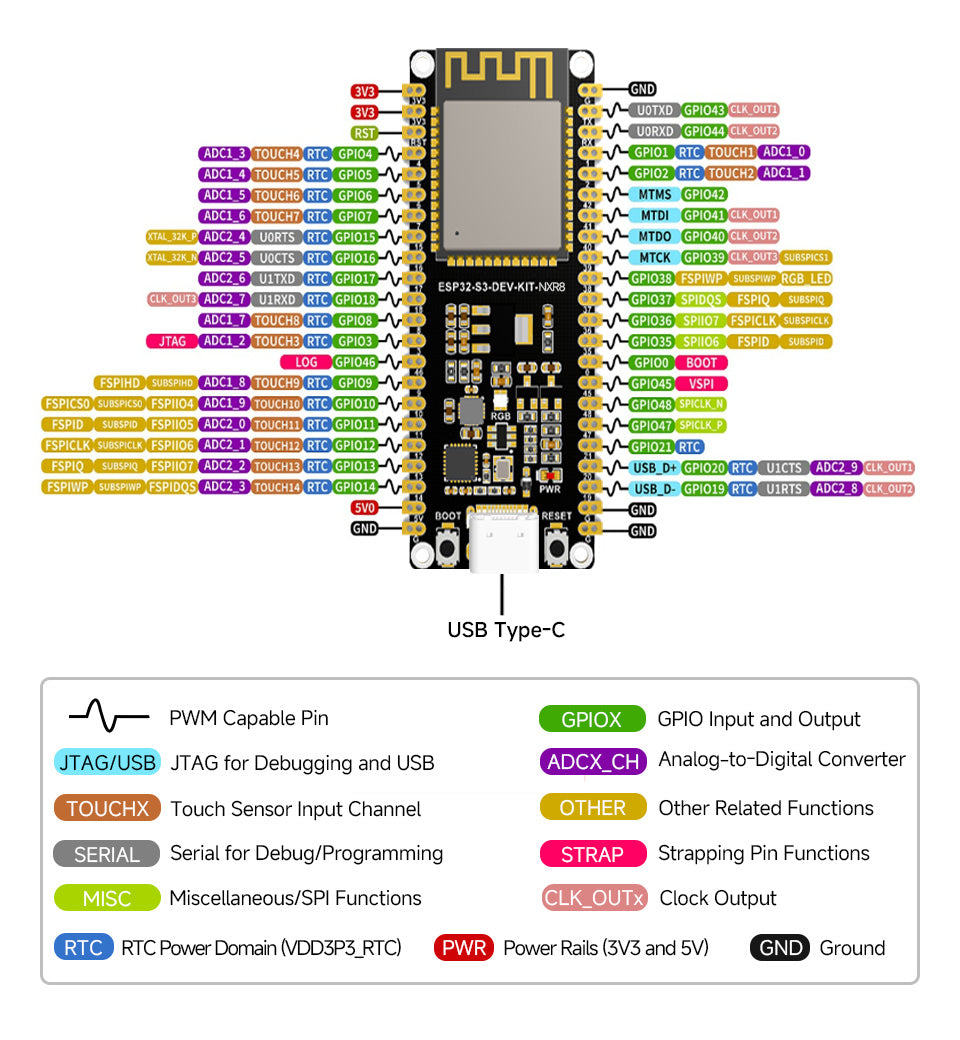

• Rich peripheral interfaces, compatible with the pinout of ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability
• Castellated module allows soldering directly to carrier boards
• Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
