Description

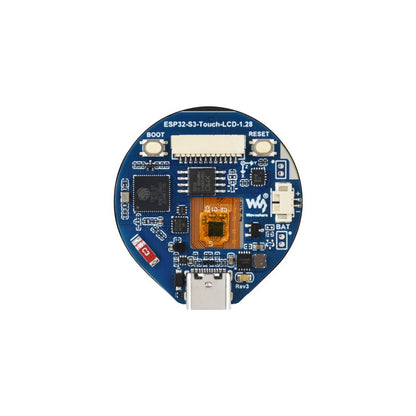

ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.
Features
- Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (BLE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
- Type-C connector, keeps it up to date, easier to use

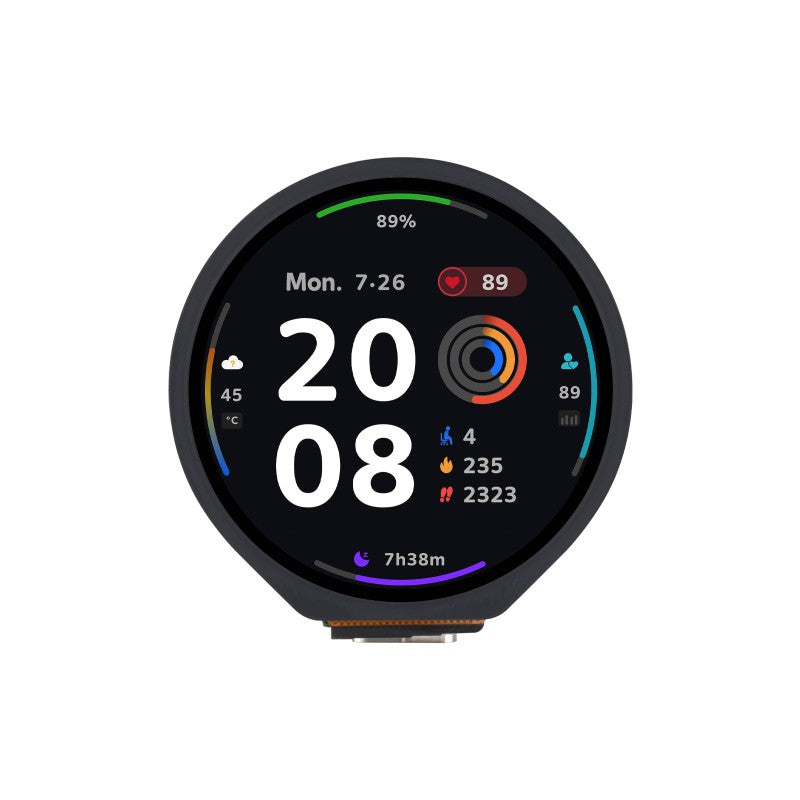

- Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
- Onboard 3.7V MX1.25 lithium battery recharge/discharge header
- Adapting 6 × GPIO pins via SH1.0 connector
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions

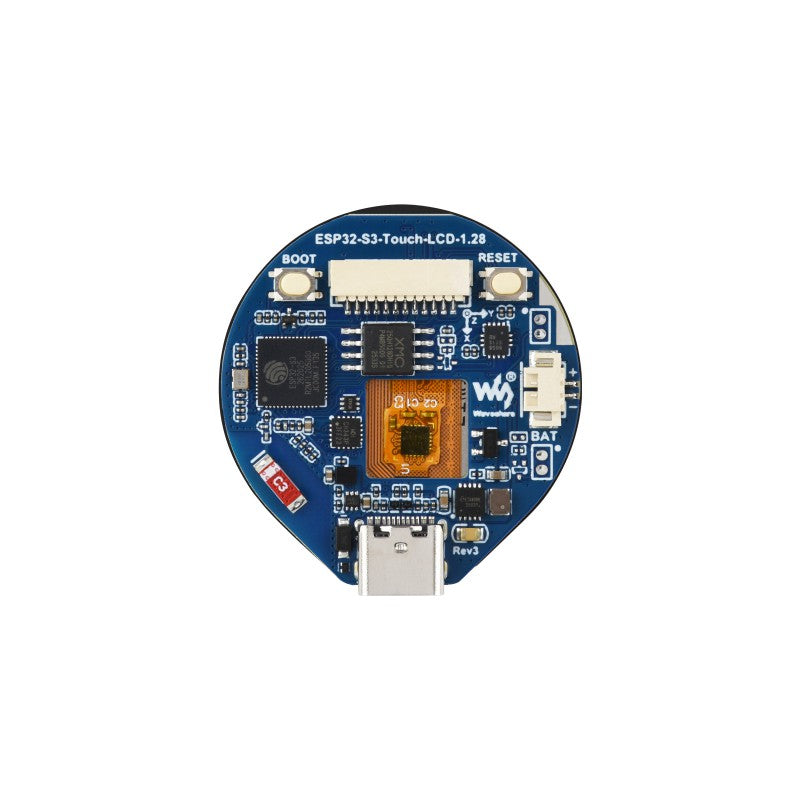

Onboard Resources
-
ESP32-S3R2 / ESP32-S3RH2
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM -
W25Q128JVSIQ
16MB NOR-Flash -
CH343P
USB to UART chip -
MP1605
power module, supports up to 3.3V 2A output -
ETA6096
high-efficiency Lithium battery recharge manager -
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer. -
MX1.25 battery header
MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging -
USB Type-C connector
supports USB1.1 hosts and slave devices - RESET button
-
BOOT button
Press it before resetting to enter download mode
