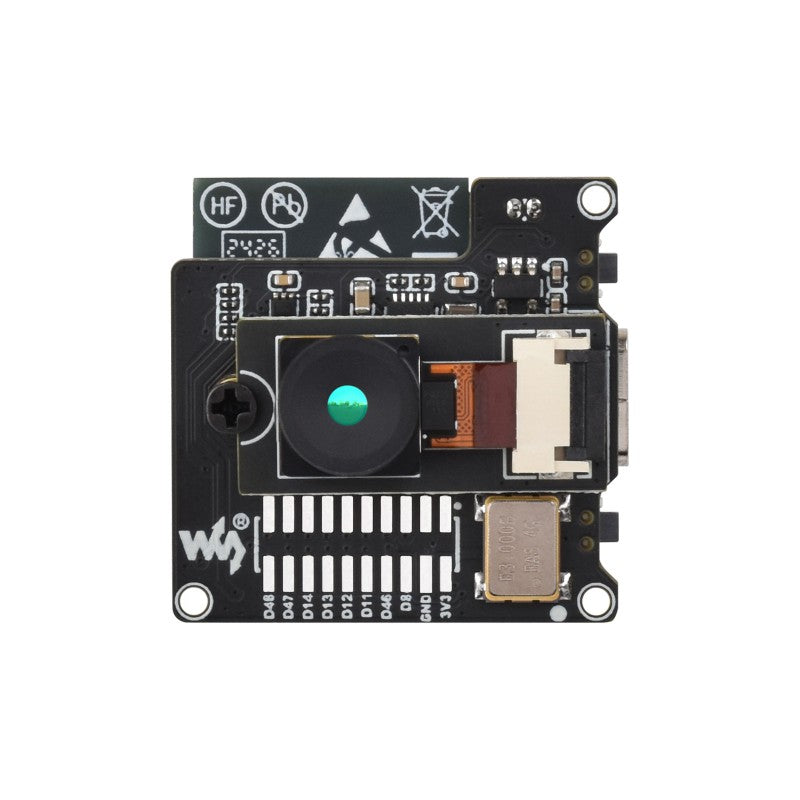

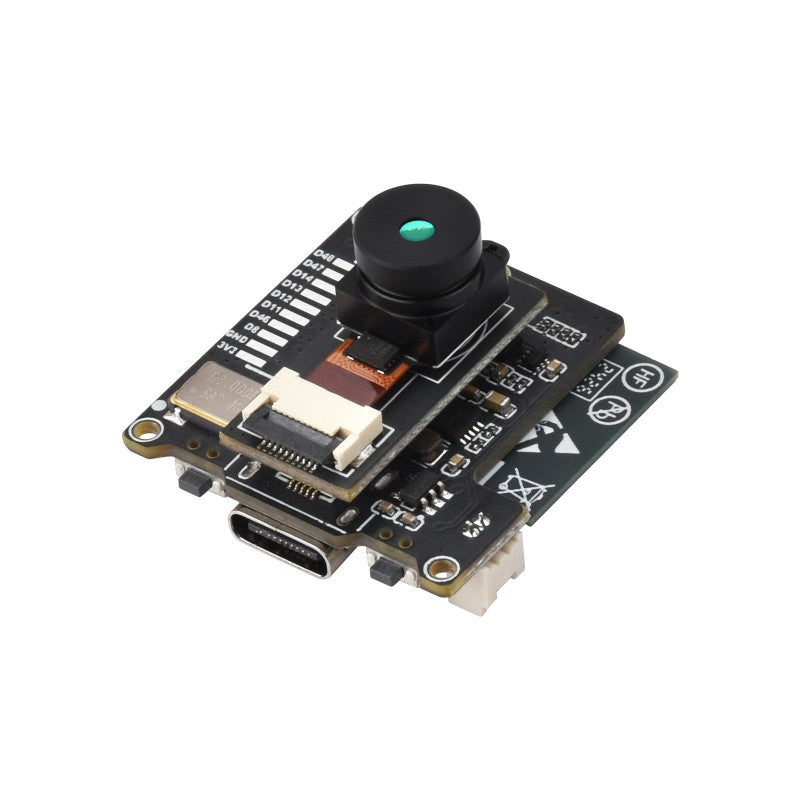

This product is a wireless IR thermal imaging camera based on the ESP32-S3-WROOM-1 chip, adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. It integrates a recharge and discharge circuit, with onboard Lithium battery header for flexible power supply.
Features

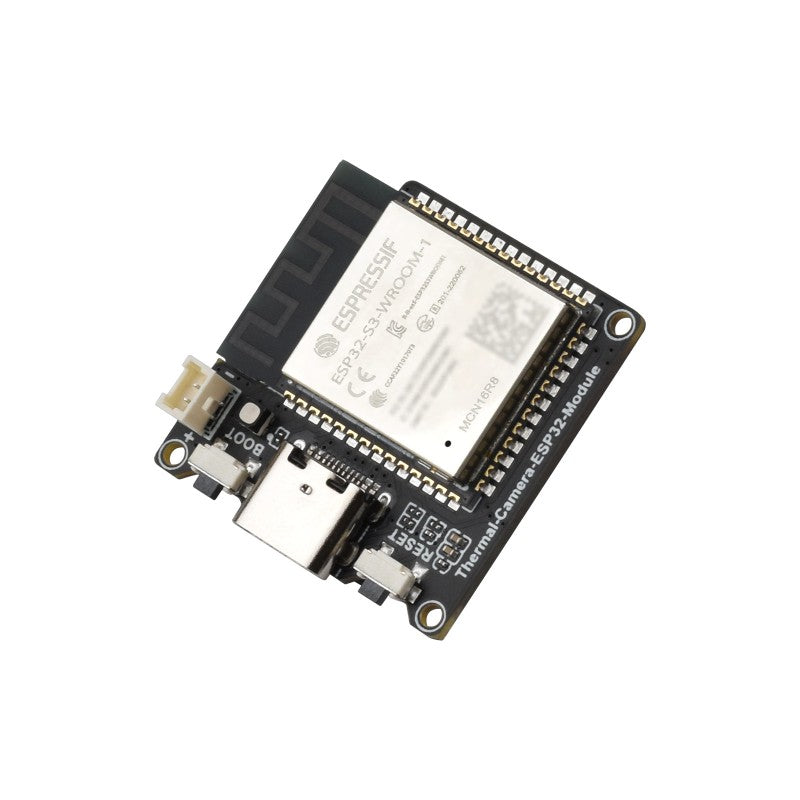

Equipped with ESP32-S3-WROOM-1 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency, offering powerful data processing capabilities

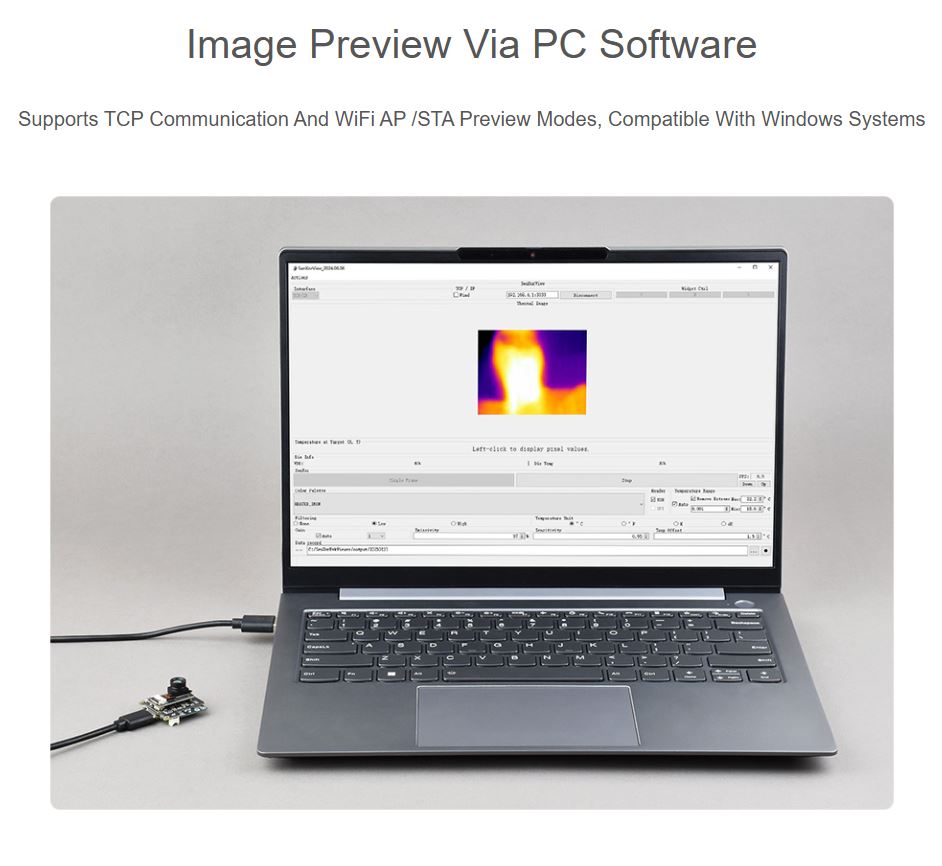

Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory

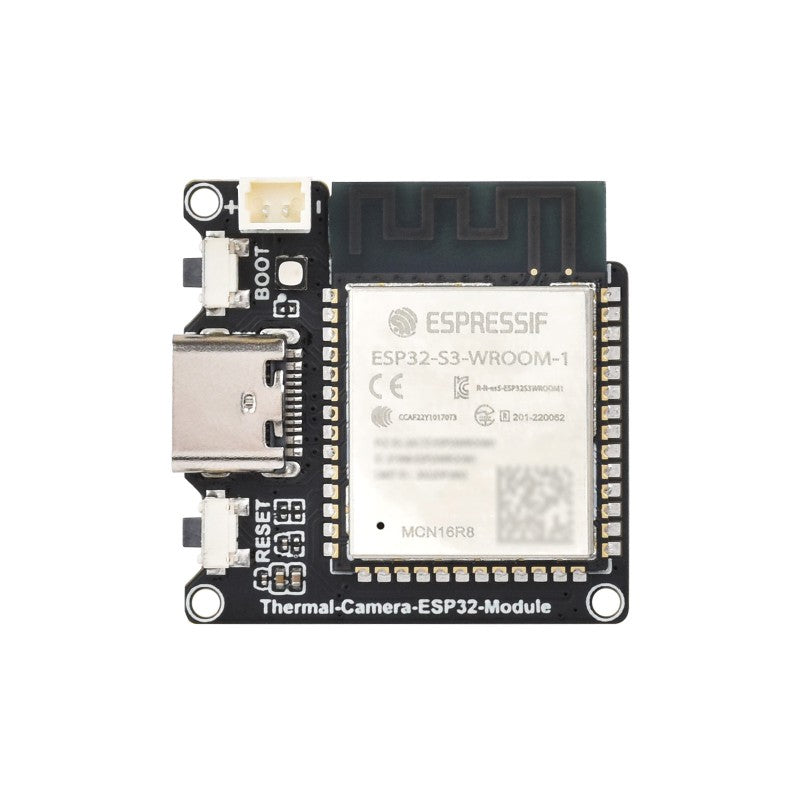

Type-C connector, enhancing device compatibility and user convenience
Onboard RGB LED indicator for real-time monitoring the operating status of the module
Onboard 3.7V MX1.25 Lithium battery recharge / discharge header for flexible power supply solution, extending device operation time

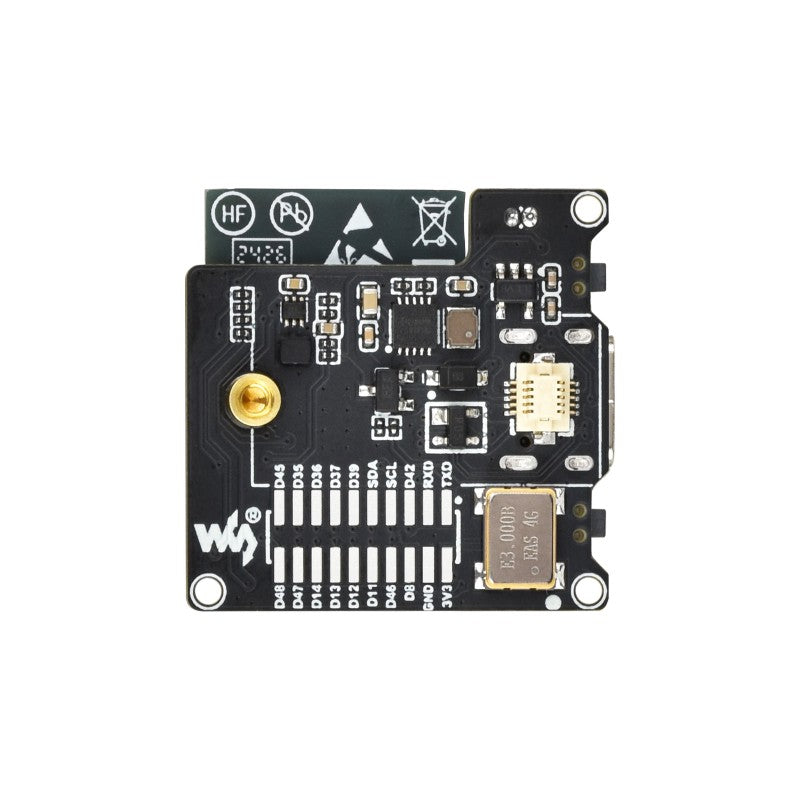

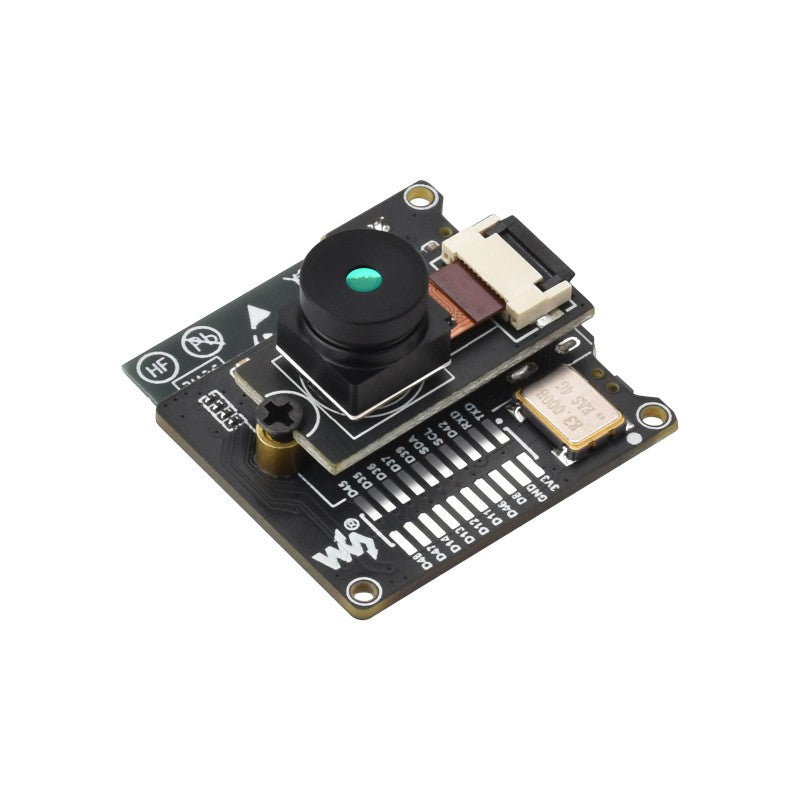

Onboard 2 × 10 solder pads, including 14 × GPIO, 1 × I2C, and 1 × UART, for external device expansion
Compact size design, more space-saving, making it ideal for embedded applications
Specifications
Operating voltage: 5V
Operating voltage: 127mA@5V
Wavelength range: 8~14μm

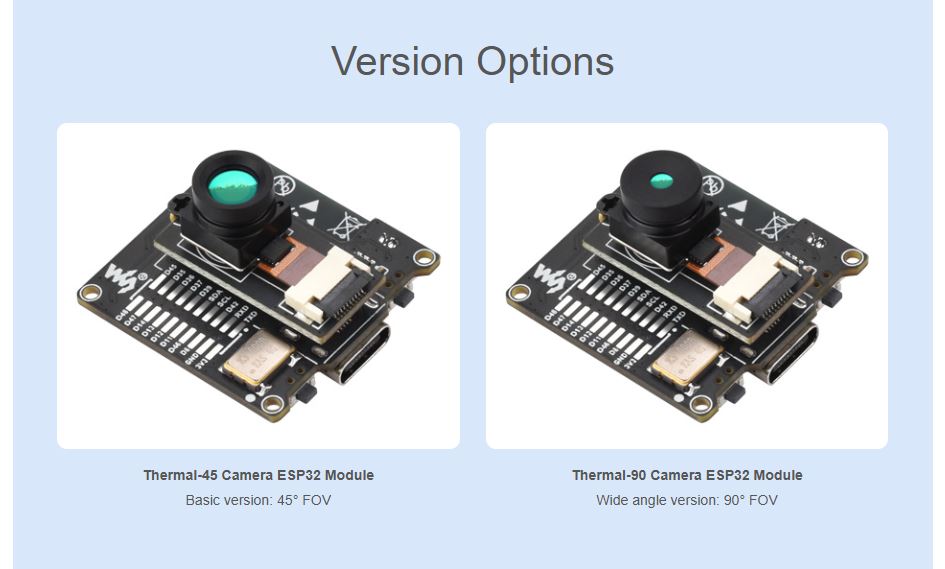

Field of View (FOV):56°(D) × 45°(H) × 34°(V) (Baisc version)122°(D) × 90°(H) × 67°(V) (Wide angle version)
Operating temperature: -40℃～85℃
Target Temperature: -40℃～400℃
Detection accuracy: ±2℃
Refresh Rate: 25 FPS(Max)Due to the influence of WiFi signals, there may be errors in the actual frame rate, subject to the usage environment.

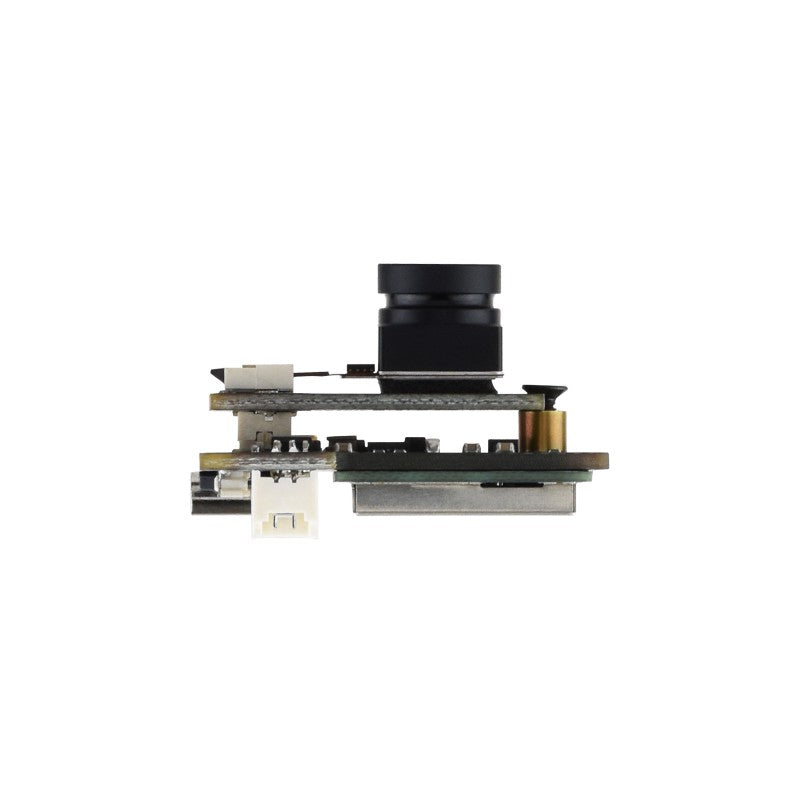

Dimensions: 29.0 × 29.0(mm)
Noise Equivalent Temperature Difference (NETD): 125mK
