ESP32-S3-PhotoPainter 7.3inch E6 Full Color E-paper Display With Solid Wood Photo Frame, Ultra-long Standby, 800 × 480 Resolution

ESP32-S3-PhotoPainter 7.3inch E6 Full Color E-paper Display With Solid Wood Photo Frame, Ultra-long Standby, 800 × 480 Resolution

SKU:E54003-001

$156.38 AUD
$156.38 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $8 within AU, more details

• Returns accepted for defective items, more details.
View full details

Description

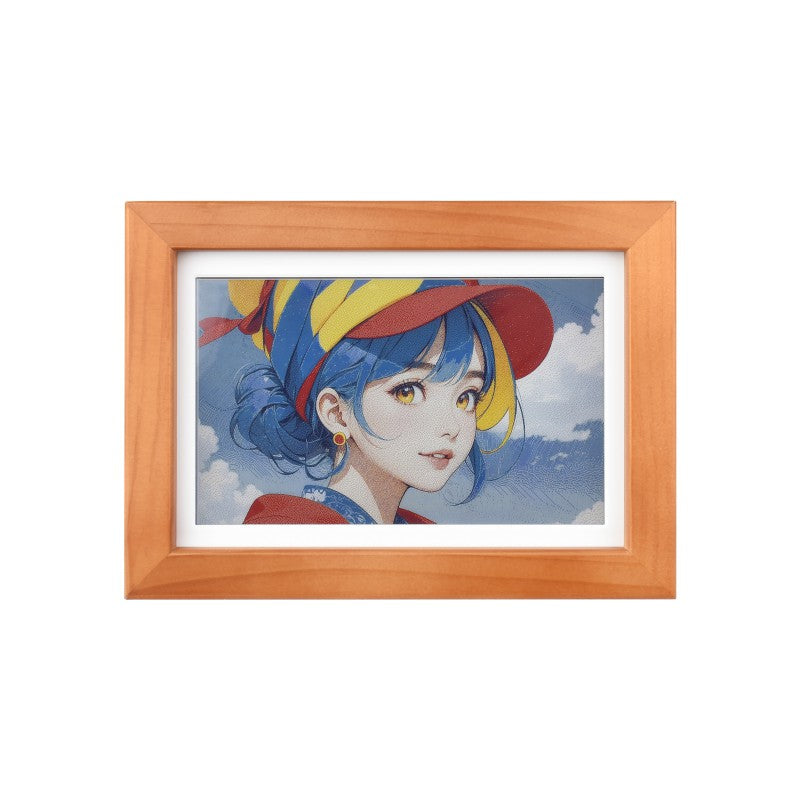

The ESP32-S3-PhotoPainter is an e-Paper AIoT photo frame, equipped with ESP32-S3 microcontroller with Wi-Fi and BLE communication support. Onboard 7.3inch e-paper display, features ultra-low power consumption, suitable for portable devices and long-battery-life scenarios. Integrated with an RTC chip, SHTC3 temperature and humidity sensor, TF card slot, low-power audio codec chip circuit, and Lithium battery recharge management circuit.

Features

  • Adopts high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), with onboard antenna
  • Built-in 512KB SRAM, 384KB ROM, with integrated 16MB Flash and 8MB PSRAM
  • Onboard audio encoder and decoder chips, supports voice capture and playback, enabling AI speech interaction applications
  • Adopts E Ink Spectra 6 (E6) technology, features high contrast and high color saturation
  • Supports six primary colors and employs Dithering technology to create vivid and saturated full color images
  • Ultra-low power consumption, basically power is only required for refreshing
  • Large capacity Lithium battery (optional), onboard power saving circuit, enabling thousands of refreshes on a single charge (without external speaker or other high-power peripherals)
  • Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
  • Simple solid wood photo frame, elegant and beautiful
  • Rotatable stand and hook hanger on the back, not limited to usage scenarios
  • Open source code, more freedom to customize functions

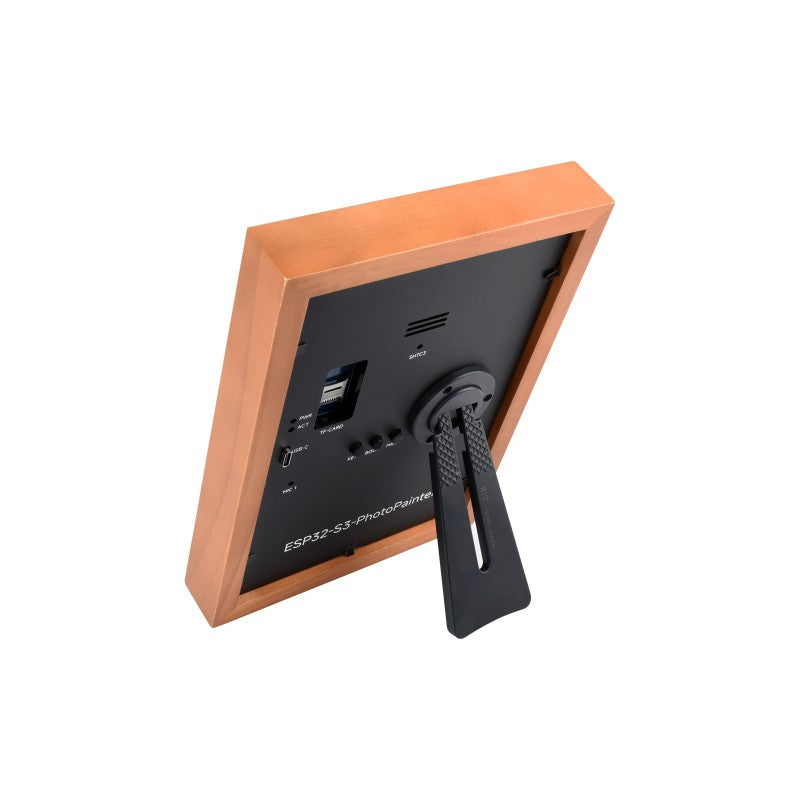

Onboard Resource

  1. ESP32-S3-WROOM-1-N16R8
    Wi-Fi and Bluetooth SoC, 240MHz operating frequency, with integrated 16MB Flash and 8MB PSRAM
  2. SHTC3 temperature and humidity sensor
    provides ambient temperature and humidity measurements, enabling environmental monitoring function
  3. ES7210 ADC audio decoder chip
    high-performance and low-power consumption audio ADC, supports multiple-channel microphone inputs
  4. ES8311 DAC audio encoder chip
    high-performance and low-power consumption audio DAC
  5. TG28
    highly integrated power management chip
  6. TF card slot
    supports FAT32-formatted TF card for data expansion
  7. MX1.25 2PIN speaker header
    audio output signal, for connecting external speaker
  8. MX1.25 2PIN Lithium battery header
    for connecting Lithium battery
  9. MX1.25 2PIN RTC backup battery header
    supports rechargeable RTC batteries only
  10. KEY button
    for custom function
  11. BOOT button
    press it when powering on to enter download mode
  12. PWR power button
    for system power supply ON/OFF
  13. PCF85063
    RTC chip, for time keeping function
  14. Dual-microphone array design
    dual microphone array, supporting richer voice interaction functions
  15. Type-C port
    for program burning and log printing
