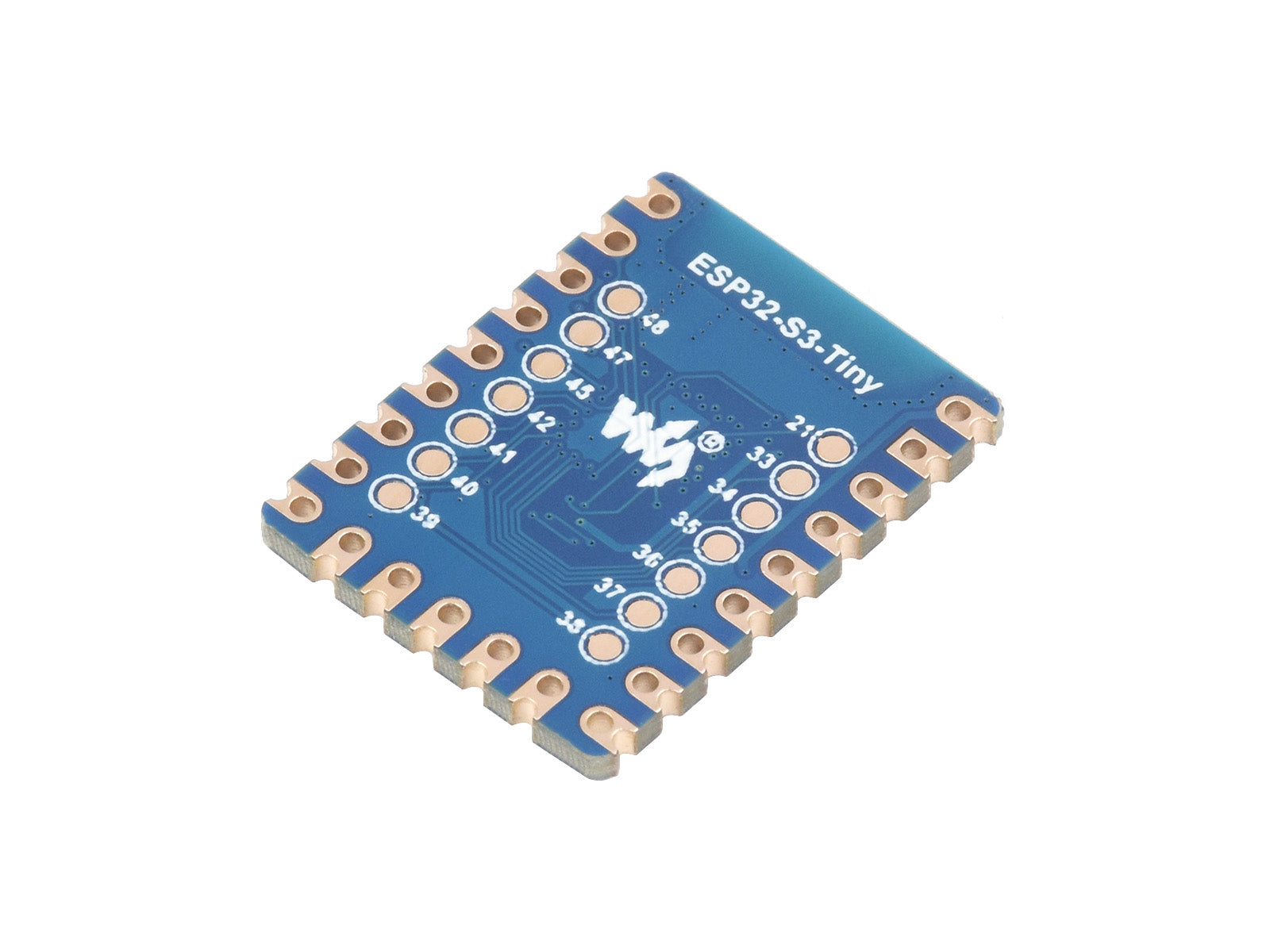

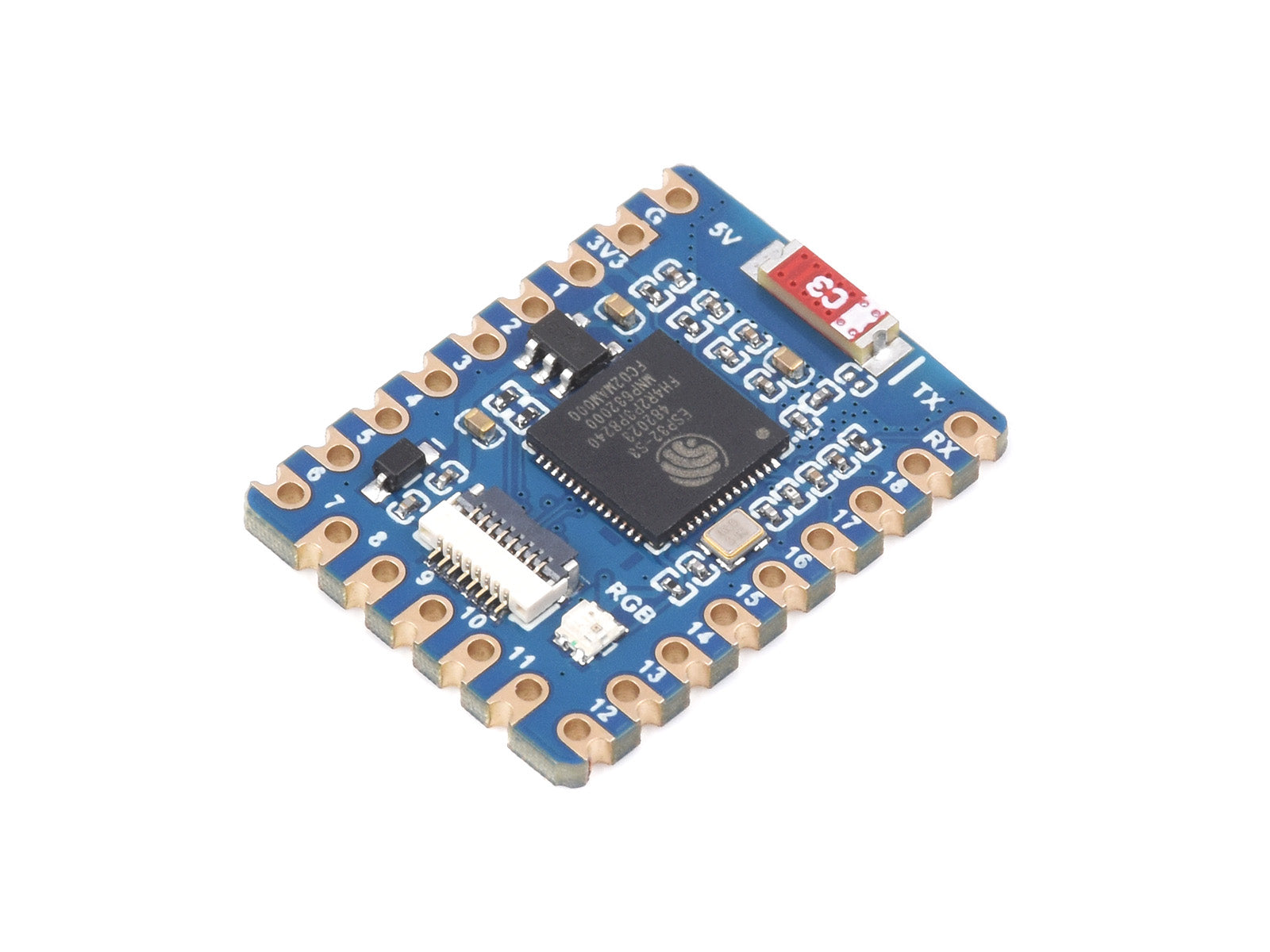

ESP32-S3-Tiny Development Board

ESP32-S3-Tiny Development Board

SKU:E01002-001

$11.84 AUD
$11.84 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $5 within AU, more details

• Shipping to Non-Australia, contact us

• Returns accepted for defective items, more details.
View full details

Description

ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, USB Port Adapter Board Optional

Features and Spec

  • Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Built in 512KB of SRAM and 384KB ROM, onboard 2MB PSRAM and 4MB Flash memory
  • Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance

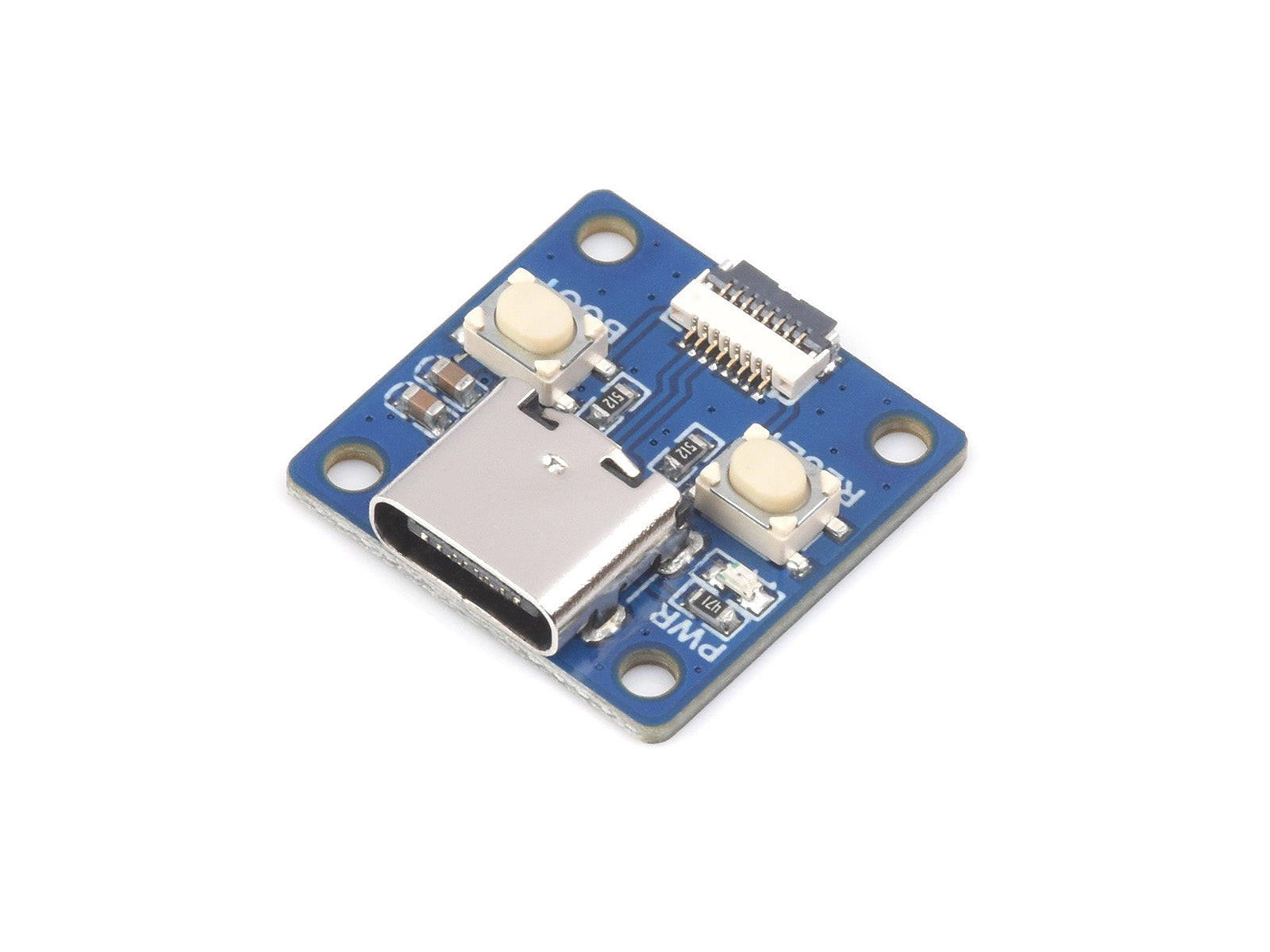

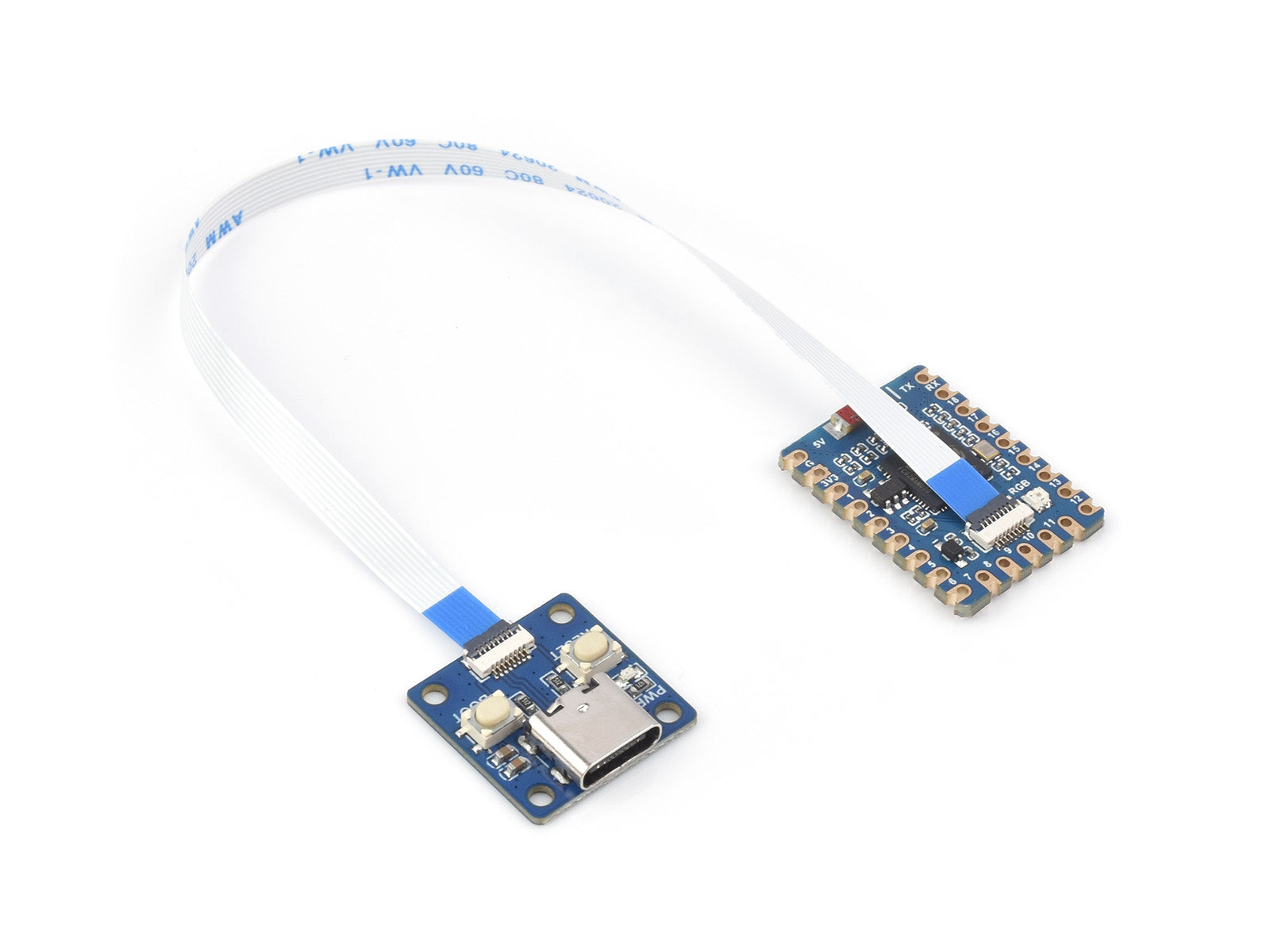

  • Onboard FPC 8PIN connector, supports adapting USB Type-C port via adapter board
  • 34 × multi-function GPIO pins
  • Rich peripheral interfaces, including SPI, I2C, UART, ADC, and PWM, etc. to achieve various functions flexibly
  • Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

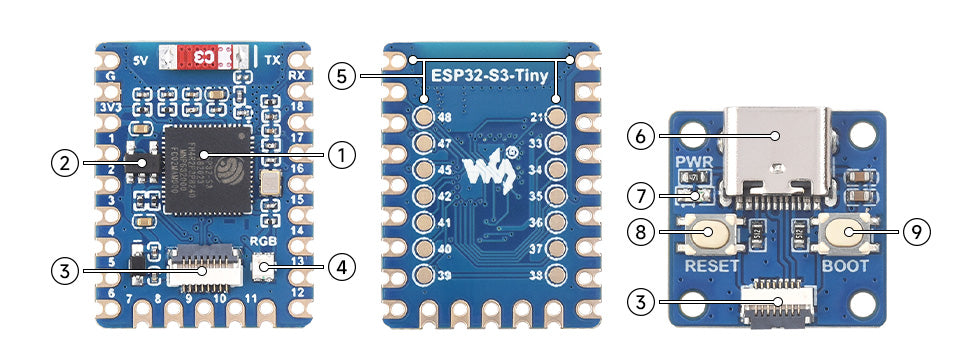

Block Diagram

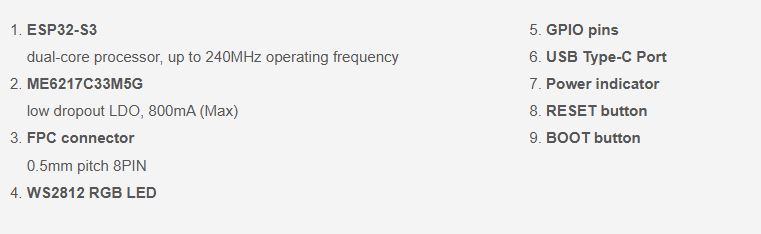

  1. ESP32-S3
    dual-core processor, up to 240MHz operating frequency
  2. ME6217C33M5G
    low dropout LDO, 800mA (Max)
  3. FPC connector
    0.5mm pitch 8PIN
  4. WS2812 RGB LED
  5. GPIO pins
  6. USB Type-C Port
  7. Power indicator
  8. RESET button
  9. BOOT button

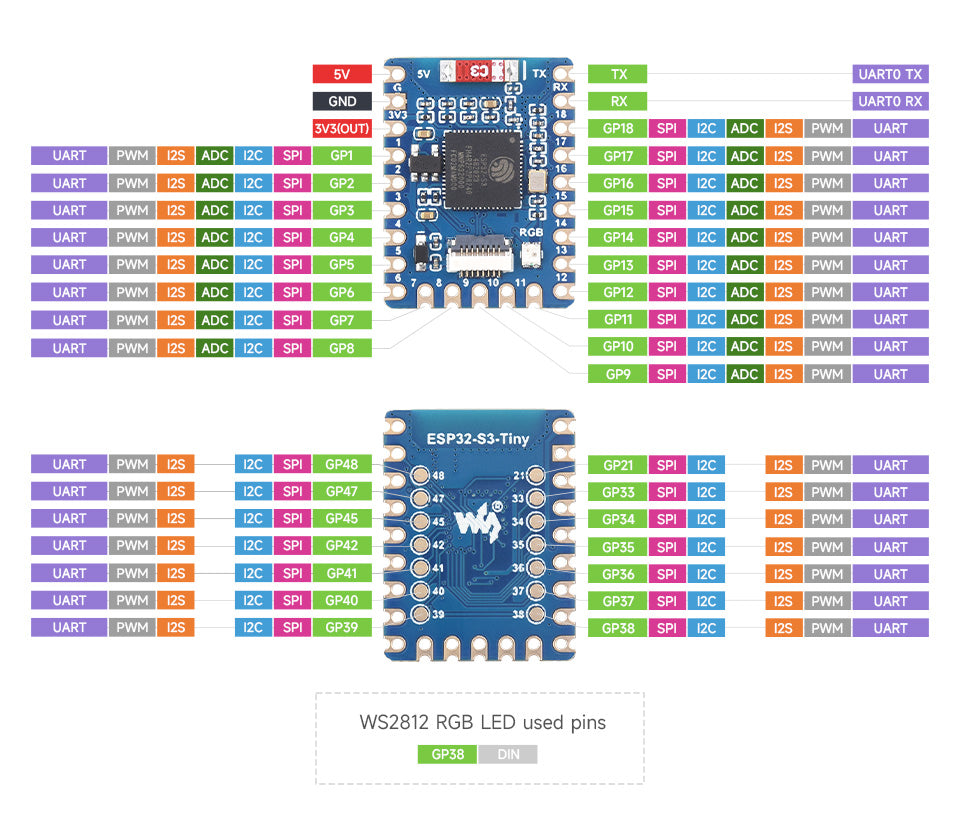

Pin List
