Description

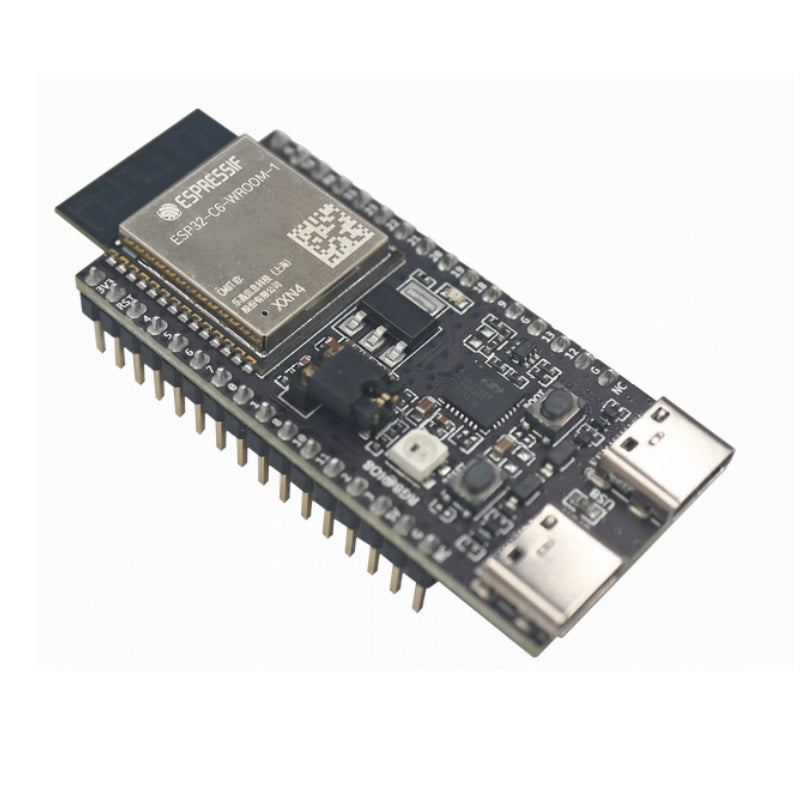

ESP32-C6-DevKitC-1 is an entry-level development board based on ESP32-C6-WROOM-1(U), a general-purpose module with a 8 MB SPI flash. This board integrates complete Wi-Fi, Bluetooth LE, Zigbee, and Thread functions.
Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C6-DevKitC-1 on a breadboard.
Related Documents
- ESP32-C6 Datasheet (PDF)
- ESP32-C6-WROOM-1 Datasheet (PDF)
- ESP32-C6-DevKitC-1 Schematic v1.4 (PDF) - Applies to boards of and after PW-2024-03-0595 and PW-2024-03-0921
- ESP32-C6-DevKitC-1 Schematic v1.3 (PDF) - Applies to boards of and after PW-2023-07-0440
- ESP32-C6-DevKitC-1 Schematic v1.2 (PDF) - Applies to boards before PW-2023-07-0440
- ESP32-C6-DevKitC-1 PCB Layout (PDF)
- ESP32-C6-DevKitC-1 Dimensions (PDF)
- ESP32-C6-DevKitC-1 Dimensions source file (DXF) - You can view it with Autodesk Viewer online
- Getting Started
