Description

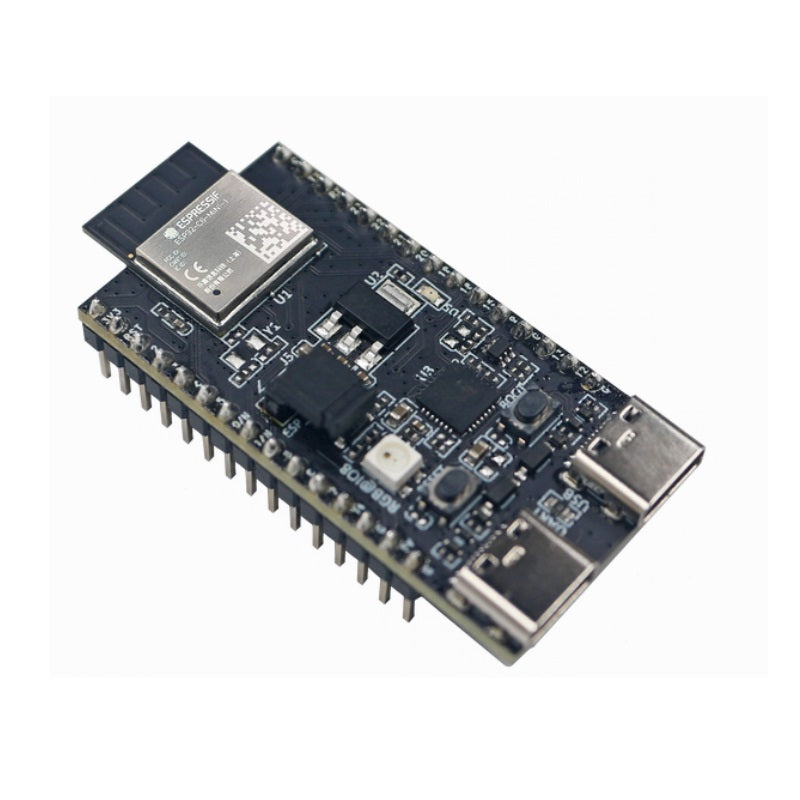

ESP32-C6-DevKitM-1 is an entry-level development board based on ESP32-C6-MINI-1(U), a general-purpose module with a 4 MB SPI flash in the chip’s package. This board integrates complete Wi-Fi, Bluetooth LE, Zigbee, and Thread functions.
Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C6-DevKitM-1 on a breadboard.
Related Documents
- ESP32-C6 Datasheet (PDF)
- ESP32-C6-MINI-1 Datasheet (PDF)
- ESP32-C6-DevKitM-1 Schematic (PDF)
- ESP32-C6-DevKitM-1 PCB Layout (PDF)
- ESP32-C6-DevKitM-1 Dimensions (PDF)
- ESP32-C6-DevKitM-1 Dimensions source file (DXF) - You can view it with Autodesk Viewer online
- Getting Started
