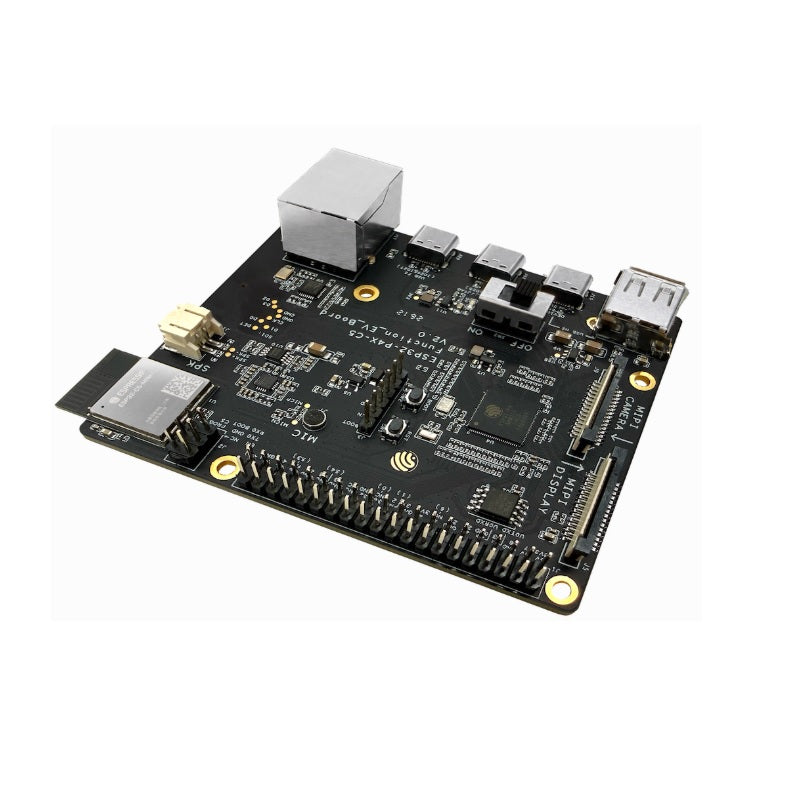

Espressif ESP32-P4X-C5-Function-EV-Board

Espressif ESP32-P4X-C5-Function-EV-Board

SKU:E01054-001

$127.34 AUD
$127.34 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $8 within AU, more details

• Shipping to Non-Australia, contact us

• Returns accepted for defective items, more details.
View full details

Board Overview

ESP32-P4X-C5-Function-EV-Board is a multimedia development board based on the ESP32-P4 chip. ESP32-P4 features a dual-core RISC-V processor and supports up to 32 MB PSRAM. In addition, ESP32-P4 supports USB 2.0 specification, MIPI-CSI/DSI, H264 Encoder, and various other peripherals, meeting the development needs of low-cost, high-performance, low-power multimedia products.

The board is equipped with the ESP32-C5-MINI-1 module, which supports 2.4 GHz & 5 GHz dual-band Wi-Fi 6 and Bluetooth 5 (LE) for Wi-Fi and Bluetooth communication. The board also includes a 7-inch capacitive touch screen with a resolution of 1024 x 600 and a 2MP camera with MIPI CSI, enriching the user interaction experience. The development board is suitable for prototyping a wide range of products, including visual doorbells, network cameras, smart home central control screens, LCD electronic price tags, two-wheel vehicle dashboards, etc.

Feature List

The board has the following features:

  • Main SoC: ESP32-P4, a dual-core RISC-V processor with 16 MB SPI flash and 32 MB PSRAM on board
  • On-board Module: ESP32-C5-MINI-1, supports 2.4 GHz & 5 GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4
  • Display: MIPI DSI interface, can connect a 7-inch capacitive touch screen (1024 × 600)
  • Camera: MIPI CSI interface, can connect a 2MP camera
  • Audio: ES8311 audio codec chip, NS4150B audio power amplifier, onboard microphone, speaker output port
  • Storage: MicroSD card slot (4-bit mode)
  • USB: USB 2.0 OTG Type-C port, USB 2.0 Type-A port, USB Full-Speed port, USB Serial/JTAG port
  • Network: RJ45 Ethernet port (10/100 Mbps adaptive)
  • Expansion: J1 header with available GPIO pins broken out
  • Buttons: BOOT button and Reset button
