Introduction
This advanced sensor combo integrates ScioSense's TrueVOC™ technology with precision BME280 measurements - delivering 5 critical air parameters through a single I2C interface.
Multi-Parameter Air Quality Analysis
Simultaneously measures TVOC (0-65,000ppb), eCO2 (400-65,000ppm), AQI, plus compensated temperature (±0.5°C) and humidity (±2% RH).
TrueVOC™ Technology for Reliable Detection
ScioSense's innovative metal-oxide platform provides lab-grade VOC detection with superior anti-interference and ＜3 minute warm-up time.
BME280 Environmental Compensation
Integrated barometric sensor automatically corrects ENS160 readings for altitude and weather effects, improving accuracy by 30% versus standalone sensors.
Plug-and-Play Smart Home Integration
Standard I2C output (0x53/0x76 addresses) works with Arduino/Raspberry Pi/ESP32 - includes libraries for Home Assistant and Node-RED.
Features

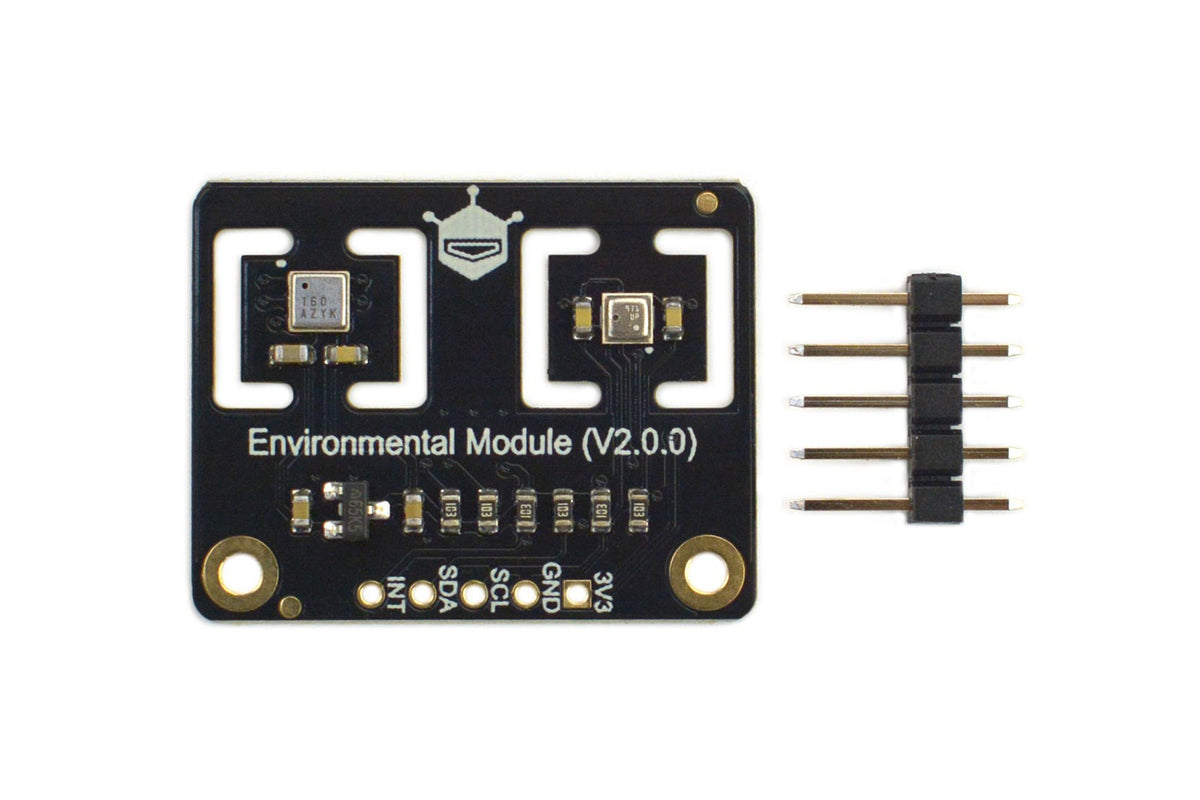

- Pre-soldered 2.54mm headers for prototyping
- Compatible with 3.3V/5V logic systems
- Stackable with other Fermion modules
- Included Python/Arduino libraries
- Weatherproof enclosure options available
Application
- Smart HVAC demand control
- Workplace air quality dashboards
- Industrial safety monitoring
- Grow room environmental control
- Building automation systems
Specification
- Power: 3.3V, ＜20mA operating current

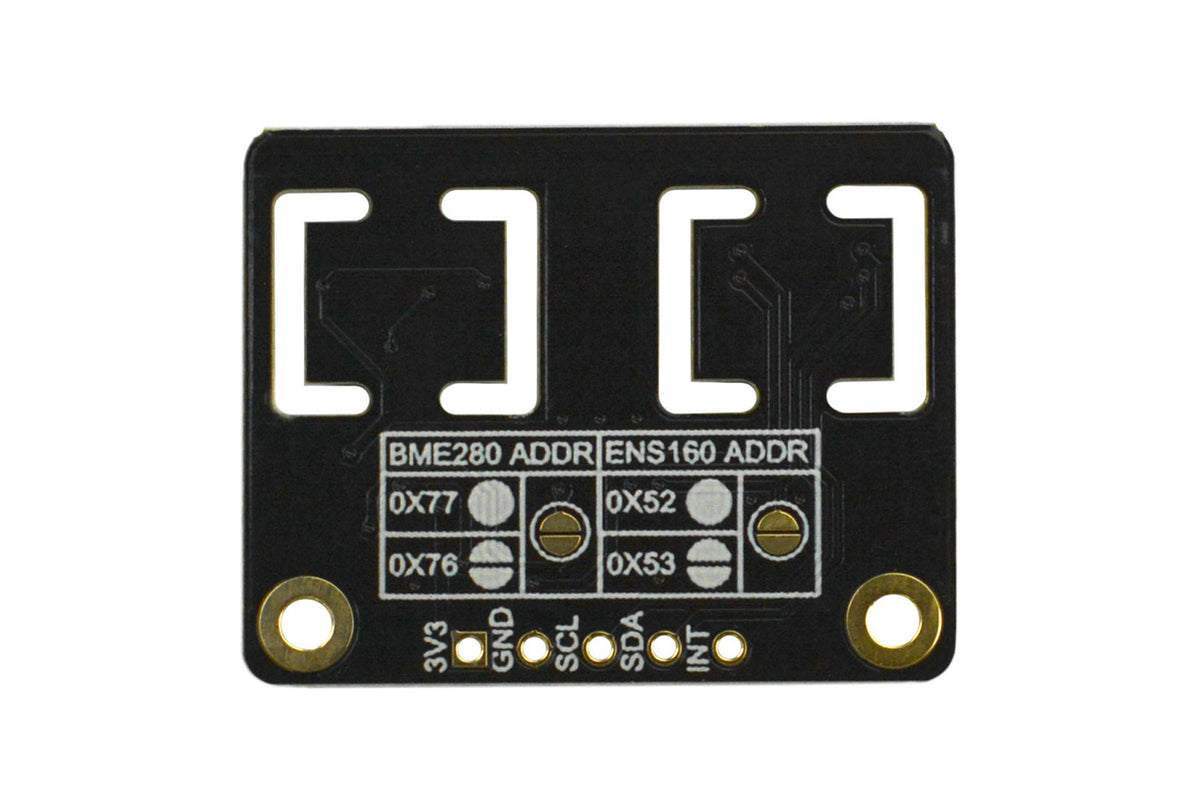

- Interface: I2C (ENS160:0x53, BME280:0x76)

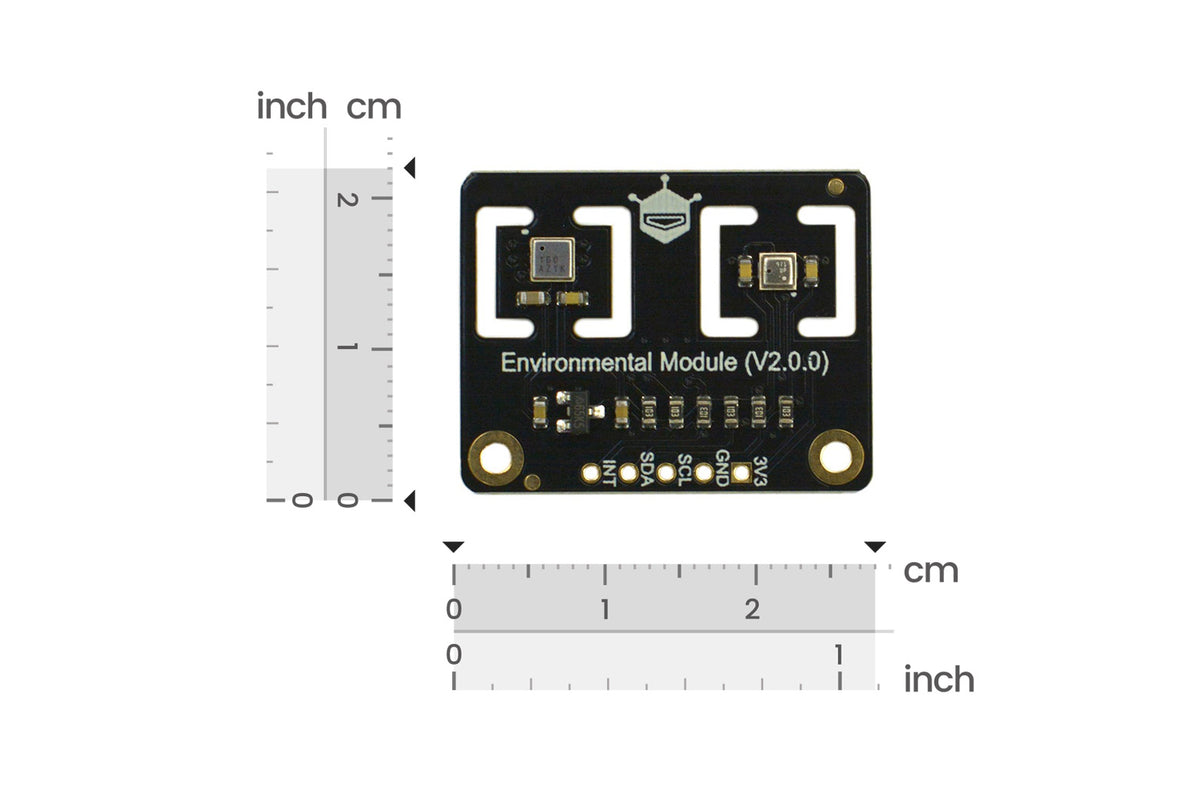

- Dimensions: 22×28mm
- Warm-Up: ＜3 minutes to operational
- Temperature Range: -40°C to +85°C
- Humidity Range: 5-95% RH
- Pressure Range: 300-1100hPa
- TVOC Accuracy: ±15% of reading
- eCO2 Accuracy: ±50ppm ±15% of value
